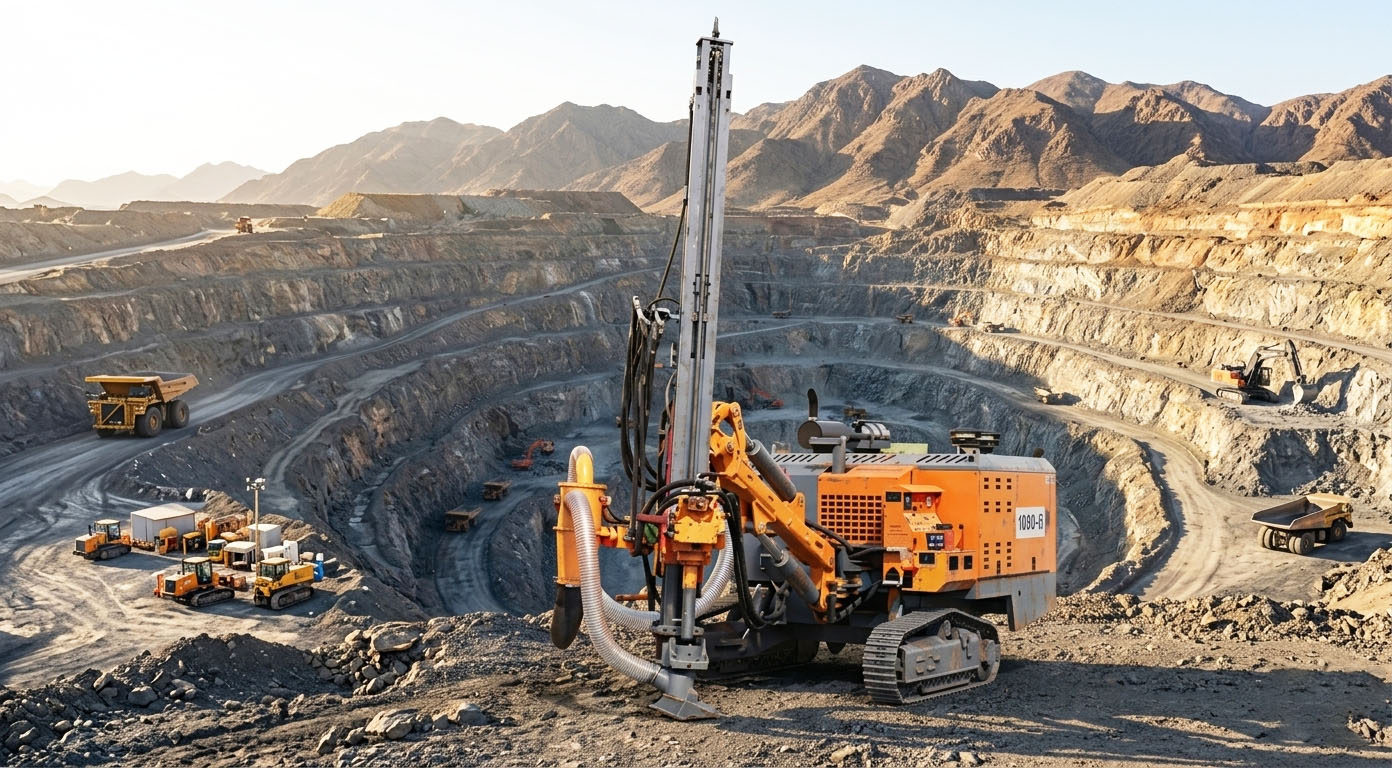

Slew Drive For Coal Mine Rig

Slew Drive For Coal Mine Rig

What Is a Slew Drive for Coal Mine Rigs?

In the demanding landscape of coal extraction and exploration, equipment reliability is the boundary between operational success and costly downtime. At the epicenter of a drilling rig’s performance is the Slew Drive—often referred to as the "heart" of the drill head. A slew drive is an all-in-one propulsion and load-bearing unit that integrates a slewing ring, a drive mechanism (worm or spur gear), and a fully enclosed housing into a single, pre-engineered module.

Unlike traditional open-gear sets or fragmented transmission systems that require separate bearings and gearboxes, the slew drive is a compact, plug-and-play solution. Its key Components are meticulously engineered for the coal face: the slewing ring provides the structural rotation and load support; the wormor spur gear facilitates the torque transfer; and the robust housing protects the internal precision from the brutal external environment.

For coal mine operations, Industry compliance is non-negotiable. Slew drives used in these environments must meet stringent safety standards for hazardous locations, often requiring explosion-proof motor interfaces and high IP (Ingress Protection) ratings, typically IP66 or IP67. These ratings ensure that the unit remains impervious to the pervasive coal dust, high-pressure water sprays, and corrosive slurries common in underground galleries. LyraDrive’s engineering philosophy ensures that every unit serves as a fortified shield for the rig's power train, maintaining integrity where traditional gearboxes would fail.

How Does a Slew Drive Work in Mining Operations?

The operational efficiency of a coal mine rig depends on its ability to convert high-speed energy into massive, controlled rotational force. The power transmission path begins at the motor interface—usually a hydraulic motor in underground settings due to its inherent safety. The rotation enters the slew drive through the input shaft, where the gear Reduction occurs. As the small input gear (the worm) meshes with the larger slewing ring, the speed decreases while the torque is exponentially amplified. This torque amplification is what allows a relatively small motor to rotate a drill string weighing several tons through dense rock and coal strata.

motion control is another critical principle. In modern coal mining, simply spinning the drill isn't enough; operators need precise RPM regulation to match the geological formation. Slew drives provide a consistent torque output that prevents "stuttering" during the drilling process, which is essential for maintaining the life of the drill bit and the integrity of the bore hole.

Perhaps the most impressive aspect of slew drive physics is load management. During a typical drilling cycle, the unit does not just experience rotation. It must simultaneously handle axial thrust (the downward pressure of the drill), radial force (the side-to-side vibration of the drill pipe), and tilting moments (the leverage force exerted when drilling at an angle). The integrated slewing ring acts as a massive specialized bearing that absorbs these multi-directional forces, protecting the gear teeth from misalignment and premature wear.

Core Types of Slew Drives Used in Coal Mine Rigs

Understanding the classification of slew drives is essential for matching the technology to the specific mining task. The first major distinction is between single-axis and dual-axis drives. Single-axis drives are the workhorses of standard vertical or horizontal rigs. However, for multi-angle directional drilling or complex roof-bolting applications, dual-axis drives provide rotation in two planes simultaneously, allowing for unprecedented maneuverability in tight roadway spaces.

The choice of internal gearing further defines the drive’s utility. Worm Gear Drives are the gold standard for heavy-duty coal mining. Their primary advantage is the high gear ratio achieved in a single stage, coupled with an inherent self-locking safety feature. This prevents the drill from "back-driving" or spinning out of control if power is lost—a vital safety factor in vertical drilling.

Conversely, spur or helical gear drives are often optimized for light-duty rigs or applications requiring high-speed rotation and greater mechanical efficiency. While they lack the self-locking feature of worm gears, they offer faster cycle times for shallower holes. Regardless of the gear type, enclosed housing designs are a universal requirement across all mining classifications. These housings are cast from high-strength ductile iron, providing a "vault" for the gears that keeps out coal dust and acidic mine water while retaining the life-extending lubricants within.

Key Features & Specifications for Coal Mine Slew Drives

When evaluating a slew drive for a coal mine rig, the technical parameters must be aligned with the rig’s maximum operational limits. Load capacity, both static and dynamic, is the primary specification. The static load capacity determines the drive’s ability to hold the weight of the drill string during pauses, while the dynamic capacity dictates the maximum drilling depth and rock penetration capability. Over-specifying these loads is a common best practice at LyraDrive to account for the unpredictable "shock loads" encountered when a bit hits a hard rock pocket.

Backlash precision is a critical parameter for directional drilling. Backlash refers to the minute clearance between mating gear teeth. In standard industrial applications, a small amount of play is acceptable. However, in coal mines where a gas drainage hole might be 1,000 meters long, even a 0.1-degree error at the drive can lead to a multi-meter deviation at the bit. LyraDrive’s precision-series drives offer "Low Backlash" or "zero backlash" configurations to ensure steering accuracy.

Environmental parameters like Sealing Systems (IP66/67) and Material Science are equally vital. Mining slew drives utilize specialized alloy steels for the gears to prevent brittle fracture. Furthermore, the external surfaces are treated with anti-corrosive coatings—often marine-grade epoxy or Dacromet—to resist the corrosive "acid mine drainage" common in underground environments. This chemical resistance ensures that bolts don't seize and housings don't pit, even after years of service in high-humidity conditions.

Advantages of Integrating Slew Drives in Coal Mine Rigs

The shift from traditional gearboxes to integrated slew drives offers three transformative benefits for coal mine operators.
First is Compact Integration. By combining the bearing and the gears, the total footprint of the drill’s "power head" is significantly reduced. This allows for the design of smaller, more maneuverable rigs that can operate in narrow "low-seam" galleries where traditional equipment simply cannot fit.

Second is enhanced safety. The mechanical self-locking feature of worm gear slew drives acts as a secondary, fail-safe brake. During a power loss or hydraulic failure, the friction of the worm gear prevents the drill pipe from sliding back down the hole—a phenomenon known as "drill slip" that can lead to catastrophic equipment damage or personnel injury.

Third, slew drives offer Reduced Maintenance. Because the system is fully enclosed and operates in a permanent oil or grease bath, the internal components are shielded from the abrasive "grinding paste" created when coal dust mixes with standard lubricants. This high-integrity sealing, paired with LyraDrive’s long-life lubrication strategies, drastically reduces the frequency of underground maintenance intervals, keeping the rig in the "production zone" for longer periods.

 How to Choose the Right Slew Drive for Your Rig ?

Selecting the correct slew drive requires a rigorous engineering approach. The process begins with torque calculation. This isn't just about the motor's power; it’s about estimating the resistance of the formation. Harder rock strata and larger hole diameters require higher "breakout torque." A drive that is under-specced for torque will suffer from accelerated gear wear or tooth shear.

Environmental matching is the next step. A drive designed for a surface-mining blast-hole rig faces different challenges than one designed for an underground roadway rig. Surface drives need better thermal dissipation to handle high ambient temperatures and solar loading, whereas underground drives need superior explosion-proof ratings and compact dimensions.

Finally, a compatibility check is essential. Engineers must verify that the slew drive’s motor interface aligns with existing hydraulic systems (SAE flanges are standard) and that the mounting bolt pattern can handle the tilting moments of the rig's mast. LyraDrive provides comprehensive CAD integration support to ensure that the drive fits the rig’s chassis perfectly on the first try, avoiding costly field modifications.

Installation & Lifecycle Maintenance Best Practices

The longevity of a slew drive is often determined in its first hour of operation. Initial setup requires strict adherence to base flatness specifications. If the mounting surface is uneven, the slew drive housing can warp slightly, leading to "tight spots" in the gear mesh and uneven bearing wear. Furthermore, bolt pre-tensioning must be done with calibrated torque wrenches to ensure that the high vibrations of drilling don't loosen the assembly.

A robust lubrication strategy is the most effective way to prevent failure. Not all greases are created equal; for coal mines, we recommend extreme-pressure (EP) lubricants with high water resistance. The replacement intervals should be adjusted based on the "temperature gradient" of the mine—deeper, hotter mines require more frequent lubrication purges to remove oxidized oil and microscopic wear particles.

Lastly, condition monitoring allows for "Predictive Maintenance" rather than "Reactive Repair." By training operators to identify early warning signs—such as a change in the acoustic signature (noise), a spike in housing temperature, or increased vibration—mines can schedule repairs during planned downtime. LyraDrive’s advanced units can be equipped with integrated sensors that transmit this data directly to the rig’s control system.

LyraDrive: Custom Slew Drive Manufacturer for Coal Mine Rigs

Lyra Drive is a professional one-stop slewing device manufacturer majored in design and development, customized production, sales and service on slew drives and slewing bearings. With a global reputation built on precision engineering and industrial resilience, we serve as a strategic partner to original equipment manufacturers (OEMs) and mining enterprises who refuse to compromise on quality. Our facility integrates state-of-the-art R&D with a lean manufacturing approach, allowing us to oversee the entire lifecycle of a product—from the initial metallurgical selection to the final performance certification.

In the specialized field of coal mining, we understand that "off-the-shelf" solutions rarely survive the unique stresses of subterranean operation. This is why LyraDrive specializes in Customized Slew Drives specifically engineered for coal mine rigs. We don't just provide hardware; we provide bespoke engineering. Our team analyzes your rig’s specific load charts, hydraulic pressure limits, and spatial constraints to design a drive that fits seamlessly into your chassis. Whether it is modifying gear ratios for high-torque "breakout" scenarios or utilizing proprietary anti-corrosive coatings for acidic mine drainage, our customization ensures that every unit is "mine-hardened" for your specific geological challenges.

Our commitment to reliability is backed by exhaustive testing protocols. At LyraDrive, we simulate extreme underground fatigue cycles in our laboratories, subjecting our drives to 1.5x their rated loads in high-dust and high-humidity chambers. This rigorous validation ensures that when your rig is deep in the coal seam, our drive performs with unwavering consistency. With a global track record powering leading coal mining equipment models across five continents, LyraDrive is the definitive choice for those seeking to maximize uptime and safety.

Elevate your drilling performance with a partner that understands the depths of your industry. Don't let a generic component be the weak link in your operation.
Choose LyraDrive—where customized engineering meets the brutal reality of the coal face. Contact our engineering team today to transform your rig's rotational capabilities into a competitive advantage.

FAQ About Slew Drives for Coal Mine Rigs

Q1: Why prefer worm gear slew drives over standard planetary reducers for mining?Worm gear drives offer an integrated bearing (reducing space), higher torque in a single stage, and a self-locking feature that planetary gearboxes lack. In the tight, safety-critical environment of a coal mine, these are decisive advantages.

Q2: How do these drives perform in extreme low/high-temperature mines?LyraDrive uses specialized low-temperature steels for Arctic mining and high-thermal-efficiency housings for deep, hot mines. Combined with temperature-matched lubricants, our drives operate reliably from -40°C to +70°C.

Q3: Emergency protocols if seals are breached by coal slurry?If a seal is breached, the unit should be immediately purged with fresh grease to push out contaminants. LyraDrive units feature "double-lip" seals and labyrinth paths to minimize the impact of a primary seal failure until the next maintenance window.

Q4: Does LyraDrive support MA (Mining Safety) certification requirements?Yes. Our mining-series drives are designed to be compatible with MA-certified explosion-proof motors and meet the structural safety requirements for underground use in regulated markets.

Q5: How to inspect internal gear wear without full equipment disassembly?Most LyraDrive units include inspection ports or "wear indicators" on the bearing. By sampling the grease for metal particulates and measuring the backlash increase over time, technicians can accurately assess gear health without removing the drive from the rig.
