Enveloping Slewing Drive SE21

What is Enveloping Slewing Drive SE21?

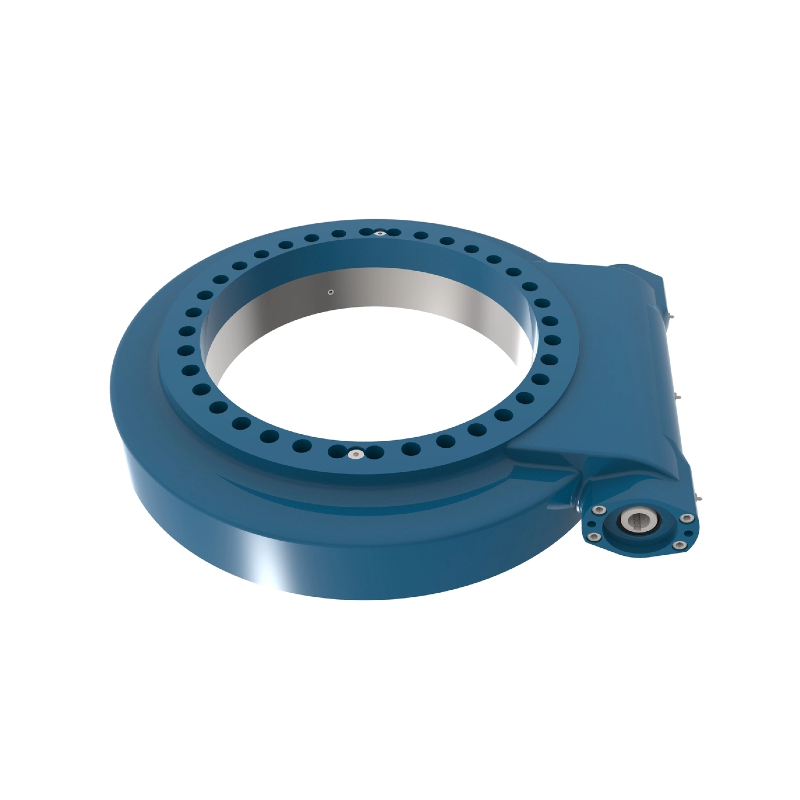

The Enveloping Slewing Drive SE21 is an advanced integrated transmission component designed for heavy-duty machinery and applications that require reliable rotational motion with high torque. Composed primarily of a base, worm gear, and worm wheel, this slewing drive is engineered to handle axial loads, radial forces, and tilting moments simultaneously, offering superior performance and reliability.

What sets the SE21 apart from conventional slewing drives is its use of an enveloping worm design, which enables the worm to mesh with four to five teeth of the worm wheel simultaneously. This unique design significantly enhances the output torque and holding torque, providing a more robust solution for demanding applications. Additionally, the SE21 comes equipped with a self-locking feature that prevents the rotating components from reversing when the driving force is lost, ensuring safe operation in a variety of applications.

The SE21 slewing drive is sealed and protected, providing a high degree of resistance to dust, water, and other environmental factors. With an IP65 protection rating, it is particularly well-suited for outdoor use or in harsh environments where durability and reliability are essential.

Applications of Enveloping Slewing Drive SE21

The SE21 series is widely used in industries that require robust, reliable rotational drives with high torque, especially in applications that need to perform in demanding environments. Some of the most common applications include:

1. Aerial Work Platforms: The SE21 is used extensively in high-altitude work vehicles, where precise and reliable rotation is required to lift heavy loads safely and efficiently. Its self-locking feature and high torque capacity make it ideal for these types of applications.

2. Truck Cranes: The SE21 slewing drive is also a preferred choice for truck cranes, where the slewing drive system needs to perform under heavy loads and harsh operating conditions. The SE21’s ability to handle axial and radial forces simultaneously makes it suitable for use in such high-demand machinery.

3. Construction Equipment: In construction equipment, such as excavators and loaders, the SE21 provides essential rotational drive functions, helping to power booms and other rotating components. Its sealed design also protects it from the dust and debris typical in construction environments.

4. Offshore Machinery: The SE21 is used in offshore machinery and platforms, where it operates in highly corrosive environments. The IP65 rating and self-locking function provide enhanced safety and durability, even in extreme conditions.

5. Renewable Energy Systems: In renewable energy applications like wind turbines, the SE21 slewing drive can be employed to rotate blades and other large components, where consistent and efficient performance is required.

6. Industrial Automation: The SE21 can be integrated into robotic systems, conveyors, and other automation equipment that require precise rotational control with a high load-bearing capacity. Its performance in low-speed, high-torque situations makes it an ideal choice for various automated processes.

Features of Enveloping Slewing Drive SE21

The SE21 Enveloping Slewing Drive is a cutting-edge product with a range of features that enhance its performance and reliability:

1. Enveloping Worm Gear Design: The key feature of the SE21 slewing drive is the enveloping worm gear, which allows multiple teeth (4-5) of the worm wheel to engage simultaneously with the worm. This design ensures a more efficient torque transfer, improving both the output torque and holding torque, making the SE21 a reliable choice for heavy-duty applications.

2. Self-Locking Function: The built-in self-locking mechanism prevents the rotating components from reversing when the driving force is lost. This function enhances safety by ensuring that the system remains locked and prevents unwanted movement, even in the absence of a power source.

3. IP65 Protection Rating: With an IP65 rating, the SE21 slewing drive offers excellent resistance to dust, water, and other environmental contaminants. This makes it ideal for use in outdoor and harsh conditions, including construction sites, offshore platforms, and other extreme environments.

4. High-Torque Capability: The SE21 is designed to handle high axial loads, radial forces, and tilting moments. This robust design ensures that the slewing drive can operate efficiently even under the most demanding conditions.

5. Compact and Integrated Design: The SE21 features an integrated unit design that minimizes the need for additional components and simplifies the installation process. This compact design also helps save space, making it easier to incorporate into various machinery setups.

6. Improved Sealing Options: The SE21 comes with optimized sealing options, including single-skeleton and double-skeleton oil seals, providing enhanced protection against dust, dirt, and moisture, which is especially beneficial in harsh working environments.

7. Durability and Reliability: Designed for long-term operation, the SE21 is made with durable materials and manufacturing processes that ensure high performance and longevity, even in challenging environments.

How to Customize Enveloping Slewing Drive SE21

Customizing the SE21 Enveloping Slewing Drive to meet specific application requirements can involve various factors, including:

1. Torque and Load Requirements: The SE21 is available with different torque capacities and load-bearing ratings, allowing for customization based on the specific needs of your application. Depending on the axial and radial load requirements, the SE21 can be modified to handle higher forces and provide greater output torque.

2. Sealing and Protection: The SE21 can be customized with different sealing options to meet specific environmental protection standards. Whether you need enhanced dust resistance, water resistance, or resistance to extreme temperatures, Lyra Drive can adjust the sealing system accordingly to meet the needs of your application.

3. Gear Ratios: The SE21 offers customizable gear ratios, which are critical for applications requiring specific speed and torque characteristics. Custom gear ratios can be selected to optimize performance for different machinery and operational needs.

4. Size and Mounting Configuration: The mounting configuration of the SE21 can be tailored to fit specific machinery setups. Whether you require a horizontal or vertical mount, or customized mounting interfaces, the SE21 can be adapted to ensure a seamless integration into your system.

5. Additional Features: Depending on the needs of the application, additional features such as custom coatings, special materials for extreme conditions, and enhanced lubrication systems can be incorporated into the design.

6. Motor Compatibility: The SE21 can be integrated with different types of motors, including hydraulic motors, electric motors, or other power sources. This flexibility allows customers to choose the most suitable drive motor for their system, further enhancing the versatility of the SE21.

Lyra Drive is a Professional Manufacturer of Enveloping Slewing Drive SE21

Lyra Drive is a recognized leader in the manufacturing of slewing drives, including the Enveloping Slewing Drive SE21. With extensive expertise in mechanical transmission systems and a commitment to delivering high-performance, customized solutions, Lyra Drive is the ideal partner for customers looking for reliable slewing drives for a wide range of industrial applications.

Why Choose Lyra Drive?

1. Expertise and Experience: With years of experience in the slewing drive industry, Lyra Drive’s engineering team has the expertise to design and manufacture high-quality, efficient slewing drives that meet the specific needs of various industries.

2. Customization Options: Lyra Drive offers extensive customization options for the SE21 slewing drive. Whether you need modifications to torque capacity, sealing systems, or motor compatibility, Lyra Drive can tailor the slewing drive to your exact specifications.

3. Durability and Reliability: Lyra Drive’s SE21 slewing drives are built to last, with durable materials and cutting-edge manufacturing processes ensuring high reliability and longevity, even in the harshest operating conditions.

4. Global Reach with Local Support: Lyra Drive serves customers globally, with a network of distributors and support teams located around the world. No matter where you are, Lyra Drive provides the support you need to ensure optimal performance and long-term satisfaction.

5. Cost-Effective Solutions: Lyra Drive offers competitive pricing without compromising on quality. By optimizing the manufacturing process and maintaining high standards of quality control, Lyra Drive ensures that customers receive the best value for their investment.

6. Commitment to Quality: Every SE21 slewing drive undergoes rigorous testing and quality control procedures to ensure it meets the highest standards of performance, durability, and safety. This commitment to quality makes Lyra Drive a trusted supplier for critical applications.

Conclusion

The Enveloping Slewing Drive SE21 is a high-performance, customizable, and reliable solution for a variety of industrial applications. With its unique enveloping worm design, self-locking function, and IP65 rating, the SE21 excels in environments where durability and precision are paramount. Whether you are in construction, renewable energy, or offshore operations, the SE21 provides the reliability and performance you need to ensure smooth, efficient operation in demanding conditions.

Lyra Drive is a professional manufacturer of the SE21 slewing drive, offering expert engineering, customization options, and top-tier support to help you achieve optimal performance for your specific needs. Choose Lyra Drive for your slewing drive solutions, and benefit from a partner who is committed to quality, reliability, and customer satisfaction.
