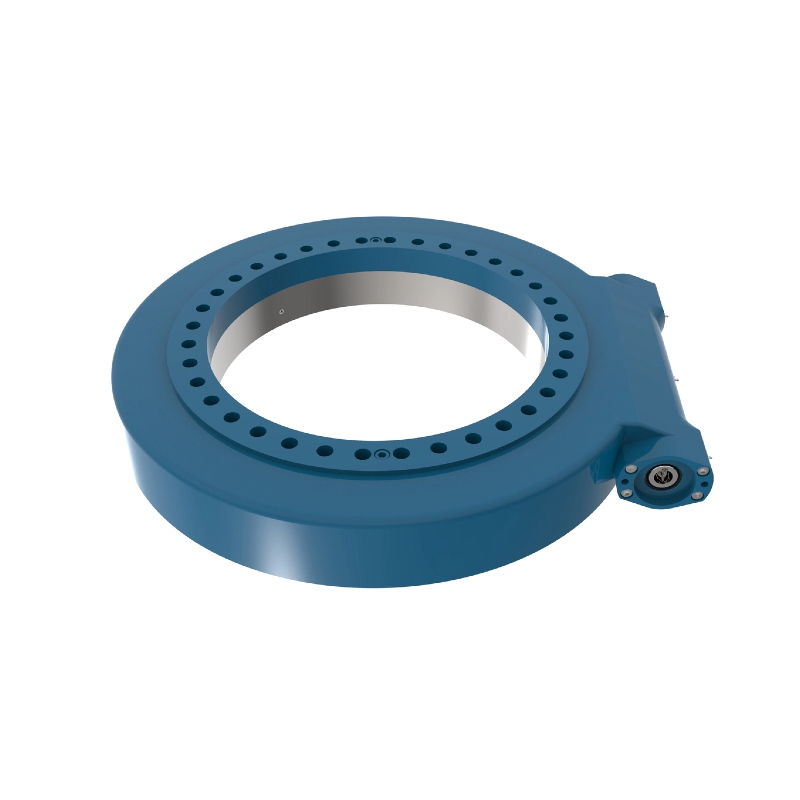

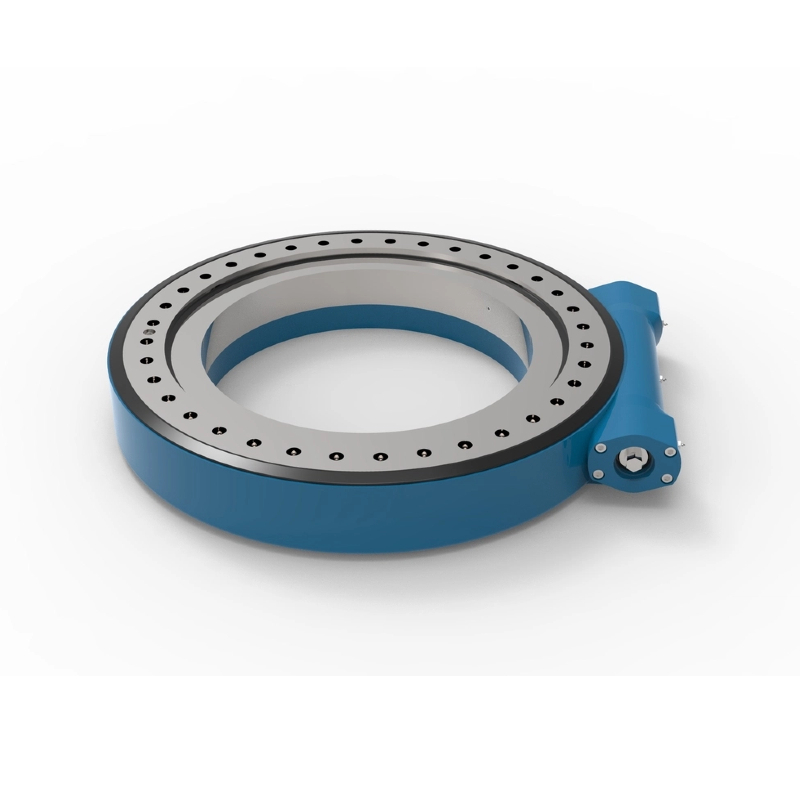

Enveloping Slewing Drive SE25

What is Enveloping Slewing Drive SE25?

The Enveloping Slewing Drive SE25 is an integrated, modular transmission component designed to offer enhanced torque output and operational reliability. This slewing drive is made up of a base, worm gear, and worm wheel, with the core design featuring an enveloping worm structure that ensures better engagement between the worm and worm wheel. Specifically, the SE25 features a unique design where 4 to 5 teeth of the worm wheel engage simultaneously, improving torque transmission and maintaining higher holding torque.

The SE25 is built to withstand axial, radial, and tilting moments while maintaining its self-locking function, which prevents the driven part from reversing in the event of a power loss. This self-locking feature is especially important for applications where safety and load-bearing capabilities are critical.

Additionally, the SE25 slewing drive has been engineered with a high degree of protection. Its enclosure is sealed to meet IP65 protection standards, ensuring it is resistant to dust and water, making it suitable for use in outdoor or harsh environmental conditions. This slewing drive is commonly paired with hydraulic motors or electric motors, offering flexibility and adaptability to various driving requirements.

Applications of Enveloping Slewing Drive SE25

The Enveloping Slewing Drive SE25 is widely used across a range of industries where precise rotational movement is required under heavy loads. Some of its key applications include:

1. Aerial Work Platforms
   In aerial work platforms, the SE25 slewing drive plays a crucial role in rotating the platform, allowing workers to safely reach high altitudes. The drive’s self-locking feature ensures that the platform remains securely locked in place when not in motion, preventing unintended movement.

2. Mobile Cranes
   In mobile cranes, the SE25 is used for the rotation of the crane’s turret. It provides reliable and precise motion control, even under heavy loads, ensuring that the crane operates safely and efficiently. The enhanced torque output and tilting moment capability make it ideal for handling large lifting operations.

3. Construction Equipment
   The SE25 is often integrated into construction machinery, such as excavators and concrete mixers, where rotation and movement of heavy equipment are required. The high holding torque of the SE25 ensures stability, even when the machine is under heavy operation.

4. Wind Turbine Yaw Drives
   In the renewable energy sector, the SE25 can be used in wind turbine yaw systems. It allows the turbine to rotate and align with the wind direction, maximizing efficiency. Its high protection rating ensures reliable performance in harsh weather conditions.

5. Robotics and Automation
   The SE25 slewing drive is also utilized in robotics and automated systems for applications where high precision and torque are required, such as industrial robots or automated guided vehicles (AGVs). The self-locking function ensures safety in case of power failure.

6. Heavy Duty Applications
   For industries that require low-speed, high-torque solutions, the SE25 provides an effective solution. It is particularly useful in mining equipment, shipbuilding, and other heavy-duty machines that require both rotational precision and high load capacity.

Features of Enveloping Slewing Drive SE25

The SE25 slewing drive is designed to offer robust performance and reliability across diverse industrial applications. Some of its key features include:

1. Enveloping Worm Design
   The SE25 features an enveloping worm design, which allows for multiple teeth of the worm wheel to be engaged at the same time—typically 4 to 5 teeth. This engagement improves torque transmission and increases holding torque, enhancing overall mechanical efficiency.

2. Self-Locking Function
   The self-locking function ensures that the SE25 prevents back-driving or reverse movement of the slewing drive when the driving force is lost. This is a critical safety feature, particularly in situations where machine movement must be halted and securely locked in place to prevent accidents.

3. IP65 Protection Rating
   The SE25 is designed to be resistant to both dust and water, with an IP65 rating. This makes it suitable for outdoor and harsh environments where exposure to moisture, dirt, and debris is a concern. It can be used in construction sites, marine applications, or any other demanding conditions.

4. High Torque and Holding Capacity
   With its enveloping worm design, the SE25 provides high output torque and holding torque, making it an ideal choice for heavy-duty applications. The ability to carry axial, radial, and tilting loads further improves its versatility in various sectors.

5. Sealing Technology
   The SE25 slewing drive is equipped with advanced sealing technology, with options like single or double skeleton oil seals, providing enhanced protection against dust, mud, and other contaminants. This makes the SE25 perfect for use in dirty, harsh environments.

6. Improved Rotation Accuracy
   The SE25 features a design that enables precise rotation tracking, with minimal backlash. This is particularly important in applications requiring high precision, such as robotics and cranes, where accurate and stable rotation is essential.

7. Customization Options
   The SE25 is highly customizable in terms of gear ratio, mounting configurations, and sealing options, making it adaptable to various operational requirements. This flexibility ensures that the SE25 can meet the specific needs of different industrial applications.

How to Customize Enveloping Slewing Drive SE25

Customizing the SE25 slewing drive ensures that it meets the unique demands of specific applications. Some of the key customization options available for the SE25 include:

1. Gear Ratio Adjustments
   Depending on the required operational speed and torque, the gear ratio of the SE25 can be customized. A higher gear ratio may be chosen for applications requiring low-speed, high-torque operation, while a lower gear ratio may be suitable for faster applications with lower torque requirements.

2. Mounting Configuration
   The SE25 slewing drive can be customized in terms of its mounting configuration. Depending on the space and design constraints of the application, the mounting holes and overall dimensions can be adjusted to fit the specific machine or system in which it will be installed.

3. Sealing and Protection Levels
   If the slewing drive will be exposed to extreme environmental conditions—such as heavy dust, mud, or water—additional sealing options can be selected. The SE25 comes with options for single or double skeleton oil seals, and it can be tailored to meet specific protection standards for high-level waterproofing and dust resistance.

4. Torque and Load Capacities
   For applications requiring higher load-bearing capacities, the SE25 can be customized to provide higher torque and holding capacities. This is particularly relevant in industries like mining, heavy machinery, and cranes, where large loads must be rotated or held securely.

5. Bearings and Internal Components
   The internal components, including bearings and gear mechanisms, can be adjusted for optimal performance in specific applications. For instance, higher precision bearings can be selected for applications where accuracy and smooth operation are critical.

6. Special Coatings
   In applications where corrosion resistance is important, the SE25 can be customized with protective coatings such as anti-corrosion treatments or special finishes that enhance the durability and lifespan of the drive.

Lyra Drive is a Professional Manufacturer of Enveloping Slewing Drive SE25

Lyra Drive is a trusted and professional manufacturer of high-quality Enveloping Slewing Drives, including the SE25 series. With years of experience in the industry, Lyra Drive has become a recognized leader in providing robust and reliable slewing drive solutions for a wide range of industrial sectors.

Why Choose Lyra Drive?

1. Expert Engineering and Design
   Lyra Drive employs a team of experienced engineers who specialize in slewing drives and power transmission technologies. The company’s engineering expertise ensures that each product is designed to meet the highest performance standards, providing optimal torque, precision, and durability.

2. Comprehensive Customization
   Lyra Drive offers full customization options for the SE25 slewing drive, allowing customers to tailor the product to meet specific application requirements. Whether it’s gear ratios, load capacities, sealing configurations, or special coatings, Lyra Drive can accommodate a wide range of customization needs.

3. Rigorous Quality Control
   Every Enveloping Slewing Drive SE25 produced by Lyra Drive undergoes strict quality control processes, including performance testing, durability testing, and material inspections. This ensures that the SE25 operates reliably and efficiently even under the most demanding conditions.

4. Global Presence and Support
   Lyra Drive has a global network of distributors and service centers, offering localized support for customers worldwide. Whether in North America, Europe, or Asia, Lyra Drive’s team is available to provide expert guidance, technical support, and prompt service.

5. Competitive Pricing
   Lyra Drive offers competitive pricing for its Enveloping Slewing Drives, providing excellent value for the high-quality, customizable solutions that customers receive. Whether you’re working on a large-scale project or a smaller system, Lyra Drive offers cost-effective solutions that don’t compromise on quality or performance.

6. Commitment to Sustainability
   Lyra Drive is committed to producing environmentally responsible products. The company’s manufacturing processes prioritize sustainability, and the SE25 slewing drive is designed to be energy-efficient and durable, reducing the need for frequent replacements and minimizing waste.

Conclusion

The Enveloping Slewing Drive SE25 is a high-performance, versatile solution designed to meet the demands of industries requiring precise, low-speed rotation under heavy loads. Its unique enveloping worm design, self-locking feature, and high protection standards make it a preferred choice for applications in cranes, construction equipment, robotics, and more.

Lyra Drive, with its extensive experience and commitment to quality, is the ideal partner for providing customized, durable, and reliable slewing drive solutions. Whether you need a standard configuration or a specialize design, Lyra Drive offers flexibility and technical expertise to ensure that the Enveloping Slewing Drive SE25 is tailored to your specific needs.

By choosing Lyra Drive as your supplier, you benefit from world-class engineering, advanced manufacturing techniques, and a comprehensive support network, all aimed at enhancing the performance and longevity of your machinery. Whether your application demands high torque, precise rotation, or advanced sealing capabilities, the SE25 slewing drive is built to deliver consistent, reliable results.

The Enveloping Slewing Drive SE25 stands out as a solution that combines advanced technology with practical functionality, ensuring that your machinery operates safely, efficiently, and effectively, even in the most challenging environments. If you're looking for a slewing drive that offers enhanced performance, durability, and versatility, the SE25 from Lyra Drive is the perfect choice.

With its adaptability to various applications, ability to handle large loads, and superior resistance to harsh conditions, the SE25 is an essential component for industries that require robust and reliable rotation solutions. Whether you're working in construction, wind energy, mobile cranes, or any other field where rotating systems are crucial, the SE25 is a dependable partner in ensuring optimal operation.

To explore more about Lyra Drive’s Enveloping Slewing Drive SE25, request custom designs, or receive expert advice on how the SE25 can be integrated into your operations, get in touch with Lyra Drive today. Their dedicated team will help you make the best choice based on your project’s specific demands, providing technical insight, customer support, and solutions that ensure your success.

Final Thoughts

In summary, the Enveloping Slewing Drive SE25 offers:

• Enhanced Torque and Holding Capacity: The enveloping worm design allows multiple teeth to engage simultaneously, resulting in superior torque transmission and higher holding torque.

• Safety and Reliability: The self-locking feature prevents back-driving, ensuring safety in power loss situations.

• IP65 Protection: It’s ideal for outdoor and harsh environments, with high resistance to dust and water ingress.

• Versatile Applications: Perfect for aerial work platforms, mobile cranes, construction machinery, and other industries that rely on low-speed, high-torque rotational systems.

• Customization Options: Lyra Drive offers extensive customization to meet specific needs, from gear ratios to mounting configurations and sealing types.

• Global Expertise: With years of industry experience, Lyra Drive offers world-class engineering and customer support for slewing drive solutions.

When you need a slewing drive that can deliver in demanding conditions, look no further than the Enveloping Slewing Drive SE25 from Lyra Drive. Reach out today to start designing a solution that will power your machinery to new levels of efficiency and safety.
