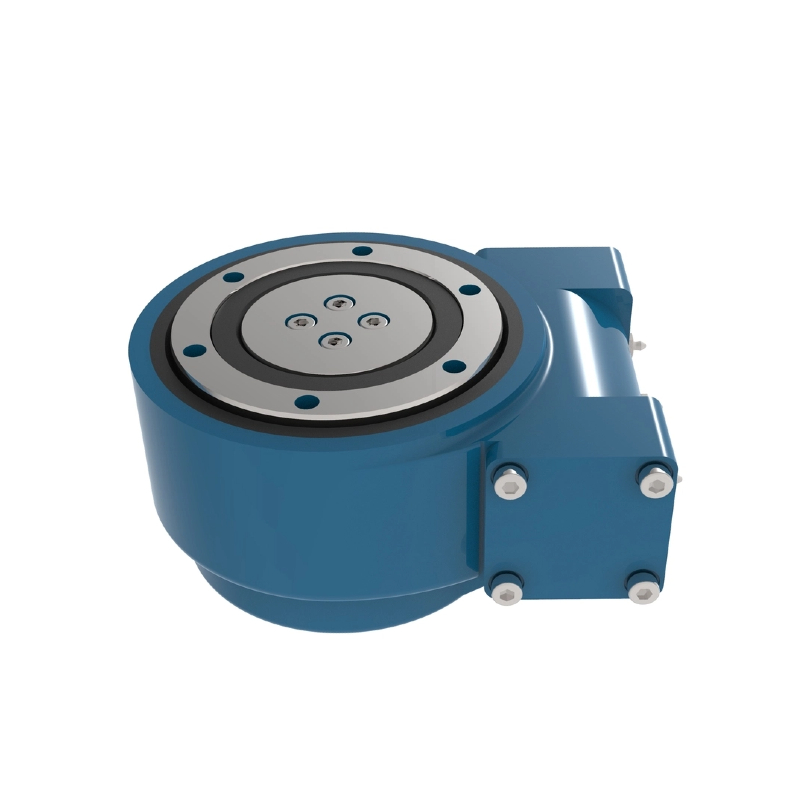

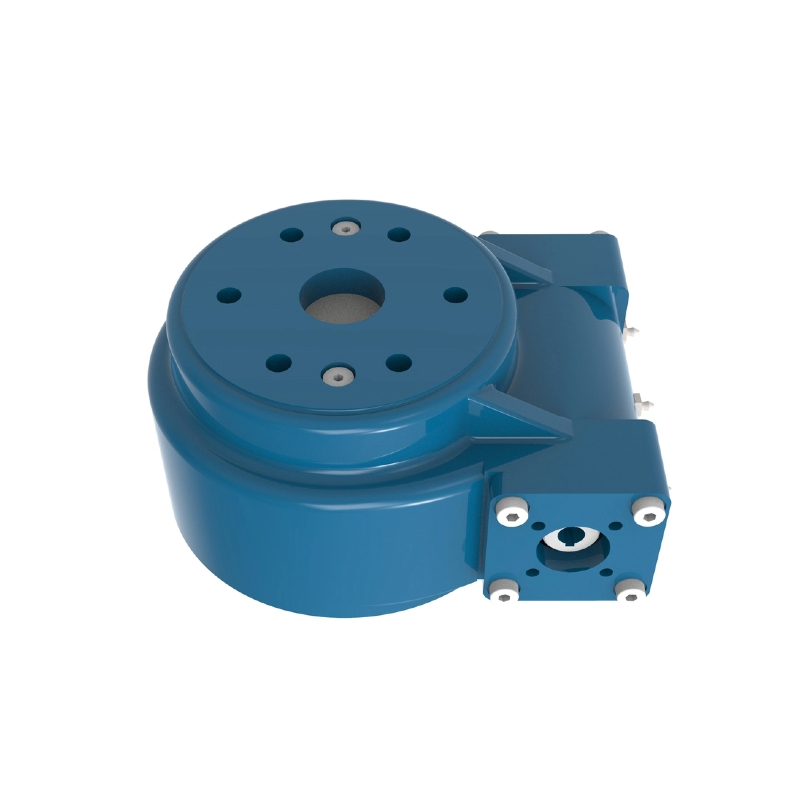

Enveloping Slewing Drive SE5

What is Enveloping Slewing Drive SE5?

The Enveloping Slewing Drive SE5 series is an advanced integrated transmission component designed to offer robust and reliable performance. It is composed of key parts, including a base, worm, and worm gear. With a fully sealed and protective design, the SE5 series is capable of simultaneously bearing axial, radial, and tilting moments, while also providing a self-locking function for enhanced safety.

Features of Enveloping Slewing Drive SE5

The design of the enveloping worm ensures continuous engagement with 4-5 teeth of the worm gear, significantly improving the torque output and holding torque of the product. This self-locking feature enables the unit to prevent reverse motion of rotating components in the absence of driving power, thus ensuring secure locking and enhanced safety during operation.

Compared to the S series slewing drives, the Enveloping Slewing Drive SE5 series offers superior dust and water resistance with an IP65 protection rating, making it particularly suitable for outdoor and harsh environments. It can be paired with either hydraulic motors or electric motors, providing versatile driving options to meet diverse application needs.

Additionally, the PE5 series, an upgraded version of the SE5, incorporates a worm gear grinding process. This enhancement delivers improved rotational tracking precision, typically achieving accuracy levels between 0.08° and 0.12°, making it ideal for applications where precise control is essential.

Application of Enveloping Slewing Drive SE5

Renowned for its exceptional performance and reliability, the Enveloping Slewing Drive SE5 series is widely used across various industries. It is especially suited for high-altitude work vehicles, rotating platforms, automated rotating systems, and other mechanical rotation applications. By providing reliable drive and control functions, the SE5 series improves operational efficiency and safety, making it the preferred choice for low-speed industrial slewing applications.
