Enveloping Slewing Drive SE12

What is Enveloping Slewing Drive SE12?

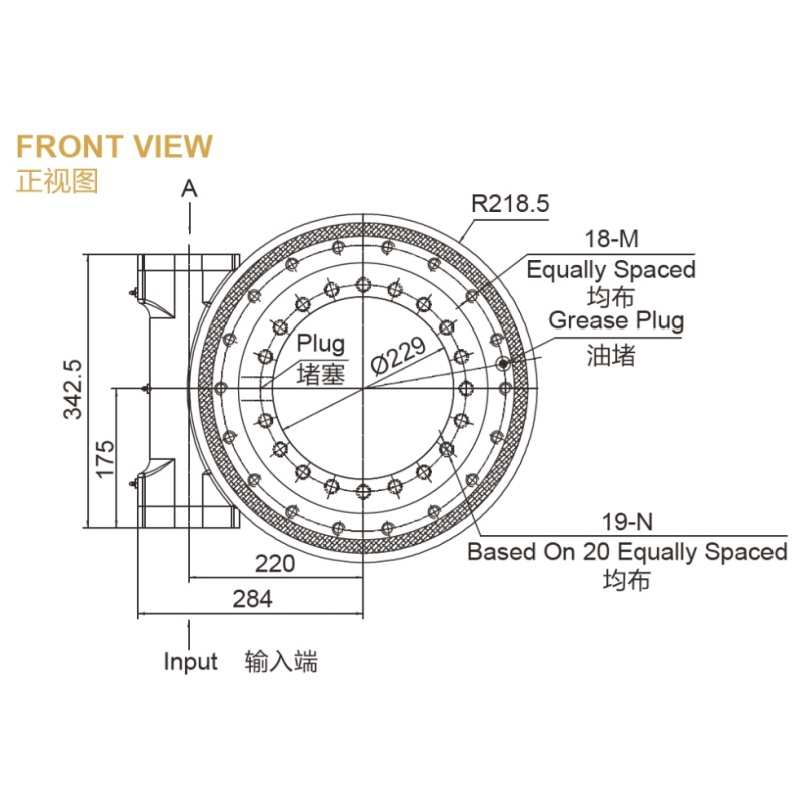

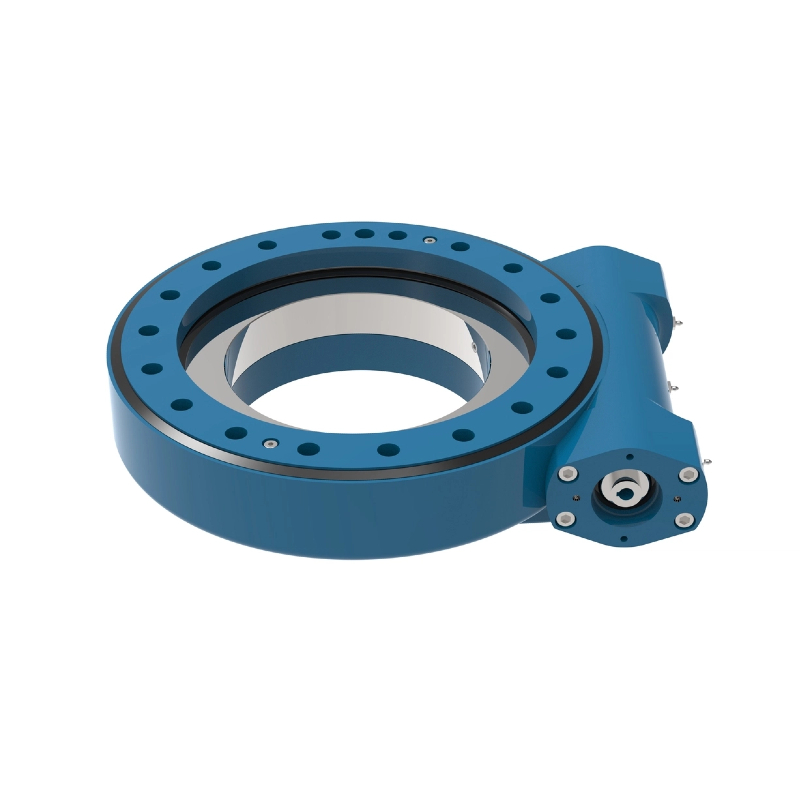

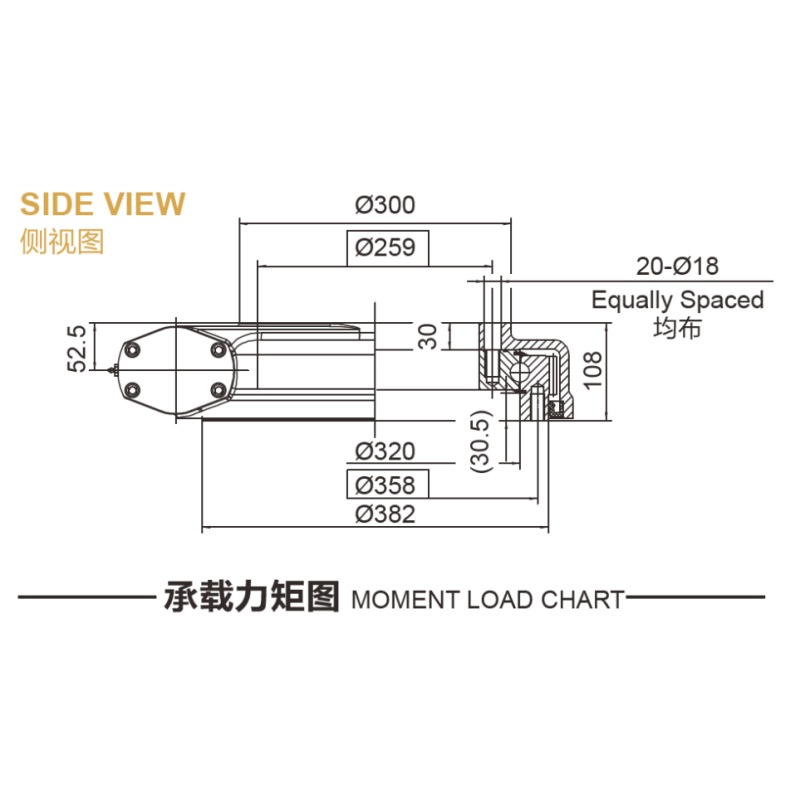

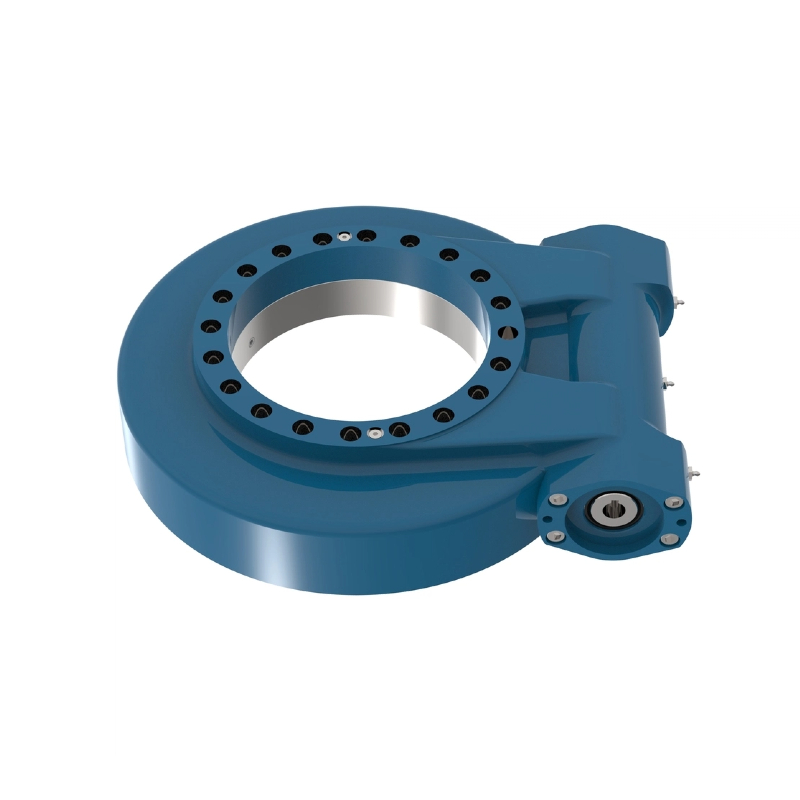

The Enveloping Slewing Drive SE12 is a highly advanced and integrated transmission unit designed to offer robust and reliable motion control in a variety of heavy-duty applications. This slewing drive comprises three primary components: the base, worm gear, and worm wheel. The drive system is designed to simultaneously handle axial loads, radial loads, and tilting moments while maintaining self-locking capabilities. This makes the SE12 slewing drive an ideal solution for applications where safety, precision, and durability are critical.

The defining feature of the SE12 slewing drive is its enveloping worm gear design, which ensures that 4 to 5 teeth of the worm wheel remain engaged at any given time. This design increases the output torque and holding torque, enhancing the overall performance and efficiency of the system. Additionally, the SE12 slewing drive includes a built-in self-locking function that prevents reverse rotation in the event of a loss of driving power, ensuring that the system remains locked in place for safety, even in the absence of power.

The SE12 series offers a high level of protection, with an IP65 rating that makes it resistant to dust and water. This makes it suitable for use in harsh outdoor environments, where weather and environmental conditions can present significant challenges. By combining the efficiency of the enveloping worm gear with high protection standards and self-locking functionality, the SE12 series is well-suited for applications requiring precise rotational movement and high load-bearing capacities.

Applications of Enveloping Slewing Drive SE12

The Enveloping Slewing Drive SE12 is widely used in various industries, particularly in applications where precise control and reliable performance under heavy loads are crucial. Its ability to support axial, radial, and tilting forces while maintaining high efficiency and safety makes it an ideal choice for multiple sectors:

1. Aerial Work Platforms (AWPs): The SE12 series is used in aerial work platforms (such as scissor lifts and boom lifts) to provide precise rotation control for the platform and improve overall operational safety. The self-locking function ensures that the platform remains securely positioned even when power is lost.

2. Mobile Cranes and Automotive Cranes: The SE12 is commonly employed in automotive cranes and truck-mounted cranes to handle the rotational motion of the crane’s boom and other mechanical systems. Its high torque output ensures that the crane can lift and rotate heavy loads with stability.

3. Construction and Mining Machinery: In construction machinery such as excavators and mining equipment, the SE12 slewing drive is used to rotate the equipment’s upper structure, providing efficient and controlled movement for a wide range of operations. The high static and dynamic load ratings ensure the system can withstand the heavy demands of these industries.

4. Offshore and Marine Equipment: The SE12 slewing drive's excellent protection against water and dust, combined with its rugged construction, makes it ideal for use in offshore and marine applications. It provides reliable movement control for equipment such as marine cranes, drilling rigs, and shipboard machinery.

5. Renewable Energy Systems: In wind turbines and solar tracking systems, the SE12 slewing drive is used to position the blades or panels with great precision. The self-locking function ensures that the system remains securely in place even during power outages or wind fluctuations.

6. Heavy Equipment for Industrial Automation: The SE12 is also suitable for robotic systems and automated machinery that require controlled rotational motion. Its compact design and powerful torque allow it to be used in various manufacturing and assembly applications.

Features of Enveloping Slewing Drive SE12

The Enveloping Slewing Drive SE12 offers a range of advanced features that make it an ideal choice for applications that require both high performance and reliability. Some of the key features include:

1. Enveloping Worm Gear Design: The SE12 slewing drive uses an enveloping worm gear system that maintains continuous engagement with 4 to 5 teeth of the worm wheel, which improves the transmission efficiency, output torque, and holding torque. This design also enhances the gear's durability, making it suitable for heavy-duty applications.

2. Self-locking Function: The integrated self-locking feature prevents reverse rotation of the slewing drive in the event of a power failure. This enhances safety by ensuring that the system remains locked and stable without requiring additional external braking systems.

3. High Load Capacities: The SE12 series is designed to carry high axial, radial, and tilting loads, making it ideal for applications with demanding load-bearing requirements. The drive can handle significant forces without compromising its performance or durability.

4. IP65 Protection Rating: The SE12 slewing drive is equipped with an IP65 protection rating, which ensures that it is resistant to both dust and water. This makes it suitable for use in outdoor and harsh environmental conditions, including exposure to rain, dust, and other pollutants.

5. Durable and Robust Construction: Built with high-quality materials and advanced manufacturing techniques, the SE12 slewing drive is engineered for long-lasting performance in tough environments. It is designed to withstand high operating stresses and maintain reliability over time.

6. Improved Tracking Precision (PE12 Series): The PE12 series, an upgraded version of the SE12, incorporates a gear refinement process that enhances the tracking precision of the slewing drive, providing even greater accuracy for high-precision applications. With a typical tracking precision of 0.03° to 0.07°, it ensures that the slewing drive can provide highly accurate rotational control.

7. Versatile Compatibility: The SE12 series is compatible with both hydraulic motors and electric motors, offering flexibility in terms of power sources. This allows users to choose the optimal drive system based on the specific requirements of their application.

How to Customize Enveloping Slewing Drive SE12

The Enveloping Slewing Drive SE12 can be customized to meet the unique needs of different applications. There are several aspects that can be tailored, including:

1. Torque and Load Ratings: The SE12 can be designed to provide specific torque outputs, axial load capacities, and radial load capacities depending on the requirements of the application. Customizing these ratings ensures that the slewing drive can handle the particular forces involved in the task.

2. Gear Ratio: Depending on the required speed and torque characteristics, the gear ratio can be adjusted. The standard SE12 typically comes with a ratio that optimizes both performance and efficiency, but custom ratios can be engineered to match specific operational needs.

3. Sealing Options: For applications in extremely dusty or wet environments, sealing options can be customized to improve protection against contaminants and moisture. The SE12's IP65 rating can be enhanced to higher levels of protection for more demanding environments.

4. Self-locking Mechanism: The self-locking feature can be customized to offer stronger locking capabilities for high-torque applications or for systems where additional safety is required. Different self-locking mechanisms may also be used for specific applications.

5. Mounting Configuration: The mounting configuration of the SE12 slewing drive can be adjusted to fit the specific design of the equipment. This includes modifications to the base or flanges to ensure a perfect fit with the machinery.

6. Tracking Precision (PE12 Upgrade): For applications requiring extreme accuracy, the PE12 version with enhanced tracking precision can be customized. The gearing system can be optimized to ensure the highest levels of rotational accuracy.

7. Power Source Compatibility: The SE12 can be customized to operate with different types of motors, including hydraulic and electric motors. This flexibility allows it to be adapted to a wide range of industrial machinery.

Lyra Drive is a Professional Manufacturer of Enveloping Slewing Drive SE12

Lyra Drive is a leading manufacturer of the Enveloping Slewing Drive SE12 and other high-performance slewing drives. With a reputation for producing innovative, reliable, and durable products, Lyra Drive is committed to providing customers with the best solutions for their motion control needs. The company offers expert design, customization, and manufacturing capabilities, ensuring that each slewing drive is tailored to meet the specific requirements of the application.

As a professional manufacturer, Lyra Drive offers comprehensive support for the SE12 slewing drive, including product customization, installation guidance, technical assistance, and after-sales service. With a global presence and a commitment to quality, Lyra Drive is the preferred partner for businesses in industries ranging from construction and manufacturing to energy and marine applications.

Why Choose Lyra Drive?

• Expert Design and Manufacturing: With years of experience in slewing drive technology, Lyra Drive delivers products engineered for high performance and reliability.

• Customization Options: Tailor your SE12 slewing drive to meet specific torque, load, and precision requirements, ensuring optimal performance for your application.

• Global Support Network: Lyra Drive’s global network ensures that customers have access to local support and assistance, no matter where they are located.

• Commitment to Quality: All Lyra Drive products are manufactured to the highest standards of quality, ensuring durability and long-term reliability.

Whether you need a standard solution or a fully customized slewing drive, Lyra Drive is your trusted partner for all your rotational motion control needs.
