Enveloping Slewing Drive SE17

What is Enveloping Slewing Drive SE17?

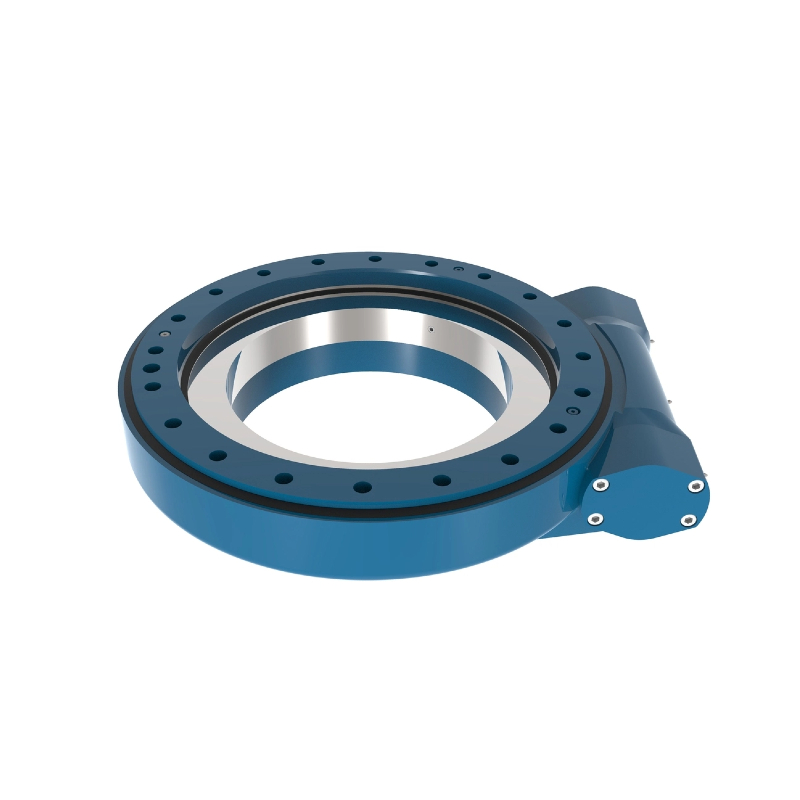

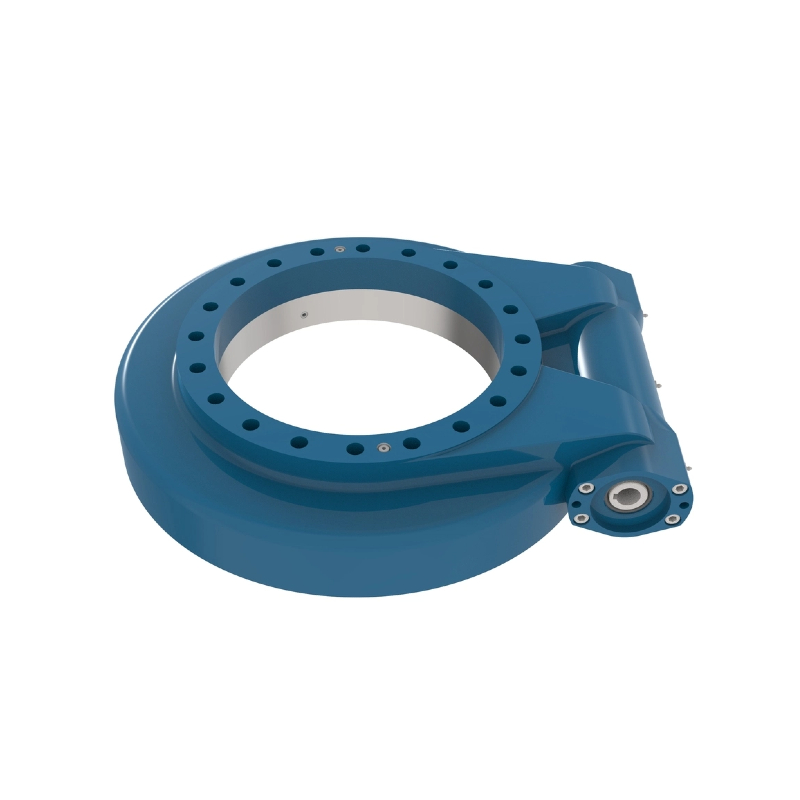

The Enveloping Slewing Drive SE17 is a highly advanced mechanical transmission unit that integrates key components into a compact and robust design. This slewing drive incorporates a base, worm gear, and worm wheel that work together to enable precise rotational motion for heavy-duty applications.

The SE17 slewing drive features an innovative enveloping worm design, which allows the worm and worm wheel to maintain engagement with 4 to 5 teeth simultaneously. This unique design significantly enhances the output torque and holding torque, making it more efficient and reliable under heavy loads and demanding operational conditions.

Another significant feature of the SE17 slewing drive is its self-locking function, which prevents the rotation of the driven component in case of power loss, ensuring the system remains safely locked. The SE17 series slewing drives are ideal for environments where high reliability, safety, and durability are paramount. They are also designed to withstand axial, radial, and overturning moments, making them versatile for multiple industrial applications.

This slewing drive operates within a sealed protective casing that ensures enhanced durability and protection against external elements, providing IP65 protection for dust and water resistance. Its superior sealing design allows it to function efficiently in harsh environments, such as outdoor or extreme weather conditions, where other slewing drives may fail.

Applications of Enveloping Slewing Drive SE17

The Enveloping Slewing Drive SE17 is particularly suited for a variety of low-speed industrial rotation applications, especially in environments where heavy loads need to be rotated or controlled. Its primary applications include:

1. Aerial Work Platforms (AWPs): These machines require slewing drives that can support high axial and radial forces while maintaining stability. The SE17 offers the necessary torque and reliability to drive the rotation of the platform, ensuring smooth and safe operations.

2. Automobile Cranes: These cranes rely on slewing drives to rotate their arms and loads effectively. The SE17 slewing drive’s high holding torque and self-locking mechanism are perfect for preventing unwanted rotation when the crane is not powered.

3. Construction Equipment: Heavy-duty construction machinery, including excavators, drilling rigs, and material handling equipment, requires efficient rotation systems to move large objects and perform complex tasks. The SE17 provides the necessary torque to support these functions in demanding conditions.

4. Mining and Industrial Machines: In the mining industry, machinery such as conveyors, winches, and other rotating equipment often operates under harsh conditions. The SE17 slewing drive offers durability and efficiency in controlling these movements.

5. Renewable Energy: The SE17 can also be used in wind turbine nacelles, where precise, high-torque rotational motion is required to adjust the position of the turbine. Its self-locking feature ensures the turbine blades remain securely in place even during power loss.

6. Military and Aerospace: The precision and reliability offered by the SE17 make it a suitable choice for military and aerospace applications, where equipment must operate reliably under extreme conditions.

Features of Enveloping Slewing Drive SE17

The Enveloping Slewing Drive SE17 offers several notable features that make it a superior choice for industrial applications. These include:

1. Enveloping Worm Design: This design allows for multiple teeth to engage simultaneously, distributing the load more evenly and providing higher output torque and holding torque. The result is improved efficiency and increased operational lifespan of the drive.

2. Self-Locking Function: The SE17 slewing drive is designed to prevent reverse rotation in the event of a power failure, offering enhanced safety and stability. This feature is critical in applications that require the drive to hold its position securely under load.

3. IP65 Protection Rating: The SE17 comes with excellent sealing capabilities, offering full protection against dust and water ingress. This makes the drive suitable for outdoor use or in environments with high humidity, dust, or exposure to water, ensuring long-term durability and minimal maintenance.

4. Heavy Load Bearing Capacity: The SE17 slewing drive can carry significant axial, radial, and overturning moments, making it ideal for high-demand applications that require the drive to withstand heavy, fluctuating loads and forces.

5. Precision and Smooth Operation: The drive’s gear system is designed for low backlash and high precision, allowing for smooth and controlled rotation. This is essential for equipment that requires fine-tuned movement, such as aerial work platforms and cranes.

6. Durability and Reliability: Built to last, the SE17 slewing drive is constructed with high-quality materials and designed to endure even in the most challenging operating environments. It offers long-lasting performance with minimal need for maintenance, reducing the total cost of ownership over time.

How to Customize Enveloping Slewing Drive SE17

The SE17 Enveloping Slewing Drive can be customized to meet specific needs, whether for unique applications or specific performance requirements. Below are some of the options for customization:

1. Torque and Gear Ratio: Depending on the application, the output torque and gear ratio of the SE17 can be customized to meet the required performance standards. Higher torque ratings can be specified for applications involving heavy machinery or lifting equipment.

2. Sealing Options: For applications in environments with extreme conditions such as high temperatures, dust, mud, or moisture, additional sealing options or enhanced protection measures can be added to improve the slewing drive’s reliability and longevity.

3. Material Choices: The materials used in the manufacturing of the SE17 slewing drive can be tailored for specific environments. For example, corrosion-resistant materials such as stainless steel can be used for applications in marine or offshore environments.

4. Mounting Configuration: The SE17 can be customized with different mounting types and orientations to suit various equipment configurations. The drive can be adapted to fit the specific needs of cranes, conveyors, or any other machinery that requires rotation.

5. Backlash Adjustment: If precise positioning is critical for your application, Lyra Drive can customize the backlash in the gear system to ensure smoother, more accurate rotation.

6. Motor and Drive Integration: The SE17 can be paired with a variety of motors, including hydraulic motors or electric motors, depending on the application. This provides greater flexibility in choosing the optimal motor for specific tasks.

7. Performance Enhancements: For high-performance applications requiring enhanced accuracy and tracking precision, the SE17 can be fitted with additional enhancements such as improved gearing, better lubrication systems, and optimized lubrication paths for better efficiency.

Lyra Drive is a Professional Manufacturer of Enveloping Slewing Drive SE17

Lyra Drive is a leading manufacturer of the Enveloping Slewing Drive SE17, offering high-quality slewing drives that are designed to meet the demands of various industries. Lyra Drive is known for its expertise in providing innovative mechanical solutions, with a focus on precision, durability, and customer satisfaction.

Why Choose Lyra Drive for Your Enveloping Slewing Drive Needs?

1. Proven Expertise: Lyra Drive has extensive experience in designing and manufacturing slewing drives, making it a trusted partner for industrial and commercial applications. The company’s products are engineered to the highest standards of quality, ensuring reliability and performance.

2. Customization Options: Lyra Drive works closely with clients to develop customized slewing drives that fit their specific application needs. Whether you require a custom gear ratio, special sealing, or other bespoke features, Lyra Drive’s team is equipped to deliver tailored solutions.

3. Comprehensive Quality Control: Every SE17 slewing drive undergoes rigorous testing and quality assurance processes to ensure its performance under demanding conditions. Lyra Drive’s commitment to quality guarantees that each product will perform optimally over its lifetime.

4. Global Support: With a global network of distributors and support centers, Lyra Drive ensures that customers worldwide receive timely and effective support. Whether it’s installation, maintenance, or troubleshooting, Lyra Drive’s team is always ready to assist.

5. Competitive Pricing: Lyra Drive offers competitive pricing for the SE17 Enveloping Slewing Drive without compromising on quality or performance. By optimizing manufacturing processes and utilizing cost-effective materials, Lyra Drive ensures that customers get the best value for their investment.

6. Reliable After-Sales Service: Lyra Drive provides excellent after-sales service, ensuring long-term support for customers who choose the SE17 Enveloping Slewing Drive. With a focus on customer satisfaction, Lyra Drive offers maintenance advice, repair services, and spare parts to keep systems running smoothly.

Conclusion

The Enveloping Slewing Drive SE17 is an exceptional solution for industries that require high-torque, reliable, and efficient rotational motion for heavy-duty applications. With its innovative design, superior performance, and robust construction, the SE17 is ideal for use in aerial work platforms, cranes, construction equipment, and many other industrial sectors.

Lyra Drive’s SE17 slewing drives are engineered to meet the highest industry standards and are fully customizable to meet specific operational needs. Whether you require enhanced sealing, increased torque, or customized mounting configurations, Lyra Drive has the expertise and resources to provide you with the ideal slewing drive solution for your application.
