What is Worm Gear Drive WE19

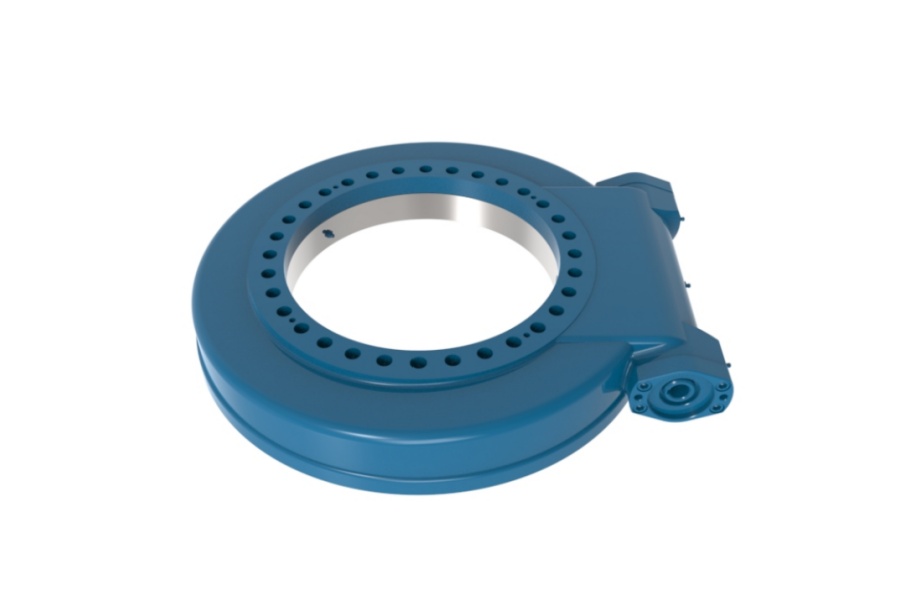

Worm Gear Drive WE19 is an integrated, high-performance drive unit meticulously designed for reliability in demanding environments. Its core construction features a hardened, precision-ground steel worm shaft engaging a robust bronze alloy worm gear, all encased within a rigid, sealed housing. Engineered for operation within a protected environment, the WE19 excels at simultaneously managing substantial axial loads, radial forces, and significant tilting moments. A defining characteristic is its inherent self-locking capability, which prevents back-driving when input power ceases, ensuring critical load security without auxiliary brakes. This makes the WE19 particularly vital for safety-critical applications where unintended movement poses a risk. Designed for significant torque multiplication and speed reduction, it often incorporates optimized gear geometries (like ZA or ZK profiles) to maximize efficiency and power density within its compact footprint.

Key Considerations When Selecting a High-Speed Rotary Drive

Choosing the right high-speed rotary drive involves careful evaluation beyond basic torque and speed requirements. For applications demanding high rotational speeds, such as centrifuges, high-speed mixers, or specific automation processes, these factors are paramount:

Speed Rating & Torque Capacity Balance: The drive must deliver the required torque at the operational speed. High speeds can significantly impact the effective torque capacity due to factors like centrifugal forces and lubrication limitations. Ensure the drive's torque-speed curve meets or exceeds the application's demands across the entire operating range. Oversizing for peak torque at low speed might be insufficient if torque demand persists at high RPM.

Dynamic Precision & Runout: High speeds amplify any imperfections. The drive must maintain precise tracking (like the WE19's ≤0.1°) and minimal radial/axial runout under operational loads and speeds. Consider dynamic stiffness and the drive's ability to resist deflection caused by inertial forces at high RPM.

Thermal Management & Efficiency: High speeds generate significant heat due to friction, windage, and hysteresis losses. Inefficient drives can overheat rapidly, leading to premature wear, lubrication breakdown, and failure. Evaluate the drive's efficiency rating at the target speed and its inherent heat dissipation capabilities (housing design, cooling fins, potential for forced cooling) or the need for external cooling systems. High-efficiency designs are critical.

Lubrication System: Standard grease lubrication may not suffice at very high speeds. Oil lubrication, potentially with forced circulation or mist systems, is often necessary to ensure adequate film formation, heat removal, and prevent lubricant starvation or centrifugal throw-off. Verify the drive is designed and sealed for the appropriate high-speed lubrication method.

Dynamic Load Ratings & Inertia: High accelerations/decelerations impose high dynamic loads. Ensure the drive's dynamic axial, radial, and moment load ratings (like WE19's Dyn. Axial: 290 kN, Dyn. Radial: 250 kN) are sufficient for the application's inertial forces and potential shock loads. Consider the reflected inertia of the load on the drive.

Vibration & Noise (NVH): High-speed operation can excite resonances and generate unacceptable noise and vibration levels. Look for drives designed with balanced components, optimized gear profiles, and rigid housings to minimize NVH. Precision manufacturing is essential.

Bearing Selection & Life: Bearings are critical components in high-speed drives. They must be specifically rated for high RPM operation, handling combined loads effectively. Calculate bearing L10 life based on the actual speed and load conditions. High-quality, precision bearings are non-negotiable.

Sealing Effectiveness: Maintaining lubrication in and contaminants out is even more crucial at high speeds. Robust sealing (like IP65) must remain effective under centrifugal forces and potential thermal expansion. Labyrinth seals or specialized high-speed lip seals are common requirements.

Resonance Frequencies & Critical Speeds: The drive system (including motor coupling) must operate below its first critical bending or torsional resonance frequency to avoid catastrophic vibration. Manufacturer data on safe operating speed ranges is essential.

Backlash Control: While some applications tolerate more backlash, precision high-speed positioning often requires minimal, controlled backlash to ensure responsiveness and accuracy during rapid direction changes or under dynamic loads.

Worm Gear Drive WE19 Characteristics

The WE19 distinguishes itself through a powerful combination of strength, precision, and resilience tailored for industrial rigor:

Exceptional Output Torque: Generating a substantial 18.5 kN·m of output torque, the WE19 is built to handle the most demanding tasks involving heavy rotation, pressing, lifting, or positioning under significant load.

Superior Tilting Moment Resistance: Boasting a remarkable 196 kN·m tilting moment capacity, the drive ensures exceptional stability against overturning forces, crucial for applications with large off-center loads, such as heavy-duty slewing rings or large manipulators.

Robust Holding Torque: Providing 80.1 kN·m of holding torque, the WE19 reliably secures loads in position, leveraging its inherent self-locking nature. This is paramount for safety in critical hoisting, clamping, indexing, and vertical load holding applications.

High Load Capacity Ratings: Engineered for severe service, the WE19 features impressive static load ratings (Axial: 1800 kN, Radial: 675 kN) and dynamic load ratings (Axial: 290 kN, Radial: 250 kN), guaranteeing dependable operation under both steady-state and operational stresses.

Effective Gear Ratio: The 94:1 reduction ratio delivers significant speed reduction and corresponding torque amplification, making it ideal for applications requiring powerful, controlled, low-speed movement.

High Tracking Precision: Achieving tracking precision ≤0.1°, the WE19 enables highly accurate positioning and repeatable motion control, suitable for precision automation, radar systems, antenna positioning, and robotic arms.

Inherent Self-Locking: The fundamental geometry of the worm and wheel interface creates a reliable self-locking effect. This essential safety feature prevents the output shaft from driving the input worm backward when power is interrupted, ensuring load security without additional brakes in many setups.

Durable Protection (IP65): Sealed to IP65 standards, the WE19 is effectively protected against dust ingress and low-pressure water jets from any direction, enabling reliable deployment in harsh indoor and outdoor industrial environments.

Versatile Drive Compatibility: Designed for integration flexibility, the WE19 readily interfaces with various prime movers, including high-power hydraulic motors or precision electric motors (servo, AC, DC), adapting to diverse power systems and control requirements.

Rugged Construction: Utilizing premium materials such as case-hardened steel for the worm shaft and wear-resistant, high-strength bronze alloys for the gear wheel, combined with precision manufacturing, ensures extended service life and consistent performance under continuous, heavy-duty operation.

Worm Gear Drive WE19 Applications

The WE19's blend of high torque, precision, inherent safety, and robust construction makes it indispensable across a wide spectrum of demanding industrial sectors:

Heavy Machinery & Construction: Core component in slewing drives for large cranes (mobile, tower, gantry), excavators, heavy-duty material handlers, concrete boom pumps, and drilling rigs requiring powerful and stable rotation under immense loads.

Industrial Automation & Robotics: Powers heavy-duty rotary indexing tables, precision positioning stages, large robotic arm joints, automated assembly lines, and palletizing systems where accurate angular positioning, high torque, and secure holding are essential.

Material Handling & Logistics: Integral to drives for heavy-duty conveyors, stacker/reclaimers, bulk handling equipment, and large gate/valve actuators where controlled movement and fail-safe holding are critical.

Defense, Aerospace & Communications: Used in radar pedestals, satellite communication (SATCOM) antenna positioning systems, optical tracking platforms, and missile launcher positioning demanding high precision, stability, and reliability.

Renewable Energy: Drives solar tracker systems for precise panel orientation and robust yaw/pitch control mechanisms in large wind turbines.

Marine & Offshore: Powers deck machinery, crane slewing, hatch covers, and positioning systems on vessels and offshore platforms where corrosion resistance and reliability are key.

Mining & Mineral Processing: Employed in crusher adjustments, large feeder drives, and rotary screen applications handling abrasive environments and heavy loads.

Test & Simulation Equipment: Provides precise angular positioning and high torque for large dynamometers, structural test rigs, fatigue testers, and motion simulators.

Stage, Entertainment & Large Displays: Drives heavy-duty stage lifts, rotating platforms, large signage movement, and substantial lighting rig motions requiring smooth, controlled, and secure operation.

Factors Influencing Worm Gear Drive WE19 Price

The cost of a Worm Gear Drive WE19 reflects its high performance, robust construction, and precision engineering, influenced by several key factors:

Premium Materials & Metallurgy: The use of high-grade alloy steels for the worm shaft (requiring precise hardening and grinding) and specialized bronze alloys (often tin or nickel-based) for the worm wheel, chosen for superior strength, wear resistance, and compatibility under high stress, constitutes a major cost component. Material quality and certifications add to this.

Advanced Precision Manufacturing: Achieving the WE19's ≤0.1° precision and high load ratings demands sophisticated, high-precision machining, grinding (critical for the worm profile), heat treatment (carburizing, hardening, tempering), and finishing processes. Tight geometric tolerances and superior surface finishes necessitate expensive equipment, skilled labor, and rigorous process control, significantly impacting cost.

Gear Design & Optimization: Implementing specific, optimized worm gear profiles (like ZA, ZK) and potentially profile modifications to maximize load distribution, efficiency, and minimize backlash requires specialized design expertise, advanced simulation, and custom tooling, adding to the engineering and production expense.

High Load Ratings & Performance: The substantial static and dynamic load ratings (axial, radial, tilting moment) mandate a robust internal design, oversized high-capacity bearings (tapered roller or specialized types), a stronger, more massive housing, and potentially larger internal components within the WE19 size class. This directly increases material volume and machining complexity/cost.

Sealing & Environmental Protection: Achieving and maintaining the IP65 rating reliably requires high-quality, durable seals (multi-lip, labyrinth designs), specialized high-performance greases suitable for the load and environment, and meticulous housing design/manufacturing to ensure sealing integrity. These components and assembly precision add cost.

Comprehensive Testing & QA: Rigorous testing protocols to validate load ratings, efficiency, precision, backlash, durability (life testing), noise levels, and sealing under simulated operational conditions represent a significant investment in time, specialized equipment, and personnel. Compliance with international standards (ISO, etc.) further adds to quality assurance costs.

Bearing Quality & Configuration: The bearings must withstand the combined high axial, radial, and moment loads simultaneously. Using large, high-precision, high-capacity bearings (often custom configurations) is essential for performance and longevity but represents a significant cost factor.

Housing Complexity & Integrity: The housing must provide exceptional rigidity to maintain precise gear alignment under heavy load and impact, often requiring high-strength cast iron or ductile iron. Complex casting geometries, precision machining of mounting surfaces, and internal features for sealing and lubrication add manufacturing costs.

Order Volume & Customization: Standard production runs benefit from economies of scale. However, any customization (special shaft configurations, flanges, mounting patterns, coatings, specific lubrication requirements, modified gear ratios within constraints) incurs additional engineering, setup, and manufacturing costs compared to standard catalog items.

Trusted Source for Worm Gear Drive WE19

For industries demanding the proven power, precision, and reliability of the Worm Gear Drive WE19, LYRADRIVE stands as a leading global manufacturer and supplier. LYRADRIVE specializes in the engineering and production of high-performance worm gear drives, slewing rings, and integrated drive systems for the world's most demanding applications. Their commitment to rigorous quality control, advanced manufacturing technologies, and deep technical expertise ensures that every WE19 unit meets the highest standards for durability, performance, and accuracy. LYRADRIVE offers comprehensive technical support throughout the selection and integration process, helping customers implement the WE19 effectively for optimal results in their machinery. With a global operational footprint, LYRADRIVE provides reliable supply chain solutions and responsive service, establishing them as a dependable partner for critical drive components.
