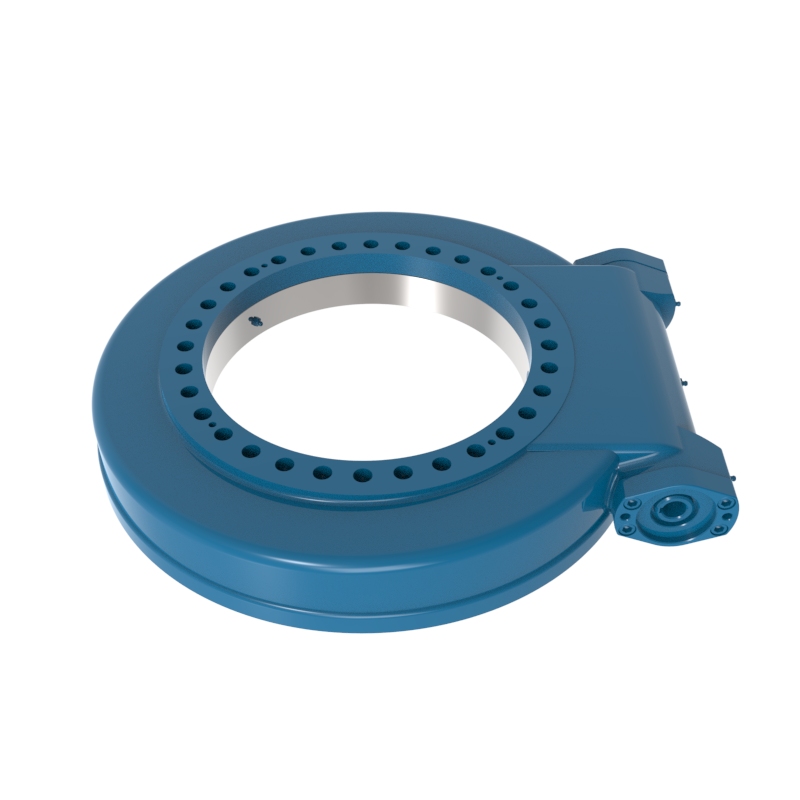

Worm Gear Drive WE19

What is Worm Gear Drive WE19?

The Worm Gear Drive WE19 is an integrated drive component that combines essential parts such as a base, worm shaft, and worm wheel. This advanced mechanism is designed to operate effectively in a sealed environment, allowing it to handle simultaneous axial loads, radial forces, and overturning moments. One of its standout features is the self-locking function, which prevents the rotation of components when the driving force is lost, ensuring safe operation. The WE19 is particularly well-suited for applications where safety standards are critically important.

Features of Worm Gear Drive WE19

The Worm Gear Drive WE19 boasts several key features that enhance its performance and reliability:

1. High Output Torque: With an output torque of 18.5 kN.m, the WE19 can effectively manage heavy loads, making it ideal for demanding industrial applications.

2. Tilting Moment Torque: The drive can withstand a tilting moment torque of 196 kN.m, ensuring stability and control in various operational scenarios.

3. Self-Locking Mechanism: This critical safety feature prevents the drive from reversing unintentionally when power is lost, providing peace of mind in high-stakes applications.

4. Sealing Protection: The WE19 offers an IP65 protection rating, ensuring excellent dust and water resistance. This feature makes it suitable for outdoor use and in harsh environmental conditions.

5. Gear Ratio: With a gear ratio of 94:1, the WE19 delivers substantial speed reduction while increasing torque output, optimizing performance for low-speed applications.

6. Precision Tracking: The drive maintains a tracking precision of ≤0.1°, allowing for accurate control and positioning in various mechanical systems.

Applications of Worm Gear Drive WE19

The Worm Gear Drive WE19 is widely utilized in several industries, owing to its robust design and reliable performance. Key applications include:

• Aerial Work Platforms: The WE19 is extensively used in boom lift rotary drives, providing stable and safe operation for high-altitude work.

• Mining Equipment: In mining, the drive is employed in drilling machines for lifting and rotating mechanisms, enhancing operational efficiency and safety.

• Industrial Tipping Mechanisms: The WE19 is ideal for industrial applications that require controlled tipping or rotation, such as hoppers and containers.

• Construction Machinery: Its robust construction makes it suitable for various construction machinery, ensuring reliable and safe movements during operations.

• Automated Systems: The WE19 plays a vital role in automation and robotics, facilitating precise control over movements and improving overall system functionality.

Price of Worm Gear Drive WE19

The pricing for the Worm Gear Drive WE19 can vary based on specific configurations, customization options, and production scale. For accurate pricing information tailored to your requirements, it is advisable to consult with our sales representatives. At LYRADRIVE, we are committed to offering competitive pricing without compromising on quality or performance.

LYRADRIVE: A Professional Manufacturer of Worm Gear Drive WE19

LYRADRIVE is a leading manufacturer specializing in the production of Worm Gear Drive WE19. Our dedication to quality is reflected in our advanced manufacturing processes and the use of high-quality materials. We focus on engineering excellence to produce drives that meet the highest standards of reliability and performance. Our experienced team collaborates closely with clients to understand their unique needs and provide tailored solutions that enhance operational efficiency.

By investing in research and development, LYRADRIVE ensures that our Worm Gear Drive WE19 remains at the forefront of the industry, continuously adapting to new technologies and market demands.

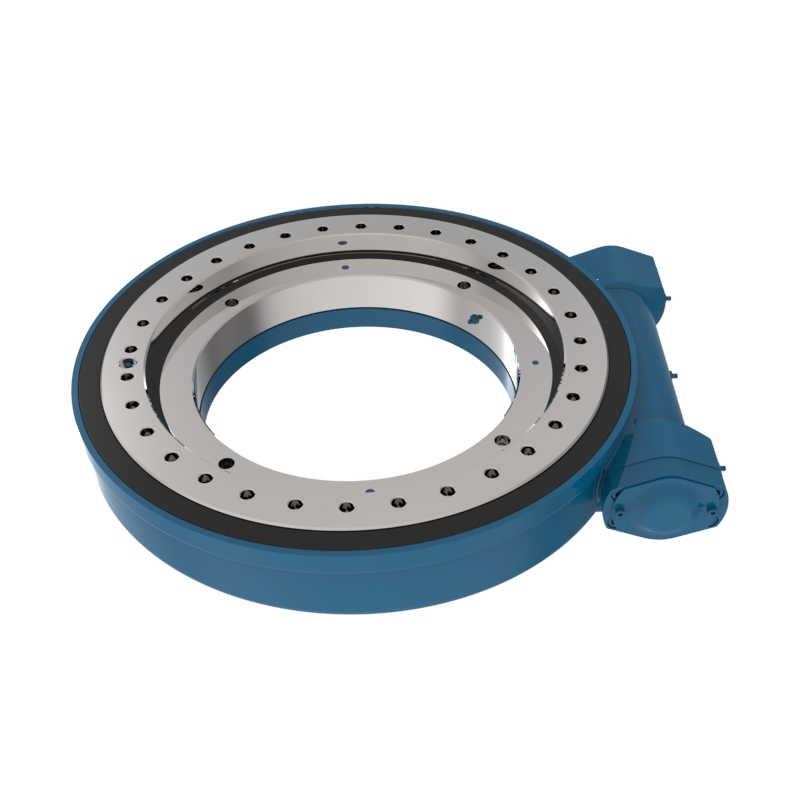

Comparison of WEA19 and WEB19

The WEA19 and WEB19 series rotary drives are optimized versions of the WE19, designed to excel in challenging operational environments. The primary distinction between the two lies in their sealing methods. The WEA19 features a single-skeleton oil seal, while the WEB19 is equipped with a double-skeleton oil seal, providing enhanced sealing performance.

The WEB19's superior sealing capabilities make it particularly suitable for applications exposed to dust, mud, and other harsh conditions. In contrast, the WEA19 is an excellent choice for less demanding environments while still delivering reliable performance.

In conclusion, the Worm Gear Drive WE19 stands out as a premier solution for low-speed industrial applications, offering a combination of safety, efficiency, and versatility. Its design and features make it an ideal choice for various sectors, ensuring compliance with high safety standards and operational requirements.

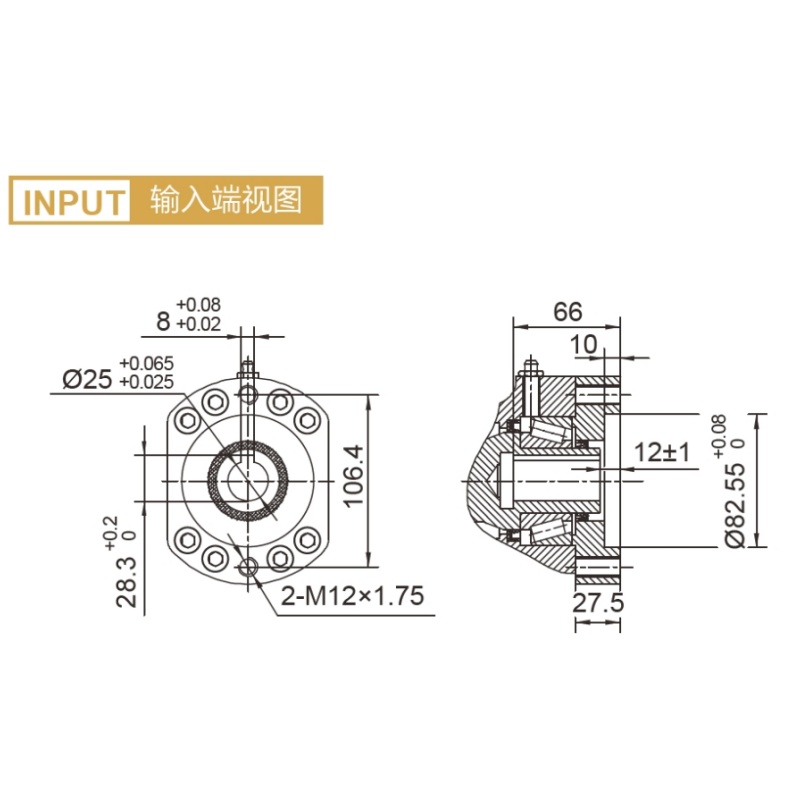

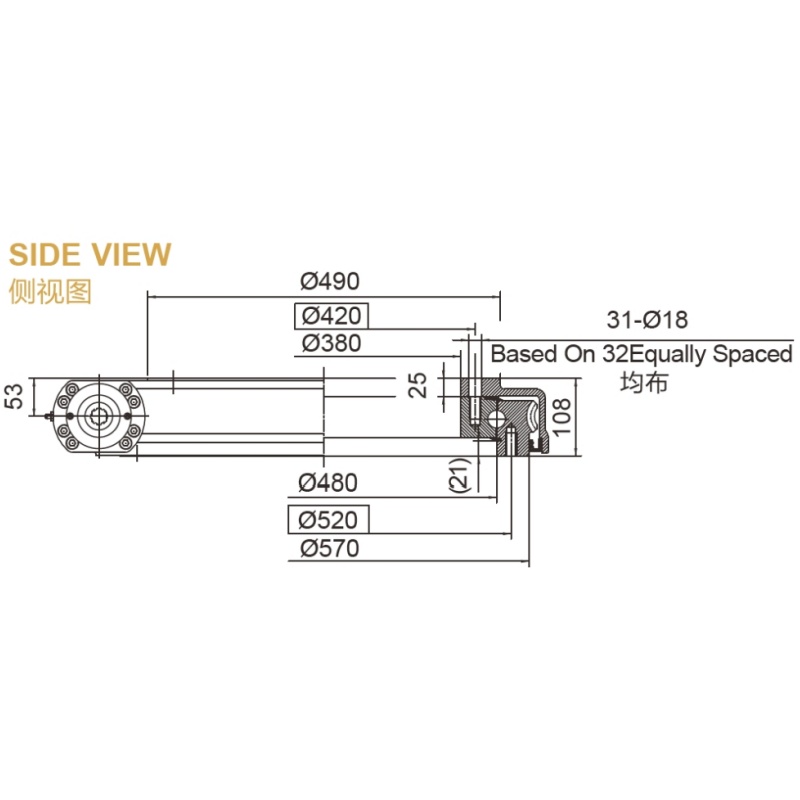

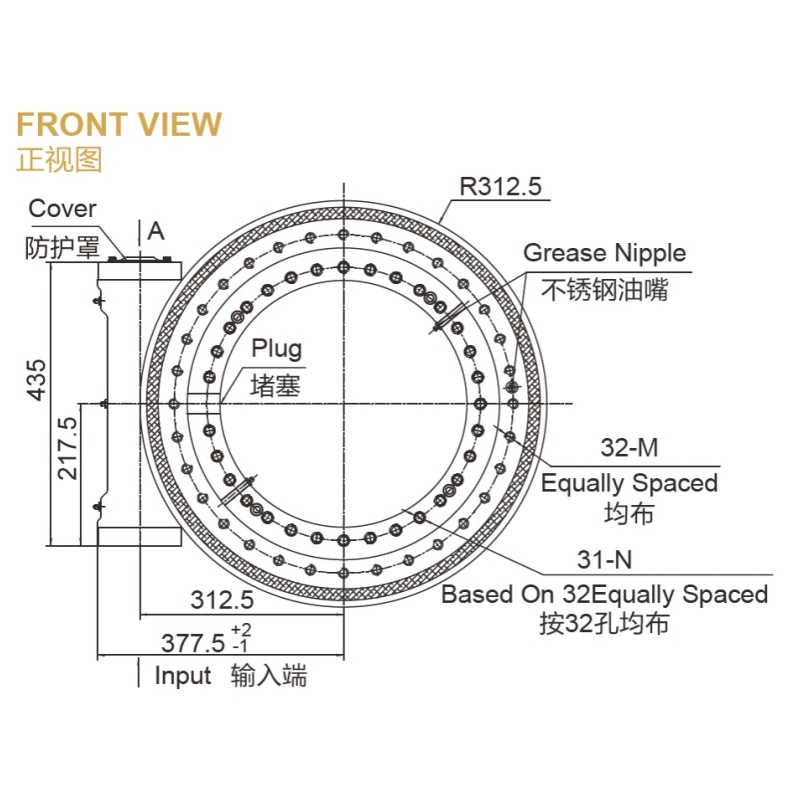

Techspecs
