Worm Gear Drive WE12

What is Worm Gear Drive WE12?

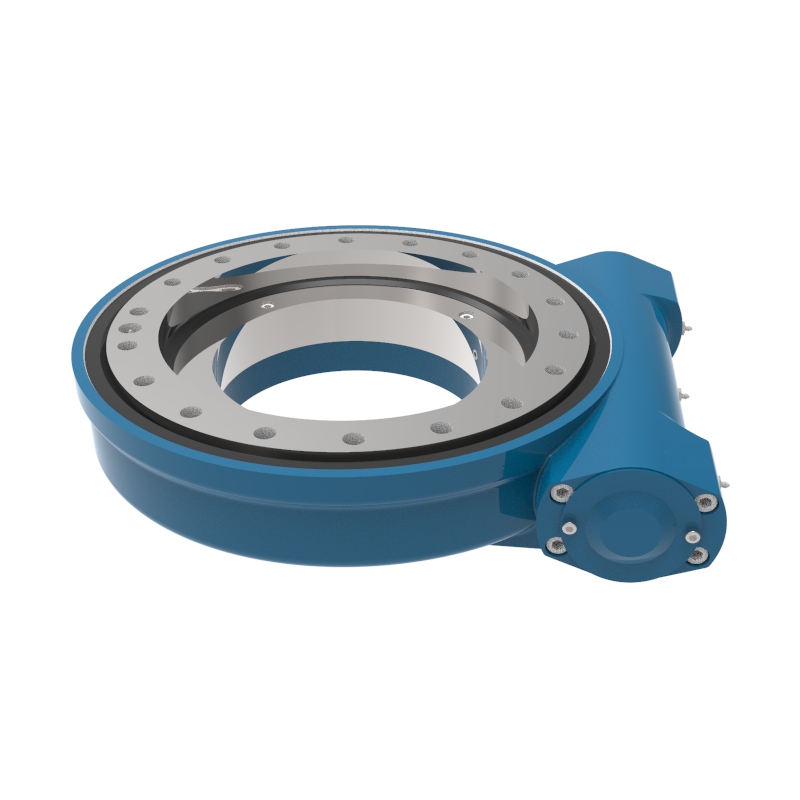

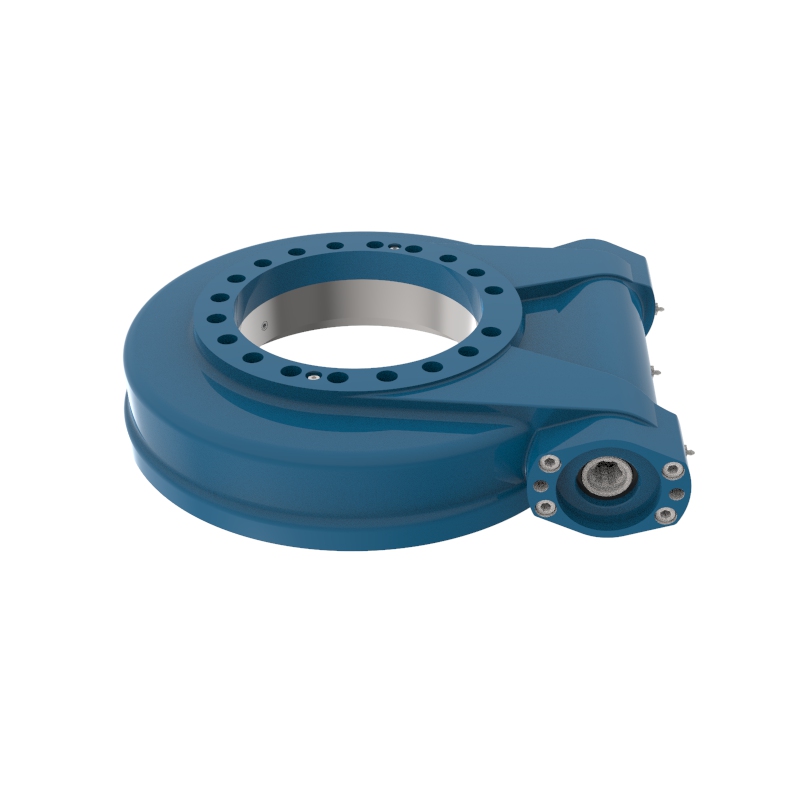

The Worm Gear Drive WE12 is an advanced integrated drive component designed for a wide range of industrial applications. It consists primarily of a base, worm shaft, and worm wheel. Engineered to operate effectively in sealed conditions, the WE12 can simultaneously handle axial loads, radial forces, and overturning moments. A notable feature of this drive is its self-locking mechanism, which prevents the rotating components from reversing when the driving power is lost. This capability enhances operational safety and reliability, making it ideal for applications that require stringent safety standards.

The WE12 employs precise ZA or ZK tooth profiles for the worm and worm wheel, ensuring tight meshing and improved efficiency. This design not only maximizes output torque but also enhances overall operational performance.

Features of Worm Gear Drive WE12

The Worm Gear Drive WE12 boasts several key features that make it a top choice for various applications:

1. High Output Torque: With an output torque rating of 9.5 kN·m, the WE12 is capable of handling substantial loads, making it suitable for demanding environments.

2. Exceptional Tilting Moment Torque: The drive can withstand a tilting moment torque of up to 57 kN·m, providing additional stability and control during operation.

3. Strong Holding Torque: With a holding torque of 43 kN·m, the WE12 ensures that the system remains securely locked in place when not in operation.

4. High Gear Ratio: The WE12 features a gear ratio of 79:1, allowing for effective speed reduction while increasing torque output, which is essential for various mechanical applications.

5. Precision Tracking: The tracking precision of the WE12 is ≤0.15°, ensuring accurate and reliable movement control, which is crucial in applications requiring high precision.

6. IP65 Protection Rating: The drive’s construction provides excellent dust and water resistance, making it ideal for outdoor and harsh operating conditions.

7. Self-Locking Function: The built-in self-locking feature prevents back-drive, ensuring safety when the drive is not powered.

Applications of Worm Gear Drive WE12

The Worm Gear Drive WE12 is widely utilized across multiple industries due to its reliability and performance. Some notable applications include:

• Aerial Work Platforms: The WE12 is commonly used in boom lift rotary drives, where it facilitates safe and efficient movement at heights.

• Mining Equipment: The drive plays a crucial role in lifting mechanisms for mining drill rigs, providing the necessary torque and stability for heavy machinery.

• Industrial Tipping and Rotating Mechanisms: It is employed in various industrial applications that require controlled tipping and rotation, such as hoppers and conveyor systems.

• Construction Machinery: The WE12 is integrated into construction equipment that demands reliable rotary movements, enhancing productivity and safety on site.

• Automated Systems: In robotics and automation, the WE12 ensures precise control over movements, improving the functionality of automated processes.

Price of Worm Gear Drive WE12

The price of the Worm Gear Drive WE12 can vary based on factors such as specific configurations, customization options, and order quantities. For accurate pricing details, potential buyers are encouraged to contact our sales representatives, who can provide tailored information based on individual needs.

LYRADRIVE: A Professional Manufacturer of Worm Gear Drive WE12

LYRADRIVE is a leading manufacturer specializing in the production of Worm Gear Drive WE12. Our commitment to quality and innovation ensures that our products meet the highest industry standards. We utilize advanced manufacturing techniques and high-grade materials to deliver reliable, high-performance drives that cater to diverse application needs.

Our experienced team collaborates closely with clients to understand their requirements and offer customized solutions that enhance operational efficiency. With a focus on customer satisfaction and continuous improvement, LYRADRIVE remains at the forefront of drive technology.

Comparison of WEA12 and WEB12

The WEA12 and WEB12 series rotary drives are optimized versions of the WE12, featuring enhanced sealing methods that improve their performance in challenging environments. The WEA12 utilizes a single-skeleton oil seal, while the WEB12 is equipped with a double-skeleton oil seal. This upgrade significantly enhances the sealing performance of the WEB12, making it more suitable for applications exposed to dust, mud, and other harsh conditions.

Both the WEA12 and WEB12 series offer exceptional performance, but the choice between them depends on the specific environmental requirements of the application. The WEB12, with its superior sealing capabilities, is the preferred option for more demanding environments, while the WEA12 remains effective in less challenging conditions.

In conclusion, the Worm Gear Drive WE12 is a versatile and reliable solution for low-speed industrial applications, providing a combination of safety, efficiency, and adaptability. Its design and features make it an excellent choice across various sectors, ensuring it meets the rigorous demands of modern industrial operations.
