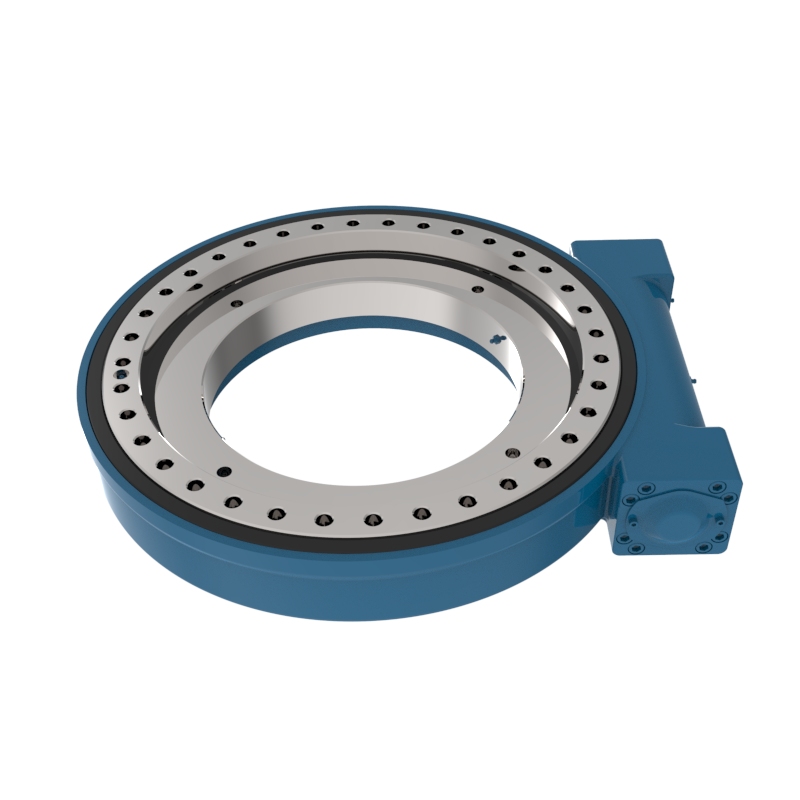

Worm Gear Drive WE21

What is Worm Gear Drive WE21?

The Worm Gear Drive WE21 is an advanced, integrated rotary drive system designed for a wide range of industrial applications. Composed of key components such as a base, worm shaft, and worm wheel, the WE21 is engineered to operate efficiently within a sealed environment. This drive system can handle axial loads, radial forces, and overturning moments simultaneously, while its self-locking mechanism ensures secure operation even when power is lost. This makes the WE21 particularly suitable for applications with stringent safety standards.

Features of Worm Gear Drive WE21

The Worm Gear Drive WE21 is distinguished by several key features that enhance its performance and reliability:

1. High Output Torque: The WE21 provides a significant output torque of 28.7 kN.m, making it capable of managing heavy loads effectively.

2. Self-Locking Mechanism: The self-locking feature prevents reverse rotation when the system loses drive power. This is essential for ensuring safety in operations where the risk of uncontrolled movement must be mitigated.

3. Enhanced Meshing Design: Utilizing ZA or ZK tooth profiles for the worm and worm wheel allows for tighter meshing, which improves both torque output and overall operational efficiency.

4. Robust Sealed Construction: With an IP65 rating, the WE21 is designed to withstand dust and moisture, making it ideal for outdoor and harsh environmental conditions.

5. Versatile Compatibility: The WE21 can be paired with various motor types, including hydraulic and electric motors, providing users with flexible options to match their specific operational needs.

6. Precision Control: The drive boasts a tracking precision of ≤0.1°, allowing for highly accurate movements necessary in various industrial applications.

Applications of Worm Gear Drive WE21

The Worm Gear Drive WE21 is widely utilized across multiple industries due to its exceptional performance and safety features. Key applications include:

• Aerial Work Platforms: The WE21 is used in boom lifts, providing reliable rotation and lifting capabilities, enhancing the safety and efficiency of work performed at heights.

• Mining Equipment: In the mining industry, the WE21 is employed for lifting heavy drilling rigs, ensuring operational stability and safety.

• Industrial Machinery: The drive is essential for various industrial machines that require controlled tilting and rotation, significantly improving productivity and workflow.

• Construction Equipment: The WE21 is utilized in construction machinery, where dependable rotation is crucial for effective job site operations.

• Robotics and Automation: In automated systems, the WE21 is critical for providing precise movements, which are vital for the effective functioning of robotic applications.

Price of Worm Gear Drive WE21

The price of the Worm Gear Drive WE21 varies based on several factors, including specific configurations, customization requirements, and order volumes. For accurate pricing information tailored to individual needs, potential customers are encouraged to consult with our sales representatives. LYRADRIVE is dedicated to offering competitive pricing without compromising quality or reliability.

LYRADRIVE: A Professional Manufacturer of Worm Gear Drive WE21

LYRADRIVE is a leading manufacturer specializing in the design and production of Worm Gear Drive WE21 systems. Our commitment to quality and innovation sets us apart in the industry. By employing advanced engineering techniques and high-quality materials, we ensure that our drives meet rigorous performance and durability standards. Our experienced team collaborates with clients to deliver customized solutions that enhance operational efficiency across various applications.

With a strong focus on continuous improvement, LYRADRIVE invests in research and development to keep our Worm Gear Drive WE21 at the forefront of technology, ensuring it meets the evolving demands of our customers.

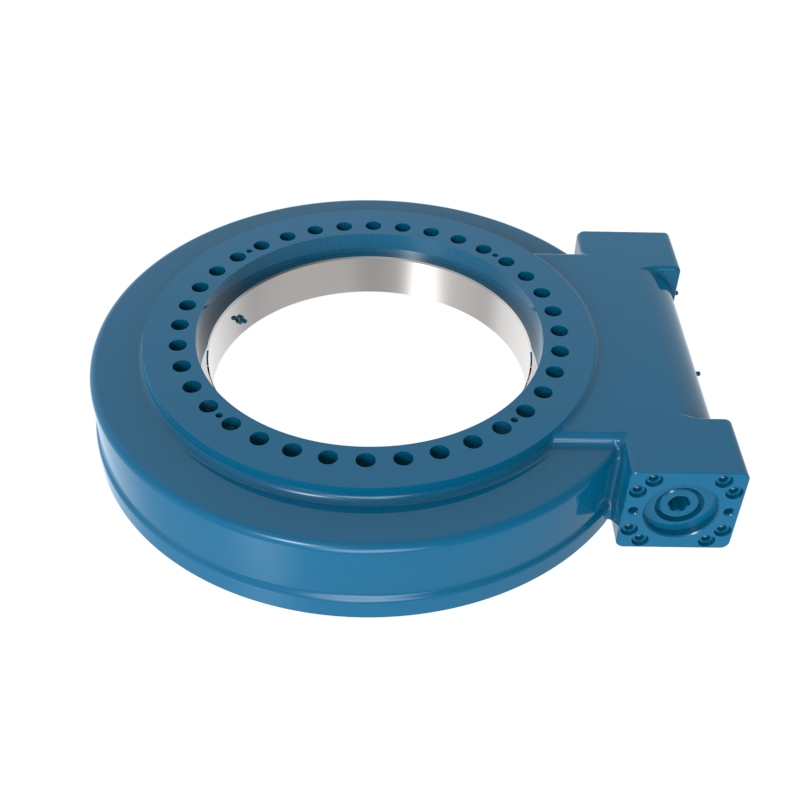

Comparison of WEA21 and WEB21

The WEA21 and WEB21 series rotary drives represent enhanced versions of the WE21, optimized for better performance in challenging environments. The primary distinction between the two lies in their sealing methods: the WEA21 features a single-skeleton oil seal, while the WEB21 is equipped with a double-skeleton oil seal. This upgrade in sealing technology provides the WEB21 with superior protection against dust, mud, and other contaminants, making it particularly suitable for harsh operational conditions.

Both the WEA21 and WEB21 deliver exceptional performance; however, the choice between the two depends on the specific operational environment and requirements. For applications exposed to severe conditions, the WEB21 is the preferred choice due to its enhanced sealing capabilities. Conversely, the WEA21 is well-suited for less demanding environments while still providing reliable performance.

In summary, the Worm Gear Drive WE21 is a robust solution for low-speed industrial applications, combining efficiency, safety, and versatility. Its advanced features and reliable design make it an excellent choice across various sectors, meeting the high standards required for modern industrial operations.

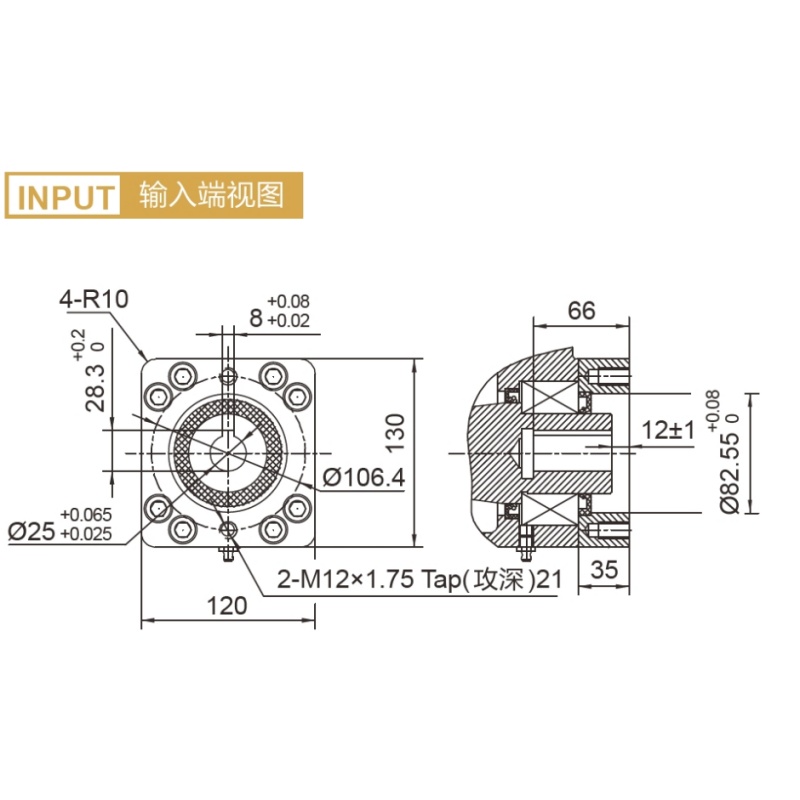

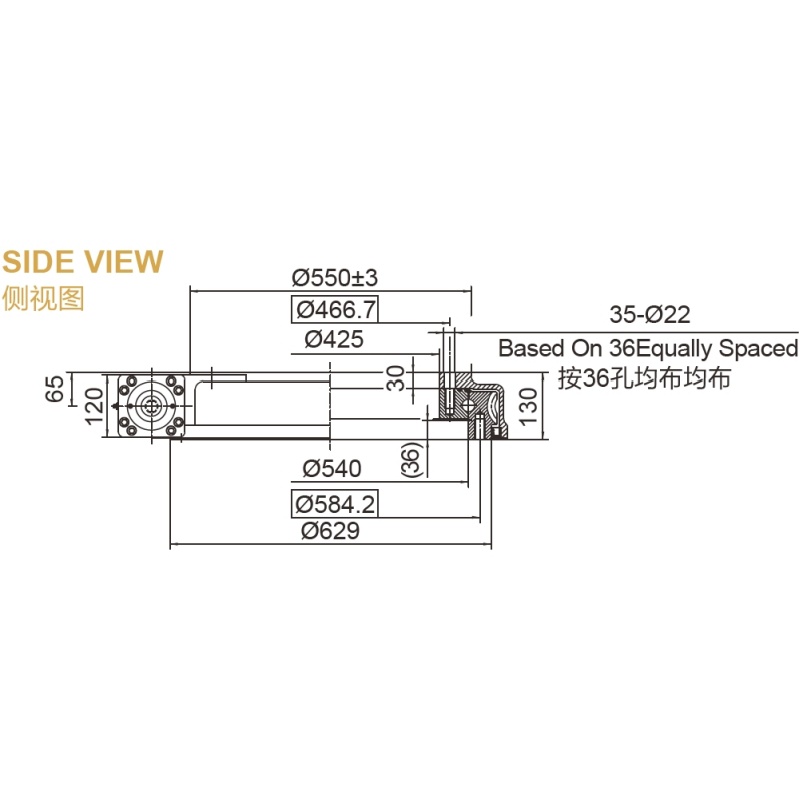

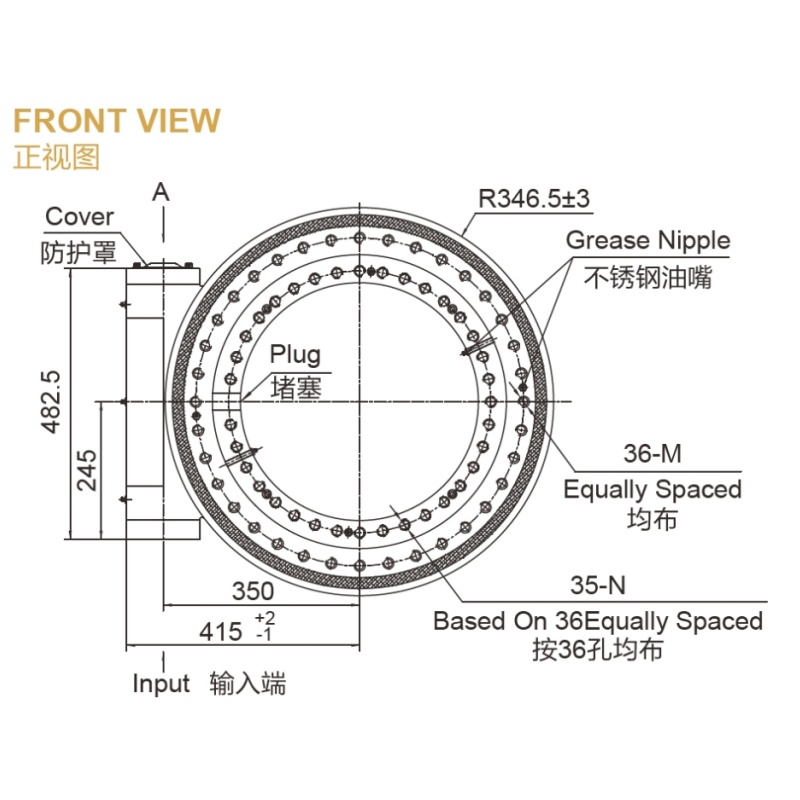

Techspecs
