Truck Crane Slewing Bearing Guide

Truck Crane Slewing Bearing Guide

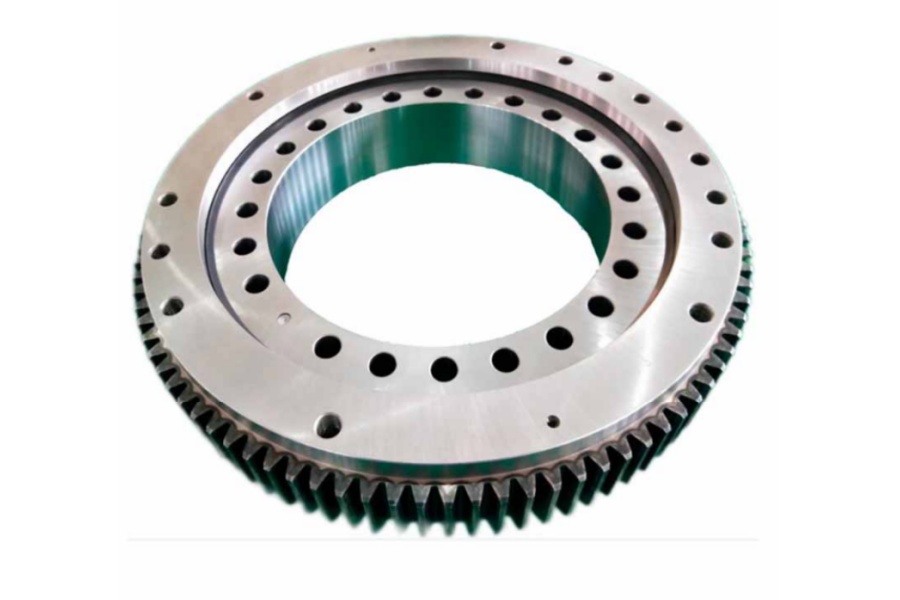

What is Truck Crane Slewing Bearing

Truck Crane Slewing Bearing is a specialized, large-diameter rolling-element bearing specifically engineered for the demanding environment of mobile hydraulic cranes mounted on truck chassis. Its primary function is to facilitate the 360-degree rotation of the crane's superstructure (boom, cab, counterweights) relative to the carrier vehicle. During operation, it must reliably withstand significant axial forces (acting parallel to the axis of rotation, primarily from the crane's weight and lifted loads), substantial radial forces (acting perpendicular to the axis, often from boom side-loading or wind), and crucially, large overturning moments (tilting forces) generated by the boom's leverage and the suspended load. To manage these combined loads efficiently within the constrained space and weight limits of a mobile crane, these bearings predominantly utilize highly compact designs: the Single-Row Four-Point Contact Ball Slewing Bearing or the Double-Row Ball Slewing Bearing (often referred to as an Eight-Point Contact design). The core components include an inner ring and an outer ring (support rings), hardened steel balls acting as the rolling elements, and precision cages (isolating blocks or retainers) to maintain accurate ball position and spacing. The raceways (load paths machined into the rings) typically feature a Gothic arch (peach-shaped) groove profile. This specific geometry allows each ball to make contact with the raceway at four distinct points simultaneously under load, enabling the bearing to handle combined loads effectively. These raceways undergo medium-frequency induction surface quenching, achieving a critical surface hardness typically between HRC 55 and 60, with a hardened layer depth ranging from 2.5mm to 5mm, ensuring exceptional resistance to wear, brinelling, and fatigue under high stress. The curvature radius of the raceway is meticulously calculated to minimize rolling resistance and energy loss, promoting smooth rotation. Gearing, usually external teeth machined on the outer ring, is standard for meshing with the crane's drive pinion. These gear teeth commonly receive medium-frequency quenching heat treatment, resulting in a recommended surface hardness of HRC 45 to 50 for optimal wear resistance and strength under transmitted torque. Given the extreme overturning moments encountered, precise internal clearance control is paramount. Radial clearance is minimized (typically controlled within 0.05mm) and axial clearance kept tight (within 0.1mm) to maximize rigidity and stability under load while ensuring smooth, unrestricted rotation without binding. This meticulous engineering ensures the bearing provides a stable, low-friction platform for critical lifting operations.

How to Reduce Gear Noise in Truck Crane Slewing Bearings

Gear noise emanating from the slewing ring and pinion drive is a common concern in truck cranes, impacting operator comfort, environmental noise levels, and potentially indicating wear or misalignment. Mitigating this noise requires a holistic approach focusing on design, manufacturing precision, installation, and maintenance:

Precision Gear Design and Manufacturing:

Optimal Gear Geometry: Employing precise tooth profile design (involute geometry) with accurate pressure angles and optimized tip/root clearances is fundamental. Computer-aided design and simulation ensure smooth meshing and minimal tooth interference.

High-Quality Gear Cutting: Utilizing advanced gear cutting processes (like precision hobbing or shaping) followed by grinding or honing significantly improves tooth profile accuracy, surface finish (reducing roughness), and lead (alignment along the tooth face).

Controlled Heat Treatment: Consistent and controlled medium-frequency quenching (as mentioned, typically targeting HRC 45-50) is vital. This achieves the necessary surface hardness for wear resistance while minimizing distortion and preserving the precise tooth geometry. Uneven hardening or excessive distortion directly leads to noisy operation.

Proper Tooth Hardness Gradient: Ensuring the correct hardness depth and a smooth transition zone between the hardened case and the tougher core material prevents premature spalling and noise generation under cyclic loading.

Accurate Alignment and Installation:

Pinion/Slewing Ring Alignment: Precise alignment between the slewing bearing gear teeth and the drive pinion is absolutely critical. Misalignment (parallel offset, angular misalignment) is a primary cause of uneven load distribution across the tooth face, leading to increased noise, vibration, and accelerated wear. Laser alignment tools are essential during crane assembly or bearing replacement.

Mounting Surface Flatness and Rigidity: The crane chassis mounting surface for the slewing bearing and the mounting structure for the pinion drive must be extremely flat, rigid, and machined to tight tolerances. Any distortion or deflection under load will transmit misalignment to the gears. Proper bolting procedures with controlled torque sequences are mandatory to avoid distorting the bearing rings.

Optimal Gear Meshing Parameters:

Correct Backlash: Maintaining the specified gear backlash (the small clearance between meshing teeth) is crucial. Insufficient backlash causes binding and high noise; excessive backlash leads to impact loading and rattling. Backlash must be set according to the manufacturer's specifications, considering thermal expansion and operating conditions.

Proper Contact Pattern: Achieving the correct gear contact pattern (the visible area where teeth mesh) across the tooth face and flank ensures load is distributed evenly. This pattern should be centered and cover an adequate portion of the tooth surface. Gear marking compound tests during installation verify this.

High-Quality Lubrication:

Appropriate Lubricant: Using the correct type of extreme-pressure (EP) gear grease specifically formulated for large, slow-moving, heavily loaded open gears is essential. The lubricant must maintain its consistency, adhere to the gear teeth, and provide adequate film strength under high pressure.

Correct Lubrication Quantity and Frequency: Both over-lubrication and under-lubrication are detrimental. An excessive amount of grease can cause churning losses and increased noise; insufficient grease leads to metal-to-metal contact and wear. Follow the crane manufacturer's lubrication schedule meticulously. Automatic lubrication systems can improve consistency.

Clean Lubrication: Preventing contamination (dirt, water, wear particles) in the grease is vital. Contaminated grease acts as an abrasive, accelerating wear and increasing noise. Ensure grease fittings and passages are clean before application.

Pinion Quality and Drive System Health:

Precision Pinion: The pinion gear must match the slewing ring gear in quality (profile, hardness, surface finish) and be manufactured to similarly high standards.

Drive Motor and Reducer Condition: Worn bearings, misalignment, or imbalance within the slewing drive motor or reducer can transmit vibrations that manifest as gear noise. Regular maintenance of the entire slewing drive system is necessary.

Operational Practices:

Avoid Shock Loading: Sudden, jerky movements when starting or stopping slewing impose impact loads on the gears, increasing noise and wear potential. Operators should strive for smooth, controlled rotation.

Characteristics of Truck Crane Slewing Bearings

Truck Crane Slewing Bearings possess distinct characteristics tailored to the unique demands of mobile lifting equipment:

Compact Design: Prioritizes minimizing height and weight to fit within the space constraints of the crane carrier deck while maintaining structural integrity. Single-row four-point contact and double-row ball designs excel in this regard.

High Load Capacity in Compact Envelope: Engineered to deliver exceptional axial, radial, and moment load ratings relative to their physical size, essential for handling the crane's weight, counterweights, and dynamic lifting loads.

Combined Load Handling: The four-point or eight-point ball contact design inherently allows the bearing to manage complex combinations of forces simultaneously – axial, radial, and tilting moment – without requiring separate bearing arrangements.

High Rigidity and Stability: Tight internal clearances (radial ~0.05mm, axial ~0.1mm) and robust ring cross-sections ensure minimal deflection under load, providing a stable platform crucial for precise load positioning and safe crane operation.

Smooth, Low-Friction Rotation: The Gothic arch raceway profile, precision-ground surfaces, high-quality balls, and optimized curvature minimize rolling resistance and torque requirements, enabling efficient slewing even under significant load.

External Gearing: Standardized external teeth on the outer ring facilitate direct meshing with the hydraulic slewing motor's pinion for powered rotation. Teeth are hardened (typically HRC 45-50) for durability.

Robust Construction: Manufactured from high-strength alloy steels. Raceways undergo medium-frequency surface hardening (HRC 55-60, depth 2.5-5mm) for superior wear and fatigue resistance. Rings are designed to withstand bolting forces and chassis stresses.

Precision Engineering: Demanding tolerances govern raceway geometry, ball size/sphericity, cage accuracy, and gear tooth profile to ensure predictable performance and longevity.

Integrated Sealing: Effective multi-lip seals or labyrinth seals are incorporated to protect the internal raceways and rolling elements from contamination (dust, water, debris) prevalent in construction and industrial sites, while retaining lubrication.

Mounting Features: Precision-machined bolt hole patterns on both inner and outer rings allow secure and accurate mounting to the crane chassis (outer ring typically) and the crane superstructure (inner ring typically).

Moderate Speed Rating: Designed for the typical slewing speeds of truck cranes, which are generally low to moderate compared to other rotating machinery.

Applications of Truck Crane Slewing Bearings

The primary and defining application of the Truck Crane Slewing Bearing is within the slew ring assembly of various types of mobile hydraulic cranes:

Truck-Mounted Cranes (Knuckle Boom & Telescopic): The core application. These bearings enable the rotation of the crane boom and upper works on commercial truck chassis. Used in logistics, utilities, construction, and recovery.

All-Terrain Cranes (ATs): High-capacity mobile cranes designed for both on-road travel and off-road operation on rough terrain. Demand high-performance slewing bearings capable of handling extreme loads and moments encountered during heavy lifts.

Rough-Terrain Cranes (RTs): Mobile cranes built on specialized off-road chassis, used extensively on construction sites, infrastructure projects, and mining. Require robust slewing bearings resistant to shock loads and harsh environments.

Carry Deck Cranes: Smaller, highly mobile cranes with a flat deck for transporting loads. Utilize appropriately sized slewing bearings.

Service Cranes: Often mounted on service trucks (e.g., bucket trucks, tire service trucks) for handling equipment, materials, or tools. Use smaller slewing bearings but share the same functional requirements.

Forestry Cranes: Mounted on specialized timber carriers or forwarders, handling logs in demanding forest environments. Require bearings resistant to contamination and shock loads.

Industrial Yard Cranes: Mobile cranes used within factories, warehouses, or ports for material handling. Benefit from the reliability and precision of these bearings.

Factors Influencing Truck Crane Slewing Bearing Price

The cost of a Truck Crane Slewing Bearing is influenced by numerous factors reflecting its complexity, material quality, and manufacturing precision:

Bearing Size and Type: Diameter and overall dimensions are primary cost drivers. Larger bearings require significantly more material. Double-row bearings are generally more complex and expensive than single-row four-point contact bearings of comparable size.

Load Ratings (Axial, Radial, Moment): Higher specified load capacities necessitate larger cross-sections, larger or more balls, higher-grade materials, enhanced heat treatment control, and potentially tighter manufacturing tolerances.

Material Specification: The grade, quality, and origin of the forged or rolled alloy steel (e.g., 50Mn, 42CrMo) used for rings and balls significantly impact cost. High-purity, high-strength steels with superior fatigue properties command premium prices.

Heat Treatment: The medium-frequency induction hardening process for the raceways (achieving HRC 55-60, depth 2.5-5mm) and the gear teeth (HRC 45-50) is energy-intensive and requires precise control. Complexity increases with bearing size and gear specifications. Consistency and depth validation add cost.

Precision Machining Tolerances: Achieving the required geometric accuracy on large rings (flatness, raceway profile, bolt hole position) demands advanced CNC machinery, skilled labor, and rigorous inspection (CMM), directly impacting manufacturing time and cost. Gear tooth profile precision is especially critical.

Gear Specifications: The presence of gearing (standard), module size, tooth width, and the specific hardening process applied contribute significantly to cost. Larger modules or complex hardening requirements increase expense.

Ball Quality and Cage Design: High-precision, high-grade steel balls meeting strict sphericity and size tolerances are costly. The design and material of the cage (polyamide, brass, sintered bronze, precision steel) also affect price. Complex cage designs for better ball guidance add cost.

Sealing System: The type, quality, and number of seals (e.g., triple-lip seals, specialized elastomers like NBR or FKM) influence cost. Requirements for grease purge ports or sensor integration add complexity.

Lubrication Features: Integrated grease channels or fittings add minor cost; complex internal passages more so.

Quantity and Standardization: Mass production of standard sizes offers economies of scale. Custom-designed or one-off bearings incur significantly higher per-unit costs due to engineering and setup expenses.

Mounting Hardware: Inclusion of high-strength mounting bolts, nuts, and washers adds to the overall package cost.

Quality Assurance and Certification: Costs associated with stringent quality control processes (material certifications, process records, non-destructive testing - NDT like MPI or UT), and obtaining certifications (ISO 9001, specific crane manufacturer approvals) are factored in.

Supplier Expertise and Reputation: Established manufacturers with proven reliability, technical support capabilities, and a strong track record in the crane industry often command a premium reflecting their expertise and reduced risk for the buyer.

Market Conditions: Fluctuations in raw material costs (steel, alloys), energy prices, and logistics costs can influence the final price.

Supplier of Truck Crane Slewing Bearing

When sourcing critical components like the Truck Crane Slewing Bearing, partnering with a reliable and experienced manufacturer is paramount. LYRADRIVE stands as a recognized supplier specializing in the design and production of high-performance slewing bearings for demanding applications, including mobile cranes. They offer expertise in engineering bearings tailored to specific load requirements and crane configurations, utilizing quality materials and controlled manufacturing processes. LYRADRIVE typically emphasizes robust construction, precise heat treatment, and rigorous quality control to ensure bearing reliability and longevity under the rigorous operating conditions encountered by truck cranes. Their focus is on providing solutions that meet the stringent performance and safety standards of the lifting industry.
