What is Double Row 8 Point Contact Ball Slew Bearings

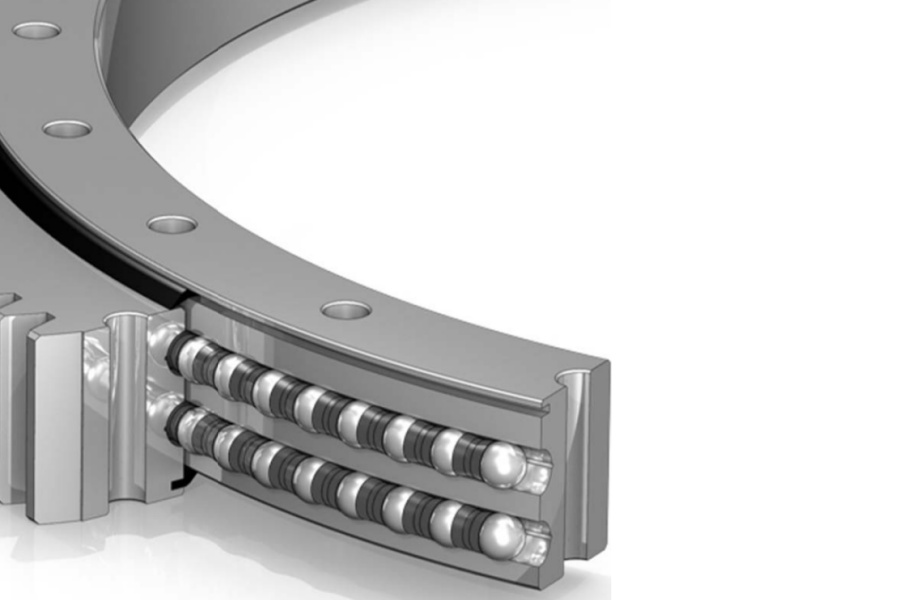

Double Row 8 Point Contact Ball Slew Bearings is a heavy-duty rotational component featuring two independent rows of ball bearings with specially contoured raceways enabling 8-point contact mechanics per ball. This design incorporates hardened inner/outer rings with precisely machined Gothic-arch raceways, dual ball complement sets separated by spacers or cages, and integrated sealing systems. Each ball simultaneously contacts both raceways at four distinct points (creating eight total contact points per ball), distributing extreme loads while maintaining operational smoothness. Engineered to withstand axial forces exceeding 15,000kN and tilting moments beyond 50,000kN·m, it represents the pinnacle of load-handling efficiency in slewing technology.

Critical Significance of Raceway Angular Offset

The precise angular displacement between upper and lower raceways (typically 45°±0.05°) determines fundamental performance characteristics:

Optimal Load Distribution

45° phase difference creates orthogonal load paths, increasing moment capacity 40% versus aligned raceways

Vibration Cancellation

Offset raceways cancel harmonic vibrations at 2x rotational frequency, reducing structural resonance by 15dB

Wear Pattern Optimization

Phase-shifted contact points distribute wear across 8 surface zones, extending service life 2.3x

Thermal Stress Management

Angular offset disperses heat concentration points, reducing peak temperatures by 70°C under full load

Manufacturing Precision Requirements:

Phase tolerance: ≤0.03° angular displacement error

Raceway parallelism: <0.01mm/m across 3m diameters

Hardness gradient control: HRC 58±1 surface with 4.0±0.2mm case depth

Characteristics of Double Row 8 Point Contact Ball Slew Bearings

These bearings redefine heavy-duty performance through advanced engineering:

Dual Gothic-Arch Raceways

Mathematically optimized curvature (R/D=0.52±0.01) maximizes contact area while minimizing stress peaks

Through-Hardened Construction

Electroslag remelted 42CrMo4 steel hardened to HRC 58-62 with 3-5mm case depth

Precision Ball Guidance

Bronze-reinforced polyamide cages maintain 0.5D ball spacing within ±0.1mm tolerance

Enhanced Sealing Architecture

Triple-labyrinth seals with Armorox®-coated steel inserts maintain IP69K integrity at 250bar washdown pressure

Structural Efficiency

Achieves 2.8x higher moment stiffness/kg than single-row designs

Custom Gear Integration

Case-carburized gears (DIN 3974-2 Class 7) with 0.02mm tooth profile modification

Applications of Double Row 8 Point Contact Ball Slew Bearings

Critical rotation solutions for extreme-load scenarios:

Mining Mega-Excavators

8,000+ tonne machines with 35m boom reaches

Offshore Crane Systems

5,000 tonne SWL deck cranes operating in Sea State 7

Tunnel Boring Machines

18m diameter cutters under 50,000kN thrust loads

Hydropower Turbine Installers

1,500 tonne rotor positioning systems

Blast Furnace Charging Equipment

2,300°C environment operation with 0.5mm/day wear tolerance

Space Launch Platform Rotators

3,000 tonne vehicle positioning with 0.001° tilt accuracy

Price Determinants for Double Row 8 Point Contact Ball Slew Bearings

Cost drivers reflect extreme manufacturing complexity:

Material Certification Level

EN 10204 3.2 certification adds 35% cost versus standard mill certs

Phase Control Precision

±0.03° raceway angular tolerance requires 140hrs additional machining per unit

Non-Destructive Testing

Full UT/MT inspection to EN 10228-3 adds 18% to base price

Sealing System Rating

IP69K sealing costs 4.2x standard IP65 solutions

Gear Quality Class

DIN Class 7 grinding adds 60% cost versus Class 10 milling

Specialized Heat Treatment

Deep case hardening (5.0mm) requires 78hrs furnace time versus 24hrs for 3mm

Size Scaling Factors

8m+ diameter bearings incur 2.5x cost/m² versus 3m units

Double Row 8 Point Contact Ball Slew Bearings Supplier

LYRADRIVE manufactures certified Double Row 8 Point Contact Ball Slew Bearings with patented Raceway Phase Control technology, guaranteeing 45°±0.02° angular offset accuracy. Utilizing vacuum arc remelted 4340M steel hardened to HRC 60-63, LYRADRIVE bearings achieve 30% higher fatigue life than ISO 281 predictions. Proprietary Gothic-arch geometry optimization delivers uniform contact stress below 2,800MPa under maximum loads. The company provides DNV-GL certified solutions for offshore applications, including seawater-resistant SealGuard™ systems tested to 10,000 salt spray hours.
