What Exactly Is a Truck Crane Slewing Bearing?

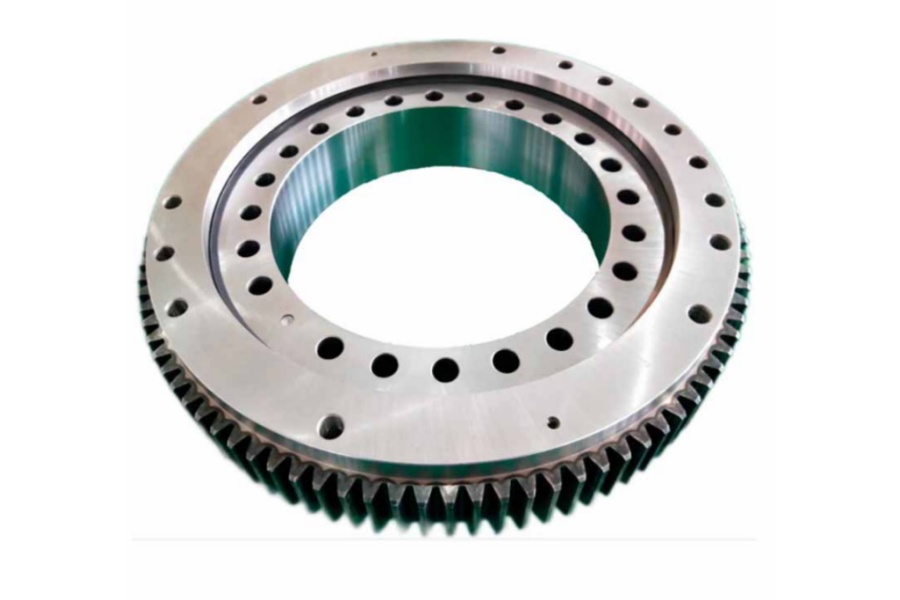

A truck crane slewing bearing, also known as a slewing ring or turntable bearing, is a large-diameter, ultra-robust rolling-element bearing specifically designed to handle immense combined loads. Unlike standard bearings, it must simultaneously manage:

Axial Loads: Forces acting parallel to the bearing's axis (up/down), primarily from the crane's weight and lifted load.

Radial Loads: Forces acting perpendicular to the axis (sideways), caused by boom extension, wind, and dynamic movements.

Tilting Moments: Forces that attempt to tip the upper structure relative to the carrier, generated by off-center loads and boom positioning.

Constructed as a single, integrated unit, it typically features either ball or roller elements (or a combination) running within hardened steel raceways. These raceways are integrated into robust inner and outer rings. The outer ring is usually bolted firmly to the crane's carbody (upper structure), while the inner ring is bolted to the carrier chassis (lower structure). Precision gear teeth are often machined directly onto either the inner or outer ring, meshing with the crane's slewing drive pinion to provide the rotational force. Seals, lubrication channels, and mounting holes are integral to its design, ensuring longevity and performance under extreme conditions. This bearing is the fundamental pivot point upon which the crane's entire operational versatility hinges.

Mastering the Task: How to Replace a Truck Crane Slewing Bearing

Replacing a truck crane slewing bearing is a major undertaking demanding meticulous planning, specialized equipment, and strict adherence to safety protocols and manufacturer procedures. Here's a high-level overview of the critical steps:

Preparation & Safety First: Secure the crane on stable, level ground. Fully retract the boom, lower any load, and engage all outriggers/pads according to capacity charts. Implement comprehensive lockout/tagout (LOTO) procedures for hydraulic and electrical systems. Gather all necessary tools, lifting equipment (large-capacity cranes or jacks rated for the weight), support stands, and the correct replacement bearing with its specific mounting hardware and seals. Consult the crane's service manual meticulously.

Upper Structure Removal (Carbody Separation): This is the most complex phase. Safely disconnect all hydraulic hoses, electrical cables, and control linkages running between the upper and lower structures, clearly labeling everything. Rig the upper structure securely using engineered lifting points. Using synchronized lifting equipment, carefully lift the entire upper structure (carbody, boom, cab, counterweight) just high enough to clear the slewing bearing and provide safe access. Support the upper structure immovably on heavy-duty stands designed for this purpose. Ensure absolute stability throughout.

Old Bearing Removal: Unbolt and remove any guarding or covers. Thoroughly clean the mounting surfaces on both the carrier frame and the bottom of the carbody. Unbolt the inner and outer rings of the old slewing bearing. Due to corrosion, settling, and adhesive forces, specialized hydraulic pushing/pulling tools are often required to break the bearing free from the mounting surfaces without damaging them. Extreme care is needed.

Surface Preparation & Inspection: Meticulously clean and inspect the mounting surfaces on both the carrier and carbody. Any corrosion, pitting, warping, or damage must be repaired according to OEM specifications. Surfaces must be perfectly flat, clean, and dry. Verify the condition of the slewing drive pinion and gear.

New Bearing Installation: Carefully lift the new slewing bearing into position using appropriate lifting lugs. Apply the specified sealant (if required by the OEM) to the mounting surfaces. Align the bearing perfectly according to the manual, ensuring bolt holes match and gear teeth mesh correctly with the pinion. Insert mounting bolts finger-tight initially. Follow the OEM's exact tightening sequence and torque specifications, typically in multiple stages (e.g., 30%, 60%, 100% of final torque), often using a calibrated torque wrench or hydraulic tensioning tools. This is crucial for preventing distortion and ensuring even load distribution. Install new seals as specified.

Reconnection & Lowering: Carefully lower the upper structure back onto the new slewing bearing, ensuring alignment pins (if present) engage correctly. Reconnect all hydraulic hoses, electrical cables, and control linkages precisely as labeled. Double-check all connections.

Lubrication, Testing & Commissioning: Fill the slewing bearing with the exact type and quantity of grease specified by the bearing manufacturer and crane OEM, using the designated lubrication points. Perform a thorough visual inspection. Gradually test slewing function without load, listening for unusual noises and checking for smooth rotation. Progress to light load tests, checking for any binding, excessive play, or leaks. Finally, perform operational checks according to the crane manufacturer's commissioning procedure before returning the crane to full service. Detailed documentation of the replacement process is essential.

The Connection: Mobile Crane Slewing Bearings

"Mobile crane" is a broad category encompassing truck-mounted cranes (like the focus here), all-terrain cranes, rough-terrain cranes, and crawler cranes. While all utilize slewing bearings as their central rotational pivot, the specific design and requirements vary significantly based on crane type and application:

Truck-Mounted Cranes: Bearings prioritize a balance between high load capacity (axial, radial, moment) and a relatively compact design to fit within the constraints of a commercial truck chassis. Weight optimization is also critical.

All-Terrain Cranes (ATs): Require bearings with the highest load capacities and durability, capable of handling the immense weights and dynamic forces of these large, versatile machines operating on varied terrain. They are typically the largest and most robust slewing bearings in the mobile crane family.

Rough-Terrain Cranes (RTs): Use robust bearings similar to truck cranes but often designed for higher moment loads due to their shorter wheelbase and common use on uneven ground. Simplicity and durability for harsh site conditions are key.

Crawler Cranes: Feature massive slewing bearings integrated directly into the crawler undercarriage. They are engineered for extreme loads and continuous, heavy-duty operation, often incorporating multiple rows of rollers. Their design focuses on maximum stability and load distribution over the crawler tracks.

The core function remains identical – enabling 360-degree rotation under load. However, the size, internal design (ball vs. roller, single vs. multi-row), material specifications, gear tooth configuration, and sealing requirements are meticulously engineered to match the specific demands of each mobile crane type. Using the correct bearing specified for the exact crane model is non-negotiable for safety and performance.

Engineering Excellence: Key Features of Truck Crane Slewing Bearings

Truck crane slewing bearings are marvels of engineering, incorporating features essential for their demanding role:

Exceptional Load Capacity: Engineered to withstand the extreme combined loads (axial, radial, moment) generated by the crane's weight, maximum lifted load, boom dynamics, wind, and operational stresses.

High Rigidity & Precision: Maintain precise alignment and minimal deflection under load, ensuring accurate boom positioning and smooth, controlled slewing without excessive play or binding. This is critical for safe load handling.

Robust Construction: Manufactured from high-grade, through-hardened or case-hardened alloy steels (e.g., 42CrMo, 50Mn) for superior strength, wear resistance, and fatigue life.

Integrated Gearing: High-precision gear teeth (internal or external) are typically cut directly onto one of the bearing rings, providing a positive, reliable drive interface with the slewing motor's pinion.

Advanced Sealing Systems: Multi-layered, labyrinthine seals or specialized lip seals protect the internal rolling elements and raceways from harsh environmental contaminants like dust, dirt, water, and debris, while retaining vital lubrication. Critical for longevity in construction and industrial environments.

Optimized Lubrication: Designed with strategically placed grease nipples (zerk fittings) and internal channels to ensure consistent lubrication reaches all critical contact surfaces, reducing friction and wear. Some designs incorporate re-lubrication systems.

Corrosion Resistance: Often feature surface treatments like phosphating, zinc plating, or specialized coatings to protect against rust and corrosion, especially important for cranes operating in marine or chemically aggressive environments.

Mounting Security: Engineered with precisely positioned bolt holes and often alignment features (dowels, pins) to ensure a secure, distortion-free connection to both the carrier chassis and the crane's upper structure.

Durability & Long Service Life: Designed and manufactured to provide reliable operation for thousands of hours under demanding conditions, minimizing unplanned downtime and maintenance costs.

Where Power Meets Purpose: Applications of Truck Crane Slewing Bearings

Truck crane slewing bearings are indispensable wherever these versatile machines operate, enabling critical lifting tasks across countless industries:

Construction: Erecting steel structures, placing precast concrete elements, handling building materials, setting HVAC units, facilitating bridge construction, and general site lifting.

Infrastructure Development: Essential for road and bridge building/repair, installing utilities (pipes, culverts), setting light poles and signage, and railway construction/maintenance.

Energy Sector: Supporting power line construction and maintenance (setting poles, transformers), wind turbine component installation and servicing, and activities in oil & gas fields and refineries.

Logistics & Shipping: Loading and unloading heavy cargo from ships, trucks, and railcars within ports, terminals, freight yards, and warehouses.

Manufacturing & Industrial Plants: Handling heavy machinery, facilitating plant maintenance and equipment installation, moving large raw materials or finished products within factories and mills.

Disaster Response & Recovery: Enabling critical lifting operations for debris removal, infrastructure stabilization, and rescue support in the aftermath of natural disasters.

Telecommunications: Installing and maintaining cell towers and other communication infrastructure components.

Tree Care & Landscaping: Used by large knuckleboom and forestry cranes for handling heavy logs, stumps, and equipment.

Essentially, any task requiring the precise, 360-degree placement of a significant load by a truck-mounted crane relies entirely on the flawless performance of its slewing bearing.

Investing in Performance: Factors Influencing Truck Crane Slewing Bearing Price

The cost of a truck crane slewing bearing is not arbitrary; it reflects the complex engineering and materials required. Key factors include:

Size & Dimensions: Larger diameter bearings require significantly more material and complex manufacturing processes, driving up cost.

Load Capacity & Rating: Bearings engineered for higher maximum axial, radial, and moment loads demand more robust designs, larger rolling elements, specialized heat treatment, and stricter quality control, increasing price.

Internal Design Complexity: Single-row ball bearings are generally less expensive than double-row ball, cross roller, or three-row roller designs, which offer higher capacities and rigidity but are more complex to manufacture.

Material Grade & Specifications: High-performance alloy steels, specific hardening requirements (depth, hardness profile), and specialized corrosion protection coatings add cost.

Gear Specifications: The presence, type (internal/external), size (module), precision class (e.g., DIN 5, DIN 6), and tooth hardening of the integrated gear significantly impact machining time and cost.

Sealing System: Advanced, multi-barrier sealing solutions designed for extreme environments are more expensive than basic seals.

Precision Requirements: Tolerances for raceway geometry, gear tooth profile, mounting surface flatness, and overall dimensional accuracy are extremely tight. Higher precision demands more sophisticated manufacturing and inspection, increasing cost.

Brand & Origin: Premium brands with established reputations for quality and reliability often command higher prices. Manufacturing location (labor costs, overhead) also plays a role.

Customization: Bearings requiring deviations from standard designs (special bolt patterns, unique lubrication systems, non-standard gear specs, specific coatings) incur additional engineering and production costs.

Quantity: Unit price typically decreases for larger volume orders due to economies of scale in production.

While initial cost is a factor, the total cost of ownership – considering bearing lifespan, reliability, maintenance needs, and the catastrophic cost of crane downtime due to failure – makes investing in a high-quality bearing from a reputable manufacturer a financially sound decision.
