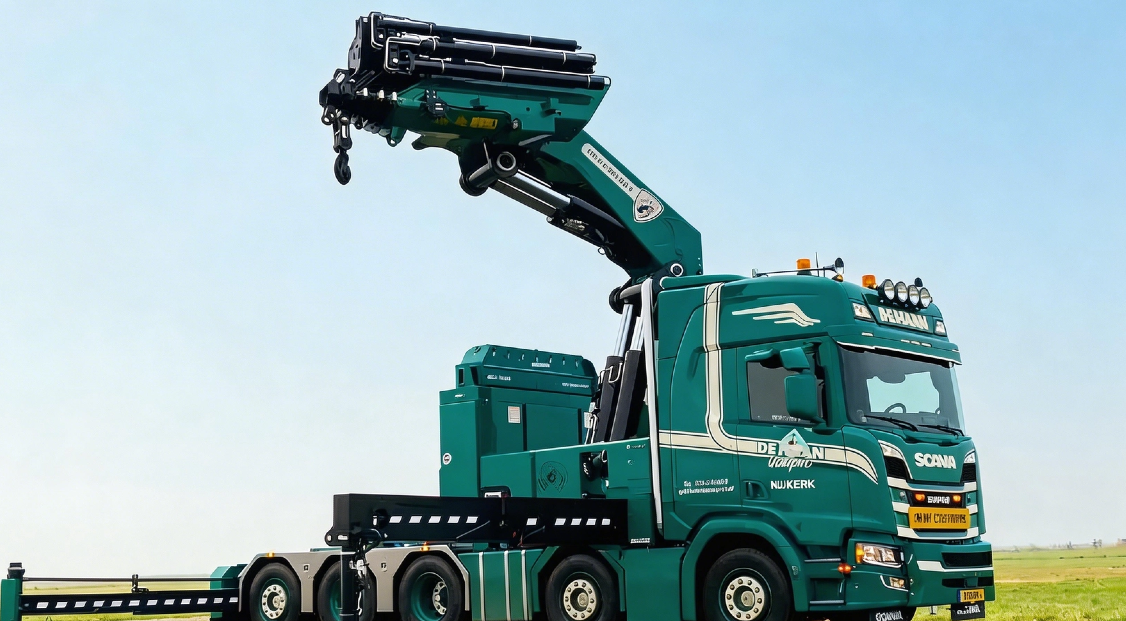

The Truck Crane Upgrade: From Slewing Ring to Slew Drive

The Truck Crane Upgrade: From Slewing Ring to Slew Drive

Truck cranes have revolutionized the logistics and construction industries by combining transportation capability with lifting power. At the heart of these versatile machines lies the rotation system that enables precise positioning of loads. This article explores the evolution from traditional slewing rings to modern slew drives, explaining why this upgrade matters for performance, maintenance, and long-term value.

What is a Slewing Ring?

A slewing ring, also known as a slewing bearing, is a rotational element that simultaneously supports axial loads, radial loads, and tilting moments. It consists of four basic components: an inner ring, an outer ring, rolling elements (balls or rollers), and a cage to separate the rolling elements. Some designs also include seals to retain lubricant and exclude contaminants.

Slewing rings function as large-scale bearings that allow smooth rotation between two parts of a machine—in truck cranes, between the vehicle chassis and the upper lifting structure. They come in various configurations including single-row ball bearings, double-row ball bearings, and cross-roller bearings, each selected based on load requirements and operating conditions.

How Does a Slewing Ring Work in a Truck Crane?

In a typical truck crane installation, the slewing ring connects the fixed truck chassis to the rotating superstructure that carries the boom, hydraulic systems, and operator cab. The inner ring typically mounts to the chassis while the outer ring attaches to the rotating upper structure.

When equipped with external gear teeth on either the inner or outer ring, a pinion gear driven by a hydraulic motor engages with these teeth to produce rotation. This arrangement allows the operator to swing the boom and load through a full 360 degrees or any partial arc as required.

However, this open-gear configuration presents significant operational challenges. As documented in field observations, the exposed gearing and bearing surfaces collect dust, dirt, and moisture. Grease escapes from seals under pressure and motion, then becomes contaminated with environmental debris. The result is a messy equipment appearance, frequent regreasing requirements, accelerated wear, and ultimately higher maintenance costs and equipment downtime.

What is a Slew Drive?

A slew drive represents an engineering advancement that integrates multiple components into a single, sealed unit. A complete slew drive combines a slewing bearing, a drive gear system, a housing, seals, and often support bearings into one pre-assembled, pre-lubricated package.

Unlike standalone slewing rings that require separate drive components and external protection, slew drives arrive as ready-to-install modules. The housing provides structural integrity while protecting internal components from environmental contamination. Integrated seals retain lubricant throughout the unit's service life while excluding water, dust, and debris.

Slew drives are categorized primarily by their gear reduction mechanism, with the main types being worm gear slew drives and spur gear slew drives. Each type offers distinct characteristics suited to different application requirements.

How Does a Spur Slew Drive Work in a Truck Crane?

When installed in a truck crane, a spur gear slew drive operates as a fully enclosed rotation system. The integrated electric or hydraulic motor connects to the drive's input shaft, which transfers power through the gear reduction system to the output flange. The output flange mounts directly to the crane's rotating superstructure.

Within the sealed housing, the gear mechanism provides speed reduction and torque multiplication. The slewing bearing integrated into the drive handles all axial loads from the lifted cargo, radial loads from boom extension, and tilting moments created by offset loads.

The sealed design ensures that all moving parts operate within a controlled environment. Lubricant remains clean and properly distributed across all contact surfaces. External contaminants cannot enter the system, and internal grease cannot escape. This results in consistently smooth operation, predictable performance, and dramatically reduced maintenance requirements compared to open slewing ring configurations.

Feature Comparison: Slewing Ring vs. Spur Slew Drive

Understanding the differences between these two rotation solutions helps equipment owners make informed decisions:

Integration Level

• Slewing Ring: A single bearing component requiring separate drive gears, motors, and protective covers

• Spur Slew Drive: Complete integrated unit combining bearing, gearing, housing, and sealing

Lubrication System

• Slewing Ring: Open grease system requiring frequent reapplication; grease easily contaminated

• Spur Slew Drive: Sealed oil or grease bath; lubricant remains clean for extended periods

Environmental Protection

• Slewing Ring: Susceptible to dust, water, and debris ingress; requires external guarding

• Spur Slew Drive: IP-rated sealing protects all internal components; weatherproof design

Maintenance Requirements

• Slewing Ring: Regular cleaning and regreasing necessary; inspection intervals frequent

• Spur Slew Drive: Minimal maintenance; extended service intervals; reduced labor costs

Operational Cleanliness

• Slewing Ring: Grease migration creates messy equipment; contamination accelerates wear

• Spur Slew Drive: No grease loss; equipment remains clean and professional appearing

Reliability Factors

• Slewing Ring: Performance degrades with contamination; failure modes include gear damage and bearing wear

• Spur Slew Drive: Consistent performance throughout service life; predictable operation

Advantages of Using Spur Slew Drives in Truck Cranes

The adoption of spur gear slew drives delivers measurable benefits for truck crane operators and fleet owners:

Extended Equipment Life
The sealed environment protects precision components from the abrasion and corrosion that plague open systems. Gears and bearings operate in clean lubricant, dramatically reducing wear rates and extending service life.

Reduced Downtime
With minimal maintenance requirements and higher reliability, cranes spend more time working and less time in the shop. The elimination of frequent greasing intervals means operators focus on productive tasks rather than maintenance.

Lower Operating Costs
While the initial investment in a slew drive may exceed that of a basic slewing ring, the total cost of ownership tells a different story. Reduced lubricant consumption, fewer service hours, and extended component life combine to deliver significant savings over the equipment's lifetime.

Improved Safety
Sealed drives eliminate the exposed moving parts and greasy surfaces that create hazards for maintenance personnel. Clean equipment also allows easier inspection of surrounding components.

All-Weather Capability
Spur slew drives maintain reliable performance in rain, snow, dust storms, and extreme temperatures. The sealed design ensures that environmental conditions do not compromise operation.

Why Modern Truck Cranes Switch from Rings to Spur Slew Drives

The industry transition toward integrated slew drives reflects changing customer expectations and operational demands. Fleet owners increasingly evaluate equipment based on total lifecycle costs rather than initial purchase price. The economics of reduced maintenance, longer service intervals, and extended equipment life favor the slew drive solution.

Equipment manufacturers respond to market demands for higher reliability and lower maintenance. Competitive pressure drives innovation, and the performance advantages of sealed slew drives create compelling value propositions for crane buyers.

Environmental considerations also influence the shift. Reduced lubricant consumption and elimination of grease waste align with sustainability goals increasingly important to equipment users and regulators alike.

How to Choose the Right Slew Drive for Your Truck Crane?

Selecting the optimal slew drive requires careful evaluation of several factors:

Load Requirements
Calculate the maximum axial load, radial load, and tilting moment your application demands. Include safety factors for dynamic loads and unexpected conditions. These calculations determine the required bearing capacity and drive torque.

Operating Environment
Consider the typical conditions where your crane operates. Extreme temperatures, high humidity, dust exposure, and saltwater environments each influence optimal seal selection and lubrication choices.

Speed and Precision Needs
Evaluate required rotation speeds and positioning accuracy. Different gear types offer varying characteristics for smoothness, backlash control, and speed capability.

Installation Constraints
Measure available mounting space and review connection requirements. Consider whether standard mounting patterns match your existing equipment or if custom configurations prove necessary.

Power Source Compatibility
Verify that the slew drive input matches your crane's hydraulic or electrical power system. Torque requirements must align with available motor output.

LyraDrive: Customized Truck Crane Slew Drive Manufacturer

LyraDrive specializes in the design and manufacture of high-performance rotation solutions for demanding applications. Our comprehensive product line encompasses both slewing bearings and complete slew drives, providing customers with flexible options for any requirement.

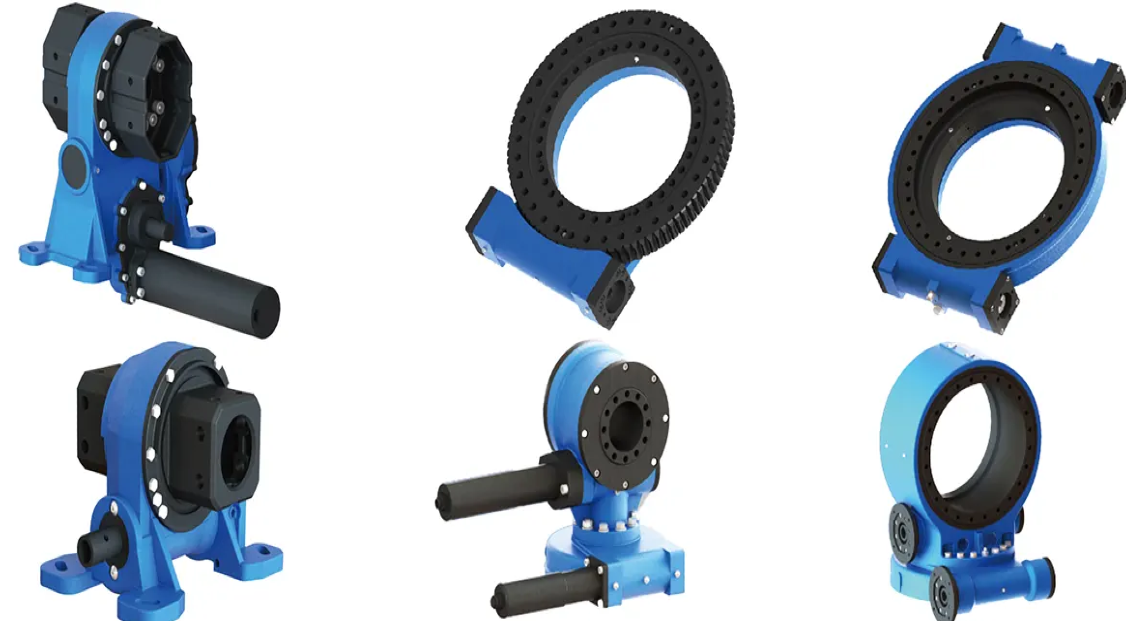

Our Slew Drive Product Range

Worm Gear Slew Drives offer excellent torque multiplication in compact packages. The self-locking characteristic inherent to worm gear designs provides inherent safety for applications requiring position holding without brake engagement. These drives excel in applications where space constraints demand maximum power density.

Double Worm Slew Drives represent our advanced solution for applications requiring extreme reduction ratios and zero backlash. The dual-worm configuration provides exceptional positioning precision and smooth operation, ideal for critical lifting applications where load control proves paramount.

Spur Gear Slew Drives deliver high efficiency and robust performance for continuous-duty applications. Our spur gear designs feature optimized tooth profiles for smooth engagement and extended service life. These drives excel in truck crane applications where reliability and minimal maintenance deliver maximum value.

Our Slewing Bearing Line

Beyond complete drives, LyraDrive manufactures precision slewing bearings in multiple configurations including single-row ball, double-row ball, and cross-roller designs. Each bearing undergoes rigorous quality control to ensure dimensional accuracy and smooth operation.

The LyraDrive Advantage

When you choose LyraDrive, you gain more than a product—you gain a partner committed to your success. Our technical team provides application engineering support to ensure correct selection and optimal performance. Our quality systems ensure consistent, reliable products delivered on schedule. And our customer service team stands ready to support you throughout the product lifecycle.

FAQ: Common Questions About Truck Crane Drive Systems

Q: How often does a spur slew drive require maintenance?
A: Maintenance intervals vary by application, but typical service requirements range from annual to biannual inspections, compared to weekly or monthly greasing for open slewing rings.

Q: Can I retrofit an existing truck crane with a slew drive?
A: In most cases, yes. LyraDrive engineers can assess your existing equipment and design a retrofit solution compatible with your crane's mounting patterns and power system.

Q: What is the typical lifespan of a spur gear slew drive?
A: With proper selection and normal operating conditions, a quality slew drive will outlast multiple sets of open slewing rings, often matching or exceeding the crane's service life.

Q: How do I determine the correct size slew drive for my crane?
A: LyraDrive provides technical support to calculate required capacities based on your crane's maximum load, boom length, and operating parameters. We recommend consulting our engineering team during the selection process.

Q: Are slew drives repairable or replaceable?
A: While designed for extended service life, slew drives can be replaced when necessary. The modular design simplifies replacement compared to rebuilding complex open systems. LyraDrive also offers remanufacturing services for qualified units.

Q: What warranty does LyraDrive provide?
A: We stand behind our products with comprehensive warranties. Contact our sales team for specific warranty terms applicable to your application and region.
