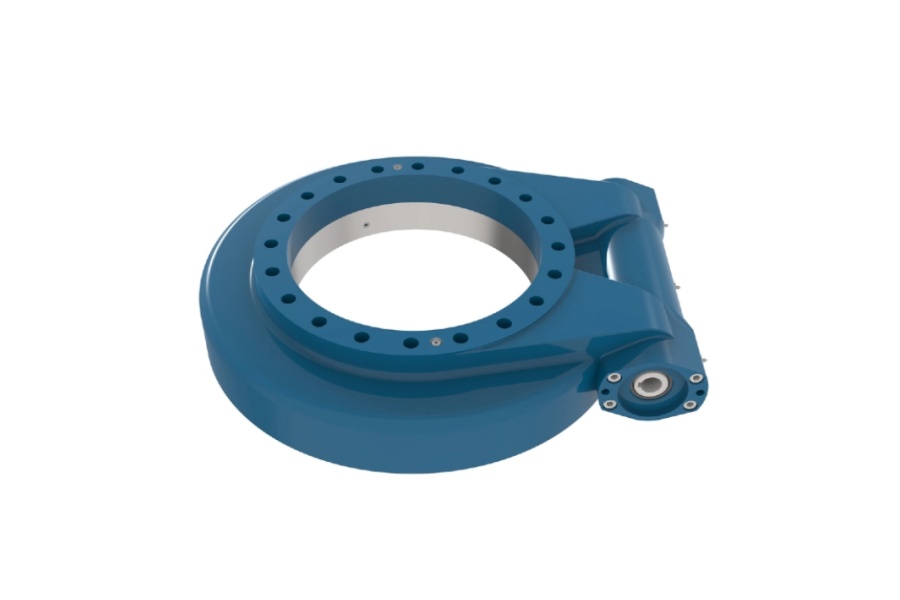

What is the Enveloping Slewing Drive SE17?

The Enveloping Slewing Drive SE17 is a sophisticated, compact, and highly integrated drive system engineered to provide smooth, powerful, and controlled rotational movement. At its core, it consists of three critical components working in unison: a robust base structure acting as the foundation, a precision-ground input worm shaft, and an enveloping worm wheel. This specific "enveloping" geometry describes how the worm wheel partially wraps around the worm, significantly increasing the contact area between the teeth compared to standard worm gear designs. This fundamental design characteristic is key to the SE17's exceptional performance, enabling it to transmit very high torques and withstand substantial multi-directional loads while maintaining compact dimensions. The entire assembly is meticulously engineered and pre-assembled into a single, ready-to-install unit, drastically simplifying integration into machinery.

Automation Turntable Drive Excellence

In the realm of automation, particularly for precision turntables and indexing applications, the demands placed on drive systems are immense. These applications require drives that offer not only high torque and precise positioning but also exceptional stiffness to minimize deflection under load and maintain accuracy during rapid starts, stops, and reversals. Vibration resistance is crucial for smooth operation and long component life. The Enveloping Slewing Drive SE17 is uniquely suited to meet these challenges. Its inherent enveloping design provides superior load distribution and rigidity. The large contact area minimizes stress concentrations, leading to smoother operation, reduced noise, and significantly enhanced durability. This translates directly to turntables that can handle heavier payloads, rotate with exceptional positional accuracy (critical for tasks like robotic welding, precision assembly, or CNC machining part positioning), and operate reliably for extended periods with minimal maintenance. The SE17's ability to withstand combined loads ensures the turntable structure remains stable and accurate even under off-center loads or dynamic forces.

Enveloping Slewing Drive SE17: Key Performance Parameters

Understanding the technical specifications is crucial for selecting the right drive for an application. The Enveloping Slewing Drive SE17 is defined by its impressive performance parameters:

Output Torque: 10 kN.m - This is the continuous torque the drive can reliably deliver to the output flange under normal operating conditions, providing substantial rotational force.

Tilting Moment Capacity: 135.6 kN.m - This critical parameter indicates the drive's exceptional ability to resist forces that attempt to tilt or overturn the output flange relative to its base. This is vital for applications with significant overhung loads or moments acting perpendicular to the axis of rotation.

Holding Torque: 72.3 kN.m - This represents the maximum static torque the drive can withstand without any rotation occurring at the output, even when the input is not powered. This high holding torque is intrinsically linked to the drive's self-locking capability.

Gear Ratio: 102:1 - This fixed ratio determines the relationship between the input speed (typically from an electric motor) and the output speed. A 102:1 ratio provides high torque multiplication and precise speed control, making it ideal for applications requiring powerful, controlled movement.

Tracking Accuracy: ≤ 0.15° (overall), ≤ 0.05° / 0.07° (specific positioning) - These values quantify the drive's precision. The overall tracking accuracy indicates the maximum deviation during continuous motion, while the finer values (like ≤0.05° or ≤0.07°) often refer to positioning repeatability or backlash equivalent, highlighting its capability for high-precision indexing and stopping.

Enveloping Slewing Drive SE17: Defining Characteristics

Beyond its impressive parameters, the SE17 boasts several key features that make it stand out:

Superior Multi-Directional Load Capacity: Unlike many drives limited to pure torque, the SE17 is specifically engineered to simultaneously handle substantial axial loads (parallel to the rotation axis), radial loads (perpendicular to the axis), and tilting moments (forces causing tipping). This "three-in-one" load capacity significantly simplifies machine design by reducing or eliminating the need for additional support bearings.

Inherent Self-Locking Capability: The high helix angle and friction characteristics inherent in the enveloping worm gear design provide a natural self-locking function. This means the drive inherently resists back-driving (output torque forcing the input to rotate) when the input shaft is not powered. This is a critical safety feature, preventing unintended movement of loads, especially in vertical or safety-critical applications, without requiring external brakes in many scenarios.

Fully Sealed and Protected Design: The unit is equipped with high-quality seals and protective measures, creating a robust barrier against environmental contaminants like dust, dirt, moisture, and splash. This comprehensive sealing ensures reliable operation and long service life even in harsh industrial environments, minimizing the risk of internal component wear or corrosion.

High Rigidity and Torsional Stiffness: The robust construction of the housing and the enveloping gear mesh result in exceptional structural rigidity and torsional stiffness. This minimizes deflection under load, ensuring precise positioning and smooth motion transfer, which is essential for maintaining accuracy in automation and machining tasks.

Integrated, Compact Design: Supplied as a complete, pre-assembled unit, the SE17 simplifies installation and reduces engineering time. Its compact footprint saves valuable space within machinery layouts.

Smooth and Quiet Operation: The precision manufacturing of the worm and worm wheel, combined with the enveloping contact, promotes smooth meshing, resulting in lower vibration and quieter operation compared to some other gear types, contributing to a better working environment.

Enveloping Slewing Drive SE17: Diverse Industrial Applications

The combination of power, precision, rigidity, and self-locking safety makes the SE17 exceptionally versatile across numerous demanding sectors:

Industrial Automation & Robotics: Precision turntables for welding, assembly, material handling, palletizing/depalletizing, and machine tending. Used in robot base rotation or positioning stages requiring high torque and accuracy.

Solar Energy: High-performance drives for solar tracker systems (single-axis and dual-axis), where reliability, high load capacity (wind resistance), precise sun tracking, and self-locking (to hold position during high winds or at night) are paramount.

Material Handling & Logistics: Rotating platforms for sorting systems, heavy-duty indexing conveyors, positioning of cranes or hoists, and automated storage/retrieval systems (AS/RS).

Construction Equipment & Heavy Machinery: Slewing drives for compact cranes, aerial work platforms (cherry pickers), drilling rigs, and other equipment requiring robust rotational movement under heavy loads and in tough conditions.

Packaging Machinery: Indexing rotary tables for filling, capping, labeling, and inspection stations requiring precise angular positioning.

Defense & Aerospace: Applications requiring robust, reliable positioning for radar systems, weapon mounts, or testing equipment.

Medical & Simulation Equipment: Precision rotation stages for imaging devices (CT/MRI components - where applicable and certified) or motion simulators requiring smooth, controlled movement.

Factors Influencing the Price of the Enveloping Slewing Drive SE17

The investment in an SE17 drive is influenced by several key factors:

Material Quality and Manufacturing Precision: The use of high-strength alloy steels for gears and shafts, specialized bearing alloys, and high-quality sealing materials significantly impacts cost. Precision grinding and heat treatment processes essential for achieving the specified load ratings, longevity, and smooth operation also contribute substantially.

Robustness and Load Capacity: The engineering required to achieve the high output torque (10 kN.m), exceptional tilting moment (135.6 kN.m), and holding torque (72.3 kN.m) involves significant material volume and sophisticated design, directly influencing the unit's cost.

Integrated Design and Sealing: The cost reflects the value of receiving a fully assembled, tested, and sealed unit. The complexity of achieving reliable, long-lasting sealing against harsh environments adds to the manufacturing expense.

Precision Requirements: Achieving the tight tracking accuracy (≤0.15°) and low backlash equivalent (≤0.05°/0.07°) demands extremely tight manufacturing tolerances and meticulous assembly processes, which increase production costs.

Customization: While the SE17 is a standard series, potential modifications such as special flange configurations, unique shaft inputs/outputs, specific sealing compounds for extreme environments, or customized lubrication can add cost.

Order Volume: Larger purchase quantities typically benefit from economies of scale, potentially reducing the unit price.

Supplier Value-Added Services: Technical support during selection and integration, comprehensive warranty coverage, and reliable global logistics and supply chain management are factors reflected in the price of drives from established manufacturers.

Supplier of Enveloping Slewing Drive SE17

Manufacturers seeking the proven performance and reliability of the Enveloping Slewing Drive SE17 can confidently source this advanced component from LYRADRIVE. LYRADRIVE specializes in the engineering and production of high-precision rotary drive solutions, focusing on delivering robust performance, exceptional durability, and ease of integration for demanding industrial applications. Their commitment to quality manufacturing, rigorous testing standards, and providing comprehensive technical support ensures that customers receive a drive solution optimized for performance and longevity. LYRADRIVE leverages expertise in gear design and mechanical power transmission to offer the SE17 series as a core component for applications requiring uncompromising power, precision, and reliability in rotational motion control. By choosing LYRADRIVE, engineers and procurement specialists gain access not only to a superior product but also to the engineering knowledge and support necessary for successful implementation.
