Enveloping Rotary Drive SE14 for Demanding Industrial Motion

Enveloping Rotary Drive SE14 for Demanding Industrial Motion

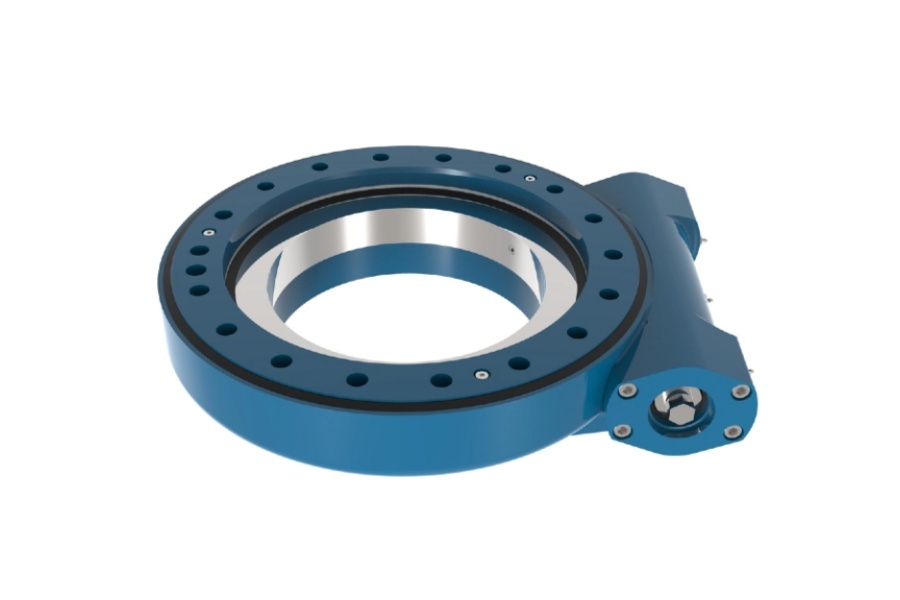

What is Enveloping Slewing Drive SE14?

Enveloping Slewing Drive SE14 is a highly integrated, unitized drive system that masterfully combines a robust worm gear mechanism within a compact, rigid housing. This design philosophy creates a self-contained power transmission module where the worm fully envelops a significant portion of the worm wheel circumference. This enveloping action is key to its exceptional capabilities. The core assembly typically comprises a precision-machined base/housing, a hardened steel worm, and a large-diameter bronze or specialized alloy worm wheel. Engineered as a complete unit, the SE14 eliminates complex alignment procedures often required with traditional gearbox setups, offering a true plug-and-play solution for high-load rotary positioning and continuous rotation tasks where space optimization and structural integrity are paramount. Its fundamental purpose is to convert relatively low input torque (typically from an electric motor) into very high output torque with precise control, while simultaneously managing substantial external forces acting from multiple directions.

The Critical Role in Superconducting Equipment Cryogenic Drives

Superconducting technologies, such as those found in advanced MRI machines, particle accelerators, and future fusion reactors, rely on maintaining components at temperatures near absolute zero (-273°C). Actuating components within these cryogenic environments presents extraordinary challenges. Conventional lubricants freeze, standard materials contract unpredictably, and thermal gradients induce significant stresses. The Enveloping Slewing Drive SE14 is specifically engineered to meet these challenges. Its design incorporates materials and specialized lubricants capable of retaining functional properties at cryogenic temperatures. The unitized, rigid housing minimizes differential thermal contraction issues that plague multi-component assemblies. Furthermore, its inherent high torque density and efficiency (crucial to minimize heat input into the cryostat) make it ideal for tasks like positioning superconducting magnet coils, adjusting cryogenic flow control valves, or manipulating internal diagnostic probes. The SE14's ability to deliver precise rotational control under extreme cold and vacuum conditions is indispensable for the reliable operation and scientific accuracy of cutting-edge superconducting systems.

Enabling Plasma Control: Fusion Device Divertor Rotation Mechanisms

Nuclear fusion research represents humanity's quest for a virtually limitless, clean energy source. Within experimental fusion reactors like tokamaks and stellarators, the divertor is a critical component located at the bottom of the plasma chamber. Its function is to extract heat and "ash" (helium byproducts) from the super-hot plasma without damaging the reactor walls. To manage the immense heat fluxes and ensure even wear, divertor modules often need precise rotational positioning or continuous rotation during operation. This environment is arguably one of the most hostile on Earth: ultra-high vacuum, intense neutron radiation, extreme thermal cycling, and powerful magnetic fields. The Enveloping Slewing Drive SE14 is uniquely suited for divertor rotation mechanisms. Its compact, unitized design allows integration into the tight confines of the reactor vessel periphery. The robust construction withstands radiation-induced material degradation. Crucially, its ability to simultaneously handle the massive axial loads (from the divertor's weight), radial loads (from thermal expansion constraints), and significant tilting moments (from thermal gradients and magnetic forces) is unparalleled. The SE14's high holding torque ensures position stability against disruptive plasma events, while its precision tracking enables optimal plasma exhaust control. Its reliability directly impacts reactor uptime and experimental success.

Distinguishing Features of the Enveloping Slewing Drive SE14

The SE14 stands apart due to a suite of integrated features engineered for uncompromising performance:

Exceptional Load Capacity: Its core strength lies in its ability to simultaneously withstand substantial Axial Loads, Radial Loads, and critically, massive Tilting Moments (67.8 kN.m), far exceeding the capabilities of standard gearboxes or rotary actuators. This multi-directional load capacity is intrinsic to the enveloping worm design and rigid housing.

High Torque Density: Delivering a potent Output Torque of 8 kN.m within a relatively compact footprint, the SE14 offers outstanding power-to-size ratio, enabling space-efficient machine design.

Superior Holding & Backdrive Resistance: Featuring a formidable Holding Torque of 48 kN.m, the SE14 provides exceptional resistance to backdriving. Combined with the inherent self-locking tendency of its high-ratio worm gear (especially when static), it ensures position stability without requiring constant motor power, enhancing safety and reliability, particularly in vertical applications or safety-critical stops.

Precision Positioning: Engineered for accuracy, the SE14 achieves Tracking Precision ≤ 0.17°, with repeatability often reaching ≤ 0.05° / 0.07°. This precision is vital for applications demanding exact angular positioning.

Optimized Gear Ratio: The 85:1 gear ratio provides an ideal balance, offering significant speed reduction and torque multiplication while maintaining reasonable input speeds for common industrial motors and manageable inertia.

Integrated Unitized Design: Pre-assembled, pre-aligned, and lubricated for life (under specified conditions), the SE14 drastically reduces installation complexity and time, enhancing overall system reliability and reducing maintenance overhead.

Robust Construction: Manufactured from high-strength materials and utilizing precision-ground gear teeth, the SE14 is built for longevity and resilience in harsh operating environments.

Diverse Industrial Applications of the Enveloping Slewing Drive SE14

The unique combination of high torque, multi-directional load capacity, precision, and compact integration makes the SE14 indispensable across numerous demanding sectors:

Heavy Machinery & Robotics: Robotic welding positioners, heavy-duty material handling turntables, crane slewing rings, excavator attachments.

Renewable Energy: Solar tracker azimuth drives (especially in high-wind areas), pitch and yaw drives for large wind turbines (smaller units or secondary axes).

Defense & Aerospace: Turret drives for vehicles and vessels, missile launcher positioning, radar antenna rotation, satellite antenna pointing mechanisms.

Medical & Scientific Equipment: Cryogenic sample manipulators (as discussed), precise positioning stages for imaging (CT, particle therapy gantries), telescope mounts.

Material Handling & Automation: Indexing tables for heavy workpieces, palletizing/depalletizing systems, large valve actuators for process industries.

Construction Equipment: Concrete pump line rotation, drilling rig rotary heads, crane hook rotation units.

Test & Simulation: High-load test rigs requiring multi-axis loading and precise rotation, flight simulators, vibration tables.

Nuclear Fusion: Divertor rotation mechanisms, blanket module positioning, diagnostic manipulators (as detailed previously).

Factors Influencing Enveloping Slewing Drive SE14 Pricing

The cost of an Enveloping Slewing Drive SE14 is influenced by several key factors:

Material Specifications: The grade of steel for the worm and housing, the specific alloy used for the worm wheel (standard bronze vs. specialized radiation-resistant or cryogenic alloys), and the type of internal bearings significantly impact cost. High-performance environments demand premium materials.

Manufacturing Precision & Complexity: Achieving the required tolerances for the enveloping worm gear, housing flatness, and bearing bores demands advanced machining processes (grinding, honing) and rigorous quality control, contributing to production costs. Complex customizations add further expense.

Customization Level: While available as a standard unit, many applications require customizations. This includes specific mounting interfaces (flange types, bolt patterns), custom shaft configurations (hollow, splined, keyed), specialized seals (for high vacuum, pressure, or extreme cleanliness), modified lubrication (food-grade, cryogenic), or unique environmental protection (extreme corrosion resistance, radiation hardening). Each customization increases cost.

Internal Bearing Specifications: The type, size, and precision grade of the large internal bearings (especially the slewing bearing handling combined loads) are major cost drivers. Higher load ratings and longer life requirements necessitate more expensive bearings.

Gear Quality & Finishing: The precision grinding and finishing of the worm and worm wheel teeth directly affect efficiency, noise, wear life, and cost. Higher precision and specialized surface treatments increase price.

Sealing & Lubrication Systems: Effective sealing for harsh environments (IP ratings, vacuum compatibility) and specialized long-life lubrication systems add cost.

Testing & Certification: Units destined for critical applications (nuclear, aerospace, medical) often require extensive additional testing (life testing, load testing, environmental testing) and specific certifications, adding significantly to the overall cost.

Order Volume & Supply Chain: Economies of scale apply; larger orders typically reduce unit cost. Fluctuations in raw material costs and global supply chain dynamics also influence final pricing.

Supplier of the Enveloping Slewing Drive SE14

LYRADRIVE is a recognized global manufacturer specializing in high-performance rotary drive systems, including the Enveloping Slewing Drive SE14 series. They produce precision-engineered units meeting stringent quality standards for critical industrial applications.
