Spur Gear Slew Drive for Electric Utility Vehicles

Spur Gear Slew Drive for Electric Utility Vehicles

What is a Spur Gear Slew Drive?

A spur gear slew drive is a compact, enclosed rotation system that uses a pinion gear meshed with a slewing ring bearing to provide efficient, precise rotational motion and high torque for heavy-duty applications. They are, for example, used in solar trackers, crane booms, and heavy-duty rotary tables. Synonyms include slewing gear, geared slewing drive, and, more generally, slewing bearing.

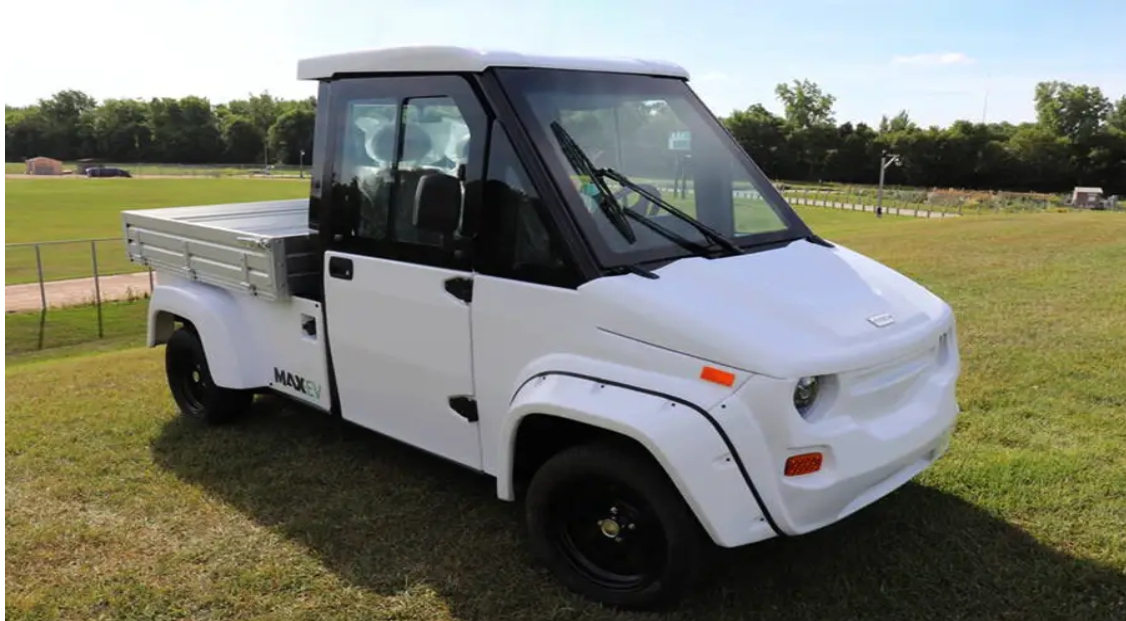

In the context of Electric Utility Vehicles (EUVs) —such as electric aerial work platforms, autonomous guided vehicles (AGVs), electric forklifts, and terminal tractors—the spur gear slew drive is responsible for rotating turrets, positioning manipulator arms, pan-tilting sensor platforms, or executing steering maneuvers. Unlike worm gear designs, the spur gear configuration offers higher efficiency and full back-drivability, making it particularly well-suited for battery-powered applications.

How Does a Spur Gear Slew Drive Work for Electric Utility Vehicles (EUVs)?

The working principle of a spur gear slew drive is straightforward yet highly effective. An electric motor—most often a servo motor or a brushless DC motor—is mounted directly to the input shaft of the slew drive. This motor drives a small pinion gear. The pinion meshes directly with a larger spur gear ring that is integrated into the slewing bearing's rotating race. As the pinion turns, it "walks" around the circumference of the gear ring, causing the output flange of the slew drive to rotate relative to its fixed housing.

In an Electric Utility Vehicle, the vehicle's electronic control unit (ECU) or a dedicated motion controller sends a command to the motor driver. The driver then energizes the motor to achieve a specific rotational position, speed, or torque output. The spur gear transmission—typically offering single-stage reduction ratios between 3:1 and 10:1—multiplies the motor's torque while proportionally reducing output speed.

A critical operational characteristic of the spur gear slew drive is its lack of self-locking. Unlike worm gear drives, which cannot be back-driven, a spur gear slew drive is fully back-drivable. This means that if an external force acts on the output flange (for example, a manual override or a sudden load shift), the drive can rotate backward, turning the motor in reverse. While this requires the addition of a brake for position-holding applications (such as an elevated aerial platform), it also enables energy regeneration and manual adjustment without damaging the drivetrain—a significant advantage for many EUV use cases.

Key Features of a Spur Gear Slew Drive for Electric Utility Vehicles

When selecting a spur gear slew drive for an Electric Utility Vehicle, engineers should look for the following technical features:

• Integrated Slewing Bearing Design – The gear ring doubles as the bearing raceway, allowing the unit to support combined loads (radial, axial, and tilting moment) in a single, compact assembly. This eliminates the need for a separate bearing and gearbox.

• High Efficiency (92–98% per stage) – Because spur gears transmit motion through rolling contact rather than sliding, frictional losses are minimal. This is a critical feature for battery-dependent EUVs, where every watt-hour of energy directly impacts operating range.

• Low and Predictable Backlash – Backlash, the slight play between gear teeth, is typically maintained between 3 and 10 arc-minutes for standard units. Precision grades can achieve less than 1 arc-minute. Consistent, low backlash is essential for accurate positioning of turrets, steering systems, or robotic arms.

• Grease-Lubricated Sealed Chamber – Most spur gear slew drives for EUVs are factory-filled with high-performance grease and sealed with dual lip seals (rated IP65 or higher). This design is effectively maintenance-free for thousands of operating hours, resisting dust, moisture, and pressure washing.

• Wide Torque Range – Output torque capacities typically range from 200 Nm to over 50,000 Nm, covering EUVs from small 500 kg autonomous sweepers to 20-ton electric terminal tractors.

• Case-Hardened Alloy Steel Gears – Gear teeth are carburized and hardened to 58–62 HRC, then precision ground for durability and quiet operation. Anti-corrosion coatings (zinc-nickel or electroless nickel) are available for vehicles operating in road-salt or agricultural chemical environments.

• Standardized Motor Mounting Interfaces – Input flanges are designed to accept common IEC, NEMA, or custom servo motors, simplifying integration with existing EUV drivetrains.

Key Advantages of a Spur Gear Slew Drive for Electric Utility Vehicles

The combination of features listed above translates directly into measurable advantages for Electric Utility Vehicle manufacturers, fleet operators, and end users. These advantages explain why the spur gear slew drive is often the ideal choice for EUV applications.

• Extended Battery Range – With efficiency reaching 98% per stage, a spur gear slew drive wastes far less energy as heat compared to worm gear drives (which operate at 40–85% efficiency). For an electric vehicle, this means more hours of operation per charge and smaller battery requirements for a given duty cycle. In range-sensitive EUVs such as electric aerial lifts or autonomous inspection robots, this advantage alone can justify the selection of a spur gear design.

• Precise, Responsive Control – The combination of low, consistent backlash and high stiffness allows the vehicle's control system to position the output flange accurately, even under varying loads. There is no "stick-slip" behavior (common in worm gears), and the drive responds immediately to motor commands. This is critical for applications like LIDAR pan-tilt units on autonomous sweepers or the precise steering of heavy-duty AGVs navigating tight warehouse aisles.

• Full Back-Driving Capability – Unlike self-locking worm drives, a spur gear slew drive can be rotated backward by external forces. This enables several valuable functions for EUVs: manual override in emergency situations, regeneration of energy during deceleration, and the ability to "coast" or be repositioned without power. It also protects the drivetrain from damage if an implement strikes an obstacle.

• Compact Axial Profile – Because the gearing and bearing share the same radial space, the overall height of a spur gear slew drive is very low relative to its diameter. This low profile allows EUV designers to fit heavy-duty rotation capability into tight chassis layouts, such as the steering knuckles of an electric terminal tractor or the base of a compact electric crane.

• Minimal Heat Generation at Speed – Spur gears generate very little frictional heat, even during continuous or high-speed rotation. This reduces or eliminates the need for active cooling systems (fans, radiators) and prevents thermal stress on seals and lubricants, contributing to longer service life in demanding outdoor utility environments.

• Cost-Effective for High-Torque Applications – For a given torque output, a spur gear slew drive is generally less expensive than a planetary gearbox combined with a separate slewing bearing, and significantly more efficient than a worm gear slew drive. For EUV OEMs, this translates to a better balance of performance, range, and bill-of-materials cost.

Common Applications of a Spur Gear Slew Drive in Electric Utility Vehicles

Spur gear slew drives are deployed across a wide range of Electric Utility Vehicle subsystems. The following table summarizes the most common applications:

Application Area	Typical Vehicle Types	Functional Requirement
Turret Rotation	Electric aerial work platforms (scissor lifts, boom lifts), electric cranes, electric excavators	360° continuous or limited rotation of the upper structure; smooth starts and stops for operator safety
Steering Systems	Heavy-duty AGVs, electric terminal tractors, electric forklifts with rear-axle steering	Crab steering, coordinated steering, or independent rear-axle steering; high radial load support
Sensor & LIDAR Pan-Tilt Units	Autonomous electric sweepers, agricultural inspection EUVs, security patrol robots	Low-jitter, precise, continuous rotation for perception systems; 24/7 duty cycles
Manipulator & Robotic Arms	Electric utility robots (e.g., for solar panel cleaning, substation inspection)	Secondary or tertiary rotational axes; high moment stiffness for payload handling
Charging Connector Alignment	Automated guided charging robots, pantograph positioning systems	Fine positioning (arc-minute accuracy) of charging paddles or connectors relative to vehicle inlets
Solar Panel Cleaning EUVs	Track-mounted or wheeled cleaning vehicles for solar farms	Slow, continuous rotation of cleaning heads or brush angle adjustments
Electric Sweeper Broom Angle Adjustment	Municipal electric sweepers	Rotation of side brooms to follow curbs; high torque at low speeds

How to Choose the Right Spur Gear Slew Drive for Your Electric Utility Vehicle?

Selecting the correct spur gear slew drive for an EUV requires a systematic analysis of the vehicle's mechanical, electrical, and environmental requirements. Follow this six-step engineering process:

Step 1: Define the Full Load Spectrum

Collect the maximum expected values for three load types, measured at the output flange:

• Axial load (Fa) – The vertical force (weight) acting along the axis of rotation. This includes the rotating structure plus any payload. Unit: Newtons (N).

• Radial load (Fr) – The side force acting perpendicular to the axis of rotation. Caused by wind, digging, pushing, or turning forces. Unit: Newtons (N).

• Tilting moment (M) – The most critical and often largest load for slew drives. It is the product of a radial force and its distance from the bearing center (moment arm). Unit: Newton-meters (Nm).

Step 2: Specify Motion Requirements

• Required output torque (Nm) – The maximum torque that must be delivered to rotate the load, considering friction and inertia.

• Maximum rotation speed (rpm) – Continuous and peak speeds at the output flange.

• Duty cycle – Continuous operation (e.g., sensor scanning) vs. intermittent operation (e.g., turret positioning every few minutes). This affects thermal and life calculations.

• Positioning accuracy – Expressed as allowable backlash (arc-minutes) or repeatability (arc-seconds). General EUV steering: 6–10 arc-minutes; precision LIDAR pan-tilt: <1 arc-minute.

Step 3: Select Reduction Ratio and Motor Match

Spur gear slew drives are most commonly available with single-stage reduction ratios of 4:1, 5:1, 6:1, 8:1, and 10:1. The required input torque at the motor pinion is calculated as:

T_input = T_output / (ratio × efficiency)

Example: If T_output = 1000 Nm, ratio = 5:1, and efficiency = 95% (0.95), then T_input = 1000 / (5 × 0.95) = 210.5 Nm at the pinion shaft. Select a motor that can deliver this torque continuously or intermittently as required.

Step 4: Verify Bearing Life (L10h)

Request a bearing life calculation from the manufacturer according to ISO 281 or a similar standard. L10h is the number of operating hours that 90% of a statistically significant sample of identical bearings will exceed. For EUVs, target L10h values typically range from 5,000 hours (light-duty vehicles) to 20,000 hours (heavy-duty, 24/7 operations).

Step 5: Define Environmental Protection

• Ingress Protection (IP) rating – IP54 for dry, dusty environments (e.g., warehouse AGVs); IP65 for outdoor vehicles exposed to rain and hose-down cleaning; IP66 for high-pressure washdown (e.g., agricultural or food-plant EUVs).

• Temperature range – Standard grease and seals operate from -30°C to +80°C. For cold-storage EUVs (down to -40°C), specify low-temperature synthetic grease and FKM seals.

• Corrosion resistance – For vehicles operating in coastal areas, road-salt environments, or with agricultural chemicals, specify electroless nickel plating or zinc-nickel coating on all exposed steel surfaces.

Step 6: Check Mounting and Integration Interfaces

• Bolt circle diameter and thread size – Must match your turret ring, steering knuckle, or mounting plate.

• Pilot diameter – A precision-machined shoulder that centers the slew drive relative to the mating structure.

• Motor mounting flange – IEC (metric) or NEMA (inch) standards, or a custom interface. Some manufacturers, like LyraDrive, offer integrated motor cavities that reduce overall height by housing the motor partially inside the slew drive housing.

Always request a 3D CAD model and a load-life calculation sheet from the supplier before finalizing your selection.

How to Maintain a Spur Gear Slew Drive for Electric Utility Vehicles?

Spur gear slew drives for EUVs are engineered for low maintenance, but following a disciplined schedule will significantly extend service life and prevent unexpected failures. The table below provides a practical maintenance schedule:

Interval	Action	Detailed Procedure
Monthly or every 200 operating hours	Visual inspection	Check for grease or oil leakage around seals, bolt holes, and the output flange. Verify that all mounting bolts remain at their specified torque (use a calibrated torque wrench). Listen for unusual noise (grinding, whining, or clicking) during rotation.
Quarterly or every 500 hours	Re-grease (if grease port is provided)	Use a manual grease gun to pump fresh NLGI #2 lithium-complex or polyurea grease with extreme pressure (EP) additives into the fitting. Pump slowly until fresh grease emerges from the relief port (usually 5–15 strokes depending on drive size). Wipe away excess. Note: Many modern sealed drives are "lubricated for life" and have no grease port; for these, skip this step.
Annually or every 2,000 hours	Backlash measurement	Mount a dial indicator against the output flange. Clamp the input shaft or motor to prevent rotation. Gently rock the output flange back and forth using a lever arm. Record the total indicated movement (backlash). An increase of 20–30% from the initial factory specification indicates gear wear. Consult the manufacturer if backlash exceeds 15 arc-minutes.
Every 5,000 hours or 3 years	Complete grease replacement	If the drive has a grease port and drain port, pump out old grease by injecting new grease until clean grease exits (may require 2–3 times the calculated grease volume). For sealed units, this must be performed by the manufacturer or an authorized service center. Do not attempt to disassemble a sealed slew drive in the field.

Additional Best Practices for EUVs:

• Never use a high-pressure washer directed at the seal lips. The high-pressure jet can force water and debris past the seals. Instead, clean the area around seals with a soft brush and mild detergent.

• For corrosive environments (road salt, fertilizer, chemical spills), apply a corrosion-inhibiting spray (e.g., lanolin-based or wax-based) to all exposed machined surfaces once per month.

• If the drive feels notchy or rough during manual rotation, stop operation immediately. This is often a sign of bearing brinelling (indentation from shock loads) or debris contamination.

• Keep maintenance records including hours of operation, grease type and quantity, and measured backlash values. This data helps predict remaining life and schedule proactive replacements.

LyraDrive: A Custom Spur Gear Slew Drive Manufacturer for Electric Utility Vehicles

LyraDrive is a specialist one-stop manufacturer of slew drives and slewing bearings, delivering high-quality, customized solutions for demanding mobile applications. Our portfolio includes custom slewing bearings, precision slew drives, and gear rings for equipment such as mobile cranes, excavators, and aerial work platforms. With years of engineering experience across heavy industry and electric mobility, LyraDrive has become a trusted partner for Electric Utility Vehicle OEMs worldwide.

What sets LyraDrive apart is our ability to provide fully customized spur gear slew drives specifically engineered for Electric Utility Vehicles. We understand that no two EUV platforms are alike—whether you are designing a compact autonomous sweeper, a heavy-duty electric terminal tractor, or a specialized agricultural inspection vehicle. LyraDrive works directly with your engineering team to tailor every aspect of the slew drive: custom mounting interfaces that eliminate adapter plates, integrated motor cavities that reduce overall height by up to 40%, and precision backlash tuning from standard 6 arc-minutes down to <0.5 arc-minute for sensor-grade positioning. We also offer lightweight aluminum housing options for weight-sensitive EUVs and anti-corrosion coatings for vehicles operating in harsh outdoor environments.

If you are looking for a reliable spur gear slew drive supplier or need technical support for your Electric Utility Vehicle project, feel free to contact LyraDrive. Our engineers are ready to provide design worksheets, 3D CAD models, and load-life calculations tailored specifically to your application—from prototype to production.

FAQ: Spur Gear Slew Drive for Electric Utility Vehicles

Q1: Can a spur gear slew drive hold position when the motor is turned off?

No, not by itself. Because spur gear drives are fully back-drivable, external loads will cause the output flange to rotate when the motor is de-energized. For holding position in an Electric Utility Vehicle—for example, an aerial work platform lifted to height, or a manipulator arm supporting a load—you must add a spring-applied, electrically-released brake either on the motor shaft or, for higher torque holding, on the output shaft of the slew drive.

Q2: Are spur gear slew drives louder than worm gear drives?

Yes, generally speaking. Spur gears produce a characteristic whine, especially at higher input speeds (above 50 rpm). However, with precision-ground gear teeth and proper grease lubrication, the noise level is acceptable for most outdoor Electric Utility Vehicle applications. For indoor or noise-sensitive environments—such as warehouse AGVs operating near personnel—consider specifying helical gear slew drives (quieter but more expensive) or adding acoustic enclosures.

Q3: Can I use a spur gear slew drive for continuous 360° rotation on my EUV?

Yes, absolutely. Most spur gear slew drives are designed for unlimited rotation in both directions. This is particularly useful for EUV turret rotation (e.g., electric aerial lifts or cranes) and sensor pan-tilt units (e.g., autonomous sweepers). However, you must manage the cables, hoses, and wires that pass through the center of the drive. Options include slip rings for electrical connections and rotary unions for fluids, or cable management loops for limited-angle applications (e.g., ±180° steering).

Q4: What is the typical service life of a spur gear slew drive in an Electric Utility Vehicle?

With correct sizing and proper maintenance, you can expect:

• Bearing L10 life: 10,000 to 20,000 hours, depending on load magnitude and duty cycle.

• Gear teeth life (wear-out): 15,000 to 30,000 hours under normal operation.

• Seals and lubricant: 5,000 to 10,000 hours or 3–5 years, whichever comes first.

For most EUV applications—such as electric forklifts or terminal tractors—this translates to 5–10 years of reliable service with routine maintenance.

Q5: Does a spur gear slew drive regenerate energy during back-driving in an EUV?

Yes, potentially. Because the spur gear slew drive is fully back-drivable, when an external torque forces the output flange to rotate—for example, lowering a boom on an electric aerial lift, or decelerating a rotating turret—the input pinion is driven backward, turning the motor shaft. If the motor driver supports regenerative braking (common in modern servo and BLDC drives used on EUVs), that mechanical energy can be converted to electrical energy and returned to the vehicle's battery, improving overall efficiency and extending operating range. This energy recovery capability is not possible with self-locking worm gear slew drives.
