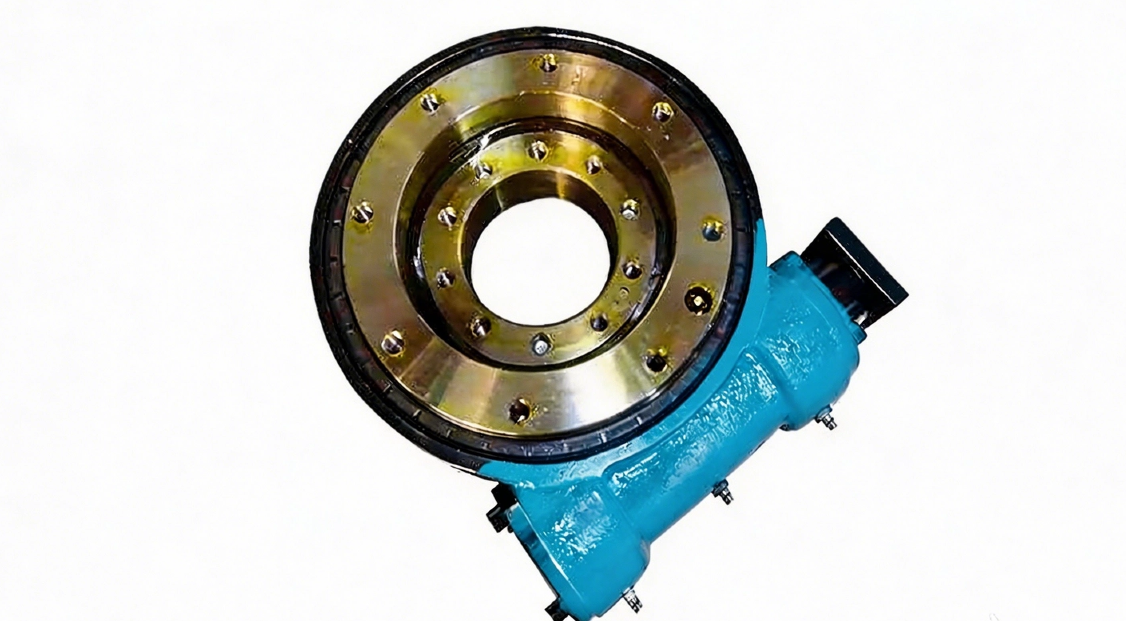

Slewing Bearing Drive with Gearbox & Electric Motor: The Ultimate Solution for Smooth, Efficient Movement

Slewing Bearing Drive with Gearbox & Electric Motor: The Ultimate Solution for Smooth, Efficient Movement

Slewing bearing drives, also known as slew drives or turntable drives, are essential components in various industries, offering precise and reliable rotational movement. When combined with a gearbox and electric motor, they become an even more powerful and efficient solution for applications requiring controlled rotation under heavy loads.

In this guide, we will explore everything you need to know about slewing bearing drives, from their core components and working principles to their key advantages and how to select the right one for your project. Whether you are an engineer or a procurement specialist, understanding this technology is crucial for optimizing machinery performance.

What is a Slewing Bearing Drive?

A slewing bearing drive is a compact, gear-driven mechanism designed to enable smooth, controlled rotational movement of a load around a central axis. It integrates several key components into a single, robust unit:

Component	Function
Slewing Bearing	A large-size bearing that supports axial, radial, and moment loads simultaneously. Its inner or outer ring is integrated with gear teeth.
Gearbox	Typically a worm gear, spur gear, or planetary system that reduces speed and multiplies torque from the motor.
Electric Motor	Provides the primary rotational power, converting electrical energy into mechanical motion.
Housing	A protective enclosure that seals the internal components from contaminants and retains lubrication.

The brilliance of a slewing bearing drive lies in this integration. It replaces complex, multi-part rotary systems with a single, pre-assembled unit that is ready to install, saving design time and ensuring optimal component matching.

How Does a Slewing Bearing Drive with Gearbox & Electric Motor Work?

The operation of a slewing bearing drive is a seamless process of power transmission and control:

1. Power Generation: The electric motor activates, converting electrical power into rotational force (torque) and speed.

2. Torque Amplification & Speed Reduction: This rotation is fed into the gearbox. The gearbox uses principles of mechanical advantage (e.g., a worm screw turning a gear) to reduce the output speed while multiplying the torque. This is essential for moving heavy loads in a controlled manner.

3. Precision Rotation: The high-torque, low-speed output from the gearbox engages with the gear teeth integrated into the slewing bearing. This drives the rotation of the bearing's outer or inner ring, to which the load (e.g., a crane boom or solar panel array) is attached.

4. Controlled Movement: The motor and gearbox combination allows for precise control over the direction, speed, and stopping position of the rotation. This can be managed by a simple on/off switch or a sophisticated electronic controller for high-accuracy positioning.

Design Features of Slewing Bearing Drive with Gearbox & Electric Motor

Modern slewing bearing drives are engineered with several key design features that contribute to their performance and longevity:

• Integrated Gear Teeth: The gear teeth are either cut directly into the bearing ring or are part of a hardened gear ring attached to it, ensuring precise meshing with the drive pinion.

• Optimized Gear Geometry: Advanced gear design (such as involute profiles for spur gears or optimized thread forms for worm gears) ensures high efficiency, smooth operation, and minimal backlash.

• Robust Sealing Systems: High-quality multi-lip seals protect the internal bearing and gear surfaces from dust, moisture, and other contaminants, which is vital for outdoor or harsh environment applications.

• Integrated Mounting Flanges: The housing typically features precision-machined mounting flanges and bolt holes, simplifying attachment to both the machinery structure and the load.

• Adjustable Preload (in some designs): Certain high-precision slewing bearing drives allow for adjustment of the gear mesh or bearing preload to compensate for wear and maintain accuracy over time.

Key Advantages of Slewing Bearing Drives with Gearbox & Electric Motor

Slewing bearing drives offer significant benefits over traditional methods of achieving rotation:

• High Efficiency & Energy Savings: The direct and optimized power transmission path minimizes energy losses, making them highly efficient and reducing operational costs.

• Compact & Space-Saving Design: By combining load bearing, speed reduction, and driving power into one unit, they drastically reduce the required space and weight compared to separate component systems.

• Exceptional Precision & Smoothness: The gearbox provides fine control over speed and torque, ensuring smooth, jerk-free rotation even under heavy, off-center loads. This is critical for applications like robotics and solar tracking.

• Superior Durability & Reliability: Built with robust materials and sealed against the environment, slewing bearing drives are designed to withstand high shock loads, vibration, and continuous operation with minimal maintenance.

• Versatility & Customization: They can be tailored to a vast range of applications through different gear ratios, motor types (AC, DC, servo), housing materials, and protective coatings.

Applications of Slewing Bearing Drives with Gearbox & Electric Motor

The unique combination of strength, precision, and compactness makes slewing bearing drives indispensable across numerous industries:

Industry	Typical Application
Construction & Material Handling	Rotating platforms for cranes, excavator booms, aerial work platforms, and concrete pump trucks.
Renewable Energy	Solar tracking systems to orient panels towards the sun; yaw drives for wind turbines to face the wind.
Industrial Automation & Robotics	Rotary axes for robotic arms, positioners for welding and assembly, and indexing tables.
Mobile Equipment	Turret rotation on forestry machinery, mining drills, and access platforms.
Marine & Ports	Deck cranes, hose handling cranes, and ship-to-shore cranes.
Defense & Aerospace	Radar antennas, missile launchers, and turret systems.

How to Choose the Right Slewing Bearing Drive for Your Needs?

Selecting the optimal slewing bearing drive involves a careful analysis of your application's requirements. Here are the critical factors to consider:

• Load Requirements: Calculate the maximum axial load (thrust), radial load, and tilting moment that the drive must support. This is the most fundamental parameter.

• Speed & Torque Needs: Define the required rotational speed and the torque needed to start and maintain movement of your load. This determines the motor and gearbox combination.

• Duty Cycle & Precision: How often will the drive operate? Does it need to stop at precise positions? Continuous operation and high precision demand different design features (e.g., reduced backlash) than intermittent use.

• Environmental Conditions: Will the drive operate indoors or outdoors? Consider exposure to temperature extremes, dust, water, chemicals, or corrosive environments. This dictates the need for special seals, materials (like stainless steel), and coatings.

• Mounting & Space Constraints: Evaluate the available space and the interface requirements of your machine. The drive's mounting flange pattern and overall dimensions must be compatible.

LyraDrive: High-performance Slewing Bearing Drive with Gearbox & Electric Motor Manufacturer

LyraDrive is a professional Chinese manufacturer specializing in high-quality slew drives and slewing bearings. We are dedicated to providing reliable, efficient, and precisely engineered rotational solutions for customers worldwide.

Our comprehensive product range includes:

• Slew Drives: Available in various designs to suit your power source and application needs, including hydraulic slew  drives, electric slew drives, worm gear slew drives, and spur gear slew drives.

• Slewing Bearings: We manufacture a full spectrum of slewing bearing types, including:

• Single Row Slewing Ring Ball Bearings

• Flanged Ball Slewing Bearings

• Crossed Roller Slewing Bearings

• Double Row Ball Slewing Bearings

• Three-row Roller Slewing Bearings

At LyraDrive, we understand that every project is unique. We pride ourselves on delivering high-performance products that meet the most demanding specifications. We offer extensive customization options for materials, gear ratios, sealing, and coatings to perfectly match your specific requirements. Whether you need a standard unit or a custom-engineered solution, LyraDrive is your trusted partner for smooth, efficient, and durable rotational movement.

FAQ of Slewing Bearing Drive with Gearbox & Electric Motor

Q1: What is the typical lifespan of a slewing bearing drive?
With proper installation, regular lubrication, and maintenance, a high-quality slewing bearing drive can last for many years, even in demanding applications. Lifespan depends heavily on load, duty cycle, and operating environment.

Q2: How often does a slewing bearing drive need maintenance?
Primary maintenance involves regular lubrication according to the manufacturer's schedule and periodic visual inspection of seals and bolts for any signs of wear, leakage, or loosening.

Q3: Can a slewing bearing drive be used for continuous rotation?
Yes, many slewing bearing drives, particularly those using spur or planetary gears, are designed for continuous 360-degree rotation. Worm gear designs are also capable of continuous rotation, though their efficiency might make them better suited for intermittent or slow-speed positioning.

Q4: What is "backlash" and why is it important?
Backlash is the amount of "play" or clearance between the gear teeth. In a slewing bearing drive, it affects positioning accuracy. Applications like robotics or antenna positioning require very low (precision) backlash, while general lifting applications can tolerate more.

Q5: Can LyraDrive provide a complete, ready-to-install unit?
Absolutely. As a manufacturer of both slewing bearing drives and slewing bearings, we can supply complete, integrated drive units with your choice of electric motor, ready for installation. We also provide engineering support to help you select or customize the perfect solution.

Ready to find the ideal slewing bearing drive for your application? Contact the LyraDrive team today to discuss your project requirements. We are here to provide expert guidance and a tailored solution that ensures smooth, efficient, and reliable performance.
