Optimized Heavy Duty Rotation Open Housing Slewing Drive S14

Optimized Heavy Duty Rotation Open Housing Slewing Drive S14

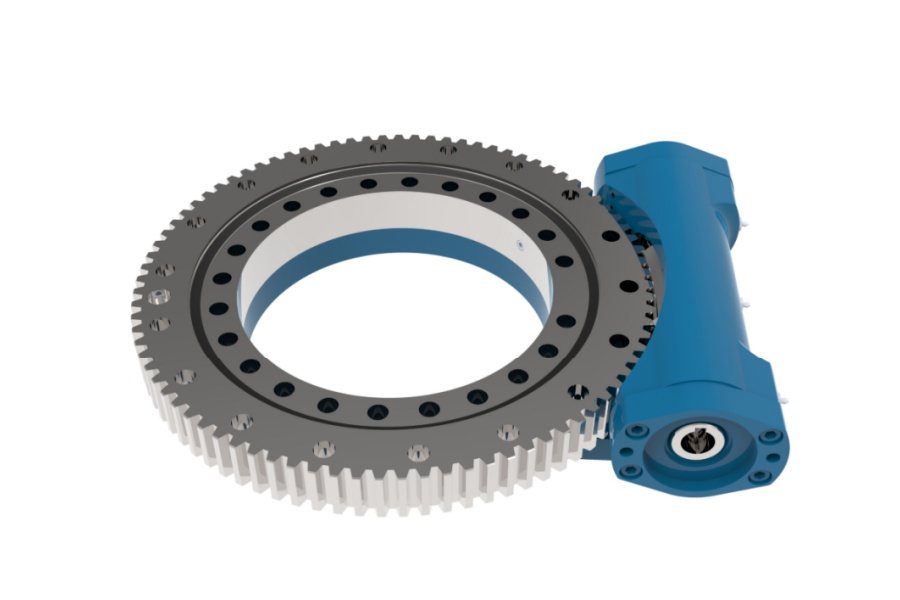

What is the Open Housing Slewing Drive S14?

The Open Housing Slewing Drive S14 is an innovative, modular mechanical assembly engineered to provide highly efficient rotational movement for demanding applications. At its core, this drive integrates a robust, precisely machined base structure housing a critical worm shaft and worm gear arrangement. This fundamental configuration is engineered to simultaneously manage substantial axial loads, significant radial forces, and considerable overturning moments, providing exceptional versatility across diverse operational environments. The defining characteristic of the S14 is its open housing architecture. Unlike traditional fully enclosed slewing drives, the S14 features a design that provides strategic access to its internal gear meshing point. This deliberate openness significantly enhances thermal management by facilitating superior air circulation around the worm and gear interface, effectively dissipating heat generated during operation. Furthermore, this accessible design dramatically simplifies essential maintenance procedures, lubrication access, and visual inspection protocols, contributing to reduced downtime and extended service life. Engineered for resilience, the S14 incorporates high-strength materials and advanced sealing technologies to ensure reliable performance even in challenging industrial settings, making it a cornerstone solution for precision motion requirements.

Open Housing Slewing Drive S14 Rated Torque

The torque capabilities of the S14 Open Housing Slewing Drive define its core strength and suitability for demanding tasks. Its performance is characterized by three critical torque ratings, each addressing specific operational forces:

Output Torque (Driving Torque): 6.5 kN·m. This substantial torque represents the continuous rotational force the drive can reliably transmit to the load under standard operating conditions. It directly determines the drive's ability to initiate and sustain movement against resistance, such as rotating a heavy platform or overcoming friction in a positioning system.

Overturning Moment (Tilting Moment) Capacity: 33.9 kN·m. This crucial rating quantifies the drive's ability to withstand significant forces attempting to tilt or tip the mounted structure around its axis of rotation. It reflects the structural robustness of the drive and its mounting system when subjected to off-center loads or external moments acting perpendicular to the rotational axis.

Holding Torque (Static Load Capacity): 38.7 kN·m. This exceptionally high value signifies the maximum static torque the drive can sustain without any rotational movement whatsoever. It is a measure of the drive's inherent braking capability, primarily provided by the self-locking nature of its worm gear mechanism, ensuring the load remains securely locked in position even when power is removed or under significant static force.

These robust torque ratings collectively ensure the S14 provides stable, powerful, and secure rotational control for heavy-duty applications, offering both dynamic power transmission and reliable static holding strength.

Open Housing Slewing Drive S14 Technical Parameters

Beyond its impressive torque ratings, the Open Housing Slewing Drive S14 is defined by a suite of precise technical specifications that govern its performance and integration:

Gear Ratio: 61:1. This high reduction ratio signifies that the input shaft (worm) must rotate 61 times to achieve a single full revolution of the output component (worm gear). This provides significant mechanical advantage, enabling high torque output from a relatively compact package and allowing for precise, fine control of rotational speed and position using a standard input motor.

Tracking Accuracy: ≤ 0.17°. This critical parameter defines the maximum angular deviation between the actual position of the output and its theoretically commanded position during dynamic motion or under load. The S14's high precision, achieved through meticulous manufacturing of the gear set and robust bearing support, ensures exceptional repeatability and accuracy for applications like antenna pointing or solar tracker alignment.

Structural Design: Features an open housing constructed from high-grade alloy steel, optimized for stiffness, strength, and thermal dissipation. The housing incorporates precisely machined mounting surfaces and interfaces for reliable integration.

Worm Gear Mechanism: Utilizes a hardened steel worm shaft meshing with a high-strength bronze alloy worm wheel. This material combination ensures excellent wear resistance, smooth operation, and the characteristic self-locking behavior essential for holding torque.

Bearing System: Incorporates large-diameter, preloaded slewing bearings (typically crossed roller bearings or multi-row ball bearings) specifically chosen to handle the combined axial, radial, and moment loads specified. This provides smooth rotation and long-term structural integrity.

Sealing: Employs advanced multi-lip seals and protective measures to safeguard critical internal components (bearings, gear mesh) from contaminants like dust, moisture, and particulates, enhancing durability in harsh environments.

Lubrication: Designed for long-life grease lubrication. The open housing facilitates easier access for maintenance relubrication compared to fully enclosed units.

Input Interface: Standardized input shaft configurations (often involving keyways or splines) accommodate connection to various prime movers (electric motors, hydraulic motors).

Mounting: Provides precision machined mounting holes on the base and the rotating platform (top ring) for secure and accurate installation onto supporting structures.

Features of the Open Housing Slewing Drive S14

The S14 distinguishes itself through a combination of design ingenuity and performance-oriented features:

Superior Thermal Management: The open housing design is paramount. By allowing ambient air to circulate directly around the critical worm gear mesh, heat generated during operation is dissipated far more efficiently than in enclosed units. This directly combats thermal expansion issues, reduces stress on lubricants, and significantly extends component life, especially under continuous or high-duty-cycle operation.

Enhanced Accessibility for Maintenance & Inspection: The open structure provides direct visual and physical access to the gear meshing area. This revolutionizes maintenance: lubrication points are easily reached, gear tooth condition can be visually inspected without disassembly, debris removal is simplified, and overall serviceability is dramatically improved, leading to lower maintenance costs and reduced downtime.

Robust Torque and Load Handling: Engineered with high-strength materials and precision components, the S14 delivers exceptional rated torque (6.5 kN·m), overturning moment capacity (33.9 kN·m), and holding torque (38.7 kN·m) within a compact footprint, making it ideal for applications demanding significant power transmission and structural stability.

High Precision and Repeatability: Achieving tracking accuracy of ≤ 0.17°, the S14 ensures precise positioning and smooth motion control. This is critical for applications requiring accurate alignment or repeatable movement patterns.

Inherent Self-Locking Capability: The fundamental design of the worm gear mechanism provides a natural self-locking effect when the drive is not actively powered. This intrinsic safety feature ensures the load remains securely held in position without the need for an external brake, enhancing operational safety and simplifying system design.

Modular and Integrated Design: The S14 functions as a pre-assembled, self-contained unit. This modularity simplifies system integration, reduces engineering complexity for OEMs, and provides a reliable, space-saving solution.

Durability and Long Service Life: The combination of high-quality materials (hardened steel worm, bronze gear), effective sealing against contaminants, efficient heat dissipation, and robust bearings contributes to exceptional durability and a long operational lifespan, even in demanding industrial environments.

Versatility: Designed to handle combined loads (axial, radial, moment) efficiently, the S14 adapts well to a diverse range of applications across multiple industries, from heavy machinery to precision instruments.

Applications of the Open Housing Slewing Drive S14

The unique blend of power, precision, accessibility, and reliability makes the S14 suitable for a vast array of demanding applications:

Solar Tracking Systems: A primary application. The S14's precision (≤0.17° tracking accuracy), high holding torque (38.7 kN·m), and robust load capacity are ideal for accurately positioning large solar panels (PV or CPV) or parabolic troughs to follow the sun's path throughout the day, maximizing energy capture. The open housing aids heat dissipation under constant sun exposure.

Heavy Machinery & Construction Equipment: Used in crane jibs, excavator attachments, drilling rigs, compactors, and material handling equipment where robust torque transmission (6.5 kN·m) and the ability to handle significant overturning moments (33.9 kN·m) are critical for rotating booms, platforms, or tools reliably and safely.

Robotics & Automation: Provides the precise, controlled rotational movement needed for robotic arms, automated welding positioners, heavy-duty rotary tables, palletizers, and assembly line equipment requiring smooth motion and high repeatability.

Satellite Communication & Radar Systems: Essential for positioning satellite dishes, radar antennas, and optical tracking systems. The S14's high precision, stability, and ability to withstand environmental loads ensure accurate pointing and reliable signal acquisition.

Medical & Scientific Equipment: Employed in advanced imaging systems (CT, MRI patient positioning), radiotherapy equipment, telescope mounts, and laboratory automation where smooth, precise, and reliable rotation is paramount.

Material Handling & Packaging: Powers rotating platforms in automated warehouses, indexing tables for filling/packaging lines, and turntables for positioning heavy loads, benefiting from the drive's power and holding capability.

Defense & Aerospace: Used in weapon systems stabilization, turret rotation for surveillance or defense platforms, and ground support equipment requiring robust, reliable, and precise rotational actuation.

Stage & Entertainment Technology: Provides controlled rotation for heavy lighting rigs, video screens, and theatrical platforms, where safety (holding torque) and smooth operation are essential.

Wind Energy: Applied in auxiliary systems like pitch or yaw drive simulation test rigs, or secondary positioning mechanisms within turbine nacelles.

Industrial Mixing & Agitation: Powers rotating vessels or agitators in chemical, pharmaceutical, or food processing applications requiring torque and durability.

Factors Influencing Open Housing Slewing Drive S14 Price

The cost of an Open Housing Slewing Drive S14 is determined by a complex interplay of factors:

Material Costs & Quality: The foundation of the price. High-grade alloy steel for the housing, worm shaft, and bearings, coupled with specialized bronze alloys for the worm wheel, represent significant raw material costs. Fluctuations in global metal markets directly impact this. Furthermore, the quality and sourcing (e.g., aircraft-grade alloys vs. standard) significantly affect cost. Premium materials enhance durability and performance but increase price.

Manufacturing Complexity & Precision: Achieving the S14's high torque ratings, precision (≤0.17°), and robust load capacities demands advanced manufacturing processes. Precision machining of hardened steel components, specialized gear cutting and grinding (especially for the worm and wheel), meticulous heat treatment for strength and wear resistance, and high-precision bearing assembly all require sophisticated machinery, skilled labor, and rigorous quality control, contributing substantially to the unit cost.

Volume & Order Quantity: Economies of scale play a major role. Large production runs allow manufacturers to spread fixed costs (tooling, setup) over more units and negotiate better material pricing. Small batch or custom orders inherently carry a higher per-unit cost due to setup inefficiencies.

Customization & Modifications: While the S14 is a standard model, specific customer requirements often necessitate modifications. Examples include custom mounting hole patterns, special input shaft configurations (splines, keyways, flanges), unique sealing solutions for extreme environments, special surface treatments (coatings, platings), or integration of sensors. Each customization adds engineering time, potential tooling changes, and non-standard parts, increasing the price.

Quality of Bearings & Seals: The slewing bearings are critical, high-cost components. The type (crossed roller, multi-row ball), size, precision grade, load rating, and brand significantly impact cost. Similarly, the quality and complexity of the sealing system (multi-lip seals, specialized elastomers) affect both initial price and long-term reliability/maintenance costs.

Geographic Location & Logistics: Manufacturing location influences labor costs. Shipping costs for these heavy, precision components can be substantial, especially for international orders. Import duties, taxes, and local distribution markups also contribute to the final landed cost for the buyer.

Market Demand & Competition: Overall industry demand for slewing drives influences pricing power. During high-demand periods, prices may firm up. Conversely, competition among established manufacturers can exert downward pressure on prices, though quality and performance differences remain key differentiators.

Supplier Value-Added Services: Technical support during design integration, comprehensive after-sales service, warranty terms, readily available spare parts, and certification documentation (e.g., ISO, load test reports) represent value that may be reflected in the price of drives from premium suppliers.

Currency Exchange Fluctuations: For international transactions, currency volatility between the manufacturer's currency and the buyer's currency can cause significant price variations over time.

Supplier of the Open Housing Slewing Drive S14

LYRADRIVE stands as a prominent designer, manufacturer, and global supplier specializing in high-performance slewing drives, including the advanced Open Housing S14 model. Leveraging extensive engineering expertise and advanced manufacturing capabilities, LYRADRIVE focuses on delivering robust, reliable, and precise slewing solutions tailored to meet the demanding requirements of diverse industrial sectors such as renewable energy, heavy machinery, automation, and communications. The company emphasizes rigorous quality control throughout the production process, ensuring its drives meet exacting performance specifications. LYRADRIVE supports its products with comprehensive technical assistance, aiding customers in optimal drive selection and seamless system integration, and provides dependable after-sales service to maximize operational uptime and customer satisfaction worldwide.
