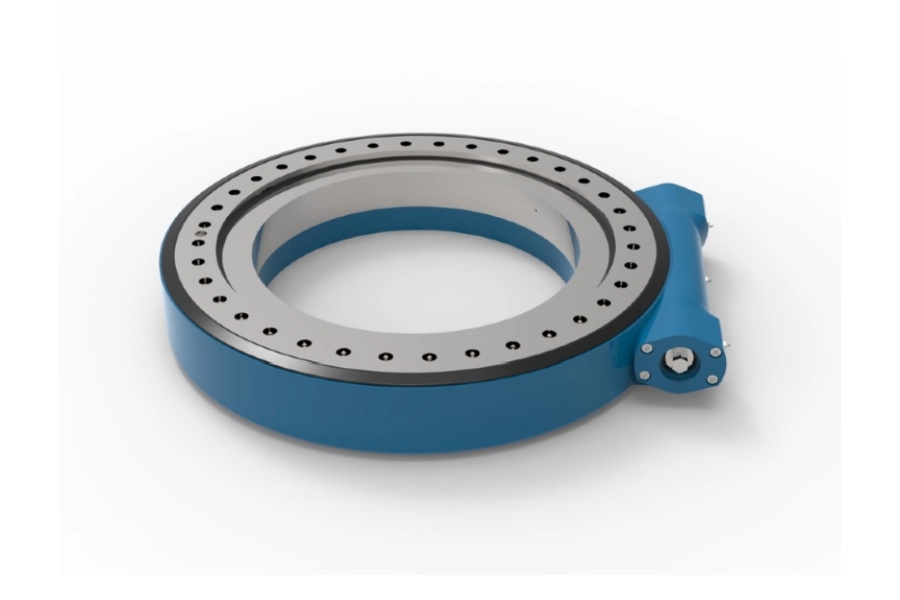

What is the Enveloping Slewing Drive SE25?

Enveloping Slewing Drive SE25 is an advanced, fully integrated drive mechanism engineered to provide exceptional structural integrity and motion control. Its core design features a rigid base housing a precisely machined worm gear set (worm and enveloping worm wheel), where the worm wheel teeth are partially enveloped by the worm thread. This unique enveloping geometry maximizes contact area between the worm and wheel teeth compared to standard worm gears. The SE25 series is meticulously sealed against environmental contaminants and built to simultaneously withstand substantial axial forces, radial forces, and tilting moments. Crucially, it incorporates a self-locking feature inherent to its worm gear design, preventing back-driving and enhancing operational safety, particularly in vertical or safety-critical orientations.

Revolutionizing Medical Device Rotation Platforms

Precision, reliability, and smooth, backlash-free motion are non-negotiable in medical technology. The Enveloping Slewing Drive SE25 excels as the core component of high-performance medical device rotation platforms. Its ability to handle combined loads (axial, radial, tilting) with high stiffness ensures stable and accurate positioning of sensitive equipment. The self-locking capability is vital for patient safety, preventing unintended movement in imaging systems (like CT scanner gantries or C-arm rotation), radiation therapy devices, surgical robotics arms, or patient positioning tables. The compact, integrated design simplifies integration into complex medical machinery, reducing overall system footprint and assembly complexity. The high torque density and sealed construction ensure consistent, maintenance-free operation in the demanding, hygiene-conscious medical environment, contributing to improved patient outcomes and device uptime.

Enveloping Slewing Drive Specifications Document (Key SE25 Parameters)

A comprehensive specification sheet is essential for engineers to verify the SE25's suitability for an application. Based on the provided reference data, key performance parameters for the SE25 series include:

Output Torque: 18 kN·m - The torque available at the output flange to drive the load.

Tilting Moment Capacity: 271 kN·m - The maximum moment the drive can withstand acting to tilt the output flange relative to the base.

Holding Torque (Static): 158.3 kN·m - The maximum static torque the drive can hold in position, significantly enhanced by the self-locking worm gear principle.

Gear Ratio: 150:1 - The ratio of input shaft revolutions to a single output revolution, providing high reduction for precise, slow-speed control and increased output torque.

Tracking Accuracy: ≤ 0.15° (Absolute), ≤ 0.03° / 0.07° (Repeatability/Positioning) - Measures the drive's precision in reaching and repeating target positions. Absolute accuracy is the maximum deviation from the true position. Repeatability (often finer) is the consistency in returning to the same commanded position. Positioning accuracy refers to the deviation during motion or at specific points.

Distinctive Features of the Enveloping Slewing Drive SE25

The SE25 stands out due to a combination of advanced engineering features:

Integrated Enveloping Worm Gear Design: The core technology provides high torque density, exceptional load capacity in multiple directions, smooth operation, and inherent self-locking safety.

Exceptional Load Capacity: Engineered to withstand significant combined loads – axial, radial, and crucially, high tilting moments (271 kN·m) – making it ideal for applications with offset or cantilevered loads.

High Precision & Repeatability: Offers tracking accuracy ≤ 0.15° absolute and superior repeatability (≤ 0.03°/0.07°), ensuring precise positioning critical for automation and medical devices.

Robust Sealing & Protection: Fully sealed housings protect critical internal components (bearings, gear mesh) from dust, moisture, and other environmental contaminants, ensuring long service life with minimal maintenance.

Inherent Self-Locking: The worm gear principle provides a fail-safe mechanism, preventing the output from being back-driven by the load, essential for safety in vertical axes or when power is lost.

Compact & Integrated Design: Combines bearings, gearing, and mounting structure into a single, pre-assembled, and pre-lubricated unit, simplifying installation, saving space, and improving system rigidity.

High Reduction Ratio (150:1): Delivers high output torque from a relatively compact package and enables precise speed control.

High Stiffness: The rigid construction minimizes deflection under load, maintaining positioning accuracy and system stability.

Durability & Reliability: Manufactured from high-strength materials with precision machining and heat treatment, ensuring reliable performance in demanding 24/7 industrial or medical environments.

Diverse Applications for the Enveloping Slewing Drive SE25

The SE25's unique blend of power, precision, and compactness makes it invaluable across numerous sectors:

Medical Technology: Core rotation element in CT/CBCT scanners, C-arms, radiation therapy linear accelerators (LINACs), proton therapy gantries, surgical robotics, patient positioning systems, and diagnostic equipment turntables.

Industrial Automation: Precision indexing tables, robotic tool changers and wrist joints, material handling turntables, palletizers/depalletizers, welding positioners (especially for heavy components), automated assembly stations, and packaging machinery.

Renewable Energy: Solar tracker azimuth drives (requiring high moment load capacity against wind forces).

Construction & Heavy Machinery: Slewing drives for compact cranes, aerial work platforms (boom rotation), drilling equipment, and inspection systems.

Material Handling: Rotating platforms for conveyor sorting systems, automated storage and retrieval systems (AS/RS), and heavy-duty turntables.

Aerospace & Defense: Test equipment positioning, antenna pedestals, radar systems, and simulator motion bases requiring high precision and load capacity.

Semiconductor Manufacturing: Precision stages within wafer handling and processing equipment demanding cleanliness and accuracy.

Factors Influencing Enveloping Slewing Drive SE25 Pricing

The cost of an SE25 unit is not fixed and varies based on several key factors:

Precision Grade & Accuracy Requirements: Drives manufactured to tighter tolerances (e.g., achieving ≤ 0.03° repeatability vs. ≤ 0.07°) require more sophisticated machining, inspection, and assembly processes, increasing cost significantly.

Material Specifications: The grade and specific alloys used for the worm, worm wheel (often bronze), housing, and bearings impact both performance and price. Higher strength, wear-resistant, or corrosion-resistant materials command a premium.

Customization: While the SE25 is a standard series, modifications such as special flange configurations, unique shaft interfaces, custom sealing solutions, specific lubrication types, special surface treatments, or tailored mounting holes add engineering and manufacturing costs.

Certifications & Compliance: Meeting stringent industry-specific certifications (e.g., ISO 13485 for medical devices, ATEX for explosive atmospheres, specific cleanroom standards) involves additional testing, documentation, and quality control measures, raising the price.

Order Volume: Larger quantity purchases typically benefit from economies of scale in manufacturing and procurement, leading to lower per-unit costs compared to single-unit or small-batch orders.

Bearing Quality & Type: The precision, load rating, and type (e.g., standard vs. ultra-precision) of the integrated bearings significantly influence both performance and cost.

Surface Treatments & Coatings: Special coatings for wear resistance (e.g., on the worm), corrosion protection, or low friction can add cost.

Geographic Location & Supply Chain: Manufacturing location, logistics, import duties, and local market dynamics affect the final delivered price.

Supplier Value-Add: The level of technical support, design assistance, testing data provided, warranty terms, and overall reputation of the supplier can be reflected in the price.

Supplier of Enveloping Slewing Drive SE25

For engineers and designers seeking the performance and reliability of the Enveloping Slewing Drive SE25, LYRADRIVE stands as a prominent and trusted supplier. LYRADRIVE specializes in the design, engineering, and manufacturing of high-precision rotary drive solutions, focusing on robust integrated designs like the enveloping worm gear technology exemplified by the SE25 series. They offer deep technical expertise to support application integration, provide comprehensive specification documentation, and are committed to delivering components that meet rigorous quality standards suitable for demanding industrial and medical environments. Choosing LYRADRIVE means partnering with a supplier dedicated to advanced motion control solutions.
