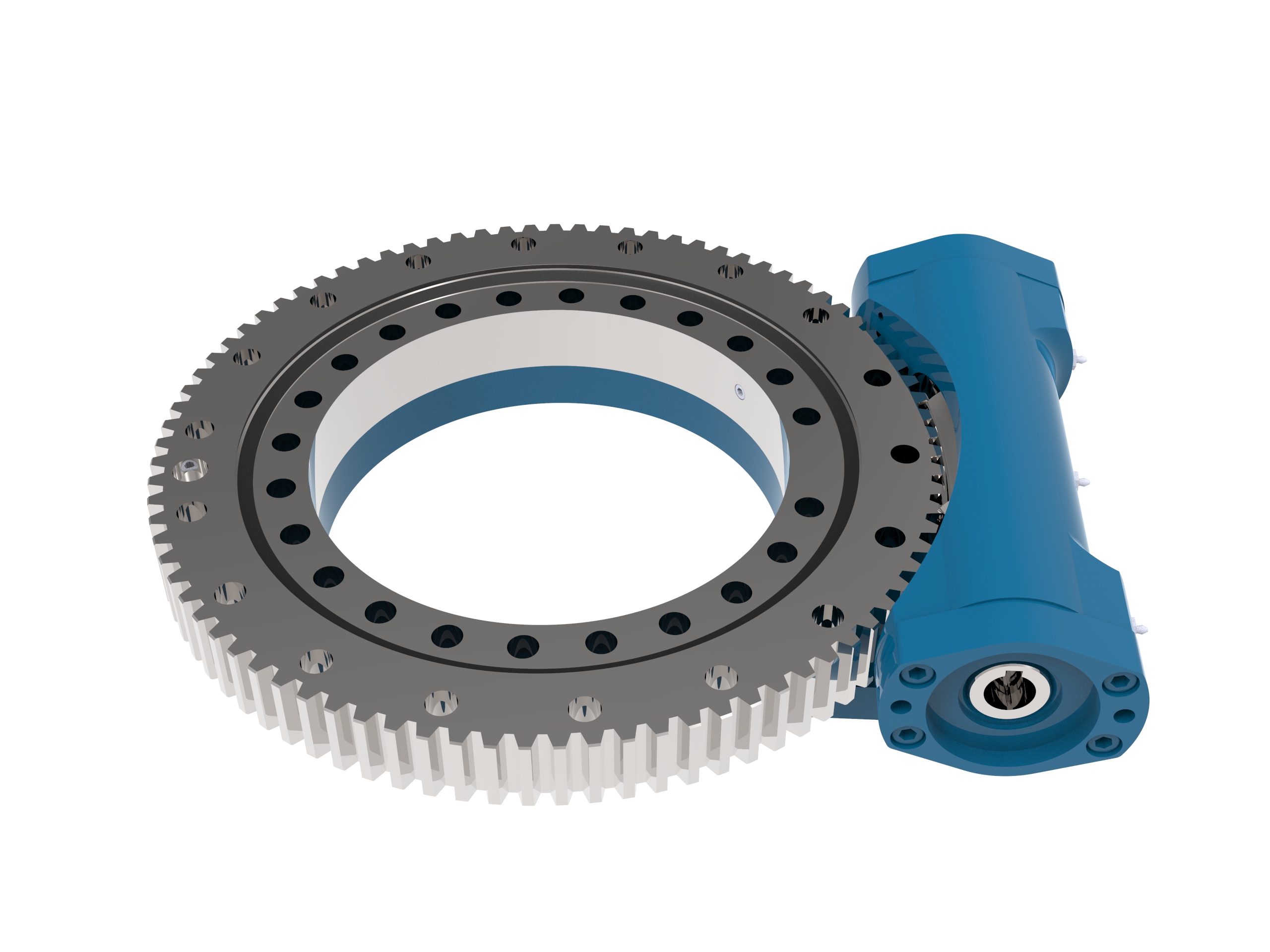

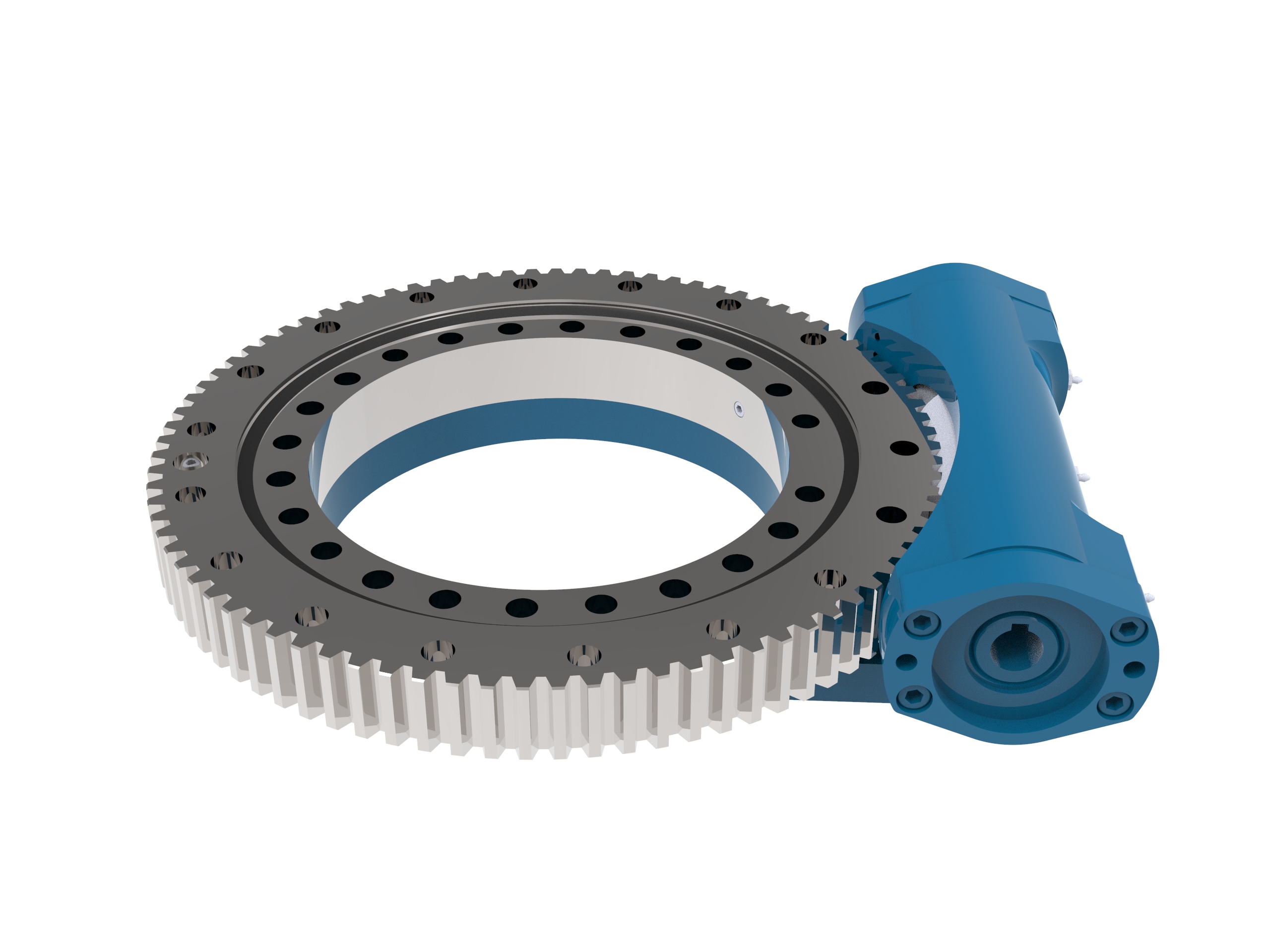

Open Housing Slew Drive S14

What is Open Housing Slew Drive S14？

The Open Housing Slew Drive S14 is an advanced integrated modular transmission component designed to facilitate efficient rotary motion across various applications. It consists of key components including a sturdy base, a precision-engineered worm shaft, and a worm wheel. This configuration allows the drive to simultaneously manage axial loads, radial forces, and overturning moments, making it highly versatile for different operational requirements.

Key Features of Open Housing Slew Drive S14:

1. Self-Locking Mechanism: One of the standout features of the S14 Series is its self-locking capability. This design prevents reverse rotation in the event of a power loss, which is crucial for maintaining safety during operations. This self-locking function ensures that when the system loses its driving force, the rotating parts remain securely locked in place, minimizing the risk of accidental movements that could lead to dangerous situations or equipment damage.

2. Enhanced Torque Capacity: The S14 employs an annular enveloping worm design that allows it to maintain engagement with 4 to 5 teeth of the worm wheel simultaneously. This feature not only improves the output torque but also enhances the holding torque, which is essential for applications that require heavy lifting or precise positioning. The increased contact surface between the worm and worm wheel reduces wear and tear, extending the lifespan of the drive under demanding conditions.

3. Lightweight Open Design: The S14 Series is notable for its open housing design, which significantly reduces the overall weight compared to the SE14 series. This reduction in weight makes the S14 especially suitable for applications in environments where weight constraints are critical. The lightweight nature of the drive allows for easier integration into various machines without compromising structural integrity or performance.

4. Durability and Reliability: Built with high-quality materials, the S14 Series is designed to withstand harsh operational conditions. Its robust construction ensures longevity and reliability, making it suitable for demanding environments such as construction sites, where machinery is often exposed to dust, moisture, and varying temperatures.

Applications of Open Housing Slew Drive S14

The S14 Series is extensively utilized across multiple industries due to its versatility and performance:

• Aerial Work Platforms: The drive is commonly found in aerial work platforms, where it provides reliable and smooth rotation necessary for safe operations at heights. Its self-locking feature adds an extra layer of safety for operators working in elevated positions.

• Cranes and Lifting Equipment: In the realm of cranes, the S14 Series enhances both efficiency and precision during heavy lifting tasks. Its ability to manage substantial loads while maintaining control over movements makes it a preferred choice for crane manufacturers and operators.

• Industrial Machinery: The S14 is also well-suited for various types of industrial machinery that require low-speed rotation combined with high torque. Its robust design and efficient performance ensure that it can handle the rigors of industrial applications, contributing to increased productivity and operational safety.

Conclusion:

Overall, the S14 Series Open Housing Slew Drive stands out as an exceptional solution for industries that demand high performance, safety, and efficiency in rotary applications. Its innovative design features, coupled with its lightweight construction and self-locking capabilities, make it an ideal choice for applications where reliability and safety are paramount. Whether in construction, heavy lifting, or industrial machinery, the S14 Series provides the necessary drive solutions to meet the challenges of modern engineering.

Techspecs
