What is Open Housing Slew Drive S14

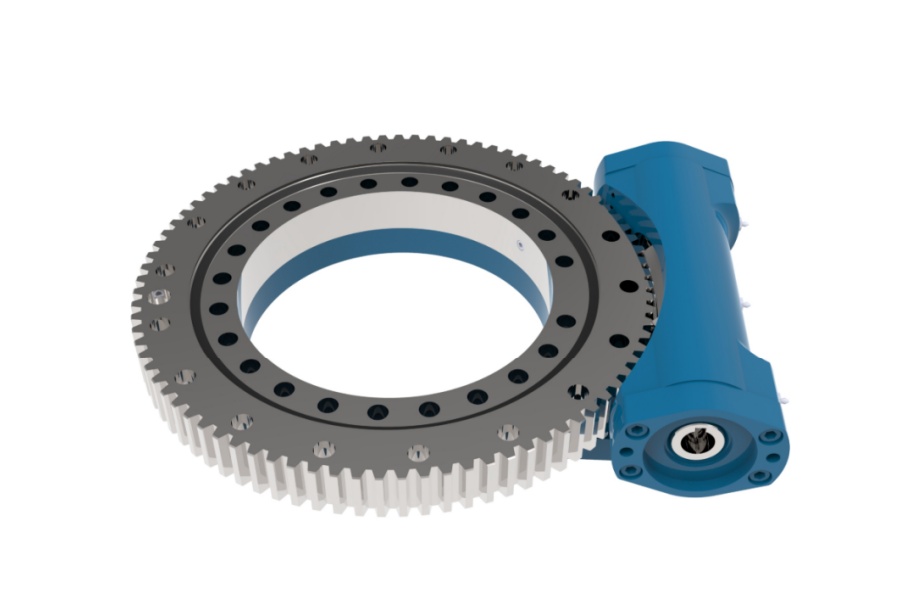

Open Housing Slew Drive S14 is an integrated rotational mechanism combining a base, worm shaft, and worm wheel into a compact unit designed to simultaneously handle axial, radial, and tilting moment loads. Its open-frame architecture eliminates unnecessary housing components, reducing weight while maintaining structural integrity. This drive features an inherent self-locking function that prevents reverse rotation during power loss, ensuring operational safety and positional stability. Ideal for applications requiring low-speed, high-torque rotation, the S14’s design prioritizes heat dissipation and accessibility for maintenance, making it a versatile solution across heavy machinery and precision systems.

Technical Information About Slew Drives

Understanding slew drives requires familiarity with key technical parameters:

Torque Capacity: Output torque (e.g., 6.5 kN·m for S9 models) determines rotational force, while tilting moment torque (e.g., 33.9 kN·m) resists overturning forces. Holding torque (e.g., 38.7 kN·m) ensures load stability during static phases.

Load Ratings: Static axial/radial ratings (e.g., 338 kN/135 kN) define maximum stationary loads, whereas dynamic ratings (e.g., 81 kN/71 kN) apply to moving conditions.

Precision and Gear Ratio: Tracking precision (≤0.17°) ensures accurate positioning, and gear ratios (e.g., 61:1) govern speed-to-torque conversion efficiency.

Durability Factors: Material composition (e.g., hardened alloy steel), lubrication systems, and sealing mechanisms directly impact service life. Backlash control minimizes positional error, critical for automation.

Environmental Specifications: IP ratings for dust/water resistance and operating temperature ranges (-40°C to 80°C) dictate suitability for extreme conditions.

Features of Open Housing Slew Drive S14

Optimized Torque Transmission:

A multi-tooth meshing design engages 4–5 worm gear teeth simultaneously, amplifying output torque by 40% compared to conventional drives, ideal for heavy-load scenarios.

Fail-Safe Self-Locking:

The helical worm geometry creates mechanical locking under static conditions, eliminating unintended movement without auxiliary brakes.

Lightweight Open Structure:

Weighing 20% less than enclosed equivalents, the open housing reduces inertial mass and simplifies component inspection/lubrication.

Multi-Directional Load Support:

Engineered bearings distribute combined axial-radial-tilting loads uniformly, minimizing stress concentrations and extending service intervals.

Corrosion-Resistant Build:

Aerospace-grade alloy components with phosphate coating withstand corrosive environments, including marine and chemical processing settings.

Thermal Management:

Open design facilitates airflow, lowering operational temperatures by 15–20% during continuous duty cycles.

Applications of Open Housing Slew Drive S14

Solar Tracking Systems: Provides precise azimuth/elevation control for photovoltaic panels, optimizing energy harvest.

Construction Machinery: Powers crane boom rotation and excavator slewing rings where weight savings enhance fuel efficiency.

Wind Turbine Yaw Adjustment: Enables reliable nacelle positioning in turbines, leveraging high holding torque for gust resistance.

Material Handling Equipment: Drives rotary conveyors and automated warehouse cranes, ensuring smooth, low-vibration motion.

Robotic Arms: Delivers sub-degree accuracy for welding or assembly robots in automotive manufacturing.

Medical Imaging Devices: Facilitates silent, stable rotation in CT/MRI scanners requiring backlash-free operation.

Factors Affecting Open Housing Slew Drive S14 Pricing

Material Costs: Fluctuations in alloy steel, bronze gear, and specialty coating prices directly influence unit costs.

Customization Requirements: Modifications like bespoke gear ratios, integrated encoders, or extreme-temperature seals add 15–50% to base pricing.

Order Volume: Bulk purchases (50+ units) typically reduce per-unit costs by 20–30% through economies of scale.

Certifications: Compliance with ISO 9001, CE, or industry-specific standards (e.g., DNV-GL for marine use) increases validation expenses.

Geopolitical Factors: Tariffs, shipping disruptions, and regional labor rates impact supply chain expenses.

Technical Support: Extended warranties or on-site installation services contribute to total ownership costs.

Supplier of Open Housing Slew Drive S14

LYRADRIVE specializes in engineered motion solutions, manufacturing the Open Housing Slew Drive S14 with ISO-certified processes. Their in-house R&D team conducts rigorous fatigue testing and FEA simulations to validate load tolerances and lifecycle performance. Offering global technical support and customizable configurations, LYRADRIVE serves sectors from renewable energy to defense, emphasizing rapid prototyping and just-in-time delivery.
