Advanced Enveloping Slewing Drive SE25 for Extreme Load Rotation

Advanced Enveloping Slewing Drive SE25 for Extreme Load Rotation

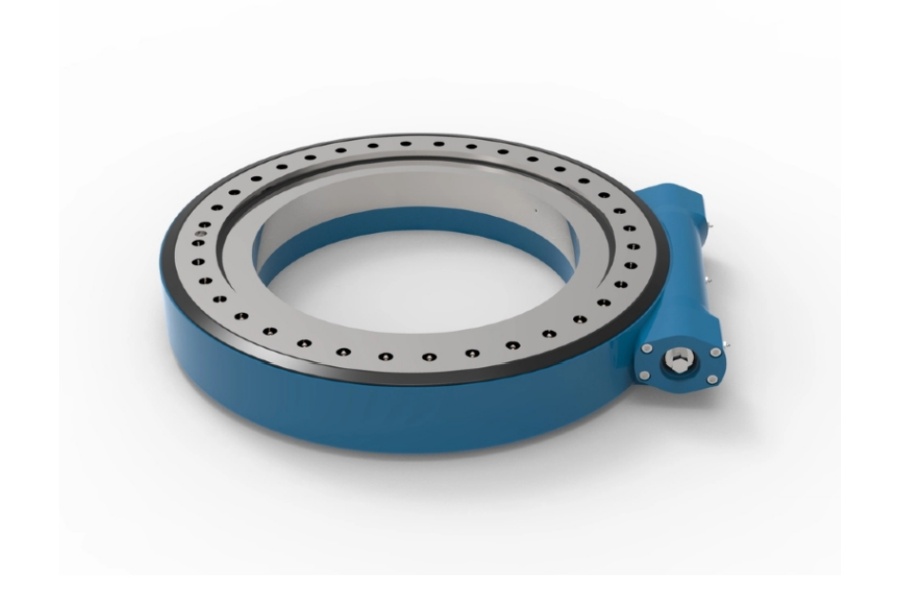

What is Enveloping Slewing Drive SE25?

Enveloping Slewing Drive SE25 represents the pinnacle of heavy-duty rotational drive technology, integrating a robust base, a hardened enveloping worm, and a precision worm gear into a single, compact assembly. Its core innovation is the enveloping worm design, where the worm contours around the worm gear, enabling simultaneous engagement with 4 to 5 gear teeth. This maximizes contact area, dramatically boosting output torque (18 kN.m), holding torque (158.3 kN.m), and tilting moment capacity (271 kN.m) far beyond standard drives. Engineered to withstand colossal combined loads – a static axial rating of 2360 kN, static radial rating of 945 kN, dynamic axial rating of 590 kN, and dynamic radial rating of 470 kN – the SE25 excels where extreme force transmission is critical. The enveloping geometry inherently provides fail-safe self-locking when power is removed, ensuring absolute load security. Housed within an IP65-rated sealed enclosure, it offers superior defense against dust, high-pressure water jets, and corrosive contaminants, guaranteeing operation in punishing outdoor, marine, or industrial settings. Its high 150:1 gear ratio ensures powerful, controlled low-speed rotation, while precision options (≤0.15° standard, ≤0.07° or ≤0.03° available) support accurate positioning for mission-critical machinery. Compatible with hydraulic or electric motors, it provides flexible integration.

Causes and Solutions for Slewing Drive Noise During Operation

Excessive noise in a slewing drive indicates potential issues requiring attention to prevent premature failure. Understanding common causes and implementing solutions is crucial:

Inadequate or Degraded Lubrication: Insufficient grease quantity, incorrect grease type, or lubricant breakdown due to age, contamination, or overheating causes increased metal-to-metal contact and grinding noise.

Solution: Replenish with manufacturer-specified extreme-pressure grease via lubrication ports. Perform complete grease purge and replacement if contamination is suspected. Strictly adhere to recommended relubrication intervals based on operating severity.

Wear or Damage: Worn gear teeth (worm or wheel), damaged bearings, or scored races produce grinding, clicking, or rumbling sounds, especially under load. This often results from prolonged operation with poor lubrication, overloading, or contamination ingress.

Solution: Inspect gears and bearings internally if noise persists after relubrication. Replace worn or damaged components immediately. Use genuine manufacturer parts to ensure compatibility and performance.

Misalignment: Improper mounting leading to misalignment between the drive and mating structure induces uneven loading and binding, causing rhythmic knocking or whining noises.

Solution: Verify mounting surface flatness and rigidity. Ensure mounting bolts are tightened evenly and to the correct torque specification. Check drive alignment with connected components using precision instruments.

Excessive Backlash: Worn gears or improper initial meshing clearance can create noticeable clunking or knocking sounds during direction reversals or load changes.

Solution: Inspect gear mesh and backlash. Adjust preload if possible within design limits (often requires manufacturer service). Replace gears if backlash exceeds acceptable tolerances. The SE25's enveloping design inherently minimizes operational backlash.

Loose Mounting Hardware: Vibration can loosen mounting bolts over time, causing rattling or banging noises as the drive shifts slightly within its mounting.

Solution: Regularly check and retorque all mounting bolts to the manufacturer's specified value using a calibrated torque wrench. Use thread-locking compound if recommended.

Contamination Ingress: Dirt, grit, or water entering the drive housing due to damaged seals acts as an abrasive, accelerating wear and causing grinding or gritty noises.

Solution: Inspect seals regularly for damage or wear. Replace compromised seals immediately. Ensure the housing exterior is kept clean. The SE25's IP65 rating and advanced seal options (single/double lip) provide robust protection against ingress.

Overloading: Operating beyond the drive's rated capacity (axial, radial, or moment loads) stresses components, leading to groaning, cracking sounds, or increased bearing noise.

Solution: Strictly operate within the SE25's published load ratings (e.g., Static Axial: 2360 kN, Tilting Moment: 271 kN.m). Review application loads and ensure adequate safety margins. Consider upsizing if loads consistently approach limits.

Enveloping Slewing Drive SE25 Features

The SE25 defines heavy-duty performance through its advanced engineering and critical features:

Enveloping Worm Design: Multi-tooth engagement (4-5 teeth) delivers industry-leading output torque (18 kN.m), holding torque (158.3 kN.m), and tilting moment capacity (271 kN.m).

Extreme Load Capacity: Engineered for colossal forces: static axial load 2360 kN, static radial load 945 kN, dynamic axial load 590 kN, dynamic radial load 470 kN. Handles massive combined loads simultaneously.

Inherent Self-Locking: Enveloping geometry ensures reliable, zero-backlash self-locking when power is off, critical for safety in lifting, holding, and positioning.

High Precision Rotation: Offers standard tracking precision ≤ 0.15°, with high-precision options (≤ 0.07° or ≤ 0.03°) for applications demanding exceptional accuracy and minimal backlash.

Superior Sealing & Protection: Standard IP65-rated housing provides exceptional defense against dust and water jets. Advanced seal options (single or double-lip) offer enhanced protection in severe environments like mining, marine, or construction.

Integrated Heavy-Duty Design: Combines large-diameter bearings, precision gearing, and structural base into a single, pre-assembled unit (weight: 203 kg), ensuring rigidity, simplifying installation, and minimizing footprint.

High Reduction Ratio: 150:1 gear ratio provides immense torque multiplication and precise, controlled slow-speed output essential for heavy machinery.

Robust Construction & Materials: Utilizes high-strength alloy steels, precision machining, and specialized heat treatment for maximum durability and longevity under extreme stress and in abrasive conditions.

Optimized Lubrication: Designed for efficient grease distribution and retention, extending service intervals even under severe continuous operation.

Customization Flexibility: Offers options for specific mounting configurations, seal upgrades, alternative gear ratios, or precision grades to meet exact application needs.

Enveloping Slewing Drive SE25 Applications

The SE25's unmatched power, precision, and resilience make it essential for the most challenging low-speed rotational tasks:

Heavy-Duty Mobile & Crawler Cranes: Powers slewing in large lattice boom and heavy-duty crawler cranes, delivering the massive holding torque (158.3 kN.m) and axial load capacity (2360 kN) critical for safe mega-lift operations and boom stability.

Mining & Quarrying Mega-Machines: Drives rotation in giant excavators, draglines, shovels, stackers, and reclaimers, handling extreme dynamic loads (590 kN axial) and resisting abrasive dust, mud, and impacts.

Offshore Cranes & Heavy-Lift Vessel Equipment: Used on knuckle boom cranes, A-frames, and deck machinery where IP65 sealing, corrosion resistance, and handling massive overturning moments (271 kN.m) under vessel motion are paramount.

Large Wind Turbine Yaw & Pitch Systems: Provides the immense torque (18 kN.m) and holding force (158.3 kN.m) required for positioning nacelles or adjusting blades on multi-megawatt turbines, with reliability in exposed locations.

Construction Piling & Foundation Equipment: Powers rotation of large CFA rigs, diaphragm wall grabs, and piling rigs demanding high torque under shock loads and harsh site conditions.

Heavy Material Handling & Steel Mill Equipment: Drives turntables, ladle rotators, coil cradles, and massive positioners in foundries, steel mills, and ports requiring high torque under substantial radial loads (945 kN static).

Shipyard & Heavy Fabrication Rotators: Enables precise rotation of large hull sections, pressure vessels, or structural components during construction and welding.

Defense & Aerospace Heavy Platforms: Suited for rotating launch systems, large radar platforms, or heavy weapon mounts where reliability under extreme shock, vibration, and environmental exposure is non-negotiable.

What Factors Influence the Price of Enveloping Slewing Drive SE25?

The investment in an SE25 reflects its extreme-duty engineering, materials, and capabilities. Key pricing determinants include:

Premium Material Costs: Significant expense arises from large volumes of high-strength alloy steels for the gear and base, specialized case-hardened steel for the enveloping worm, and often advanced composites or bronze alloys for the worm gear. The substantial weight (203 kg) directly impacts material costs.

Advanced Precision Manufacturing: Achieving the complex enveloping worm profile and ultra-precise gear meshing (essential for ≤0.07° or ≤0.03° options) requires sophisticated CNC machining, grinding, and specialized heat treatment processes under strict tolerances, demanding significant time and expertise.

High-Capacity Component Costs: The inclusion of extra-large, ultra-high-capacity bearings rated for extreme static (2360 kN axial) and dynamic (590 kN axial) loads is a major cost driver. High-performance sealing systems (IP65 base + enhanced options) also add expense.

Precision Grade Selection: Higher precision levels (≤0.07° or ≤0.03°) necessitate exponentially more stringent manufacturing control, inspection, and potential component matching, significantly increasing cost compared to the standard ≤0.15°.

Gear Ratio Complexity: While 150:1 is standard, alternative ratios require unique gear sets and manufacturing setups, impacting price.

Customization Requirements: Modifications such as special mounting flanges, custom shaft outputs, unique seal configurations (e.g., double-lip for submersion risk), specific corrosion-resistant coatings (e.g., for offshore), or sensor integration add engineering and production costs.

Certifications & Rigorous Testing: Compliance with demanding industry standards (e.g., DNV-GL, Lloyd's Register for marine; CE Machinery Directive; specific safety certifications) or undertaking extensive prototype testing (load, life, environmental) involves significant cost in testing procedures and documentation.

Production Scale & Order Volume: As a highly specialized, low-volume component compared to smaller drives, economies of scale are limited. Larger orders typically achieve better unit pricing.

Supplier Value Proposition: Reputable manufacturers with proven heavy-duty design expertise, extensive in-house testing capabilities, global technical support, comprehensive service networks, and strong warranty programs command a premium reflecting reduced operational risk and long-term value.

Enveloping Slewing Drive SE25 Supplier

LYRADRIVE is a leading manufacturer specializing in the design and production of high-performance slewing drives and bearings, including the advanced Enveloping Slewing Drive SE25 series. The company combines deep expertise in heavy-duty gear mechanics, material science, and precision manufacturing to deliver robust and reliable rotational solutions engineered for extreme industrial applications. LYRADRIVE emphasizes rigorous quality control, the use of premium materials, and advanced production technologies to ensure their SE25 drives consistently meet the highest standards for torque transmission, load capacity, precision, and durability required in the world's most demanding operating environments. Their focus is on providing customers with dependable, long-lasting motion solutions supported by engineering knowledge.
