Case : High-Precision Rotary Drive for U.S. Solar Tracking Applications

In Q2 2026, LyraDrive，the professional slew drive manufacturer in China，successfully completed the export of a specialized SP-H series slew drive to a U.S.-based solar tracking and heavy positioning equipment manufacturer. This shipment marks another milestone in LyraDrive’s growing presence in the North American market, where demand for high-accuracy, durable rotary drive solutions is rapidly increasing.

a robust and precision-engineered slew drive designed for applications requiring reliable rotation under load. The SP-H series is known for its enclosed worm-gear design, providing self-locking capability, high shock load resistance, and minimal maintenance requirements—ideal for U.S. solar trackers, aerial lifts, and industrial turntables.

The exported unit guarantees a rotational accuracy of less than 0.08 degrees, ensuring precise positioning even under variable load conditions. This level of accuracy is essential for applications such as photovoltaic (PV) solar trackers, where even minor angular errors can affect energy yield, and for radar or antenna positioning systems where signal alignment is critical.

For the U.S. client, this accuracy translates directly into improved system efficiency and reduced need for field recalibration.

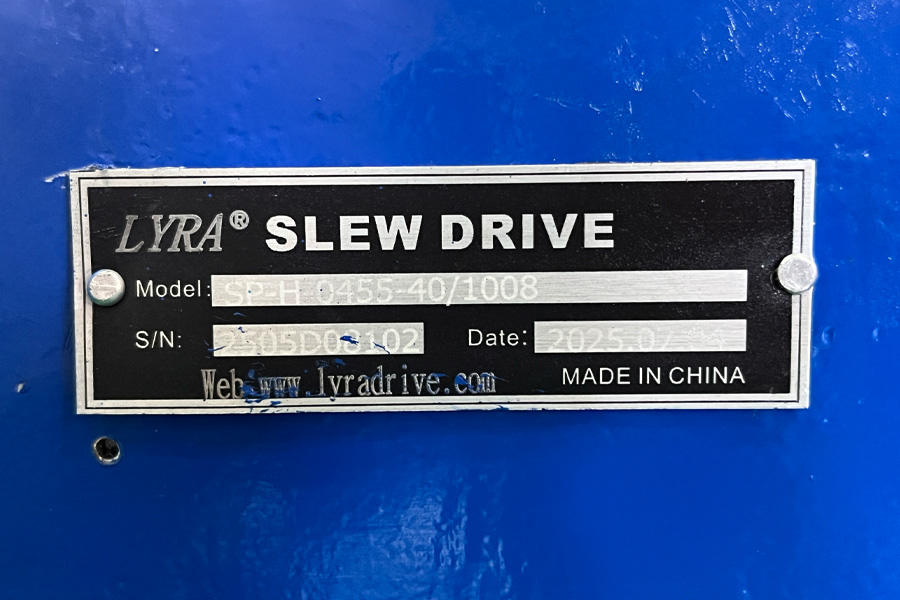

The SP-H-0455-40/1008 is destined for a solar tracker project in the southwestern United States (Arizona/California region), where high diurnal temperature ranges demand reliable, low-backlash slew drives. The client specifically required:

• 0.08° or better accuracy to meet U.S. utility-scale solar positioning standards.

• Self-locking worm gear to prevent reverse driving during high winds.

• Low maintenance for remote desert installation.

  LyraDrive’s SP-H series met all requirements, leading to a repeat order scheduled for Q3 2026.

Customer Feedback (paraphrased from U.S. engineering team)

“The LyraDrive SP-H unit arrived on schedule with complete test documentation. The <0.08° accuracy was confirmed upon our incoming inspection. We are integrating this into our heliostat field with confidence.”

What is an SP-H Slew Drive？

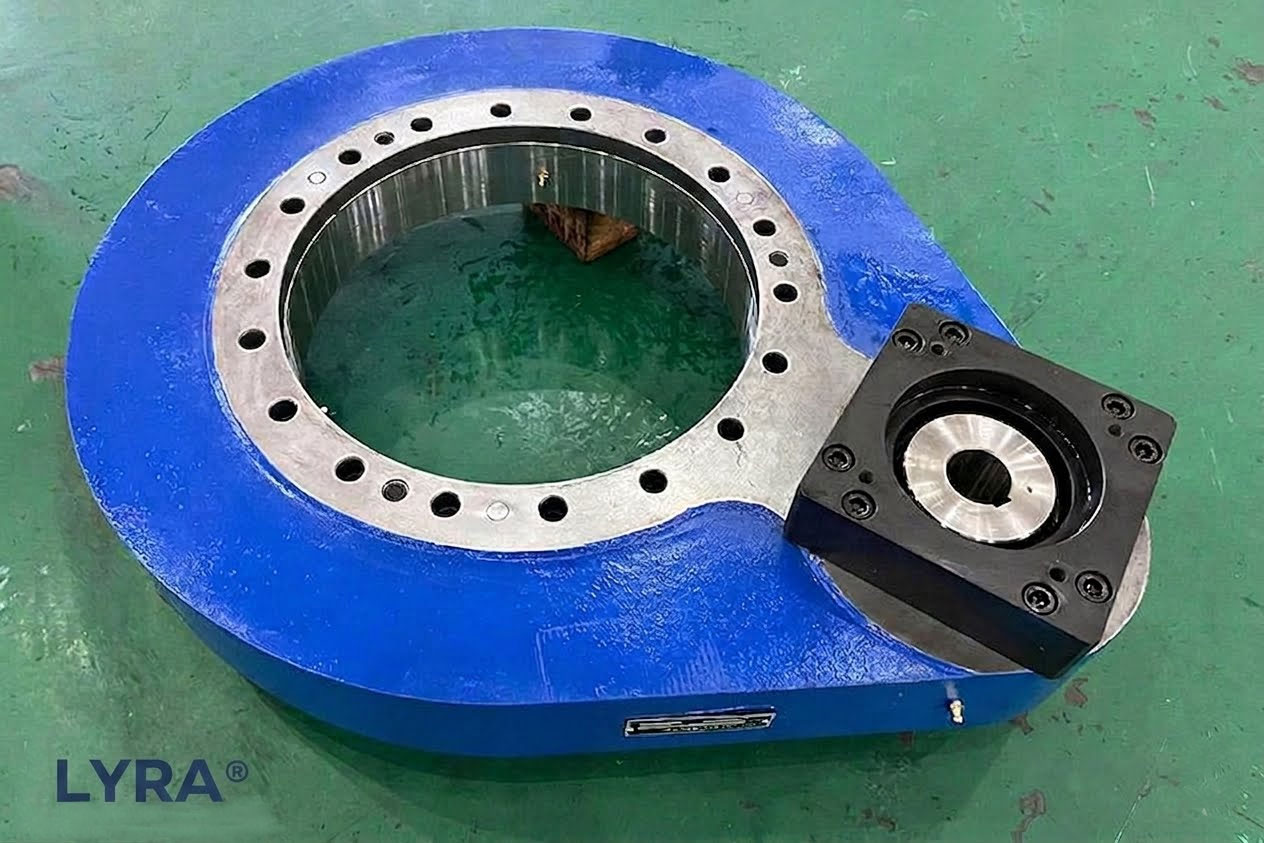

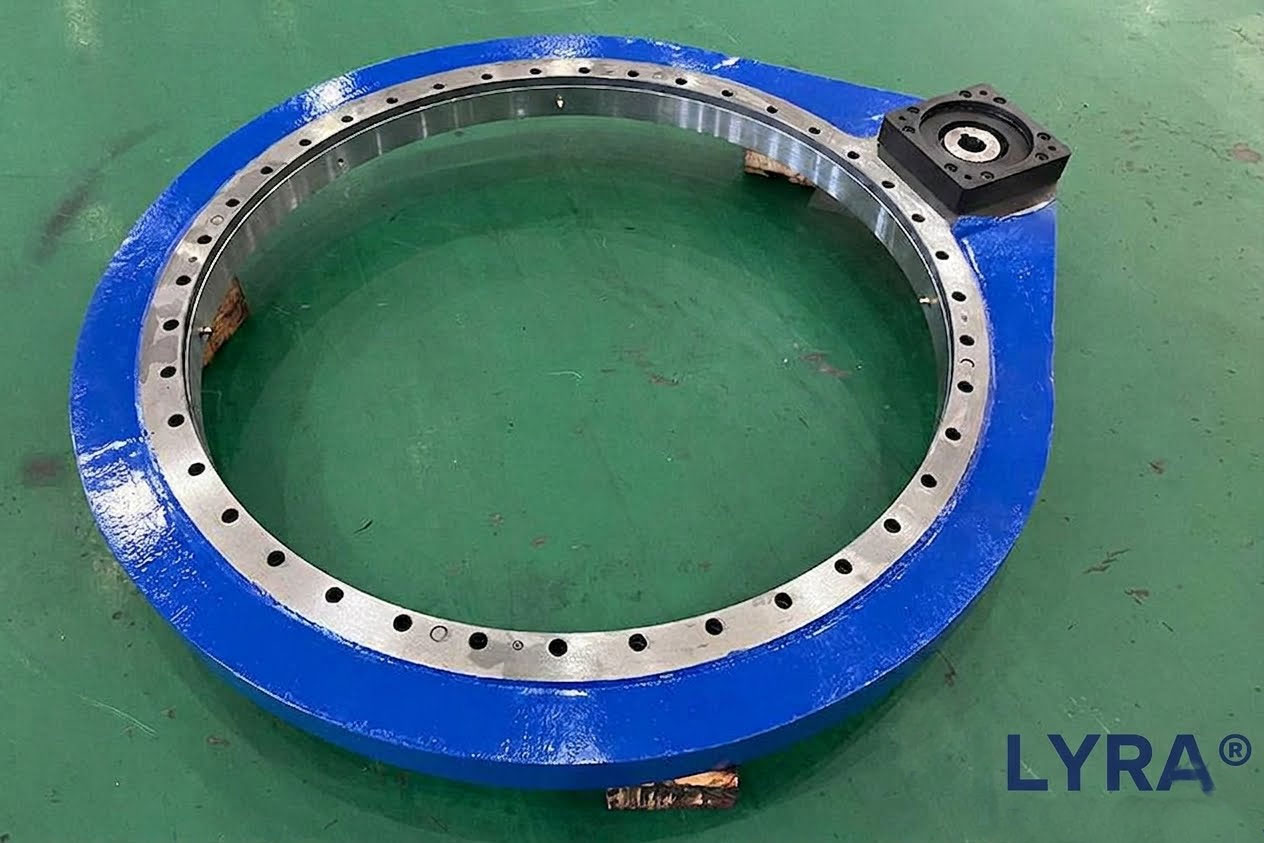

The SP-H Slew Drive represents a specialized, high-load, heavy-duty gear configuration engineering solution engineered to manage immense axial, radial, and tilting moment loads simultaneously. In the designation "SP-H," the letter "H" explicitly denotes "Heavy Duty" or "High Capacity." Unlike standard-duty planetary or light-worm gear configurations, these units are specifically optimized with a rugged spur gear architecture to ensure uncompromised structural performance and reliable power transmission under extreme operational stress and severe outdoor environments.

Key Components of an SP-H Slew Drive

The superior mechanical capacity of the SP-H series relies on an integrated assembly of high-grade components, each precision-machined to resist fatigue:

• High-Strength Spur Gear: The core mechanism utilizing optimized tooth profiles to deliver high torque efficiency, smooth meshing, and high rotational speeds without severe frictional energy loss.

• Heavy-Duty Slewing Bearing: A reinforced internal raceway structure utilizing hardened steel balls or rollers to absorb massive combined axial thrust and overturning moments.

• Rigid Enclosed Housing: A fully sealed, high-tensile cast iron or alloy enclosure that protects internal gearing from structural distortion, dust, water, and industrial contaminants.

• Advanced Seal Matrix: Premium lip seals and dust-proof gaskets designed to retain internal lubrication while preventing moisture ingress during high-pressure washdowns or extreme weather exposure.

• Input Pinion & Flange Interface: A modular input configuration compatible with hydraulic motors or electric servo-drives, precision-aligned to eliminate input shaft backlash.

Core Features of the SP-H Slew Drive

• Exceptional Dynamic Load Capacity: Engineered specifically to counteract extreme tilting moments and heavy structural weights, ensuring stable rotation even under asymmetrical load distribution.

• High Operational Efficiency: The spur gear design offers significantly lower internal friction compared to traditional worm gears, resulting in less heat generation, lower power consumption, and faster rotational capabilities.

• Superior Backlash Control: Designed to achieve precise angular tolerances (such as tracking accuracy reaching < 0.08°), preventing positioning drift in safety-critical automated operations.

• Long-Term Durability & Low Maintenance: Built with wear-resistant gear materials and advanced surface hardening techniques, the SP-H series minimizes downtime and extends oil-change intervals under continuous cycles.

Typical Applications of the SP-H Slew Drive

Thanks to its heavy-duty build, the SP-H series is widely deployed across massive infrastructure, energy, and industrial automation sectors:

• Advanced Industrial & 3D Printing Robots: Providing stable base rotation and arm articulation for heavy-payload multi-axis robotic gantries and construction concrete 3D printers.

• Heavy-Duty Snow Blowers & Winter Service Vehicles: Handling high radial stress and impact shock forces while adjusting the directional chute of industrial-scale snow clearance machinery.

• Mining & Heavy Material Handling Rigs: Integrated into heavy conveyor stacker-reclaimers, coal mine drills, and bulk material lifters that require robust rotational torque under dusty, high-vibration conditions.

• Construction Cranes & Aerial Work Platforms: Powering the smooth, controlled rotation of boom lifts, utility truck cranes, and high-altitude access equipment where operator safety relies on zero-drift positioning.

Selection Considerations for the SP-H Slew Drive

To select the ideal SP-H configuration for your engineering project, technical buyers must carefully evaluate the following parameters:

• Load Profiles (Static & Dynamic): Calculate the exact combinations of axial load, radial thrust, and tilting moment (Mk) your application will exert during maximum operational capacity.

• Output Speed & Duty Cycle: Determine the required Revolutions Per Minute (RPM) and frequency of operation. Spur gears excel at higher speeds, but continuous high-duty cycles require precise thermal calculation.

• Precision & Backlash Tolerances: Assess whether your system demands standard industrial tolerances or ultra-precise tracking accuracy (e.g., fractional-degree tolerances for precise robotic positioning).

• Environmental Exposure: Specify if the operating environment involves extreme temperatures, marine corrosion, high humidity, or abrasive dust so that proper sealing materials and surface coatings can be applied during manufacturing.

• Motor Matching & Interface: Ensure the drive's input ratio matches your hydraulic or electric motor specifications regarding torque curves, mounting flanges, and braking mechanisms
