Enveloping Slewing Drive SE12 High Torque Precision Rotation Welding Positioners

Enveloping Slewing Drive SE12 High Torque Precision Rotation Welding Positioners

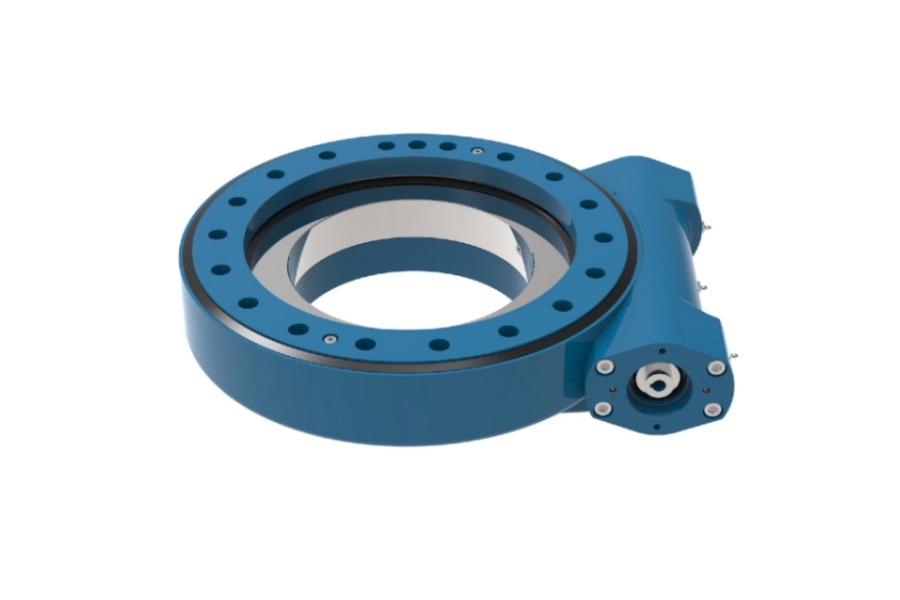

What is Enveloping Slewing Drive SE12

Enveloping Slewing Drive SE12 represents a sophisticated class of integrated slewing bearing and drive mechanism. It combines a robust bearing unit capable of handling complex loads with a highly efficient double enveloping worm gear set within a single, compact housing. The defining "enveloping" characteristic refers to the unique geometry of the worm gear. Both the worm shaft and the gear wheel feature concave profiles that wrap around each other, significantly increasing the tooth contact area compared to standard single enveloping or spur gear designs. This multi-tooth engagement (typically 4-5 teeth in constant contact) is the key to the SE12's outstanding performance. It delivers a substantial 6.5 kN.m output torque and handles high tilting moments (33.9 kN.m) and holding moments (38.7 kN.m), all while maintaining a relatively low weight of 49 kg. Its integrated bearings support significant static axial loads (338 kN) and static radial loads (135 kN), along with considerable dynamic axial (81 kN) and dynamic radial (71 kN) capacities. Engineered for precision, it offers a standard 61:1 gear ratio with tracking precision ≤0.17°. Often incorporating an IP65-rated seal for protection against dust and water ingress, the SE12 provides smooth, powerful, and controlled rotation with inherent self-locking capability in its standard configuration, enhancing operational safety.

Unlocking Precision and Power: The SE12 in Welding Positioners

Welding positioners demand exceptional performance from their core drive components. Precise, smooth, and vibration-free rotation is paramount for achieving consistent, high-quality welds, especially in automated or robotic welding cells. The workpiece must be positioned accurately and held rock-steady throughout the welding process, often under significant weight and during complex maneuvers. This is where the Enveloping Slewing Drive SE12 excels and becomes a transformative element.

Traditional drive solutions in welding positioners can struggle with backlash, limited torque, insufficient rigidity, or susceptibility to wear under constant stop-start cycles and varying loads. The SE12 directly addresses these challenges. Its double enveloping worm gear design provides inherently low backlash and high positional accuracy (≤0.17°), ensuring the workpiece is held and moved exactly where programmed, weld after weld. This precision directly translates to superior weld quality and repeatability. The high holding torque (38.7 kN.m) and tilting moment capacity (33.9 kN.m) guarantee exceptional stability, preventing unwanted deflection or movement even when manipulating heavy, unbalanced workpieces or during dynamic repositioning. The drive's high rigidity minimizes vibration transmission, a critical factor for maintaining a stable welding arc and preventing defects.

Furthermore, the SE12's compact size and integrated design simplify the overall structure of the welding positioner, allowing for a more robust yet space-efficient machine build. Its self-locking capability is a significant safety and functional advantage; once positioned, the workpiece stays locked firmly in place without relying solely on motor brakes, even if power is interrupted. The high load capacities (Static Axial: 338 kN, Static Radial: 135 kN) ensure longevity under the demanding loads typical in welding fixtures. When combined with appropriate IP65 sealing, the SE12 proves resilient against the harsh environment of welding shops, including airborne spatter, dust, and occasional coolant exposure. For manufacturers seeking to build high-performance, reliable, and precise welding positioners – whether for automotive components, pressure vessels, structural steel, or intricate fabrications – the Enveloping Slewing Drive SE12 provides the robust, precise, and compact motion foundation essential for excellence.

Key Features of the Enveloping Slewing Drive SE12

The SE12 distinguishes itself through a combination of advanced engineering features that deliver superior performance in a compact form factor:

Exceptional Power Density & Torque: The core double enveloping worm gear design enables the SE12 to generate a substantial 6.5 kN.m output torque and withstand high tilting moments (33.9 kN.m) and holding moments (38.7 kN.m) within a remarkably small footprint and weight (49 kg). This maximizes performance where space and weight are constrained.

High Integrated Load Capacity: Engineered with robust internal bearings, the SE12 handles significant static axial loads (338 kN) and static radial loads (135 kN), along with considerable dynamic axial (81 kN) and dynamic radial (71 kN) capacities. This allows it to manage combined loads effectively.

Precision Motion & Low Backlash: The enveloping gear mesh offers inherently smoother operation and significantly reduced backlash compared to standard worm gears. Combined with precision manufacturing, this results in highly controlled motion with a guaranteed tracking precision of ≤0.17°, crucial for accurate positioning applications.

High Efficiency: The multi-point contact of the double enveloping design distributes load more evenly, reducing localized stress and friction losses. This translates into higher mechanical efficiency, particularly under high torque loads.

Superior Rigidity and Stiffness: The combination of the enveloping gear mesh and the integrated slewing bearing structure creates an extremely rigid unit. This minimizes deflection under load, ensuring precise motion control and maintaining optimal gear mesh alignment for longevity.

Inherent Self-Locking (Standard Ratio): The standard 61:1 gear ratio provides a high mechanical advantage. The friction angle inherent in the enveloping worm design results in a reliable self-locking characteristic, preventing back-driving and securely holding position without needing an external brake in most scenarios, enhancing safety.

Robust Sealing (Typical IP65): Designed for harsh environments, the SE12 typically features effective sealing achieving IP65 rating, protecting internal components from dust ingress and water jets, increasing reliability and lifespan.

Integrated Compact Design: Combining the bearing, high-torque gearing, housing, and often mounting features into a single, sealed unit simplifies system design, reduces the number of components, eases installation, and improves overall system reliability.

Durability and Reliability: Manufactured from high-grade materials (hardened steel gears, quality bearings) and subjected to rigorous quality control, the SE12 is built for long service life in demanding industrial environments when properly maintained.

Typical Applications for the Enveloping Slewing Drive SE12

The SE12's unique blend of compactness, high torque, significant load capacity, precision, and self-locking makes it exceptionally versatile across numerous demanding industries:

Welding Automation: As detailed earlier, it's a premier choice for robotic welding positioners and manipulator arms, providing the precise, stable, and powerful rotation needed for high-quality automated welding.

Solar Tracking Systems: Powers the precise and reliable rotational movement required for single-axis and dual-axis solar trackers, optimizing panel alignment with the sun for maximum energy capture. Self-locking is a key benefit.

Material Handling & Cranes: Used in the slew mechanism of compact crane jibs, manipulator arms, rotating lifting platforms, and indexing sections of conveyor systems where controlled rotation under load is essential within limited space.

Construction Equipment: Provides rotation in compact excavator attachments, drilling equipment attachments, small concrete mixer drums, and positioning mechanisms where high torque density is critical.

Industrial Automation & Robotics: Ideal for heavy-duty robotic joints, indexing tables, assembly turntables, and automated inspection stations requiring high torque, rigidity, and precise angular positioning.

Medical and Rehabilitation Equipment: Used in sophisticated patient lifting systems, treatment chair positioning, and rehabilitation apparatus where smooth, powerful, and controlled rotation is necessary.

Packaging and Processing Machinery: Powers rotating stages, product handling arms, and filling/indexing units in machines where space is limited but robust motion is required.

Agricultural Machinery: Used in guidance systems, rotating sprayer booms, and positioning mechanisms on agricultural equipment requiring durability outdoors.

Defense and Aerospace: Applied in antenna positioning systems, sensor turrets, and hatch mechanisms demanding reliability, precision, and compactness.

Entertainment Industry: Powers rotational movement in stage machinery, camera dollies, and special effects equipment requiring smooth, controlled motion.

Factors Influencing Enveloping Slewing Drive SE12 Pricing

The cost of an Enveloping Slewing Drive SE12 is influenced by several key variables:

Order Volume: Significant economies of scale apply. Bulk purchases typically result in substantial per-unit cost reductions compared to single-unit or small-batch orders.

Raw Material Costs: Fluctuations in the global prices of high-grade steel alloys used for gears, bearings, and housings directly impact manufacturing costs. Specialty coatings or treatments add expense.

Manufacturing Complexity & Precision: The double enveloping gear profile requires sophisticated CNC machining, specialized grinding equipment, and extremely stringent quality control processes, contributing significantly to the base cost. Achieving and verifying the ≤0.17° precision adds to this complexity. Precision bearing integration is another factor.

Configuration and Customization: The base SE12 model price varies slightly with standard configurations (SEA9, SEB9, PE9). Any customization increases cost substantially:

Non-standard gear ratios (different from 61:1)

Enhanced or specialized sealing arrangements (e.g., higher IP ratings like IP67/IP69K, specific seal materials for chemicals or extreme temperatures)

Unique mounting flanges, bolt patterns, or shaft configurations

Special surface treatments (e.g., enhanced corrosion protection like deep galvanizing, specific paints for harsh environments)

Modified lubrication systems (e.g., central automatic lubrication ports)

Integration of sensors (e.g., torque, absolute position, temperature monitoring)

Special bearing specifications (e.g., higher precision grades, different clearance levels, alternative materials)

Quality Standards & Certifications: Drives manufactured to meet exceptionally tight tolerances beyond standard specs or certified to specific industry standards (e.g., ISO 9001, CE, specific DNV/GL for offshore/marine) incur higher production, testing, and documentation costs.

Geographic Factors & Logistics: Shipping costs (size/weight), import duties, taxes, and local market dynamics influence the final delivered price. Regional manufacturing or distribution hubs can sometimes offer cost advantages.

Supplier Value-Added Services: Pricing may reflect additional services like in-depth technical support, comprehensive application engineering analysis, extensive pre-shipment testing reports, or extended warranty terms.

Market Dynamics: Overall supply chain health, raw material availability, and global demand for industrial components like slewing drives can cause price fluctuations over time.

Supplier of the Enveloping Slewing Drive SE12

LYRADRIVE is a prominent manufacturer specializing in high-performance slewing drives, including the Enveloping Slewing Drive SE12. They leverage expertise in precision enveloping worm gear technology and robust bearing integration to deliver compact, reliable, and high-torque solutions. LYRADRIVE offers the SE12 in standard configurations and provides engineering support for custom requirements across demanding industrial sectors.
