Worm Gear Drive WE17

What is Worm Gear Drive WE17?

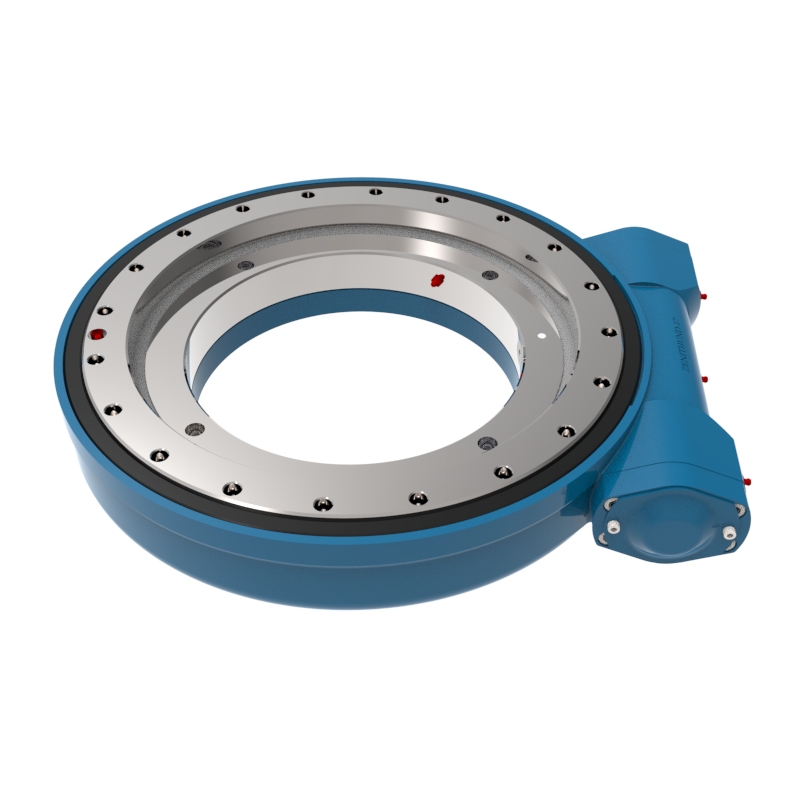

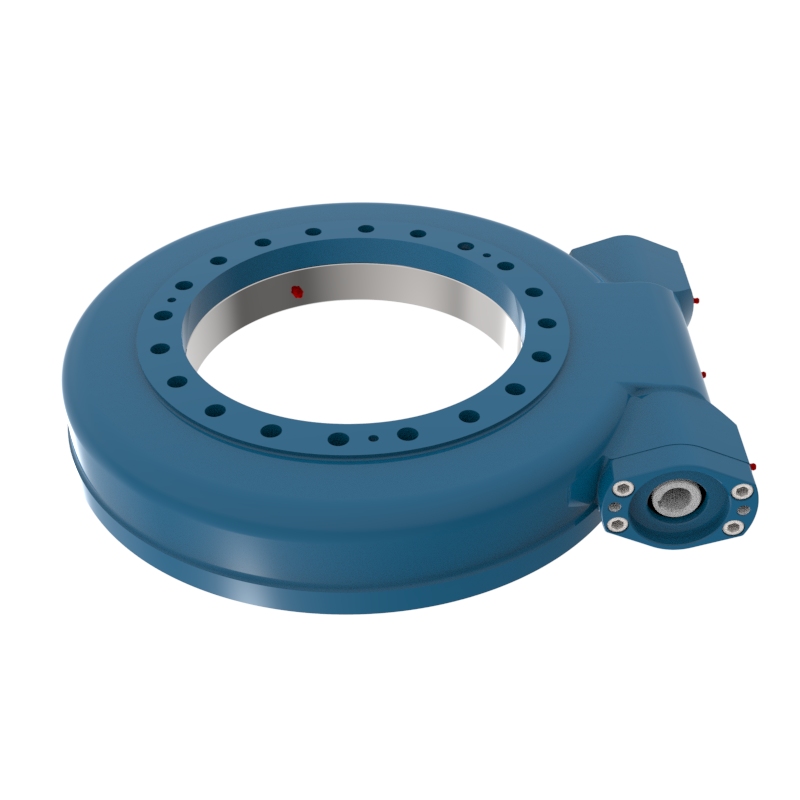

The Worm Gear Drive WE17 is a sophisticated drive component designed for various industrial applications. Comprising a sturdy base, a precisely engineered worm shaft, and a corresponding worm wheel, the WE17 is built to operate effectively in closed protective environments. This drive system can simultaneously bear axial loads, radial forces, and overturning moments while offering a self-locking function. Such capabilities ensure not only efficiency but also safety, making it an ideal choice for applications where reliability is paramount.

The worm gear design allows the WE17 to provide significant torque reduction while enhancing output torque, making it suitable for demanding operational requirements. With the incorporation of ZA or ZK tooth profiles, the engagement between the worm and the worm wheel is optimized, which results in improved work efficiency and greater overall performance.

Features of Worm Gear Drive WE17

The Worm Gear Drive WE17 boasts a variety of features that contribute to its effectiveness and reliability:

1. High Output Torque: The WE17 is capable of producing an impressive output torque of 12.96 kN.m, making it suitable for heavy-duty applications.

2. Tilting Moment Torque: With a tilting moment torque of 142.4 kN.m, this drive can handle significant loads without compromising stability.

3. Holding Torque: The system provides a holding torque of 72.3 kN.m, ensuring that the driven components remain in place, even under challenging conditions.

4. Gear Ratio: The WE17 features a gear ratio of 104:1, allowing for effective speed reduction while maximizing torque output.

5. Tracking Precision: With a tracking precision of ≤0.1°, the WE17 delivers precise control over movement, crucial for applications requiring high accuracy.

6. Self-Locking Mechanism: The self-locking capability prevents the rotation of components when the driving force is lost, enhancing safety and reliability.

7. IP65 Protection Rating: The WE17 is designed to operate in outdoor and harsh environments, providing exceptional dust and water resistance.

8. Versatile Drive Options: It can be paired with hydraulic motors or electric motors, offering flexibility for various applications.

Applications of Worm Gear Drive WE17

The Worm Gear Drive WE17 is utilized across multiple industries due to its versatility and reliability. Some key applications include:

• Aerial Work Platforms: In high-altitude machinery, the WE17 provides reliable rotation and lifting functions, ensuring operator safety and efficiency.

• Mining Equipment: The drive is essential for lifting and positioning heavy drilling equipment in mining operations, where safety and performance are critical.

• Industrial Tipping Systems: The WE17 is used in machinery that requires controlled tipping or rotation, such as hoppers and containers, optimizing operational efficiency.

• Construction Machinery: Its robust design makes the WE17 ideal for various construction applications that require reliable and safe rotational movements.

• Automation and Robotics: In automated systems, the WE17 contributes to precise control and movement, enhancing the overall functionality of robotic applications.

Price of Worm Gear Drive WE17

The pricing for the Worm Gear Drive WE17 varies based on several factors, including customization options and production volume. For accurate pricing information tailored to specific needs, potential buyers are encouraged to reach out to our sales team. LYRADRIVE is committed to providing competitive pricing while maintaining high standards of quality and reliability.

LYRADRIVE: A Professional Manufacturer of Worm Gear Drive WE17

LYRADRIVE is a leading manufacturer specializing in the production of Worm Gear Drive WE17. Our commitment to quality is evident in our rigorous manufacturing processes and attention to detail. Utilizing advanced engineering techniques and high-quality materials, we ensure that our products meet the highest performance standards. Our experienced team collaborates closely with clients to understand their unique requirements and deliver tailored solutions that enhance operational efficiency.

Through ongoing research and development, LYRADRIVE strives to innovate and improve our product offerings, keeping pace with technological advancements and industry demands. This dedication ensures that our Worm Gear Drive WE17 remains a top choice for various applications.

Comparison of WEA17 and WEB17

The WEA17 and WEB17 series rotary drives are advanced versions of the WE series, featuring enhanced sealing technologies. The WEA17 is equipped with single-skeleton oil seals, while the WEB17 utilizes double-skeleton oil seals. This optimization results in improved sealing performance, making the WEB17 particularly suitable for applications in environments filled with dust, mud, and other contaminants.

While both the WEA17 and WEB17 offer excellent performance, the choice between the two depends on specific operational conditions. For applications exposed to severe environmental challenges, the WEB17 is the preferred option due to its superior sealing capabilities. Conversely, the WEA17 is ideal for less demanding environments while still providing reliable and efficient performance.

In summary, the Worm Gear Drive WE17 stands out as a robust and reliable solution for low-speed industrial applications. Its combination of safety features, high efficiency, and versatility makes it suitable for a wide range of industries, ensuring that it meets the high demands of modern operational requirements.

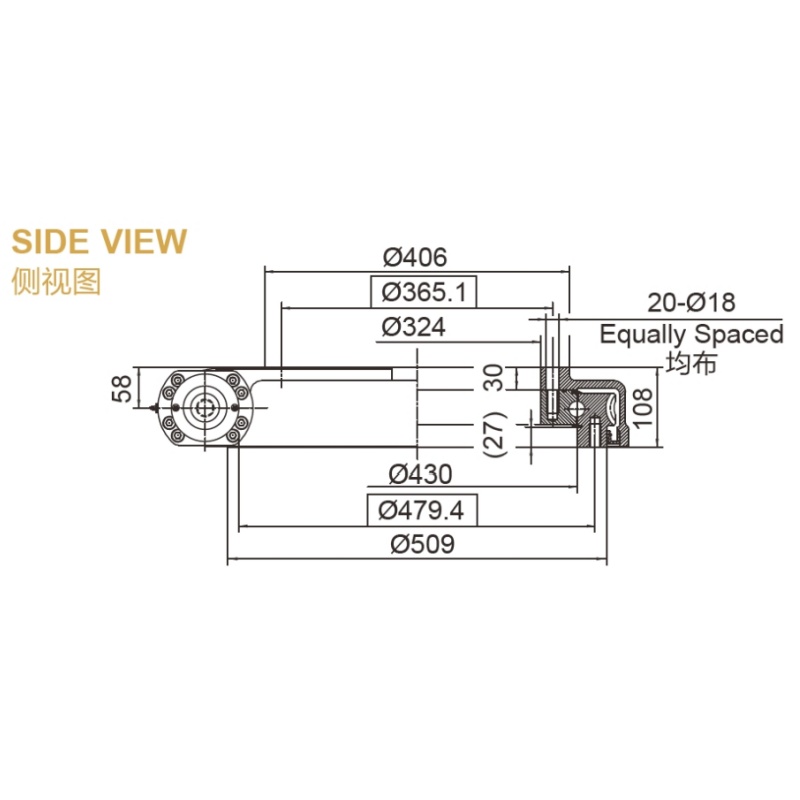

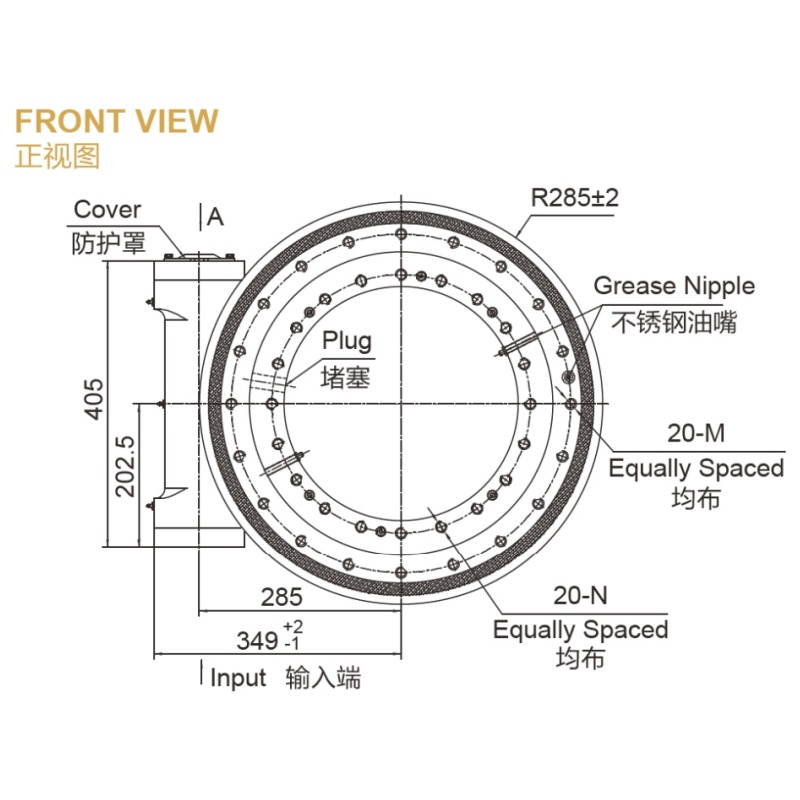

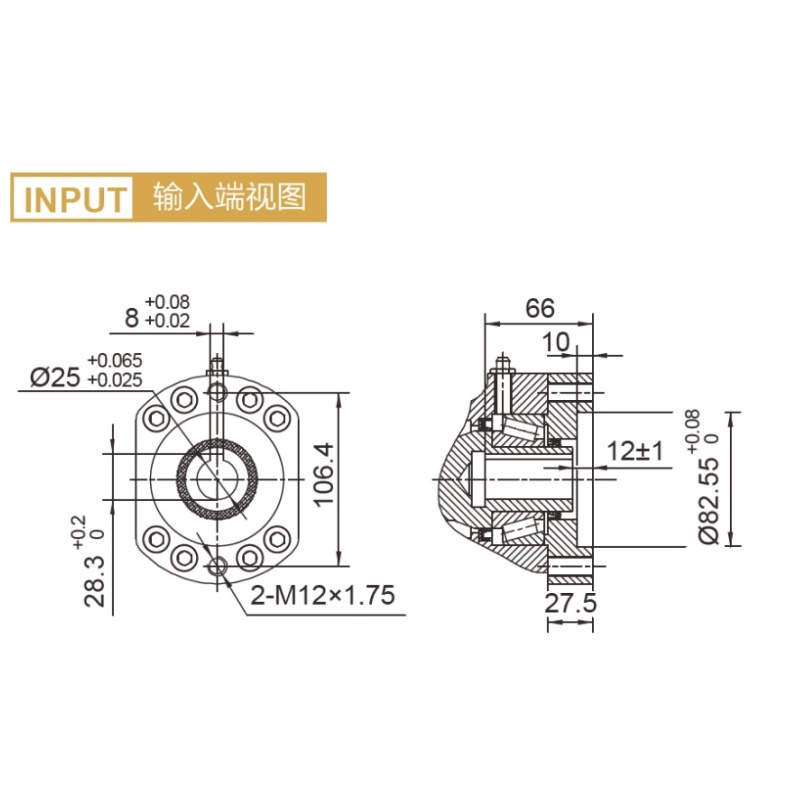

Techspecs
