Worm Gear Drive WE14

What is Worm Gear Drive WE14?

The Worm Gear Drive WE14 is a sophisticated integrated drive unit designed for various industrial applications. Comprising essential components such as a sturdy base, a precisely engineered worm shaft, and a matching worm wheel, the WE14 excels in its ability to operate within a sealed environment. This design allows it to efficiently manage axial loads, radial forces, and overturning moments while incorporating a self-locking feature that enhances safety and reliability. The drive's advanced design makes it an excellent choice for environments where safety standards are particularly stringent.

The unique configuration of the WE14 utilizes ZA or ZK tooth profiles, which provide tighter meshing between the worm and worm wheel. This design optimizes output torque and overall operational efficiency, making the WE14 a robust solution for low-speed, high-torque applications.

Features of Worm Gear Drive WE14

The Worm Gear Drive WE14 is packed with features that make it a standout choice for industrial applications:

1. High Output Torque: With an impressive output torque of 10.8 kN·m, the WE14 can handle substantial loads, making it suitable for heavy-duty applications.

2. Robust Tilting Moment Torque: The tilting moment torque of 71.2 kN·m ensures that the drive can maintain stability even under significant loads, preventing potential failures during operation.

3. Excellent Self-Locking Capability: The built-in self-locking mechanism is crucial for maintaining safety. It ensures that the drive components do not reverse or move unintentionally when not powered, thus providing added security in critical applications.

4. Dust and Water Resistance: The WE14 features an IP65 protection rating, making it highly resistant to dust and water ingress. This feature allows the drive to function effectively in outdoor or harsh environmental conditions.

5. Versatile Drive Options: The WE14 can be paired with hydraulic motors or electric motors, giving users the flexibility to choose the most suitable power source for their specific applications.

6. High Precision: The drive offers a tracking precision of ≤0.1°, which is essential for applications requiring precise movements and control.

7. Gear Ratio: The gear ratio of 86:1 allows for significant speed reduction while increasing torque, making it ideal for applications where high torque is required at low speeds.

Applications of Worm Gear Drive WE14

The Worm Gear Drive WE14 finds widespread application across various industries due to its superior performance and reliability. Key applications include:

• Aerial Work Platforms: The WE14 is commonly used in boom lift systems, providing the necessary rotation and lifting capabilities for safe access to elevated work areas.

• Mining Equipment: The robust nature of the WE14 makes it ideal for lifting heavy drilling rigs and equipment in mining operations, where safety and efficiency are paramount.

• Industrial Tipping Mechanisms: The drive is utilized in equipment that requires controlled tipping and rotation, such as hoppers and containers, enhancing operational efficiency.

• Construction Machinery: In construction applications, the WE14 facilitates reliable and safe rotation, contributing to improved productivity on job sites.

• Robotics and Automation: The WE14 is increasingly being integrated into automated systems, where its precision control enhances the functionality of robotic applications.

Price of Worm Gear Drive WE14

The price of the Worm Gear Drive WE14 varies based on several factors, including specifications, customization options, and production scale. For accurate pricing details tailored to your specific needs, it is recommended to contact our sales team. LYRADRIVE is committed to offering competitive pricing while maintaining the highest quality standards in our products.

LYRADRIVE: A Professional Manufacturer of Worm Gear Drive WE14

LYRADRIVE is a leading manufacturer specializing in the Worm Gear Drive WE14. Our dedication to quality is reflected in our meticulous manufacturing processes, where we utilize advanced engineering techniques and high-quality materials. Our experienced team collaborates closely with clients to understand their unique requirements and provide tailored solutions that enhance operational performance.

Through continuous investment in research and development, LYRADRIVE remains at the forefront of innovation, ensuring that our Worm Gear Drive WE14 meets the evolving demands of the industry.

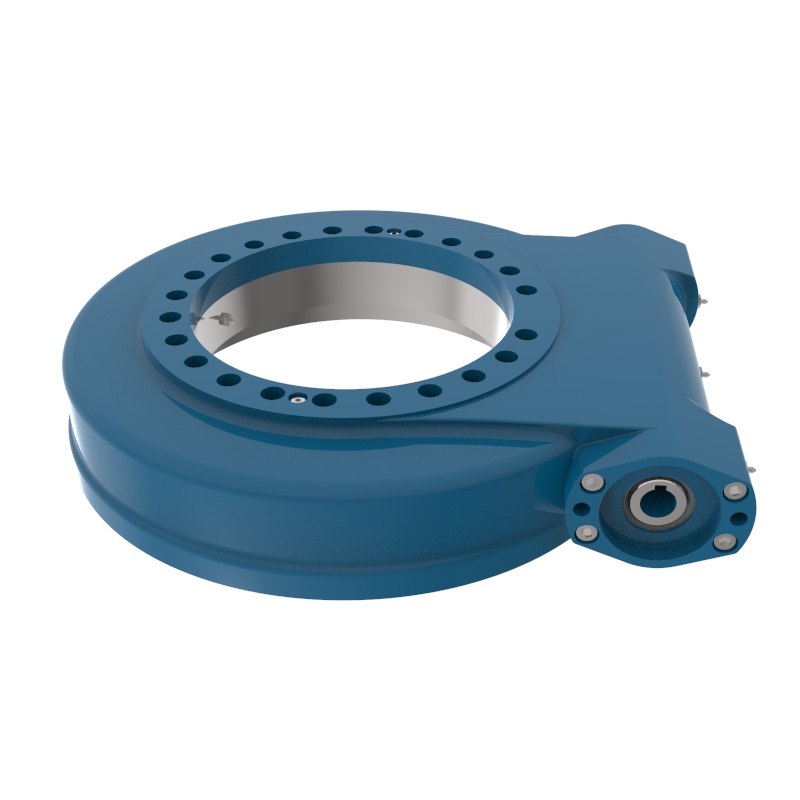

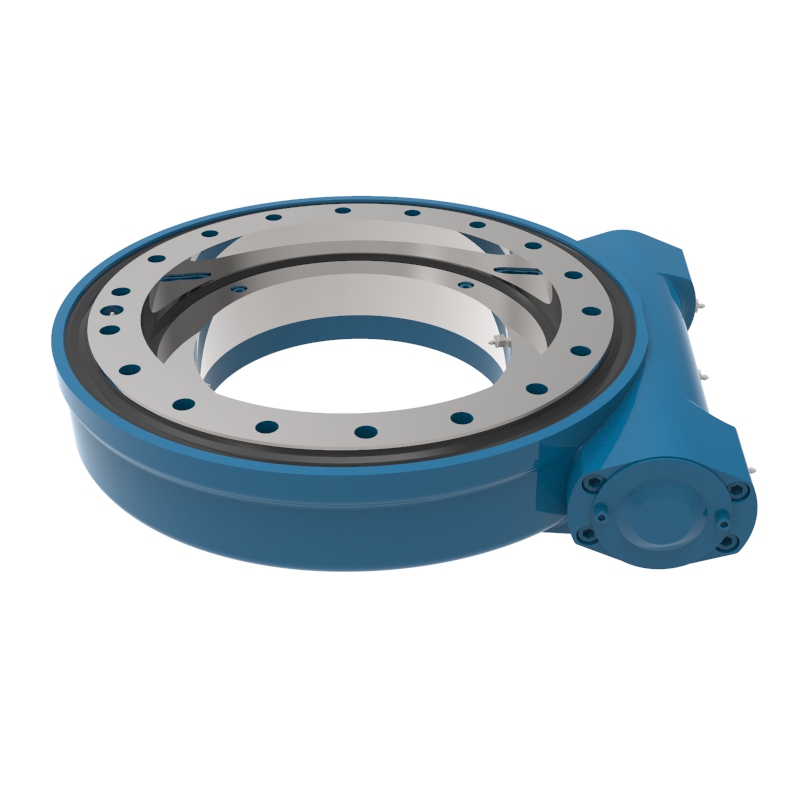

Comparison of WEA14 and WEB14

The WEA14 and WEB14 series rotary drives are advanced iterations of the WE series, designed to address the challenges of harsh operating conditions. The primary distinction between the two lies in their sealing mechanisms. The WEA14 features a single-skeleton oil seal, while the WEB14 is equipped with a double-skeleton oil seal. This enhancement in sealing technology provides the WEB14 with superior protection against dust and moisture ingress, making it ideal for use in particularly challenging environments such as those filled with dust and mud.

Both series offer excellent performance; however, the choice between the WEA14 and WEB14 depends on the specific operational environment and requirements. For applications exposed to extreme conditions, the WEB14 is the preferred option due to its enhanced sealing capabilities, while the WEA14 remains a solid choice for less demanding applications, ensuring reliability and efficiency in operation.

In conclusion, the Worm Gear Drive WE14 stands out as a high-performance solution for various industrial applications, combining safety, efficiency, and versatility. Its robust design and extensive features make it suitable for a wide range of sectors, ensuring that it meets the high operational standards required in modern industrial environments.

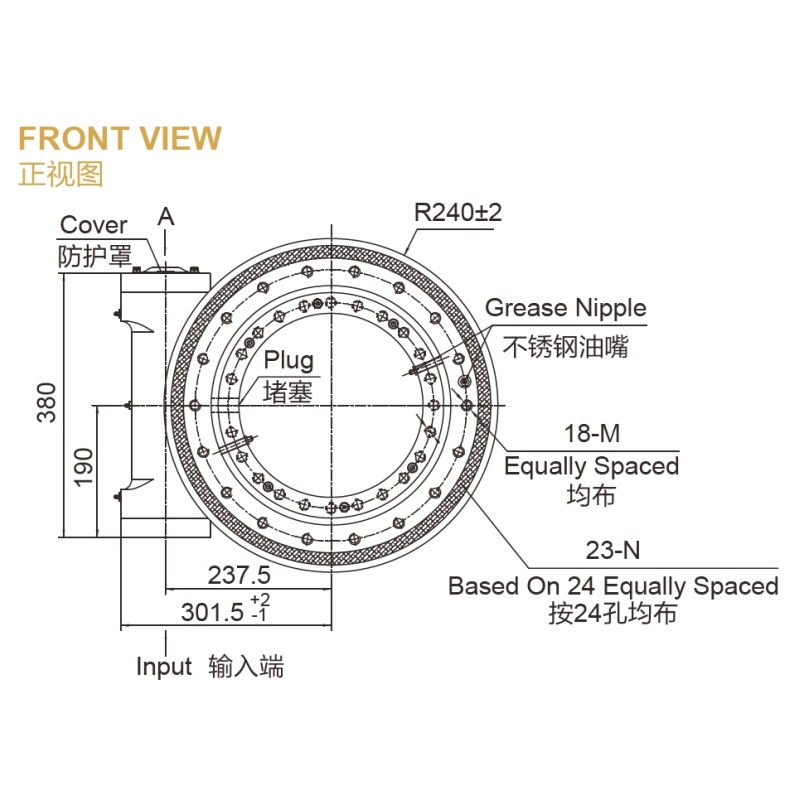

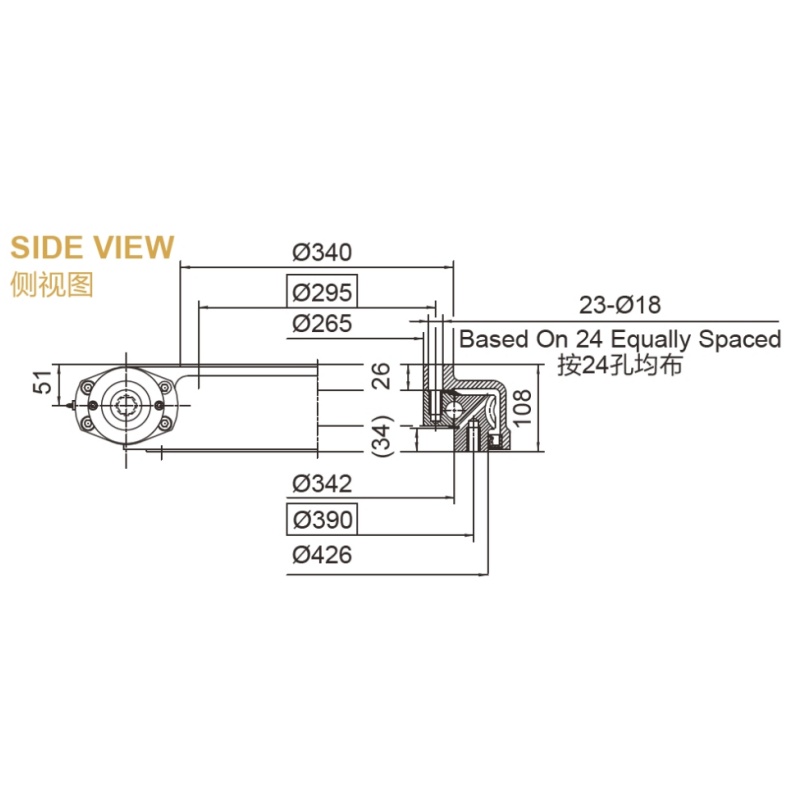

Techspecs
