Medium Duty Gear Slewing Drive SP-M 0841

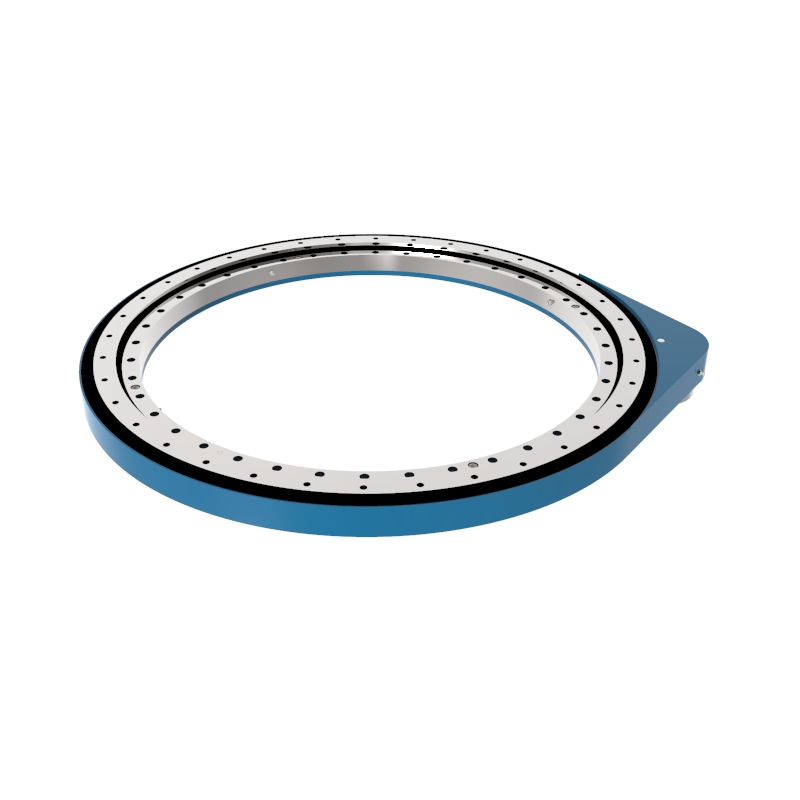

SP-M 0841 gear slewing drive is an efficient medium-sized gear reduction transmission device, which is widely used in industrial machinery automation slewing, especially in occasions requiring high precision and high speed. The product consists of two or more spur gears or helical gears with different numbers of teeth. These gears are precisely machined and assembled, and can be effectively positioned through the base to ensure product stability. While achieving efficient deceleration function, it simplifies the mechanical structure and reduces the difficulty of installation.
Module: 6 mm
Teeth number of wheel: 156 (Symbol: Z2)
Teeth number of pinion: 15 (Symbol: Z1)
Gear ratio: 10.4 (Symbol: i)
Max torque: 19100 Newton-meters (Symbol: Md max)
Description
The core component of SP-M 0841 gear slewing drive is the slewing bearing. Its design fully considers the requirements of speed and load to ensure the stable operation of the equipment under special working conditions. It is widely used in mechanical or platform slewing and swinging, and can replace the application of traditional turntable bearings. Compared with turntable bearings, SP series slewing drives solidify the problem of tooth side clearance between pinion and turntable bearing; it uses a fully sealed design to seal the rotating parts in the cavity, and the protection level can reach IP65. The entire product is more integrated and unitized, which extends the maintenance cycle and reduces maintenance costs.
The SP-M 0841 slewing drive has a load speed of up to 20 rpm, meeting the high speed requirements of most industrial applications. Its power source is flexible and diverse, and hydraulic motors or electric motors can be selected according to different application environments. This flexibility makes the SP series highly competitive in the market and widely used in various industrial fields such as construction machinery, automation equipment, and heavy-duty transportation systems.
This product is interchangeable with the IMO model SP-M 0841 product
Item | |||
SP-M 0841 | Sign | Unit | Value |
Module | M | mm | 6 |
Teeth number of wheel | Z2 | － | 156 |
Teeth number of pinion | Z1 | － | 15 |
Gear ratio | i | － | 10.4 |
Max torque | Md max | N.m | 19100 |
Nom torque | Md nom | N.m | 14850 |
Max holding torque | Mh | N.m | 19100 |
Radial static load | Co rad | KN | 503 |
Axial static load | Co ax | KN | 1195 |
Radial dynamic load | Crad | KN | 198 |
Axial dynamic load | Cax | KN | 215 |
Weight | W | Kg | 149 |
