SP-M Slew Drive

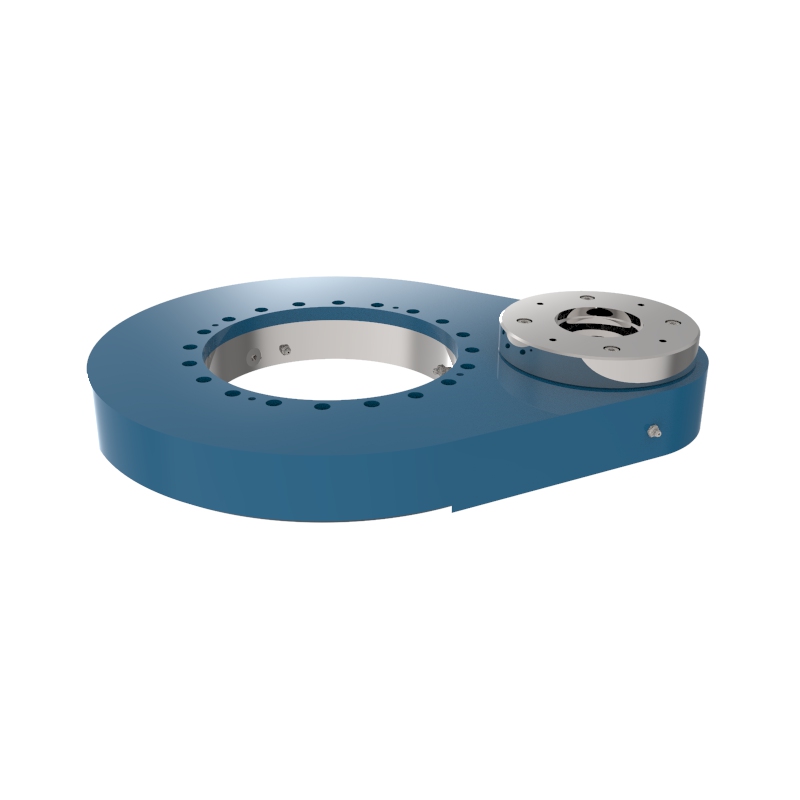

Medium Duty Gear Slewing Drive SP-M 0311
SP-M 0311 gear slewing drive is a highly efficient gear reduction transmission device, which is widely used in the automatic slewing of industrial machinery, especially in the occasions that require high precision and high speed. The product consists of two or more spur gears or helical gears with different numbers of teeth. These gears are precisely processed and assembled, and can be effectively positioned through the base to ensure product stability. While realizing efficient deceleration function, it simplifies the mechanical structure and reduces the difficulty of installation.
Module: 6 mm
Teeth number of wheel: 69 (Symbol: Z2)
Teeth number of pinion: 15 (Symbol: Z1)
Gear ratio: 4.6 (Symbol: i)
Max torque: 8200 Newton-meters (Symbol: Md max)
Description
The core component of SP-M 0311 gear slewing drive is the slewing bearing. Its design fully considers the requirements of speed and load to ensure the stable operation of the equipment under special working conditions. It is widely used in the slewing and swinging of machinery or platforms, and can replace the application of traditional turntable bearings. Compared with turntable bearings, SP series slewing drives solidify the problem of tooth side clearance between pinion and turntable bearing; it uses a fully sealed design to seal the rotating parts in the cavity, and the protection level can reach IP65. The whole product is more integrated and unitized, which prolongs the maintenance cycle and reduces the maintenance cost.
The SP-M 0311 slewing drive has a load speed of up to 40 rpm, meeting the high speed requirements of most industrial applications. Its power source is flexible and diverse, and hydraulic motors or electric motors can be selected according to different application environments. This flexibility makes the SP series highly competitive in the market and widely used in various industrial fields such as construction machinery, automation equipment, and heavy-duty transportation systems.
This product is interchangeable with the IMO model SP-M 0311 product
Item | |||
SP-M 0311 | Sign | Unit | Value |
Module | M | mm | 6 |
Teeth number of wheel | Z2 | － | 69 |
Teeth number of pinion | Z1 | － | 15 |
Gear ratio | i | － | 4.6 |
Max torque | Md max | N.m | 8200 |
Nom torque | Md nom | N.m | 6150 |
Max holding torque | Mh | N.m | 8200 |
Radial static load | Co rad | KN | 190 |
Axial static load | Co ax | KN | 430 |
Radial dynamic load | Crad | KN | 135 |
Axial dynamic load | Cax | KN | 145 |
Weight | W | Kg | 75 |
