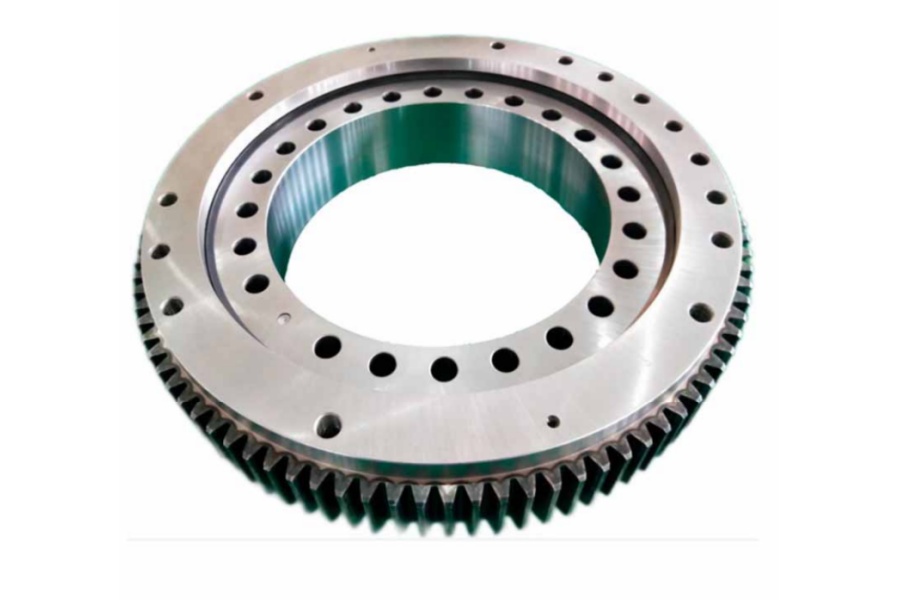

Slewing Bearing is a large-scale rotational rolling-element bearing that is fundamental to modern industrial machinery, uniquely engineered to support exceptionally heavy combined loads—axial, radial, and moment loads—while facilitating smooth and controlled 360-degree rotation between two structures. Unlike conventional bearings that are merely components within a system, slewing rings are integral structural elements that form a direct and critical connection between a machine's upper superstructure, such as a crane boom or excavator house, and its lower chassis or base. Their construction is characterized by a robust, compact design featuring two solid rings with precision-machined raceways that accommodate rolling elements, which can be balls or rollers, typically spaced and guided by separators or cages to ensure even load distribution and prevent friction. A quintessential feature of many slewing bearings is the inclusion of an integrated gear, meticulously machined onto either the inner or outer ring, which meshes with a pinion to create a highly efficient and compact drive system for powered rotational movement. Furthermore, advanced sealing systems are paramount, acting as a primary defense mechanism to protect the internal rolling contact surfaces and gear teeth from invasive contaminants like dirt, abrasive dust, and moisture, thereby ensuring long-term reliability and consistent performance. This unparalleled versatility in managing complex load scenarios within a single, self-contained unit makes them indispensable components across a vast spectrum of industries, from heavy construction and renewable energy to advanced medical imaging and defense systems.

What Material Is Used for Slewing Bearing Seals

The sealing system on a slewing bearing is not a minor component but a critical line of defense that directly determines the bearing's service life and reliability by protecting its internal workings from contamination and retaining essential lubrication. The choice of seal material is a precise engineering decision, primarily based on the operating temperature, environmental exposure, and specific performance requirements of the application. The vast majority of these seals are moulded from various elastomeric compounds, with Nitrile Rubber (NBR) serving as the industry-standard workhorse due to its excellent balance of properties and cost-effectiveness.

Nitrile Rubber seals are the most common and versatile solution for slewing bearings used in general industrial and mobile equipment applications. Formed from a copolymer of acrylonitrile and butadiene, NBR possesses exceptional resistance to petroleum-based oils, greases, and fuels, making it perfectly suited to the lubricated environment inside a bearing. It also offers good abrasion resistance, high tensile strength, and a reliable operating temperature range typically from -50°C to +100°C (-58°F to +212°F). This range comfortably covers the majority of operating conditions encountered in construction, material handling, and standard machinery, providing a durable and cost-effective sealing solution that effectively keeps out dirt, dust, and moisture while retaining lubricant.

For applications involving sustained high temperatures or exposure to aggressive chemicals, Fluoroelastomer (FKM), commonly known by the Viton® tradename, is the superior choice. Fluorocarbon rubber seals are renowned for their exceptional resistance to high heat, oxidation, and a wide range of chemicals including oils, fuels, aromatics, and many organic solvents. They can operate continuously at temperatures up to 200°C (392°F) and intermittently even higher, making them indispensable for slewing bearings located near heat sources, such as in metal processing equipment, heavy-duty industrial ovens, or in the engine bays of large vehicles. Their superior aging characteristics also ensure longer service life in demanding environments where standard nitrile rubber would rapidly degrade, harden, and fail.

In contrast, applications that operate in extreme cold environments necessitate the use of Silicone Rubber (VMQ) seals. Silicone elastomers maintain remarkable flexibility and elasticity at very low temperatures, functioning effectively down to -60°C (-76°F) and with special formulations even lower. This prevents the seal from becoming brittle and cracking in frigid conditions, which is critical for equipment used in Arctic climates, cold storage facilities, or outdoor winter applications. While silicone offers excellent thermal stability and is resistant to ozone and weathering, it generally has lower abrasion and tear strength compared to Nitrile or FKM and is less resistant to petroleum-based oils, making it a specialist material chosen specifically for its low-temperature performance rather than as a general-purpose seal.

The selection process is therefore a critical compromise between physical properties, chemical resistance, temperature tolerance, and cost. A manufacturer must carefully evaluate the specific working condition—whether it involves constant immersion in seawater, exposure to UV radiation, or contact with specific chemicals—to specify the optimal seal material that will ensure the integrity of the bearing's internal environment throughout its designed lifespan, preventing the premature failure that inevitably follows seal compromise.

Characteristics of Slewing Bearing

Slewing bearings are defined by a unique set of engineering characteristics that fundamentally differentiate them from standard bearings and qualify them for their role as both a rotational component and a structural element. Their most critical characteristic is their unparalleled capacity to handle complex combined loads. A single, compact slewing bearing is specifically designed to simultaneously support massive axial forces (parallel to the axis of rotation), radial forces (perpendicular to the axis), and tilting moment loads (which create a overturning force), a capability that would otherwise require a complex and space-consuming system of multiple conventional bearings. This multifunctional load-handling ability is the cornerstone of their design, simplifying machine architecture, reducing the number of parts, and enhancing overall structural integrity and stiffness.

Another defining feature is their integrated and customizable design philosophy. Beyond merely providing raceways for rolling elements, slewing bearings are engineered as complete system solutions. The most common integration is a precision-machined gear, either on the inner or outer ring, which transforms the bearing into a compact and highly efficient rotational drive mechanism. They also feature mounting holes drilled and tapped directly into the rings, facilitating direct bolting to adjacent structures and eliminating the need for additional, costly housings. Advanced sealing systems are integral, typically consisting of multi-lip elastomeric seals or labyrinth paths to provide maximum protection for the internal components against harsh environmental contaminants like dirt, mud, and water. Furthermore, they are pre-fitted with lubrication fittings (grease nipples) and often internal channels to ensure the rolling elements and gear teeth are consistently and adequately lubricated throughout their long service life.

Durability and longevity are engineered into their core from the material level upwards. Manufactured from high-quality, high-carbon chromium steel (e.g., 42CrMo4, 50Mn) and subjected to rigorous heat treatment processes like induction or flame hardening, the raceways and gear teeth achieve a extremely hard, wear-resistant surface while retaining a tough, shock-absorbing core. This ensures exceptional resistance to fatigue, pitting, and brinelling, even under heavy, cyclical, and shock loading conditions. Furthermore, their design allows for immense versatility in size and customization. Slewing bearings are produced in a vast range of diameters, from a few hundred millimeters to over ten meters, and can be customized with specific seal types, gear geometries, hardening patterns, and hole configurations to meet the exact requirements of virtually any application, making them a highly adaptable and critical engineering solution.

Applications of Slewing Bearing

The application of slewing bearings is virtually ubiquitous in any heavy-duty machinery that requires robust, controlled rotation under significant load. They are the fundamental enablers of movement in heavy industries, forming the rotational heart of countless machines. In the construction, mining, and agricultural sectors, they are the core component that allows an excavator's upper house to rotate 360 degrees, enables the boom of a mobile crane to lift and slew, and forms the base for crawler cranes. They are also essential in tunnel boring machines, concrete pump trucks, and heavy-duty tractors.

The renewable energy sector is a major and rapidly growing application field. Slewing bearings are absolutely critical in the yaw systems of wind turbines, responsible for accurately positioning the massive nacelle to face the wind, and in the pitch systems, adjusting the angle of the blades for optimal power generation and storm protection. In solar power generation, they are the key component in solar tracking systems, allowing vast arrays of photovoltaic panels to precisely follow the sun's path across the sky, significantly increasing energy yield.

In industrial material handling, they are essential for port efficiency and automation, operating in the massive stacking and reclaiming machines at shipping terminals and in the deck cranes that load and unload container ships. They are found in rotary conveyors, the turntables of forklifts, and automated warehousing systems. The defense and aerospace sectors utilize high-precision, ultra-reliable slewing rings in radar and surveillance antennae for accurate positioning and tracking, in tank turrets for weapon aiming and stability, and in missile launch system platforms.

The medical industry relies on specially designed, high-precision, and often cleanroom-compatible slewing bearings for advanced diagnostic equipment such as CT scanners and MRI machines, where they enable the smooth, quiet, and precise rotation of heavy imaging gantries around the patient. Finally, they are found in a multitude of other industrial machines, including robotic welders and assemblers, indexing tables on CNC machining centers, packaging equipment, and even in large-scale industrial rotators and positioners. This immense diversity underscores their role as a critical, unsung hero in global industry and technology.

Factors Influencing the Price of Slewing Bearing

The price of a slewing bearing is not a simple figure but is determined by a complex interplay of technical specifications, material choices, manufacturing processes, and commercial factors. Understanding these variables is crucial for making informed procurement decisions and evaluating the true value of a component. The single largest cost driver is often the raw material. The type, grade, and quantity of steel required have a direct and significant impact on the final price. Standard carbon chromium steel (e.g., 42CrMo4) is common, but applications requiring enhanced corrosion resistance, such as in marine environments, necessitate the use of stainless steel (e.g., SS304, SS440C), which will see a substantial price increase due to the more expensive base material and its more difficult machining and heat treatment properties. The physical dimensions—primarily the diameter, but also the width and cross-sectional height—directly scale the material cost and weight.

The complexity of the manufacturing process and the level of customization are another major determinant of cost. A standard, off-the-shelf bearing will be far less expensive than a fully customized one. Customizations such as integrated gearing (including the gear type, module, precision grade, and its location), special sealing arrangements (multiple layers, specific elastomer compounds for extreme temperatures), unique mounting hole patterns, and special surface coatings (e.g., zinc plating, black oxide) all add significant steps, specialized tooling, and time to the production process, increasing the manufacturing overhead.

The required precision tolerance grade and performance specifications dramatically influence the price. A bearing manufactured to standard industrial tolerances for a digger arm is cost-effective. However, one produced to ultra-precise, micron-level tolerances for a medical CT scanner or a military radar, requiring 100% non-destructive testing (NDT) like magnetic particle or ultrasonic inspection, full material traceability with 3.1 mill certificates, and extended fatigue life testing, will command a premium price due to the extensive additional labor, slower production pace, and advanced quality assurance protocols involved.

The quantity ordered is a fundamental economic factor governed by economies of scale. Large volume production runs allow the manufacturer to amortize fixed costs (like custom tooling setup, CNC programming, and first-article inspection) over many units, drastically reducing the price per bearing. A one-off prototype or a small batch order will have a significantly higher unit cost to cover these fixed expenses. Finally, external supply chain factors like global fluctuations in steel prices, international logistics and shipping costs, and import/export tariffs and duties can also cause fluctuations in the final price offered to the customer, making the total landed cost a key consideration.

Supplier of Slewing Bearing

For engineers and procurement specialists seeking a reliable source for high-performance slewing bearings, LYRADRIVE stands as a manufacturer with deep expertise in the engineering and production of these critical components. The company's technical proficiency extends to critical details such as seal material selection, ensuring that each bearing is equipped with the most appropriate sealing solution—be it standard Nitrile, high-temperature Fluoroelastomer, or low-temperature Silicone—to match the specific environmental challenges of the application. This focus on precision engineering and tailored specifications is supported by a rigorous quality management system that governs every stage of production, from material selection to final assembly and testing. By offering this combination of advanced manufacturing capabilities, engineering-led problem-solving, and a commitment to delivering durable and reliable products, LYRADRIVE has established itself as a trusted partner for a global clientele across diverse industries such as construction, renewable energy, material handling, and specialized machinery.
