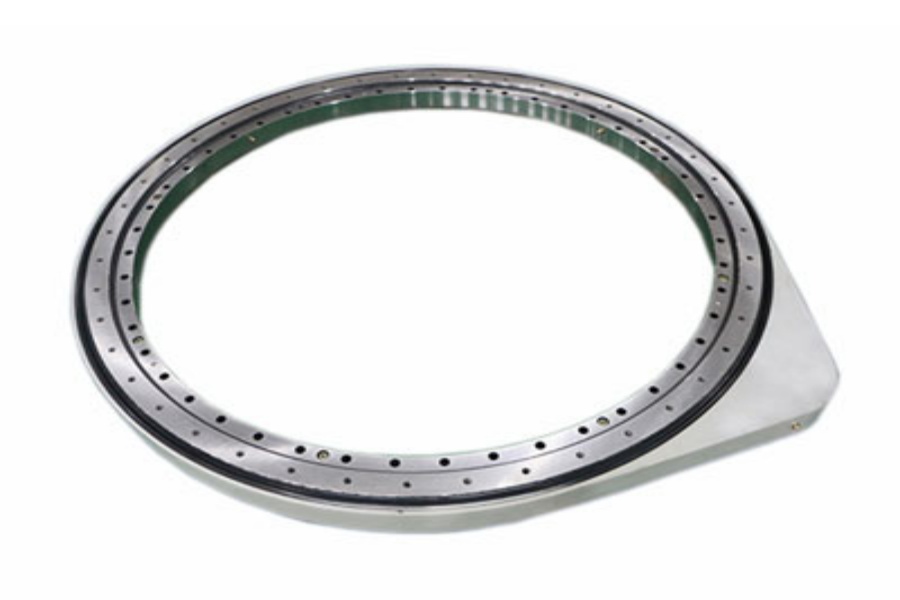

What is an SP-M Slew Drive?
An SP-M Slew Drive is a high-performance rotational mechanism designed to deliver precise and durable motion control in demanding industrial environments, combining a robust slewing ring bearing with an advanced gear system—typically utilizing spur or planetary gears. The "SP-M" designation often signifies a specialized series optimized for modularity, high torque density, and adaptability to extreme operational conditions, distinguishing it from standard slew drives. These drives excel in applications requiring smooth 360-degree rotation under significant axial, radial, and moment loads, such as heavy construction machinery, wind turbine pitch systems, or automated manufacturing lines. SP-M models frequently incorporate features like split housings for easy maintenance, corrosion-resistant coatings, or integrated sensor ports for real-time performance monitoring, making them a versatile solution for industries prioritizing reliability and scalability.
Types of SP-M Slew Drives
SP-M Slew Drives are categorized based on their gear systems, structural configurations, and application-specific enhancements. The spur gear SP-M Slew Drive employs straight-cut gears for straightforward power transmission and cost efficiency, ideal for agricultural equipment or light industrial machinery where simplicity and reliability are paramount. Planetary gear SP-M Slew Drives utilize a compact planetary gearbox to achieve high torque output and precision, commonly used in robotics or medical imaging systems requiring rapid, repeatable adjustments. Hollow shaft SP-M Slew Drives feature a central bore for integrated cable or hydraulic line routing, essential in automated guided vehicles (AGVs) or solar trackers where clutter-free design enhances operational efficiency. For harsh environments, sealed SP-M Slew Drives with IP68 ratings and marine-grade coatings are engineered to resist saltwater corrosion, dust ingress, or chemical exposure, often deployed in offshore oil rigs or mining equipment. Customizable SP-M Slew Drives offer tailored solutions, such as hybrid gear systems combining spur and planetary gears for niche applications like drone propulsion systems or compact construction cranes.
Key Features of SP-M Slew Drives
SP-M Slew Drives are distinguished by their rugged engineering and adaptability. Precision-forged gears ensure minimal backlash (often under 4 arc-minutes), critical for applications like radar alignment or CNC machinery where micron-level accuracy is non-negotiable. The use of high-strength materials—such as case-hardened steel gears and polymer-composite seals—enhances durability and extends service life, even under continuous heavy loads or temperature extremes ranging from -30°C to 120°C. Modular design allows for rapid component replacement, drastically reducing downtime during repairs, while integrated sensor compatibility enables real-time monitoring of parameters like vibration, temperature, and torque, supporting predictive maintenance strategies. Additionally, adaptive lubrication systems optimize grease distribution based on operational speed and load, preventing overheating and ensuring consistent performance across diverse conditions.
Applications of SP-M Slew Drives
SP-M Slew Drives are indispensable in industries requiring robust rotational control under challenging conditions. In renewable energy, they adjust wind turbine blades to optimize wind capture or reposition solar panels for maximum sunlight exposure. Construction and mining rely on these drives for excavator platforms and drilling rigs, where their ability to manage combined axial, radial, and moment loads ensures operational stability. Aerospace and defense applications include missile launch systems and reconnaissance drone gimbals, leveraging their precision and shock resistance. Marine technology employs waterproof SP-M Drives in shipboard cranes and underwater robotics, while industrial automation integrates them into robotic welding arms and high-speed conveyor systems for seamless, repeatable motion. Even agricultural machinery, such as automated irrigation systems, benefits from their corrosion-resistant design in humid or chemically active environments.
Price Range
The cost of an SP-M Slew Drive varies significantly depending on size, complexity, and customization. Entry-level models for light-duty applications, such as small agricultural equipment or DIY automation projects, start around 3,000–8,000. Mid-range units designed for industrial robotics or medium-duty solar trackers typically range from 12,000–35,000, influenced by torque requirements (e.g., 15,000–60,000 Nm) and material upgrades like stainless steel or specialized anti-corrosion coatings. High-end custom drives for aerospace, marine, or extreme environments can exceed $50,000, particularly when incorporating features like titanium alloy components, explosion-proof housings, or embedded IoT sensors for real-time diagnostics. Bulk purchasing agreements or long-term supplier partnerships may reduce per-unit costs by 10–20%, while expedited production or rare material sourcing (e.g., ceramic hybrid bearings) can increase prices by 25–50%.
Lifespan of SP-M Slew Drives
The operational lifespan of an SP-M Slew Drive depends on usage intensity, maintenance rigor, and environmental exposure. In moderate applications like solar farms or periodic industrial use, these drives can operate efficiently for 10–18 years with regular lubrication, alignment checks, and seal inspections. Heavy-duty use in 24/7 mining operations or offshore wind turbines typically results in a lifespan of 7–12 years, assuming biannual maintenance and timely replacement of worn gears or bearings. Harsh environments—such as coastal regions with salt spray or industrial settings with abrasive particulates—may shorten longevity to 6–10 years, even with advanced protective coatings. Key longevity factors include adhering to load limits (operating below 85% of maximum capacity), using manufacturer-specified lubricants, and ensuring precise installation alignment to prevent uneven stress distribution.
How to Choose the Right SP-M Slew Drive
Selecting the optimal SP-M Slew Drive requires a comprehensive evaluation of technical and operational requirements. Begin by calculating load demands—determine axial, radial, and moment loads using engineering simulations or industry-standard formulas, then apply a safety factor of 1.5–2x for dynamic or shock-prone applications. For high-speed or precision tasks, prioritize planetary gear models with low backlash and thermal management features, while spur gear variants suit cost-sensitive, moderate-speed scenarios. Assess environmental challenges: sealed drives with IP68 ratings and corrosion-resistant materials are mandatory for marine, chemical, or desert environments, while standard models suffice for controlled indoor settings.
Consider spatial and weight constraints—compact hollow shaft designs simplify integration into tight spaces like drone mounts or medical devices, while flange-mounted units provide stability for vertical load applications. Material selection is critical: aluminum alloys reduce weight for mobile systems, while stainless steel or composite materials enhance durability in corrosive settings. Partner with suppliers demonstrating expertise in your industry (e.g., renewable energy or defense) and request documentation such as load-test certifications, ISO compliance, or case studies. Finally, evaluate total cost of ownership—lower upfront costs might lead to higher long-term expenses due to frequent maintenance, while premium models with predictive maintenance capabilities reduce operational risks and downtime.
Common Mistakes to Avoid
A critical error is overlooking alignment precision during installation—even a 0.3mm misalignment can cause uneven gear wear, leading to premature failure. Always use laser alignment tools and adhere strictly to manufacturer torque specifications for mounting bolts. Using incompatible lubricants, such as generic grease instead of high-pressure, wide-temperature-range formulations, accelerates component degradation and voids warranties. Ignoring environmental seals in dusty, humid, or chemically aggressive environments invites contamination, corrosion, and catastrophic failures.
Mismatching gear materials (e.g., pairing a hardened steel worm with a softer bronze wheel) risks galling and pitting under heavy loads, while exceeding 85% of the drive’s rated capacity drastically shortens its lifespan. Assuming all SP-M Slew Drives are interchangeable across applications is another pitfall—a drive optimized for slow, high-torque offshore cranes won’t perform efficiently in high-speed robotic assembly lines. Lastly, prioritizing initial cost over quality often backfires; budget models may lack hardened components or precision machining, resulting in frequent breakdowns and costly operational halts.
SP-M Slew Drive Supplier
LYRA Drive is a professional slewing bearings ,slew drive, slewdrives and gears manufacturer provides customizedslew bearing, drive and gears.For application-specific engineering solutions, contact LYRA to discuss technical specifications and implementation strategies.
