What is SP-l Slew Drive

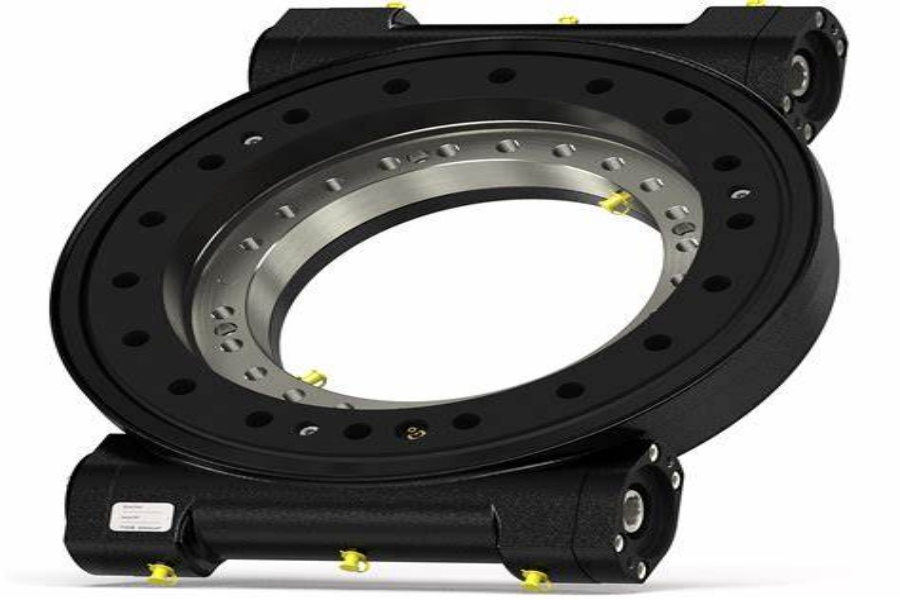

What is an SP-l Slew Drive?
An SP-l Slew Drive is a high-efficiency rotational mechanism designed to deliver precise motion control in heavy-duty industrial applications, integrating a slewing ring bearing with a specialized gear system—typically utilizing spur or planetary gears. The "SP-l" designation often indicates a series optimized for lightweight construction, enhanced torque density, or adaptability to compact spaces, distinguishing it from bulkier or more generalized slew drive models. These drives are engineered to handle axial, radial, and moment loads simultaneously while enabling smooth 360-degree rotation, making them ideal for applications like robotic arms, automated conveyor systems, or solar tracking installations where space constraints and energy efficiency are critical. SP-l models frequently incorporate advanced materials such as aluminum alloy housings or composite gears to reduce weight without sacrificing durability, alongside modular designs that simplify installation and maintenance.
Types of SP-l Slew Drives
SP-l Slew Drives are categorized based on their gear configurations, structural adaptations, and application-specific optimizations. The spur gear SP-l Slew Drive employs straight-cut gears for straightforward power transmission and cost-effective performance, commonly used in light industrial machinery or agricultural equipment where simplicity and reliability are prioritized. Planetary gear SP-l Slew Drives utilize a compact planetary gearbox to achieve high torque density and efficiency, making them suitable for high-speed automation systems or precision medical devices requiring rapid, repeatable adjustments. Hollow shaft SP-l Slew Drives feature a central bore for integrated cable or hydraulic line routing, essential in robotics or automated guided vehicles (AGVs) where streamlined internal design minimizes clutter and enhances mobility. For environments demanding corrosion resistance, sealed SP-l Slew Drives with IP67 ratings and anodized aluminum coatings are designed to withstand moisture, dust, or mild chemical exposure, often deployed in food processing machinery or outdoor solar arrays. Customizable SP-l Slew Drives offer tailored solutions, such as split housings for field repairs or hybrid gear systems combining spur and planetary gears to balance speed and torque for niche applications like drone gimbals or compact construction machinery.
Key Features of SP-l Slew Drives
SP-l Slew Drives are distinguished by their blend of lightweight design and robust performance. Precision-machined gears ensure minimal backlash (often under 5 arc-minutes), critical for applications like CNC machinery or optical alignment systems where positional accuracy directly impacts operational outcomes. The use of advanced composite materials—such as carbon fiber-reinforced gears or polymer-coated bearings—reduces weight while maintaining high load capacity, enabling use in aerospace or mobile robotics where every gram matters. Modular assembly allows for rapid component swaps, significantly cutting downtime during maintenance, while integrated thermal management systems dissipate heat efficiently during continuous operation, preventing overheating in high-speed scenarios. Additionally, adaptive sealing technology dynamically adjusts to environmental conditions, blocking contaminants without compromising rotational smoothness, even in dusty or humid settings.
Applications of SP-l Slew Drives
SP-l Slew Drives are pivotal in industries requiring compact, efficient rotational solutions. In renewable energy, they adjust solar panel angles for optimal sun exposure or position wind turbine components in confined nacelle spaces. Industrial automation relies on these drives for robotic welding arms and assembly line conveyors, where their lightweight design and high torque density enhance operational speed and energy efficiency. Aerospace and defense applications include UAV camera gimbals and satellite deployment mechanisms, leveraging their precision and resistance to vibration. Agriculture utilizes SP-l Drives in automated irrigation systems or harvesting equipment, where corrosion-resistant models endure exposure to fertilizers and moisture. Even consumer electronics manufacturing benefits from their quiet operation and compact footprint in precision assembly robots.
Price Range
The cost of an SP-l Slew Drive varies depending on size, complexity, and customization. Entry-level models for light-duty applications, such as small agricultural machinery or DIY robotics, start around 2,000–5,000. Mid-range units designed for industrial automation or solar tracking systems typically range from 8,000–20,000, influenced by torque requirements (e.g., 10,000–40,000 Nm) and material upgrades like carbon fiber or specialized seals. High-end custom drives for aerospace, medical devices, or extreme environments can exceed $30,000, particularly when incorporating features like titanium alloy components, IoT-enabled sensors, or ultra-low backlash gears. Bulk orders or long-term supplier agreements may reduce costs by 10–15%, while expedited manufacturing or rare material sourcing (e.g., ceramic bearings) can increase prices by 20–40%.
Lifespan of SP-l Slew Drives
The operational lifespan of an SP-l Slew Drive depends on usage intensity, environmental conditions, and maintenance practices. In moderate applications like solar farms or periodic industrial use, these drives can operate efficiently for 10–15 years with regular lubrication and alignment checks. Heavy-duty scenarios such as 24/7 automated production lines or agricultural machinery typically see lifespans of 6–10 years, assuming biannual inspections and timely replacement of worn seals or bearings. Harsh environments—such as coastal areas with salt spray or industrial settings with abrasive particulates—may shorten longevity to 5–8 years, even with advanced protective coatings. Key longevity factors include adhering to load limits (operating below 80% of maximum capacity), using manufacturer-recommended lubricants, and ensuring precise installation to avoid misalignment-induced wear.
How to Choose the Right SP-l Slew Drive
Selecting the optimal SP-l Slew Drive requires balancing technical specifications with real-world operational needs. Begin by assessing load requirements—calculate axial, radial, and moment loads using engineering formulas or simulation software, then apply a safety factor of 1.5–2x for dynamic or shock-prone applications. For high-speed or precision tasks, prioritize planetary gear models with low backlash and thermal management features, while spur gear variants suit cost-sensitive, moderate-speed scenarios. Evaluate environmental challenges: sealed drives with IP67+ ratings and corrosion-resistant materials are essential for outdoor, marine, or chemically active environments, whereas standard models suffice for clean, indoor settings.
Consider space and weight constraints—compact hollow shaft designs simplify integration into tight spaces like drone mounts or medical devices, while flange-mounted units provide stability for vertical load applications. Material selection is critical: aluminum alloys reduce weight for mobile systems, while stainless steel or composite materials enhance durability in corrosive settings. Partner with suppliers offering industry-specific expertise (e.g., renewable energy or robotics) and request certifications such as load-test reports or ISO compliance documentation. Finally, weigh total cost of ownership—lower upfront costs might lead to higher maintenance expenses, while premium models with modular designs or smart sensors reduce long-term operational risks.
Common Mistakes to Avoid
A frequent oversight is ignoring alignment precision during installation—even minor misalignment can cause uneven gear wear, leading to premature failure. Always use laser alignment tools and follow torque specifications for mounting hardware. Using generic lubricants instead of manufacturer-specified, high-temperature or food-grade greases accelerates component degradation and voids warranties. Overlooking environmental protections in humid, dusty, or corrosive settings invites contamination and operational failures, necessitating costly repairs.
Mismatching gear materials (e.g., pairing steel gears with aluminum housings without anti-corrosion treatments) risks galvanic corrosion, while exceeding 80% of the drive’s rated load capacity drastically shortens lifespan. Assuming all SP-l Slew Drives are interchangeable across applications is another pitfall—a drive optimized for lightweight robotics won’t withstand the torque demands of heavy construction equipment. Lastly, prioritizing initial cost over quality often backfires; budget models may lack precision machining or durable materials, resulting in frequent breakdowns and lost productivity.
SP-l Slew Drive Supplier
LYRA Drive is a professional slewing bearings ,slew drive, slewdrives and gears manufacturer provides customizedslew bearing, drive and gears.For application-specific engineering solutions, contact LYRA to discuss technical specifications and implementation strategies.
