What is an Excavator Slewing Bearing?
What is an Excavator Slewing Bearing?

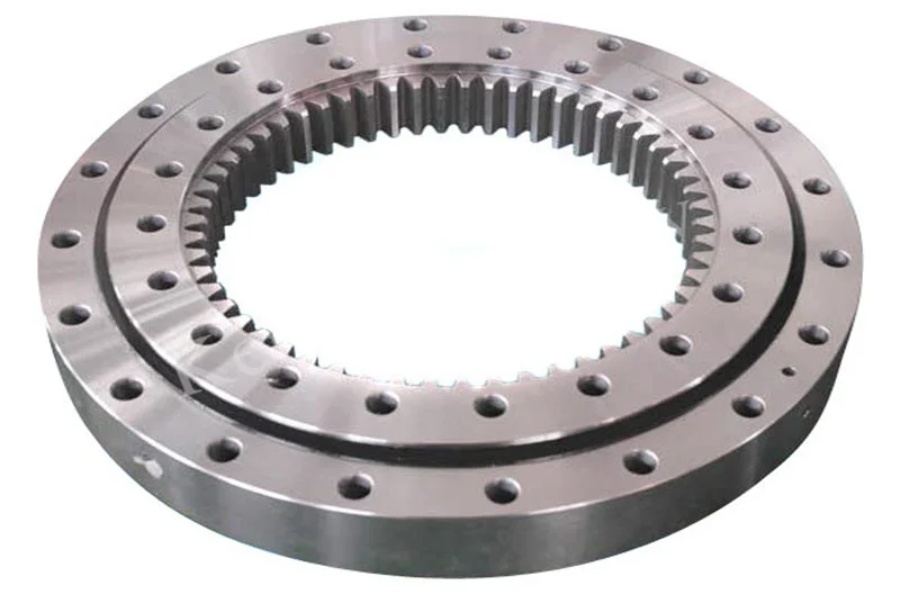

An excavator slewing bearing is the rotating joint that connects the upper structure (cab, boom, and arm) of an excavator to its undercarriage (tracks or wheels). It allows the excavator to swing 360° smoothly while digging, lifting, and dumping heavy materials. Think of it as the excavator’s “spine” – it handles massive axial, radial, and moment loads from the boom’s movements, uneven terrain, and shock forces. Without it, the excavator couldn’t rotate, making it useless for most tasks. These bearings are built to survive dirt, dust, rain, and constant vibration.
Types of Excavator Slewing Bearing
Single Row Ball Slewing Bearing:
Uses a single row of balls to handle moderate loads.
Best for: Mini excavators (1–10 tons) or light-duty digging.
Double Row Ball Slewing Bearing:
Two rows of balls for higher load capacity and stability.
Best for: Mid-sized excavators (10–40 tons).
Cross Roller Slewing Bearing:
Cylindrical rollers arranged in a 90° cross pattern for extreme loads.
Best for: Large excavators (40+ tons) and heavy mining equipment.
Gear-Integrated Types:
Inner or outer ring has gear teeth to mesh with the excavator’s swing motor.
Best for: Precise control in tight spaces (e.g., urban construction).
Sealed vs. Open:
Sealed bearings keep out dirt and water (critical for muddy job sites).
Open bearings allow custom lubrication but need frequent maintenance.
Key Features of Excavator Slewing Bearing
Brutal Load Capacity: Handles axial loads (vertical weight of the upper structure), radial loads (side forces from digging), and moment loads (tilting from off-center lifts).
Shock Resistance: Built to survive sudden impacts, like hitting rocks or dropping buckets.
Dirt-Proof Design: Multi-lip seals and grease channels block abrasive particles.
Corrosion Protection: Coatings (zinc-nickel, epoxy) or stainless steel for wet/chemical environments.
Low Maintenance: Sealed units with “lubricated-for-life” grease reduce downtime.
Precision Rotation: Smooth 360° movement even under max load – no jerking or jamming.
Applications of Excavator Slewing Bearing
Digging Trenches: Swinging soil, rocks, or debris out of the trench.
Demolition: Breaking concrete structures and rotating to dump rubble.
Material Handling: Loading trucks with gravel, sand, or construction waste.
Mining: Excavating ore or coal in open-pit mines.
Forestry: Clearing land or handling logs.
Price Range
Excavator slewing bearings range from “ouch” to “OMG” prices, depending on:
Size: Small bearings (for 5-ton excavators) start at ~
1,500.Giantbearings(100−tonexcavators)canhit50,000+.
Type: Cross roller bearings cost 30–50% more than ball bearings.
Material: Alloy steel adds 20–30% over standard carbon steel.
Customization: Gear teeth, special seals, or split designs add
2,000–10,000.
Brand: European brands (Thyssenkrupp, SKF) are pricier; Asian suppliers offer budget options.
Example: A double row ball bearing for a 30-ton excavator costs
8,000–15,000.
Lifespan of Excavator Slewing Bearing
Lifespan depends on:
Usage: Excavators in mining work 24/7 wear out bearings faster than those in occasional farm use.
Maintenance: Greasing every 500 hours vs. neglect can double or halve lifespan.
Environment: Mud, salt, or extreme heat accelerates wear.
Operator Habits: Jerky movements or overloading = bearing killer.
Typical Lifespan:
Light use (landscaping): 8–12 years.
Heavy use (construction/mining): 4–7 years.
Harsh conditions (marine dredging): 3–5 years.
How to Choose the Right Excavator Slewing Bearing
Don’t gamble – follow this guide to avoid costly mistakes:
Crunch the Load Numbers
Axial Load: Total weight of the upper structure (cab, boom, hydraulic systems).
Radial Load: Side forces from digging or swinging loads.
Moment Load: Tilting force when lifting off-center (calculate: Load Weight x Distance from Center).
Pro Tip: Multiply your max calculated load by 1.5x for safety.
Match the Bearing to Your Excavator Size
Mini Excavators (1–10 tons): Single row ball bearings (lightweight, affordable).
Mid-Sized (10–40 tons): Double row ball or cross roller bearings.
Large (40+ tons): Cross roller bearings (handles extreme forces).
Gear or No Gear?
Gear-Integrated: Necessary if your excavator uses a direct-drive swing motor.
Gearless: Cheaper if rotation is driven via external gears or chains.
Environmental Toughness
Seals: Triple-lip seals + grease purging for muddy/wet sites.
Corrosion Resistance: Stainless steel or coatings for coastal or chemical exposure.
Temperature: Standard bearings handle -30°C to +120°C. For hotter/colder, pick specialty grease.
Size & Weight Check
Measure the slewing ring’s diameter and bolt pattern to fit your excavator’s turntable.
Avoid oversized bearings – they add weight and reduce lifting capacity.
Supplier Red Flags
No load-test reports or material certifications.
Unwilling to provide references from excavator manufacturers.
Warranty shorter than 1 year.
Installation Must-Dos
Alignment: Use laser tools to ensure perfect alignment – even 1mm off causes uneven wear.
Bolt Torque: Follow the manual – over-tightening warps the raceway.
Maintenance Plan
Sealed Bearings: Re-grease every 2–3 years (check manufacturer’s advice).
Open Bearings: Grease every 300–500 operating hours.
Budget vs. Reliability
Budget Option: Only for older machines or backup excavators.
Mid-Range: Best balance for most working excavators.
Premium: Essential for new machines or critical projects.
Test Before Buying
If possible, run the bearing under simulated loads (e.g., test bench).
Check for overheating, unusual noise, or vibration.
Common Mistakes to Avoid
Ignoring Dynamic Loads: Rated static load ≠ dynamic load – sudden movements matter!
Wrong Lubricant: Using cheap grease that can’t handle high pressure or heat.
DIY Repairs: Replacing rollers without proper tools = guaranteed misalignment.
Mixing Metals: Pairing a stainless steel bearing with carbon steel bolts causes rust.
Skipping Alignment Checks: “Close enough” destroys bearings faster than you think.
