What are the Double Worm Slewing Drives?
What are the Double Worm Slewing Drives?
Double worm slewing drives, also known as dual worm slewing drives, are advanced mechanical components designed to provide precise and controlled rotational movement. These drives combine two worm gears with a single gear wheel, offering enhanced load-carrying capacity, higher torque, and improved reliability compared to single worm slewing drives. They are widely used in applications where high precision, heavy loads, and smooth operation are essential.
Advantages of Double Worm Slewing Drives
High Torque and Load Capacity:
Double worm slewing drives can handle significantly higher loads and transmit more torque compared to single worm drives. This makes them ideal for heavy-duty applications.
Improved Efficiency:
The dual worm design distributes the load more evenly, reducing wear and tear on individual components and increasing overall efficiency.
Enhanced Precision:
The use of two worms provides better control over the rotational movement, ensuring higher precision and accuracy in positioning.
Self-locking Feature:
Like single worm drives, double worm slewing drives have a self-locking feature that prevents backdriving, adding an extra layer of safety and stability.
Durability and Longevity:
The robust construction and even load distribution contribute to longer service life and reduced maintenance requirements.
Features of Double Worm Slewing Drives
High Load Capacity:
Double worm slewing drives are designed to handle substantial axial, radial, and moment loads, making them suitable for heavy-duty applications.
Precise Operation:
The dual worm design ensures high rotational accuracy, which is crucial for applications requiring precise positioning, such as satellite antenna trackers and solar panel systems.
Robust Construction:
Made from high-quality materials like alloy steels, these drives are built to withstand harsh operating conditions and heavy loads.
Low Friction:
Advanced lubrication and sealing systems minimize friction, reducing heat generation and wear, and ensuring smooth and efficient operation.
Maintenance-friendly:
These drives are designed for easy access and maintenance, allowing for regular inspections and timely replacement of worn components.
Compact Design:
Despite their high load capacity, double worm slewing drives are compact, making them suitable for space-constrained applications.
Self-aligning Capability:
The design allows for minor misalignments, reducing stress on the drive and extending its lifespan.
The Importance of Double Worm Slewing Drives
Double worm slewing drives are crucial in various industries due to their ability to handle heavy loads and provide precise rotational control. They are essential in applications where reliability and accuracy are paramount, such as in construction machinery, renewable energy systems, and aerospace equipment. Their importance lies in their ability to enhance the performance and longevity of the systems they are integrated into.
Detailed Types of Double Worm Slewing Drives
Standard Double Worm Slewing Drives:
These are the most common type, suitable for a wide range of applications. They offer a good balance of load capacity, precision, and cost-effectiveness.
Enclosed Double Worm Slewing Drives:
These drives come with a protective housing that shields the internal components from environmental contaminants, making them suitable for outdoor and harsh environments.
Hydraulic Double Worm Slewing Drives:
These drives are powered by hydraulic systems, providing high torque and precise control. They are commonly used in heavy machinery and industrial applications.
Electric Double Worm Slewing Drives:
Powered by electric motors, these drives offer precise control and are often used in applications where electrical power is readily available, such as in automated systems and robotics.
What Effect Can Double Worm Slewing Drives Achieve?
High Torque Transmission:
Double worm slewing drives can transmit high torque, enabling the movement of heavy loads with ease.
Precise Positioning:
The dual worm design ensures accurate and repeatable positioning, which is critical in applications like satellite tracking and solar panel alignment.
Smooth and Quiet Operation:
The low-friction design and even load distribution result in smooth and quiet operation, reducing noise and vibration.
Reliability and Durability:
The robust construction and even load distribution contribute to long service life and reduced maintenance requirements.
Safety:
The self-locking feature prevents backdriving, enhancing safety and stability in the system.
Application Cases of Double Worm Slewing Drives
Construction Machinery:
Used in cranes, excavators, and other heavy machinery to provide precise and controlled rotational movement.
Renewable Energy Systems:

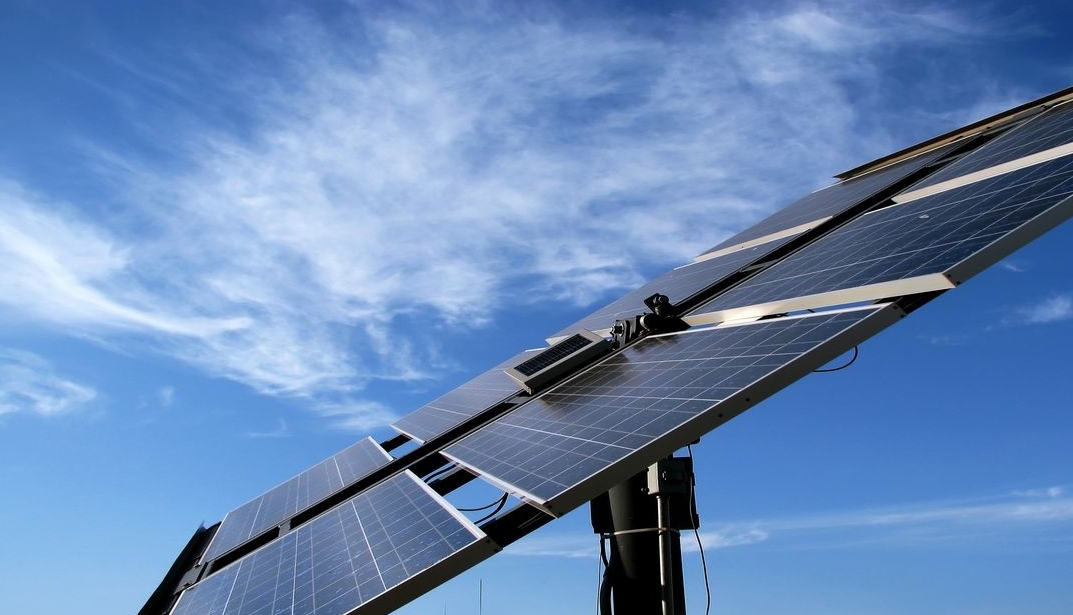

In solar panel tracking systems, double worm slewing drives ensure that the panels are accurately aligned with the sun, maximizing energy capture.
Aerospace and Defense:
Used in radar systems, satellite antennas, and other precision equipment to provide reliable and accurate rotational control.
Material Handling:
In conveyor systems and material handling equipment, these drives enable smooth and controlled movement of heavy loads.
Automated Systems:
In robotic arms and automated manufacturing systems, double worm slewing drives provide precise and reliable rotational motion.
How to Choose Double Worm Slewing Drives?
When selecting a double worm slewing drive, several factors should be considered to ensure the right fit for your application:
Load Requirements:
Determine the maximum axial, radial, and moment loads that the drive will need to handle. Choose a drive with a load capacity that exceeds these requirements.
Precision and Accuracy:
Consider the level of precision and accuracy required for your application. High-precision applications may require drives with tighter tolerances.
Operating Environment:
Assess the environmental conditions in which the drive will operate. Enclosed drives may be necessary for outdoor or dusty environments.
Speed and Torque:
Determine the required speed and torque for your application. Ensure the drive can meet these specifications.
Space Constraints:
Consider the available space for installation. Compact designs may be necessary for space-constrained applications.
Maintenance and Reliability:
Evaluate the maintenance requirements and the expected service life of the drive. Choose a drive that offers easy maintenance and a long service life.
Cost:
Consider the initial cost and the total cost of ownership, including maintenance and potential downtime. Balance the cost with the performance and reliability needed for your application.
Supplier of Double Worm Slewing Drives
Luoyang Slewing Bearing Co., Ltd. (Lyra Drive) is a professional one-stop slewing device manufacturer majored in design and development, customized production, sales and service on slewing bearings and slewing drives. Lyradrive provides high quality and customized slew bearings, slew drives and gear rings for truck crane, excavator, manlift and other applications. If you are looking for Double Worm Slewing Drives supplier or need technical support, feel free to contact Lyra Drive.
