Unlock Value & Performance: Your Ultimate Guide to Flanged Ball Slewing Bearings

Unlock Value & Performance: Your Ultimate Guide to Flanged Ball Slewing Bearings

What is a Flanged Ball Slewing Bearing?

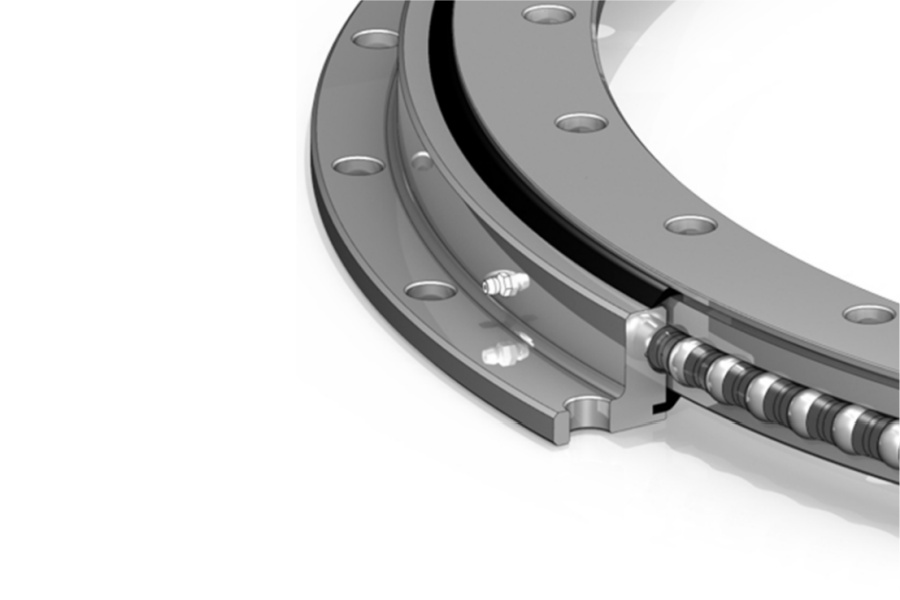

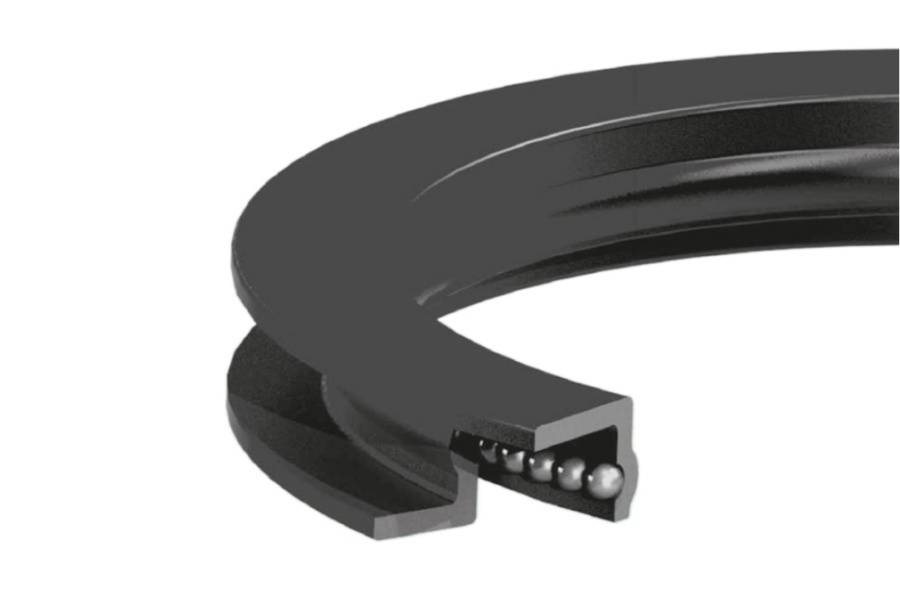

A Flanged Ball Slewing Bearing is a specialized slewing ring featuring concentric inner/outer rings with precision-ground ball bearings traversing engineered raceways. Its defining trait is the integral mounting flange – typically extending radially from the outer ring (occasionally inner ring). This innovation eliminates complex housings, enabling direct bolt-on installation that boosts rigidity while slashing assembly time. Engineered to handle combined loads in minimal space, these bearings deliver exceptional performance where traditional solutions falter.

Cost-Effective Flanged Bearing Solutions

Achieving peak ROI requires balancing performance and budget:

Reduced Assembly Costs: Integrated flanges eliminate custom mounting plates, cutting machining/installation expenses by 30-50%

Maintenance Savings: Pre-lubricated designs with triple-lip seals extend service intervals to 5+ years

Inventory Optimization: Standardized flange patterns simplify spare part management

Energy Efficiency: Ultra-low friction coefficients (<0.004) decrease drive power requirements
Pro Tip: Opt for modular designs allowing flange replacement without bearing removal, reducing lifecycle costs by 18%

Precision Flange Bearing Accuracy: Beyond Standards

Critical applications demand uncompromising precision:

ISO 492 P4/P2 Grades: Radial runout tolerance down to 0.025mm

Zero Operational Backlash: Preloaded designs maintain micron-level positioning accuracy

Thermal Stability: Carburized steel maintains dimensional integrity from -30°C to 120°C

Mounting Surface Perfection: Ground flange faces ensure <0.05mm/m flatness for vibration-free operation
Robotic welding cells and medical imaging equipment leverage this precision, achieving repeatability under 0.01°.

Corrosion-Resistant Slewing Flange Technology

Harsh environments demand specialized protection:

Material Science: 316L stainless steel / Duplex bearings withstand salt spray (2000+hrs ASTM B117)

Surface Armor: Zinc-nickel plating (25μm) or Teflon® coating resists chemical corrosion

Seal Innovation: Fluorocarbon seals with titanium reinforcement handle pH 2-12 exposure

Crevice Protection: Laser-welded flange interfaces prevent moisture ingress
Offshore cranes and food processing turntables using these solutions report 3x longer service life in corrosive settings.

Flanged Ball Slewing Bearings: Industry Revolutionizing Applications

Renewable Energy: Solar tracker pitch drives (15-25% efficiency gain) & yaw systems

Material Handling: Automated warehouse AS/RS turntables handling 8-ton loads

Robotics: Collaborative robot joints with 10,000+ hour MTBF

Medical: CT gantries achieving 0.5mm scan accuracy at 3RPM

Agriculture: Irrigation pivot drives operating in mud/sand/dust extremes

Transport: Container handling rotators withstanding 50G shock loads

Engineered Advantages: Why Industry Leaders Choose Them

Space-Saving Design: 40% lower profile than comparable slewing rings

Moment Load Mastery: Single-row balls handle 2.5x their weight in overturning forces

Mounting Versatility: Outer/inner flange options for flexible integration

Speed Capability: Grease-purged designs operate smoothly at 20 RPM continuous

Customization Ready: Bolt patterns, seals, coatings adapted in 72-hour prototyping

Price Drivers: Smart Investment Factors

Material Composition: Marine-grade 316SS costs 2.8x carbon steel

Precision Class: P2-grade machining adds 35-60% vs standard

Flange Complexity: Multi-tiered flanges increase cost by 25%/tier

Protection Level: Corrosion packages add 15-40% but boost longevity 3x

Certification: DNV-GL/CE certification premiums (12-18%)

Order Volume: 500+ unit orders trigger 22-30% economies of scale

Geopolitical Factors: Tariffs can swing prices ±18% quarterly

Supplier of Flanged Ball Slewing Bearing

LYRADRIVE, as a leading manufacturer of slewing rings, slew drives, and gears, focuses on providing customized solutions for customers. Whether you need standard Flanged Ball Bearings, special specifications for robotic turntables or solar trackers, or complex non-standard designs, LYRADRIVE can leverage deep engineering expertise and a comprehensive production system to provide full-service support from technical consultation and design assistance to manufacturing.
