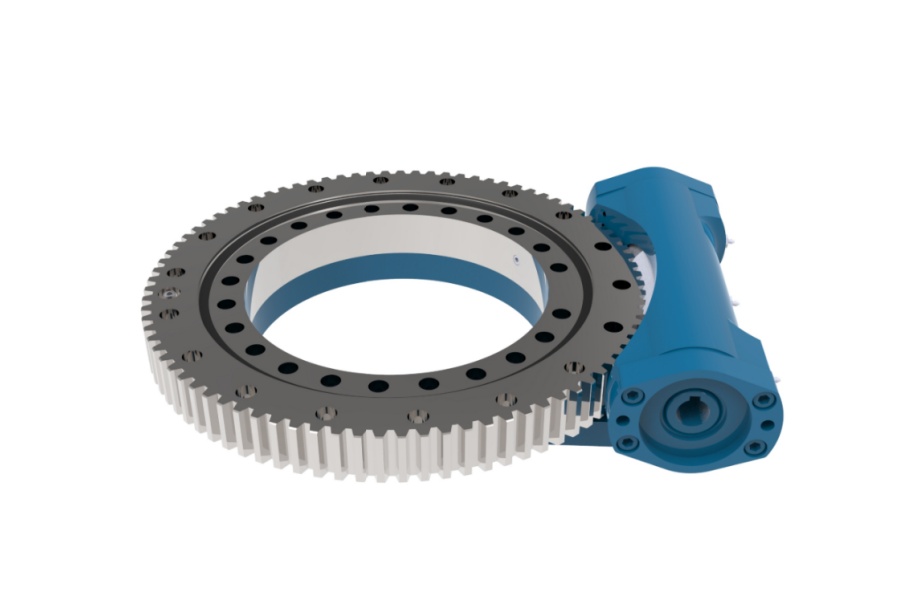

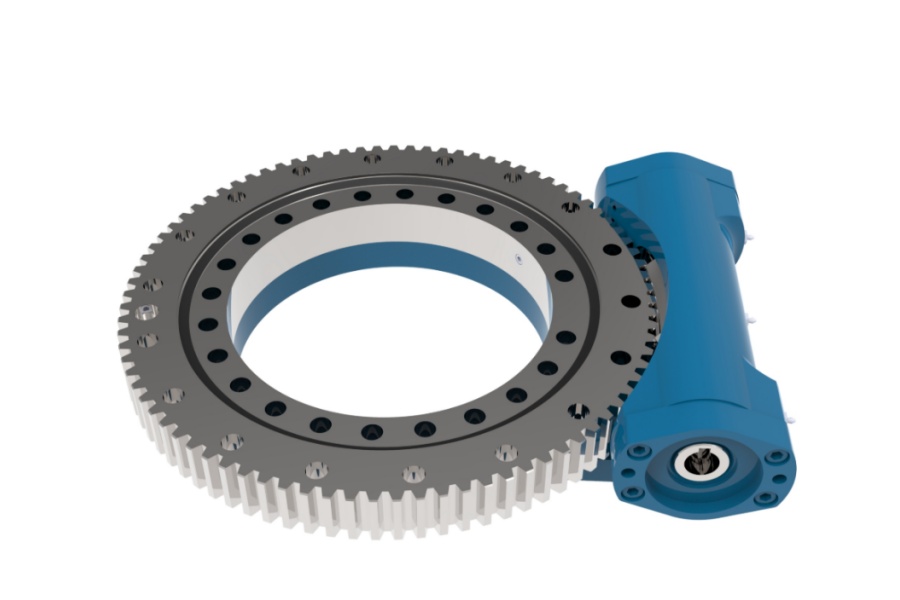

What is the Open Housing Slew Drive S14?

The Open Housing Slew Drive S14 represents a pinnacle of heavy-duty rotational engineering. Distinct from traditional enclosed units, its defining feature is a strategically non-enclosed structural frame. This design deliberately exposes critical internal components – primarily the large-diameter slewing bearing and the meshing worm and wheel gears – to the environment. Its core function remains delivering controlled, high-torque rotation around a single axis, converting motor input (hydraulic or electric) into powerful, slow-speed output. The "S14" designation typically signifies a specific model size within a manufacturer's range, dictating its torque capacity, physical dimensions, and mounting specifications. This open architecture is a deliberate engineering solution, not a limitation, offering unique operational and maintenance advantages essential for its demanding applications.

Taming the Inferno: High Temperature Slew Drive Cooling Solutions

Intense heat is the nemesis of precision gearing and bearings. The Open Housing Slew Drive S14 leverages its design for superior natural convection cooling; exposed components allow heat to dissipate directly into ambient air far more efficiently than sealed units. However, extreme environments like solar thermal plants, foundries, or engine-adjacent machinery demand more:

High-Temp Greases: Specialized lubricants with exceptional thermal stability and oxidation resistance outperform standard greases.

Enhanced Dissipation: Strategically designed fins or airflow channels within the open structure augment passive cooling.

Active Cooling: For peak demands, forced air fans or liquid cooling jackets circulating coolant around critical areas (e.g., worm housing) become essential. Selecting the right cooling strategy is critical to prevent lubricant breakdown, accelerated wear, and catastrophic failure.

The Silent Enemy: Combatting Slew Drive Gear Pitting Failure

Gear pitting is a pervasive surface fatigue failure plaguing slew drive gears, including the S14. It manifests as small pits or craters forming on gear tooth flanks due to repeated high-contact stresses exceeding the material's fatigue limit. Key contributors include:

Inadequate or degraded lubrication.

Operation beyond rated loads.

Misalignment during installation or operation.

Contamination ingress (abrasive particles).

Material defects or improper hardening.

While the S14's open design aids cooling, it necessitates vigilant sealing to combat contamination. Left unchecked, micro-pitting progresses to macro-pitting or spalling (surface flaking), causing increased vibration, noise, reduced efficiency, and potential tooth breakage. Prevention hinges on strict adherence to load ratings, precise alignment, robust sealing (especially at shafts), high-quality application-specific lubricants with disciplined maintenance, and drives manufactured from premium, hardened gear steels.

Lifeblood of Rotation: The Heavy Duty Rotary Joint Imperative

Many S14 applications require simultaneous fluid transfer (hydraulic oil, water, air) or electrical signals across the rotating interface. The Heavy Duty Rotary Joint fulfills this critical role. Mounted concentrically through the S14's hollow bore, it provides a leak-proof, rotating seal. "Heavy Duty" signifies its capability to handle:

High system pressures.

Significant flow rates.

Multiple media channels (hydraulic, pneumatic, electrical via integrated slip rings).

Harsh conditions (vibration, extreme temperatures, contamination).

Joint reliability is paramount; its failure halts the entire system. Selection must match specific pressure, flow, media, speed, and environmental requirements. Precise integration avoids drive interference. The S14's open housing can sometimes simplify inspection and maintenance of rotary joint connections.

Engineered Dominance: Key Features of the Open Housing Slew Drive S14

The S14's design delivers distinct advantages:

Superior Heat Dissipation: Exposed components enable unparalleled natural convection cooling.

Enhanced Accessibility: Visual inspection of gears, bearings, and lubricant is easy. Maintenance tasks like regreasing or debris removal often occur without full disassembly, minimizing downtime.

Exceptional Robustness: Constructed from high-strength alloy steels for gears and bearings, ensuring high torque capacity and resilience under massive axial, radial, and moment loads.

Precision Operation: Manufactured to exacting standards for smooth, low-vibration rotation and accurate positioning.

Configurable Versatility: Options for hydraulic or electric motors, diverse mounting configurations (side, face, flange), and customizable interfaces.

Targeted Protection: Advanced sealing protects critical areas (worm shaft, motor interface) despite the open frame.

Integrated Bore: A standard hollow center bore facilitates seamless rotary joint or cabling integration. These features combine for unparalleled performance, longevity, and serviceability under duress.

Where Giants Turn: Applications of the Open Housing Slew Drive S14

The S14 excels in the most demanding sectors:

Solar Thermal Power (CSP): The drive of choice for heliostat mirrors and parabolic troughs, where extreme solar heat demands superior cooling and precise sun-tracking is non-negotiable.

Heavy Construction Machinery: Powers crane jibs, excavator attachments, and screed positioning systems, thriving under high torque and shock loads.

Material Handling Giants: Drives large rotary conveyors, stacker-reclaimers, and heavy-duty industrial positioners in ports, factories, and mines, delivering reliable rotation under immense loads.

Forestry Equipment: Provides robust rotation for grapples and booms in harvesters and forwarders within rugged, dirty environments.

High-Heat Industrial Processes: Essential for large rotating platforms, kilns, or mixers in foundries, steel plants, or chemical processing where ambient temperatures soar. Any application demanding high torque, reliable rotation in harsh thermal/dirty conditions, plus easier maintenance access is an S14 candidate.

Decoding the Investment: Factors Influencing Open Housing Slew Drive S14 Price

S14 pricing reflects a complex equation:

Core Specifications: Higher torque ratings, greater load capacities (axial/radial/moment), and larger physical dimensions significantly increase cost.

Drive Type: Hydraulic motor integration typically commands a higher price than electric motor options.

Material & Manufacturing: Premium alloy steels, advanced heat treatment, high-precision bearings, and superior machining standards elevate cost but ensure longevity.

Customization: Modifications to mounting patterns, seals, shaft configurations, or surface treatments (e.g., specialized coatings) add expense.

Rotary Joint Integration: The inclusion, complexity (number of passages), pressure rating, and integration of electrical slip rings within the rotary joint represent a major cost factor.

Order Volume: Bulk purchases often secure per-unit cost reductions.

Manufacturer Value: Reputation, stringent quality control, comprehensive warranty terms, and the level of technical support/after-sales service are reflected in the price. Investing in quality upfront minimizes total cost of ownership.

Supplier of Open Housing Slew Drive S14

Securing a reliable Open Housing Slew Drive S14 demands partnering with a proven expert. LYRADRIVE stands as a premier manufacturer of high-performance slewing drives, including the robust S14 open housing series. Their distinction lies in:

Engineering Excellence: Utilizing advanced design and manufacturing techniques.

Uncompromising Quality: Implementing stringent quality control for peak performance and durability.

Deep Technical Expertise: Providing expert guidance to select the optimal S14 configuration for specific torque, load, environmental, and integration (e.g., rotary joints) requirements.

Comprehensive Support: Offering full lifecycle support – from installation assistance and maintenance advice to readily available spare parts. Choosing LYRADRIVE means choosing a dependable partner committed to maximizing uptime and productivity in the most critical industrial applications.
