Understanding Essential Backlash in Spur Gear Slew Drives

Understanding Essential Backlash in Spur Gear Slew Drives

What is Spur Gear Slew Drive

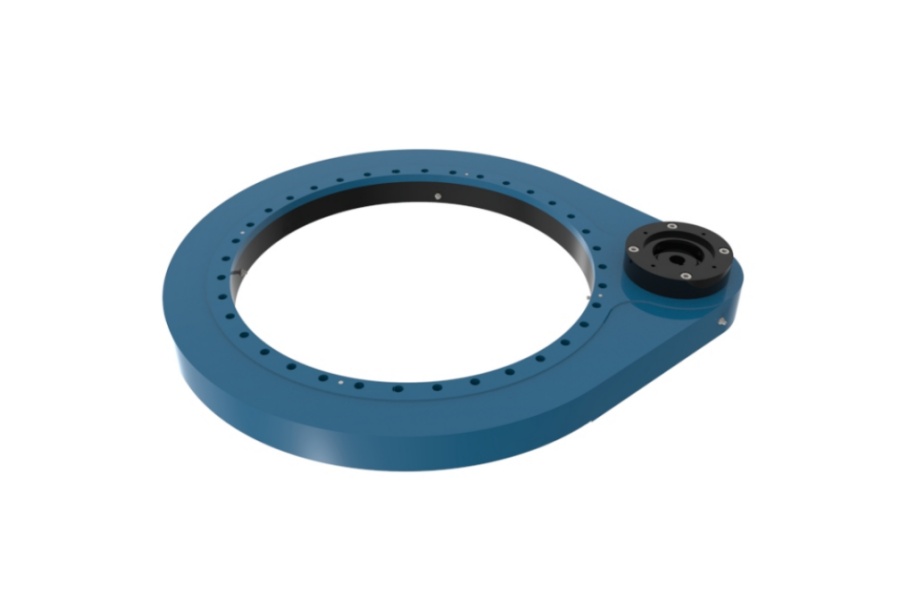

Spur Gear Slew Drive represents a critical category of rotational drive systems where the primary torque transmission occurs through the meshing of straight-cut spur gears. Unlike worm gear slew drives, which use a worm and worm wheel, a spur gear slew drive typically features a compact, high-speed input pinion gear (often driven by an electric or hydraulic motor) engaging directly with a large-diameter internal or external spur gear ring integrated into the slewing bearing structure. This design combines the rotational bearing and the gear mechanism into a single, robust unit. The spur gear configuration is prized for its mechanical efficiency, straightforward design, and capability to deliver high rotational speeds and significant torque in a relatively compact package, making it suitable for applications demanding efficient power transfer and precise positioning where moderate backlash is acceptable.

Why Spur Gear Slew Drives Require Backlash

The presence of controlled backlash – the intentional, microscopic clearance between the meshing teeth of the pinion and the ring gear – is absolutely essential in spur gear slew drives for fundamental engineering reasons:

Compensating for Manufacturing Imperfections: Despite advanced manufacturing techniques, achieving perfectly identical gear teeth across an entire ring gear and pinion is physically impossible. Minute variations in tooth profile, pitch, and spacing are inherent. Backlash provides the necessary tolerance to accommodate these unavoidable manufacturing tolerances, preventing binding or jamming that would occur if teeth were forced into a theoretically perfect, zero-clearance mesh.

Accommodating Assembly and Installation Tolerances: Precise alignment of the pinion gear relative to the large ring gear during assembly and installation is challenging. Minor misalignments (angular, parallel, or axial offset) are common. Backlash allows the gears to mesh smoothly despite these slight alignment deviations, avoiding excessive localized stress and premature wear.

Allowing for Thermal Expansion: Metals expand when heated during operation. The pinion gear (often steel) and the housing/supporting structure (potentially aluminum or different steel alloys) have different coefficients of thermal expansion. As temperatures rise during operation or due to environmental conditions, these components expand at different rates. Backlash provides the critical clearance needed to prevent the gears from seizing due to thermal expansion-induced dimensional changes. Without it, the gears could bind catastrophically as the system heats up.

Facilitating Lubrication: Lubricant (grease or oil) is vital for reducing friction, dissipating heat, and preventing wear between meshing gear teeth. Backlash creates tiny pockets that allow lubricant to flow effectively into the contact zone and form a protective film between the tooth flanks. A zero-backlash condition would squeeze out lubricant, leading to metal-to-metal contact, accelerated wear, scuffing, and potential failure.

Preventing Tooth Interference and Damage: Even with perfect theoretical dimensions, the tips of the driving gear teeth could potentially collide with the roots of the driven gear teeth under certain conditions (especially during start-up, reversal, or shock loads) if no clearance existed. Backlash guarantees that this interference cannot occur, protecting the gear teeth from impact damage and chipping.

Absorbing Shock and Vibration: Machinery experiences vibrations and shock loads. A small amount of backlash acts as a microscopic cushion, allowing the gears to absorb minor impacts and vibrations without transmitting excessive, damaging forces through the entire drivetrain. While excessive backlash is detrimental, controlled clearance mitigates shock effects.

While "zero-backlash" meshing is an ideal theoretical goal for maximizing positional accuracy and minimizing vibration/noise, it is impractical and often detrimental in real-world spur gear slew drive applications due to the factors above. Precision spur gear drives minimize backlash to very low, controlled levels, but they always incorporate some degree of intentional clearance. This clearance is carefully calculated, specified through gear tolerancing standards (like AGMA or DIN), and controlled during manufacturing to be sufficient for the application's requirements without being excessive enough to cause issues like positioning error, noise, or hammering.

Key Characteristics of Spur Gear Slew Drives

Spur Gear Slew Drives offer a distinct set of advantages and considerations compared to other slew drive types:

High Mechanical Efficiency: Spur gears generally exhibit significantly higher transmission efficiency (often 95-98% per mesh) than worm gears. This translates to less power loss as heat and lower energy consumption, crucial for applications like solar trackers.

Higher Speed Capability: The rolling contact of spur gears allows for much higher rotational input speeds compared to the sliding contact inherent in worm gears.

Simpler Design & Manufacturing: The geometry of spur gears is generally less complex than that of worm gears, potentially leading to lower manufacturing costs, especially for larger quantities.

Bi-Directional Performance: Spur gears deliver consistent efficiency and performance in both rotational directions, unlike single-start worm gears which are highly inefficient in reverse.

Lower Inherent Backlash Control: Achieving ultra-low backlash is generally more challenging and costly with spur gears compared to high-precision worm gear sets designed for minimal backlash.

No Inherent Self-Locking: Spur gears lack the self-locking feature common in single-start worm gears. An external brake is always required to hold a position against a load.

Potential for Noise: Straight-cut spur gears can generate more audible noise at higher speeds compared to helical gears or well-designed worm gears. Careful manufacturing and housing design are needed to mitigate noise.

Load Distribution: Load is typically carried by fewer teeth simultaneously compared to helical or worm gears, requiring robust tooth design for high-load applications.

Primary Applications of Spur Gear Slew Drives

The efficiency and speed advantages of Spur Gear Slew Drives make them ideal for specific demanding sectors:

Solar Tracking Systems (Azimuth & Elevation): Dominating the market, their high efficiency maximizes energy capture by minimizing drive power consumption. Precision backlash control is critical for accurate sun tracking.

Wind Turbine Yaw Systems: Efficiently rotating the nacelle to face the wind. Requires robustness and reliability in harsh environments.

Material Handling Equipment: Powering rotation in conveyor turntables, palletizers, stacker-reclaimers, and moderate-duty crane applications where efficiency and speed are valued.

Industrial Automation: Used in indexing tables, rotary feeders, welding positioners (where high speed indexing is needed), and packaging machinery requiring efficient rotational motion.

Radar and Communication Antennas: Providing smooth rotation for tracking and positioning, often requiring good speed control.

Medical Equipment: Driving rotation in imaging devices like CT scanners (gantry rotation) where consistent speed and reliability are paramount.

Test and Simulation Equipment: Providing controlled rotary motion in dynamometers, environmental test chambers, and flight simulators.

Factors Influencing Spur Gear Slew Drive Pricing

The cost of a Spur Gear Slew Drive is determined by numerous technical and commercial factors:

Torque & Load Ratings: Higher required torque output and load capacities (axial, radial, moment) demand larger gears, stronger bearings (e.g., larger diameter crossed rollers or multi-row slewing rings), and more robust housings, significantly increasing material and machining costs.

Gear Size, Module, and Precision: Larger gear diameters, higher gear modules (tooth size), and tighter tolerance requirements (AGMA quality class) for tooth profile, pitch, and runout dramatically increase manufacturing complexity and cost. Precision grinding for low backlash adds expense.

Backlash Specification: Drives requiring ultra-low, tightly controlled backlash (e.g., < 5 arcminutes) necessitate significantly higher precision in gear manufacturing, inspection, and assembly compared to drives with standard industrial backlash tolerances.

Bearing Type & Size: The selection (crossed roller bearing vs. ball slewing ring vs. roller slewing ring), size, and load rating of the integral slewing bearing are major cost drivers. Larger diameters and higher capacities exponentially increase cost.

Materials & Heat Treatment: Use of high-grade alloy steels (e.g., 42CrMo, 20MnCr5) and specialized heat treatments (case hardening, induction hardening, tempering) for gears and bearings enhance durability but add cost. Corrosion-resistant materials or coatings add further expense.

Input Drive Configuration: Type of input (electric motor flange, hydraulic motor mount, manual input), input speed, and required reduction ratio influence design complexity and component cost.

Sealing & Environmental Protection: Achieving high IP ratings (e.g., IP65, IP67) for dust and water resistance, or operation in extreme temperatures (-40°C to +80°C+) or corrosive environments, requires sophisticated sealing systems (multiple lip seals, labyrinth seals) and compatible lubricants, increasing cost.

Customization: Deviations from standard designs – special mounting flanges, bolt patterns, shaft outputs, integrated sensors (encoders, temperature sensors), special paint, or unique lubrication systems – incur significant engineering and production overhead.

Certifications & Documentation: Compliance with specific industry standards (ISO, CE, UL, DNV-GL) or customer quality requirements adds testing, documentation, and administrative costs.

Volume & Market Factors: Economies of scale apply; larger production runs reduce per-unit cost. Fluctuations in raw material (steel, bearing steel) and component (bearings) prices also impact final cost.

A Trusted Source for Spur Gear Slew Drives

LYRADRIVE has established itself as a leading global designer and manufacturer of high-performance slew drives, offering specialized expertise in both Spur Gear and Worm Gear configurations. Recognized for engineering excellence, LYRADRIVE provides a comprehensive portfolio of standard and fully customized Spur Gear Slew Drives engineered to meet exacting requirements for torque, speed, load capacity, precision, and environmental resilience. Their commitment to rigorous quality control, advanced manufacturing processes for precise gear cutting and heat treatment, and robust material selection ensures drives deliver exceptional reliability, efficiency, and longevity in demanding applications such as solar tracking, wind energy, and industrial automation. LYRADRIVE supports customers with deep technical knowledge from concept through installation and service, making them a reliable partner for solutions requiring efficient and robust rotational drive technology.
