The Powerhouse of Precision Rotation Enveloping Slewing Drive SE14

The Powerhouse of Precision Rotation Enveloping Slewing Drive SE14

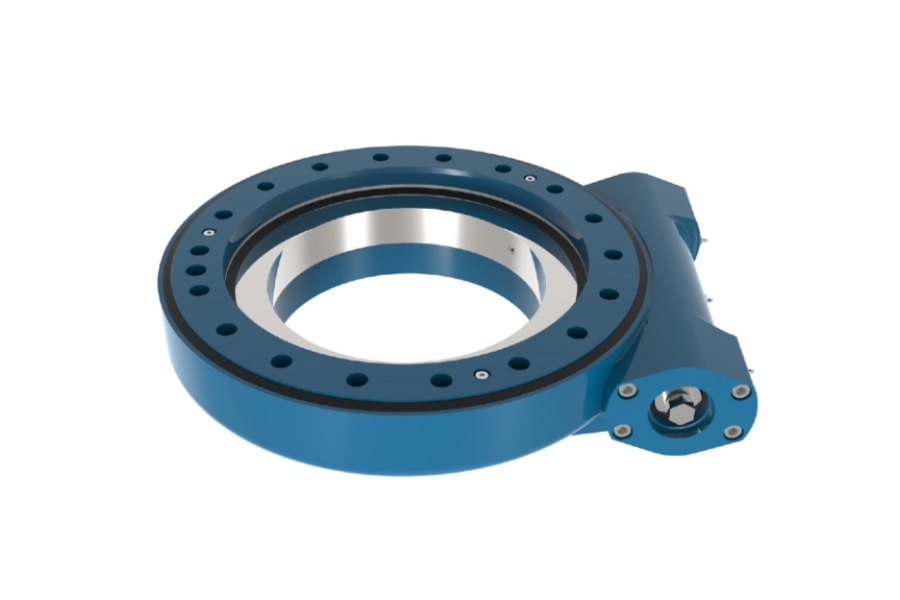

What is Enveloping Slewing Drive SE14

Enveloping Slewing Drive SE14 is an integrated, unitized transmission component that combines highly efficient gearing with robust structural performance for a wide spectrum of industrial applications. At its core, this system comprises a robust base housing, a precision worm gear, and a specially designed enveloping worm. Engineered to simultaneously withstand significant axial loads, radial loads, and tilting moments, the SE14 offers remarkable versatility, making it ideal for challenging operational settings. A critical safety feature is its inherent self-locking mechanism. This mechanism prevents back-driving when drive force is removed, ensuring operational safety and reliability, particularly crucial in applications where unintended movement could be hazardous. This fundamental design philosophy prioritizes stability under load and secure positioning.

AI-Driven Synergy: Industrial Robotics and the Evolution of Slewing Drives

The rapid advancement of industrial robotics, fueled significantly by Artificial Intelligence (AI), demands increasingly sophisticated motion control components. AI algorithms optimize robotic paths, predict maintenance needs, and enable real-time adaptive control, pushing the boundaries of precision and efficiency. This evolution places greater demands on the mechanical components that physically execute these movements. Slewing drives like the SE14 are pivotal in this ecosystem. The SE14's ability to deliver high torque with exceptional tracking precision (≤0.17°) aligns perfectly with the needs of AI-driven robotic systems requiring smooth, accurate, and repeatable rotational motion. Furthermore, features such as the self-locking capability enhance safety in collaborative robotic environments, while the IP65-rated sealing ensures reliable operation in diverse factory conditions where dust or moisture might be present. The synergy lies in the SE14 providing the robust, reliable, and precise mechanical motion foundation upon which intelligent AI control systems can operate effectively, enabling more complex automation, heavier payload manipulation, and enhanced operational safety protocols dictated by intelligent systems.

Characteristics of the Enveloping Slewing Drive SE14

The SE14 distinguishes itself through a suite of engineering features designed for peak performance and durability:

Enveloping Worm Gear Design: This is the signature feature. Unlike standard worm gears, the enveloping design wraps around the worm, engaging 4 to 5 teeth simultaneously. This significantly increases the contact area, leading to substantially higher output torque (8 kN.m), holding torque (48 kN.m), and tilting moment capacity (67.8 kN.m) compared to non-enveloping designs. It also distributes load more evenly, reducing stress on individual gear teeth and enhancing overall longevity.

Exceptional Load Capacity: Engineered for demanding applications, the SE14 boasts impressive static and dynamic load ratings: Static Axial Rating (555 kN), Static Radial Rating (222 kN), Dynamic Axial Rating (133 kN), Dynamic Radial Rating (117 kN). This allows it to handle substantial forces encountered in heavy machinery operation.

Inherent Self-Locking: The high reduction ratio (85:1) and the efficiency characteristics of the worm gear design create a natural self-locking effect. This prevents the output from driving the input backwards when drive force ceases, crucial for safety in applications like lifting, positioning, or where stability is paramount under load.

Robust Sealing (IP65): Featuring comprehensive sealing, the SE14 achieves an IP65 rating. This provides complete protection against dust ingress and low-pressure water jets from any direction, making it suitable for outdoor use, harsh environments, washdown areas, and applications exposed to weather, dust, or dirt.

High Tracking Precision: Designed for accuracy, the SE14 offers a tracking precision of ≤0.17° (with options for ≤0.07° or ≤0.05°). This precision is vital for applications requiring exact positioning, such as automated machinery, radar systems, or robotic arms.

Integrated Unitized Design: Combining the gearbox, bearings, and mounting structure into a single, pre-assembled, and sealed unit simplifies installation, reduces maintenance points, and enhances overall system rigidity and reliability.

Drive Motor Flexibility: The SE14 is designed for seamless integration with various power sources. It readily accommodates hydraulic motors for high-power applications or electric motors (including servo and geared types) for precise control, offering significant versatility in system design.

Durability in Harsh Conditions: Constructed with high-grade materials and featuring robust sealing, the SE14 is built to endure challenging environments, including exposure to vibration, shock, temperature variations, and contaminants common in industrial, construction, and maritime settings.

Applications of the Enveloping Slewing Drive SE14

The unique combination of high torque, precision, load capacity, and environmental protection makes the SE14 indispensable in numerous sectors:

Aerial Work Platforms (AWPs) and Cranes: Provides the critical rotational motion for booms and platforms. Its high load capacity handles the combined axial/radial forces, self-locking ensures safety during power loss at height, and precision enables accurate platform positioning. Essential for truck-mounted cranes, spider lifts, and telescopic handlers.

Construction Equipment: Powers the rotation of excavator attachments (like breakers or grapples), compactors, drilling rigs, concrete pumpers, and material handling arms. Robustness, high torque, and the ability to withstand shock loads and harsh site conditions (dust, mud, vibration) are key.

Wind Turbine Yaw Systems: Used in the yaw drives that orient wind turbine nacelles into the wind. The SE14's high torque output, reliability, self-locking under wind load, and tolerance to outdoor exposure make it well-suited for this critical renewable energy application.

Mining and Heavy Machinery: Drives rotation in drilling equipment, large excavator attachments, feeder breakers, and material processing machinery. Its exceptional durability, high load ratings, and IP65 sealing are vital for surviving the extreme dust, abrasion, impacts, and demanding cycles of mining operations.

Industrial Automation and Robotics: Provides precise rotational axes for robotic arms, automated welding cells, material handling turntables, palletizing systems, and large assembly fixtures. High precision, smooth motion, and reliability are paramount, alongside the option for integration with servo motors for closed-loop control.

Marine and Offshore Applications: Powers deck cranes, winch positioning systems, hatch covers, and specialized offshore equipment. The SE14's corrosion resistance (often enhanced with specific coatings or materials for marine use), IP65 sealing against salt spray, and ability to handle vessel motion and heavy loads are crucial advantages.

Solar Tracking Systems: Enables the precise rotation required for large-scale photovoltaic panels to follow the sun's path throughout the day, maximizing energy capture. Torque capacity, precision, self-locking under wind load, and outdoor durability are essential.

Factors Influencing Enveloping Slewing Drive SE14 Pricing

The cost of an Enveloping Slewing Drive SE14 is influenced by several key factors:

Material Specifications: The grade of steel used for gears, housing, and bearings significantly impacts cost. Higher strength alloys, specialized hardening processes (like case hardening or induction hardening), and corrosion-resistant treatments (e.g., special coatings for marine environments) increase the price.

Precision Level: Standard SE14 units offer ≤0.17° precision. However, applications demanding ultra-high precision (e.g., ≤0.07° or ≤0.05°) require more stringent manufacturing tolerances, specialized grinding processes, and potentially higher-grade bearings, leading to a higher unit cost.

Customization Requirements: While the SE14 is a standard model, modifications add cost. These include:

Special Sealing: Upgrading from IP65 to IP67 or IP68 for submersion resistance.

Custom Gear Ratios: While 85:1 is standard, other ratios might be needed, requiring different gear sets.

Mounting Configuration: Alterations to the base or output flange design for specific machine integration.

Feedback Integration: Adding built-in encoders or resolvers for position feedback.

Lubrication: Special greases for extreme temperatures or food-grade applications.

Surface Treatments: Additional corrosion protection coatings (zinc-nickel, Dacromet) or special paints.

Order Volume: Larger purchase quantities typically benefit from economies of scale, reducing the per-unit cost compared to single-unit purchases.

Geographical Market and Logistics: Manufacturing location, shipping costs, import duties, and local market dynamics all influence the final delivered price.

Drive Motor Integration: While the slewing drive itself is priced, the total system cost includes the chosen drive motor (hydraulic or electric) and any necessary mounting adapters or couplings. High-performance servo motors add significant cost.

Supplier Value-Added Services: Engineering support for integration, comprehensive warranty terms, reliable after-sales service, and technical documentation quality contribute to the overall value proposition, which can be reflected in pricing.

Your Source for Enveloping Slewing Drive SE14 Solutions

LYRADRIVE stands as a leading provider of high-performance slewing drive technology, including the robust Enveloping Slewing Drive SE14. We specialize in the engineering, manufacturing, and supply of precision rotation solutions for demanding global industries. Leveraging deep technical expertise and a commitment to quality, LYRADRIVE offers not only standard SE14 units but also comprehensive customization services to tailor the drive precisely to your application's torque, precision, sealing, mounting, and environmental requirements. Our focus extends beyond supply; we provide dedicated engineering support to ensure optimal integration and performance, backed by reliable global service and logistics. Partnering with LYRADRIVE means accessing reliable, high-capacity slewing drive solutions engineered for durability and performance in the most challenging operational environments.
