Spur Gear Slew Drive Simplifying Rotational Power Transmission
In the landscape of industrial machinery where reliability meets cost-effectiveness, Spur Gear Slew Drives stand as fundamental components for systems requiring straightforward rotational control. These drives power applications ranging from agricultural irrigation systems to amusement park rides, offering a balance of simplicity, efficiency, and durability. This article examines how Spur Gear Slew Drives deliver dependable performance across diverse sectors by leveraging time-tested mechanical principles optimized for modern demands.
What is a Spur Gear Slew Drives

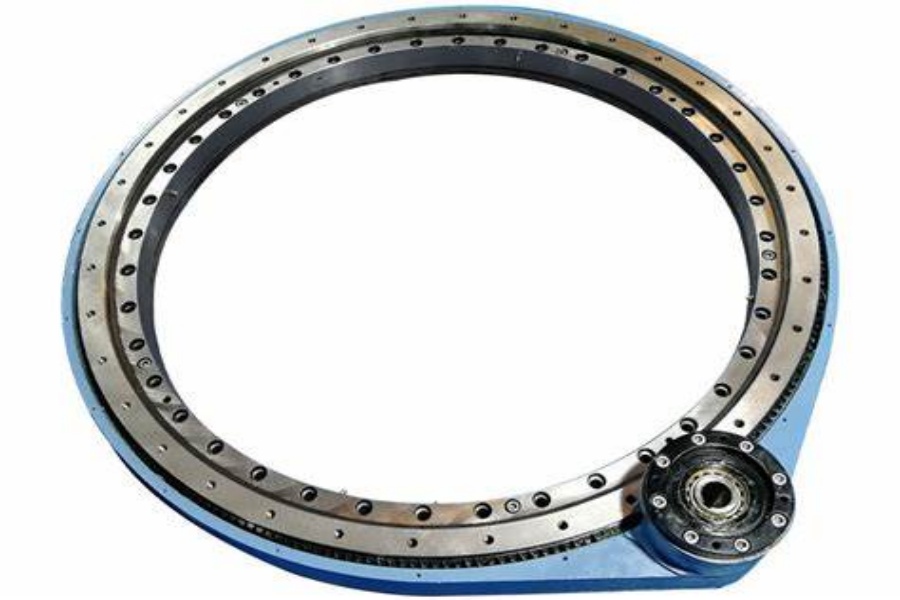

A Spur Gear Slew Drive is a rotational transmission system combining a spur gear mechanism with a slewing ring bearing to provide controlled rotation under load. Characterized by straight-cut teeth on parallel-axis gears, this drive type excels in applications requiring moderate to high-speed rotation with efficient power transfer. Unlike complex helical or worm gear systems, the spur gear configuration prioritizes simplicity and cost-effectiveness while maintaining reliable performance in equipment like mobile cranes, solar trackers, or material handling turntables. The direct engagement of gear teeth ensures immediate power transmission, making these drives ideal for industries seeking maintenance-friendly solutions without compromising operational efficiency.
How Spur Gear Slew Drives Operate
Envision a wind turbine yaw system adjusting nacelle orientation to capture optimal wind flow or a conveyor system rotating bulk materials in a cement plant. The Spur Gear Slew Drive facilitates these operations through its straightforward yet effective design. A motor-driven pinion gear with straight teeth engages with a larger spur gear integrated into the slewing ring’s outer race. As the pinion rotates, it drives the slewing ring with direct force transfer, creating smooth rotational movement. The simplicity of the tooth profile minimizes sliding friction between gear faces, allowing higher operational speeds compared to angled gear systems. Precisely machined teeth and optimized gear meshing ensure consistent power delivery while reducing noise levels—a critical factor in urban installations like rooftop solar arrays or public infrastructure projects.
Key Features and Advantages of Spur Gear Slew Drives
Spur Gear Slew Drives distinguish themselves through operational simplicity and cost efficiency. Their uncomplicated design reduces manufacturing complexity, translating to lower acquisition costs—a decisive factor for agricultural equipment manufacturers or small-scale solar projects. A defining trait is their high-speed capability, achieved through reduced axial thrust compared to helical gears, enabling rotation speeds up to 30 RPM in industrial mixer applications.
The straight tooth geometry allows easy visual inspection of gear wear, simplifying maintenance routines in remote installations like off-grid solar farms. Unlike double-enveloping worm drives requiring precise alignment, spur gear systems tolerate minor mounting deviations without significant efficiency losses. Sealed units with grease-filled housings protect against environmental contaminants, ensuring reliable operation in dusty feed mills or humid paper processing plants.
Modular construction facilitates quick component replacement, with standardized gear modules allowing field repairs without specialized tools. This proves invaluable for mining operations in developing regions where technical expertise is limited. The compact profile enables integration into space-constrained machinery like foldable construction equipment or mobile drilling rigs.
Applications Across Industries
Spur Gear Slew Drives serve as workhorses in sectors valuing reliability over extreme precision:
Agriculture
Center pivot irrigation systems utilize these drives to rotate kilometer-long water arms across fields, their simple design resisting corrosion from fertilizer-laden water while operating 24/7 during growing seasons.
Renewable Energy
Basic solar tracking systems employ spur gear drives to adjust panel angles daily, achieving 95% energy harvest efficiency at 50% lower cost than premium tracking solutions.
Material Handling
Bulk material stackers in ports rotate 100-meter conveyor booms using spur gear systems, handling 5000 tons of ore hourly with minimal maintenance requirements.
Entertainment
Ferris wheels and carousel rides rely on these drives for smooth operation, with open-gear variants allowing easy lubrication checks during daily safety inspections.
Performance Enhancements Achieved
Implementing Spur Gear Slew Drives yields measurable operational improvements:
Cost Reduction
Simplified manufacturing processes lower unit costs by 40% compared to helical gear alternatives, enabling wider adoption in price-sensitive markets.
Operational Speed
Straight-cut teeth enable 25% faster rotation speeds in packaging line turntables, boosting production rates without increasing motor sizes.
Maintenance Simplification
Standardized gear modules reduce repair times by 60% in aggregate processing plants, with wear parts inventory costs 35% lower than specialized gear systems.
Energy Efficiency
Reduced friction losses from sliding contact improve overall efficiency to 93% in light-duty applications like CCTV tower rotation systems.
Common Mistakes to Avoid
Optimizing Spur Gear Slew Drive performance requires awareness of inherent limitations:
Overloading Beyond Ratings
Attempting to handle shock loads exceeding design limits causes rapid tooth wear. Always incorporate torque limiters in crusher applications with variable material hardness.
Neglecting Lubrication Cycles
Despite sealed designs, annual grease replenishment remains crucial. Desert solar installations should shorten intervals to 6 months due to abrasive dust infiltration.
Ignoring Misalignment Signs
Uneven tooth wear patterns indicate mounting surface issues. Use laser alignment tools during installation to ensure gear parallelism within 0.1 mm per meter.
Mismatching Materials
Pairing hardened steel pinions with cast iron gears accelerates wear. Specify case-hardened alloy steel for both gears in high-cycle applications like distribution center carousels.
Spur Gear Slew Drives supplier
LYRA Drive is a professional slewing bearings ,slew drive and gears manufacturer provides customized slew bearing, drive and gears.For application-specific engineering solutions, contact LYRA to discuss technical specifications and implementation strategies.
