Slewing Bearing Materials Composition Guide

Slewing Bearing Materials Composition Guide

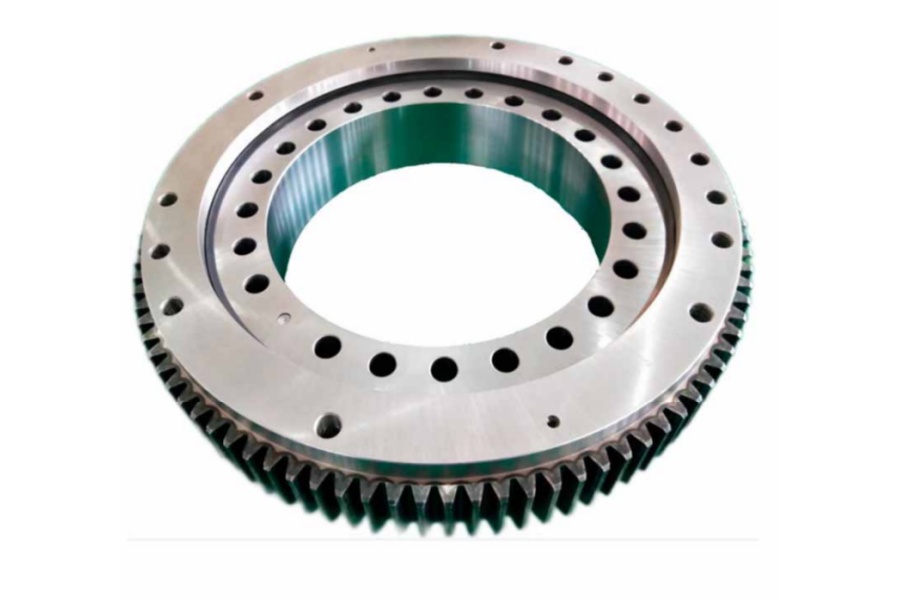

What is Slewing Bearing

Slewing Bearing is a precision-engineered rotational system supporting combined axial, radial, and moment loads in heavy machinery. Its integrated design with mounting holes and gear teeth enables 360° rotation in equipment like cranes and wind turbines, with material selection directly dictating service life and reliability.

Component Material Specifications

Inner/Outer Rings

50Mn Steel: Standard structural steel through-hardened to 55–58 HRC. Offers 980–1,180 MPa tensile strength at lowest cost. Ideal for industrial machinery.

42CrMo Alloy Steel: Premium quenched-tempered steel achieving 58–62 HRC surface hardness with 35–40 HRC core toughness. Provides 30% higher fatigue resistance for mining/offshore applications.

Specialized Options: AISI 440C stainless steel for corrosive environments (chemical plants), 7075-T6 aluminum for weight-sensitive robotics (50% lighter).

Rolling Elements

GCr15 Bearing Steel (AISI 52100): Standard for balls/rollers. Features 1.5% chromium content, hardened to 60–65 HRC. Delivers 2,200 MPa fatigue strength and superior wear resistance.

Advanced Alternatives: Silicon nitride (Si₃N₄) ceramic for high-speed medical bearings (reduces friction 60%), case-carburized 20MnCr5 steel for integrated gear raceways.

Sealing Systems

Nitrile Rubber (NBR): Standard seal material (-40°C to +120°C). Resists oils/greases in construction machinery.

Fluoroelastomer (FKM/Viton): High-temperature variant (200°C limit) with 5x chemical resistance for mining slurry exposure.

Silicone (VMQ): Arctic-grade flexibility (-60°C) for polar equipment. Triple-lip designs with stainless steel springs ensure IP66+ protection.

Retainers (Cages)

Segmented Cages: Brass (CuZn25Al6) or glass-reinforced nylon (PA66-GF30) for vibration damping in excavators.

Isolation Blocks: Polyamide 1010 resin or bronze inserts in medical/robotic cross-roller bearings.

Solid Cages: Machined 20#/45# carbon steel for ultra-heavy loads in tunnel boring machines.

Lubrication Fittings

Brass (C36000) or 304 stainless steel zerks with ball-check valves. Corrosion-resistant for marine environments.

Material Selection Philosophy: Prioritize load capacity → corrosion resistance → temperature tolerance → cost efficiency. 42CrMo/FKM delivers maximum longevity in harsh conditions, while 50Mn/NBR balances economy and performance.

Performance Characteristics

Load Ratings: 42CrMo rings support 40% higher moment loads than 50Mn

Temperature Resilience: FKM seals withstand 200°C vs NBR's 120°C limit

Corrosion Resistance: 316 stainless steel offers 5x saltwater endurance vs carbon steel

Fatigue Life: GCr15 elements achieve L10 life >100,000 hours under 2,200 MPa stress

Critical Applications

Offshore Cranes: 42CrMo rings + FKM seals resist seawater corrosion

Mining Excavators: GCr15 rollers + brass cages handle 10,000 kN impact loads

Arctic Wind Turbines: VMQ seals maintain flexibility at -50°C

Medical Rotators: Polyamide 1010 cages enable silent operation (<45 dB)

Material Cost Drivers

Alloy Premium: 42CrMo costs 25–30% more than 50Mn

Exotic Elements: Silicon nitride balls double roller costs

Seal Complexity: FKM triple-lips add 40% vs single NBR seals

Cage Manufacturing: Machined brass cages cost 3x injected nylon

Certifications: NORSOK-approved materials incur 15–20% surcharge

Supplier of Slewing Bearing

LYRADRIVE engineers ISO 9001-certified slewing bearings using vacuum-degassed 42CrMo forgings and aerospace-grade GCr15 elements. Their proprietary HEAT-SHIELD™ treatment achieves uniform 60±1 HRC hardness, while material testing labs validate composition through spectrometry, ultrasonic inspection, and accelerated corrosion trials. Custom material solutions include arctic-grade VMQ seals and ceramic hybrid bearings for extreme applications.
