Slew Drive: The Powerhouse for Precision Rotation

Slew Drive: The Powerhouse for Precision Rotation

What is a Slew Drive?

A slew drive is a compact, integrated assembly combining three core elements: a high-capacity slewing bearing, a speed-reducing gearbox (typically worm gear or planetary gear types), and often an integrated electric motor (though motors can be external). The slewing bearing provides structural support and handles combined axial, radial, and moment loads during rotation. The gearbox delivers essential speed reduction and torque multiplication, converting the motor's high-speed, low-torque input into the low-speed, high-torque output needed to move heavy masses. This integration offers significant advantages in space efficiency, simplified installation, and optimized power transmission compared to separate component sourcing and assembly.

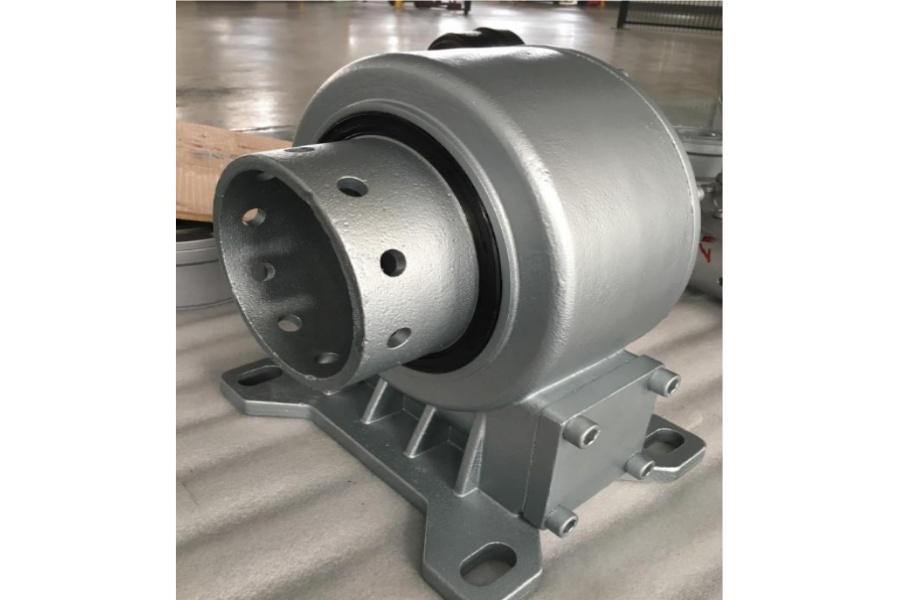

Slew Drive for Solar Tracker

Maximizing energy harvest is paramount in solar power generation. Solar trackers dynamically adjust photovoltaic panels to follow the sun's daily path. Slew drives are the preferred solution for both single-axis and dual-axis trackers. Mounted at pivotal points, they deliver the robust torque required to rotate extensive panel arrays against wind forces and gravity. Their precision ensures accurate sun alignment, directly increasing energy output by 20-40% over fixed installations. Reliability is crucial in often remote solar farms. Modern slew drives are built for long operational life with minimal maintenance, enduring harsh environments like dust, extreme heat, and freezing temperatures.

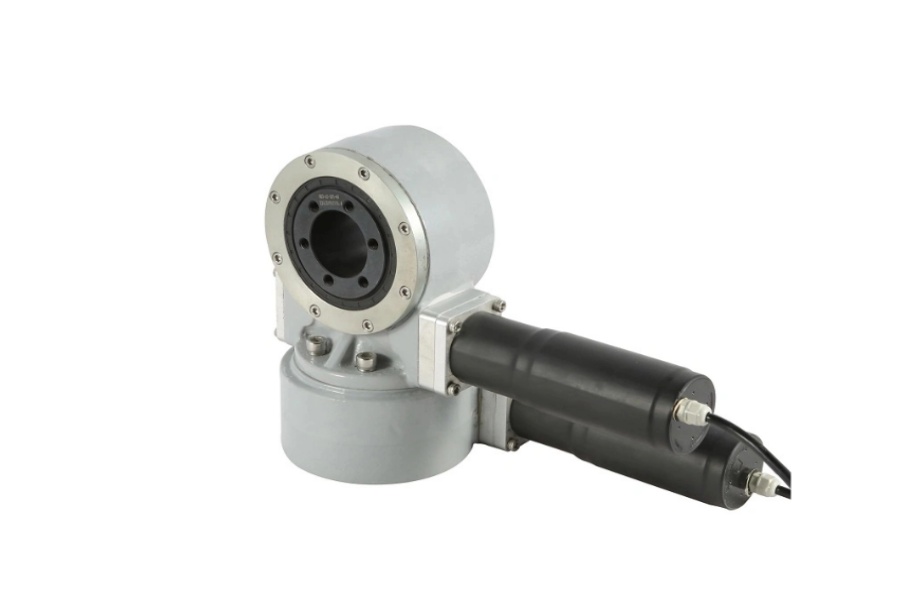

Slew Drive with Motor

While slew drives can utilize external motors connected via couplings, the integrated motor configuration is increasingly dominant. This creates a self-contained "slewing drive actuator" – a complete rotational power unit. Motor integration streamlines system design, minimizes alignment challenges, shields the motor-drive interface from environmental contaminants, and often achieves a smaller overall footprint. Motors range from standard AC/DC types to highly precise servo motors, enabling exact positioning and speed control vital for applications like robotics, radar systems, and precision industrial turntables.

Key Characteristics of Slew Drives

High Torque Density: Generate immense rotational force from a compact unit.

Robust Load Capacity: Designed to withstand simultaneous heavy axial, radial, and moment (tilting) loads.

Precision & Repeatability: Deliver accurate positioning and smooth, controlled motion cycles.

Integrated Design: Combines bearing, gearing, and frequently the motor into one cohesive package, simplifying integration and upkeep.

Durability & Reliability: Built for extended service life in challenging industrial and outdoor settings.

Operational Efficiency: Modern designs minimize energy loss through optimized gearing and bearing technology.

Configuration Versatility: Available in numerous sizes, gear ratios, torque outputs, and mounting options.

Slew Drive Applications

The unique capabilities of slew drives make them essential across a wide spectrum of industries:

Renewable Energy: Solar tracker rotation (single & dual-axis), wind turbine pitch and yaw control mechanisms.

Construction & Mining: Cranes (tower, mobile, crawler), excavator superstructures, concrete pump booms, drilling rig turntables.

Material Handling: Ship-to-shore cranes, Rubber-Tyred Gantry (RTG) cranes, heavy-duty industrial turntables, automated storage systems.

Defense & Aerospace: Radar and satellite dish positioning systems, missile launcher turrets, flight simulator platforms.

Industrial Automation: Robotic welding cells, large indexing tables, precision assembly rotating platforms.

Medical: Positioning of heavy medical imaging equipment like CT and MRI scanners

Factors Influencing Slew Drive Price

The cost of a slew drive varies significantly based on these key determinants:

Size & Torque Rating: Larger drives built to handle higher torque demands command substantially higher prices.

Precision & Accuracy Specifications: Units requiring ultra-high positioning accuracy or minimal backlash necessitate more precise manufacturing, increasing cost.

Gear Type & Manufacturing Quality: Worm gear drives are common and cost-effective; planetary gear drives offer higher efficiency/compactness at a potential premium. Gear material quality (hardness, grinding precision) impacts both price and longevity.

Slewing Bearing Specifications: Bearing size, internal design (ball vs. roller), raceway hardness, and sealing complexity are major cost factors.

Integrated Motor Specifications: Motor type (AC, DC, Servo), power rating, efficiency class (e.g., IE3, IE4), and brand significantly add to the cost.

Environmental Protection Rating (IP Rating): Higher ingress protection ratings (IP65, IP66, IP67+) against dust and water require advanced sealing, raising the price.

Materials & Surface Treatments: Use of corrosion-resistant materials (e.g., stainless steel) or specialized protective coatings increases cost.

Brand Reputation & Support: Premium brands (like Brevini) often have higher prices due to proven reliability, engineering support, and extensive service networks.

Customization Level: Standard off-the-shelf models are most economical; any customization (special flanges, shaft outputs, integrated sensors, lubrication systems) adds expense.

Order Quantity: Bulk purchases typically secure volume discounts.

Geographic Market & Logistics: Local manufacturing presence, import duties, taxes, and shipping costs affect the final landed price.

Supplier of Slew Drive

Slew drives are fundamental components enabling controlled, high-torque rotation across countless critical applications. From optimizing solar energy capture to positioning heavy machinery and defense systems, their integrated, robust design delivers unmatched reliability and performance. Understanding their core functionality, diverse applications, and the key factors driving their cost is essential for selecting the optimal drive solution. When precision, power, and long-term durability are paramount, a high-quality slew drive is the proven engineering solution. Ready to specify the ideal slew drive? Consult with leading LYRADRIVE today to discuss your specific torque, load, and precision requirements.
