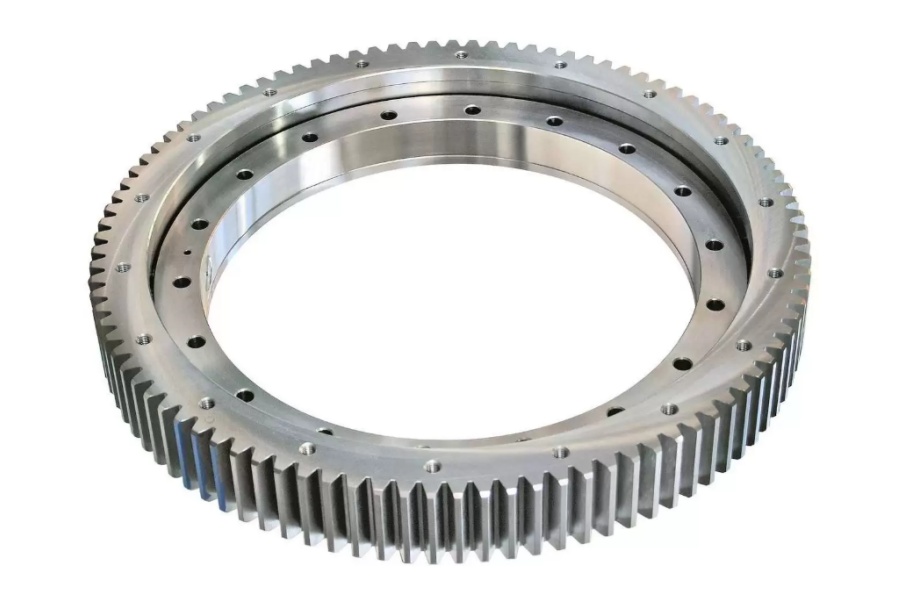

What is Slew Drive?

A Slew Drive is a highly integrated electromechanical drive unit, consisting of a worm gear/planetary gear system, a large slewing bearing, a sealed housing, and a drive motor. It combines three functions—speed reduction with torque increase, power transmission, and load support—into a single compact module, directly outputting 360° rotational motion. Typical applications include solar trackers and crane turntables, where high torque and heavy load capacity are required.

Core Features of Slew Drive

Full-function integration: A single module provides speed reduction, load bearing, and rotation control, eliminating the need for external bearings.

Ultra-high load capacity: The integrated slewing bearing can withstand >5000kN·m overturning moment.

Precise positioning: The worm gear structure achieves ≤0.1° repeat positioning accuracy (self-locking type).

Harsh environment resistance: IP66 protection and lifelong lubrication design adapt to outdoor working conditions.

Quick installation: Pre-assembled modules reduce equipment integration complexity and man-hours.

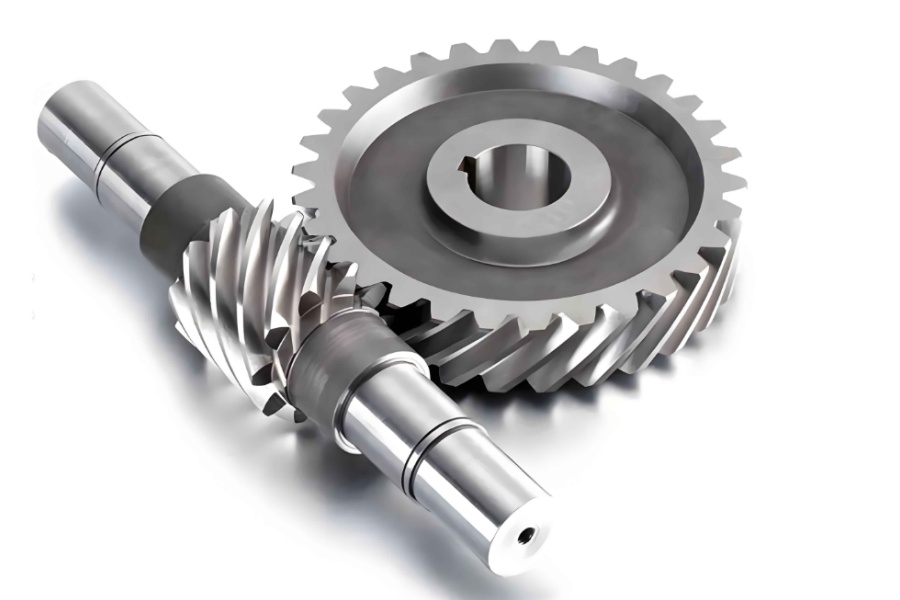

What is Worm Gear?

A Worm Gear is a basic speed reduction transmission pair, composed of a worm (driver) and a worm wheel (driven part). It uses 90° staggered-axis transmission to achieve high reduction ratios (typically 10:1~100:1) and transmits power through sliding friction. Its core value lies in simple structure, low cost, and reliable self-locking, making it common in light to medium-load scenarios such as conveyors and small turntables.

Core Features of Worm Gear

High reduction ratio: Single-stage transmission can achieve 100:1 reduction, saving space.

Reverse self-locking: Natural self-locking when the lead angle <5°, no need for additional brakes.

Low cost: The manufacturing cost of cast worm wheels + steel worms is 40% lower than that of gear systems.

Compact layout: Right-angle input and output simplify mechanical structure design.

Noise control: Sliding friction transmission results in noise ≤65dB(A).

Slew Drive vs Worm Gear: Core Difference Comparison

Parameter	Slew Drive	Worm Gear
System positioning	Integrated drive unit (including bearings, gears, seals)	Basic speed reduction component
Load capacity	Ultra-high (overturning moment >2000kN·m)	Medium-low (torque usually <500Nm)
Precision grade	≤±0.1° (precision ground teeth)	≤±0.5° (greatly affected by backlash)
Environmental adaptability	IP66 protection, -40℃~120℃ wide temperature range	Requires additional protective covers, suitable for -20℃~80℃
Installation complexity	Ready-to-use, reducing 80% of assembly processes	Requires independent design of bearing seats and sealing systems
Service life	>50,000 hours (lifelong lubrication)	20,000 hours (regular grease replacement required)
Cost structure	High unit price ($1,000~$20,000)	Low unit price ($50~$500)

Guide to Typical Application Scenarios

Choose Slew Drive when:

Directly bearing overturning moment is required (e.g., solar tracker bases).

High-precision positioning is needed (e.g., radar antennas/medical equipment turntables).

Space is limited and high integration is required (e.g., excavator slewing platforms).

Long-term operation in harsh outdoor environments is necessary (e.g., wind turbine pitch systems).

Choose Worm Gear when:

Light-load and low-speed transmission is needed (e.g., small conveyors/rotary display stands).

Budget sensitivity is a priority (e.g., material handling carts).

Simple self-locking function is required (e.g., door and window opening/closing mechanisms).

Maintenance convenience is prioritized (e.g., food processing equipment).

Performance Upgrade Solution: Worm Gear in Slew Drive

High-end Slew Drives adopt precision worm gears as the core transmission pair, breaking through traditional limitations with three technologies:

Material upgrade: Worms are made of 20CrMnTi with carburizing and quenching (HRC60); worm wheels use centrifugally cast ZCuSn10P1.

Precision control: Worm grinding accuracy reaches grade 5, with tooth surface roughness Ra0.4μm.

Lubrication optimization: Synthetic oil + polymer additives reduce the friction coefficient to 0.03.

Cost-Effectiveness Decision Model

Item	Slew Drive Advantage Scenarios	Worm Gear Advantage Scenarios
Total cost of ownership	Heavy-load equipment (reducing maintenance downtime losses)	Light-load equipment (40% initial investment savings)
System complexity	Space-constrained/high integration requirements	Simple transmission chain design
Life cycle value	Critical equipment with >10-year service life	Consumable equipment with <5-year service life

Professional Solution Providers

LYRA Drive offers both types of product technologies:

High-performance Slew Drive:
Torque range: 500Nm~500kNm
Optional precision worm gear or planetary gear structure
IP68 protection/-40℃ cold-resistant type

Custom Worm Gear:
Module: 1~20mm; reduction ratio: 10:1~100:1
Nickel-phosphorus plated worms extend wear life by 3 times
