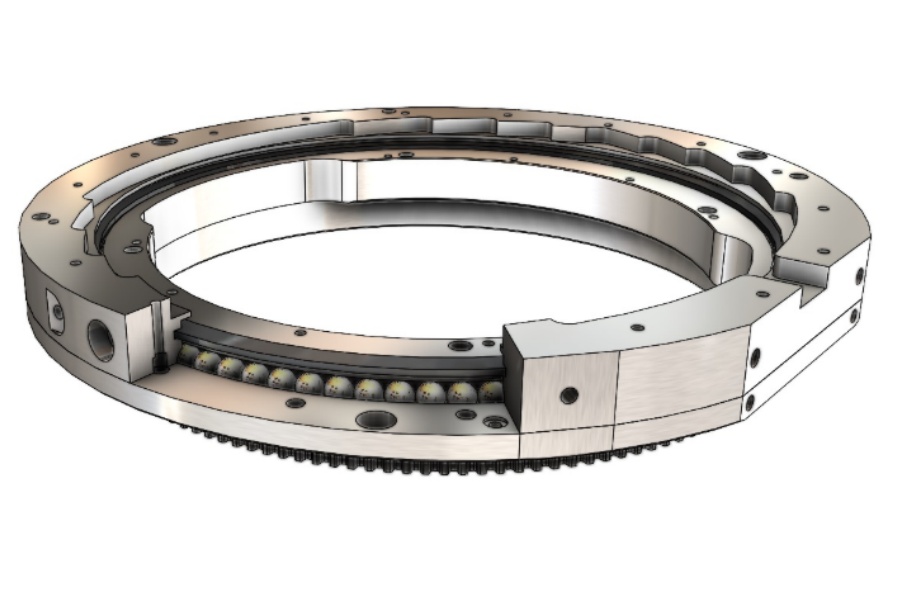

What is a Slewing Bearing?

A slewing bearing is a special type of bearing with three-dimensional composite load-bearing capacity, breaking through the mechanical limitations of traditional bearings:

Structural Features: Thin-walled annular design (wall thickness is only 1.5%-3% of the diameter), integrating raceways, gears, seals, and lubrication channels.

Mechanical Performance: Simultaneously bears axial force (e.g., the self-weight of a crane) + radial force (swinging load of the suspended object) + overturning moment (lateral thrust from strong winds).

Technical Benchmark: A 5MW wind turbine bearing can bear a moment exceeding 15,000kN·m, equivalent to 300 SUVs suspended at a single point.

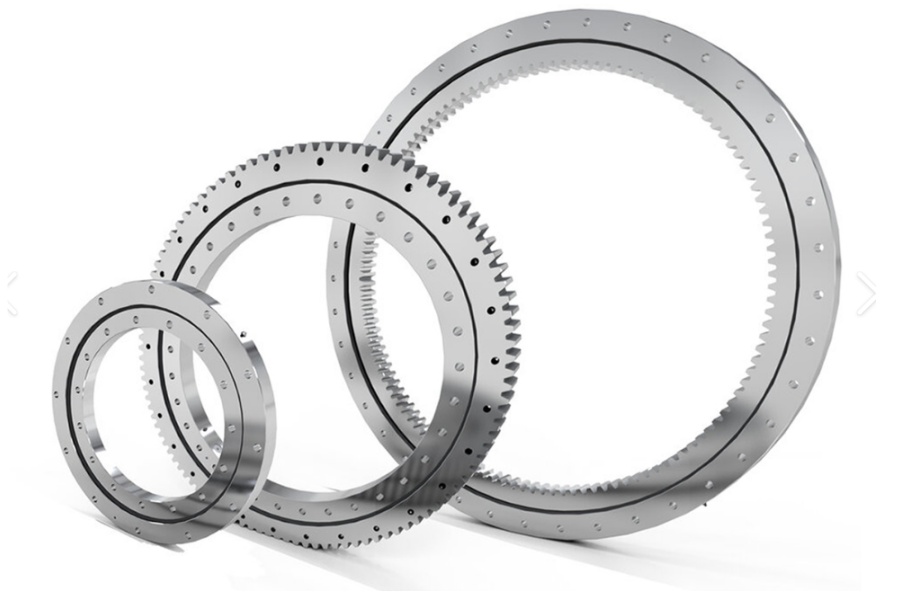

Advanced Form: Slewing Ring Bearing

The slewing ring bearing is an upgraded mechatronic solution, with core advantages including:

Gear Integration: Precision gear rings (module 12-24mm) are directly machined on the inner and outer rings, with tooth profile accuracy reaching AGMA 10.

Drive Revolution: Eliminates traditional reduction mechanisms, with the motor directly driving the gear ring (saving 40% of transmission space for port shore bridges).

Dynamic Response: Hundred-ton-level container spreaders can achieve ±5mm positioning accuracy.

Scientific Replacement Operation Process

Replacing a slewing bearing must follow aviation-level precision standards:

Base Surface Inspection

Laser interferometer scans the mounting plane (flatness ≤0.05mm/m)

Rusty substrates are treated with sandblasting (Sa2.5 level cleanliness)

Thermal Disassembly Process

Uniform heating to 80℃±3℃ (temperature gradient difference <5℃/m)

Hydraulic jacking system applies force synchronously (pressure fluctuation <5%)

Precision Installation

Bolts are pre-tightened in three stages (30%-70%-120% of the design torque)

Loading in diagonal order, with torque error ≤±3%

Running-in Verification

72-hour no-load operation, with vibration velocity ≤2.8mm/s (ISO 10816 Class B)

Professional Maintenance Decision Tree

Economical maintenance must meet the double 80 principle: cost <40% of a new part & remaining service life >50% of the design value.



Damage Type	Repair Technology	Performance Recovery Rate
Raceway spalling	Laser cladding + ultra-precision grinding	98%
Gear ring tooth breakage	Cold welding reconstruction + CNC gear grinding	95%
Seal failure	Triple lip seal upgrade	100%



Early Warning Mechanism: Immediate shutdown for maintenance is required if the vibration value increases by 15% suddenly or the temperature gradient exceeds 10℃.

Six Irreplaceable Core Characteristics

Composite Load-bearing Limit: The three-row roller structure can bear an overturning moment of up to 30,000kN·m (shield machine main bearing).

Micro-radian Level Precision: The rotation fluctuation of medical CT bearings is <0.001°, ensuring 0.25mm slice thickness scanning.

Extreme Environment Endurance: Marine-type bearings pass a 2000-hour salt spray test (ISO 9227 standard).

Intelligent Operation and Maintenance Interface: Built-in temperature/vibration/fluid sensors, with a data refresh rate of 100Hz.

Energy Efficiency Optimization Design: Ultra-precision raceways reduce friction torque by 35% (annual electricity savings exceed $20,000 for 10MW wind turbines).

Modular Architecture: Supports quick switching of 8 structures (only the core module needs to be replaced from single-row ball to crossed roller).

Global Core Application Scenarios

Wind Power Field: Yaw bearings resist level 17 typhoons, and pitch bearings achieve ±0.1° blade angle adjustment.

Engineering Machinery: The main bearing of shield machines bears 20,000kN axial thrust in mud.

Port Automation: Shore bridge bearings have a positioning accuracy of ±3mm/100m span.

Hydrogen Energy Equipment: The electrolyzer rotating seal withstands a 30MPa hydrogen embrittlement environment.

Military Technology: Radar bearings have a pointing accuracy of 0.001 radians.

In-depth Decoding of Price-influencing Factors

Material Cost (45% of the total): High-end 42CrMo4V vacuum degassed steel: $2,500/ton vs. ordinary 50Mn: $1,100/ton.

Precision Premium: ISO P2 grade (3μm) is 40% more expensive than P6 grade (15μm).

Special Process Surcharge: -60℃ deep cold treatment: +15%; 2000-hour salt spray certification: +20%.

Emergency Delivery Cost: An 8-week delivery period is 25% higher than the conventional 16-week period.

Bulk Discount Mechanism: Orders of >50 sets enjoy a 5% discount, with an additional 3% discount for every 50 more sets (capped at 20%).
