What is a Slew Drive

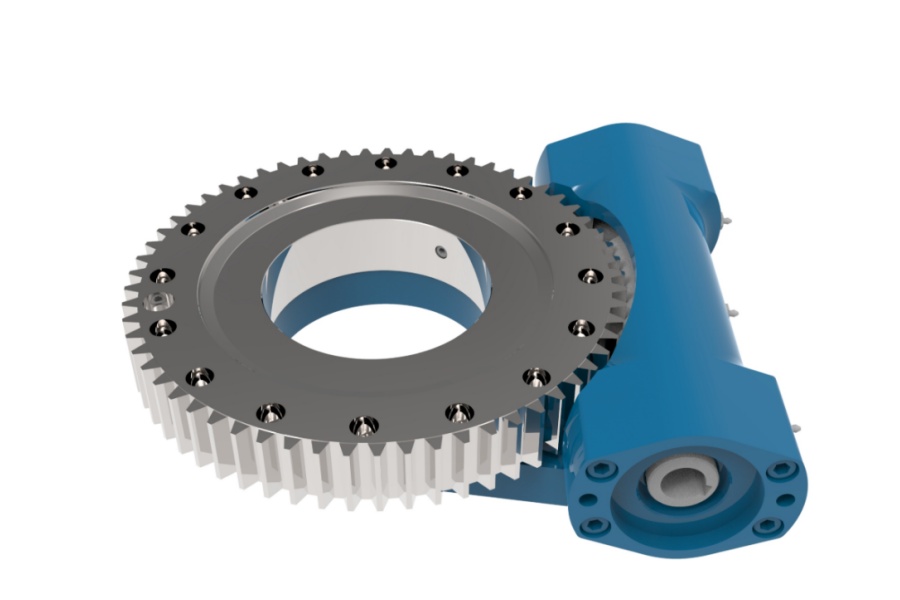

Slew Drive integrates a slewing bearing with precision gearing within a single housing to convert high-speed motor input into controlled rotational movement. This compact system simultaneously manages axial, radial, and moment loads while enabling 360-degree positioning of heavy equipment. Engineered for solar trackers, cranes, and robotic systems, its unified design eliminates separate drive components through direct torque transmission.

Critical Maintenance Procedures

Rotational Backlash Inspection

Measurement Protocol:

Disconnect power source and manually rotate input shaft

Measure angular displacement at output ring using dial indicator

Record deviation from zero-load reference position

Tolerance Thresholds:

Acceptable: <12° rotation (0.3mm linear equivalent)

Warning: 12-15° - Increase inspection to 200-hour intervals

Critical: >15° - Reduce checks to 50-100 hours; replace if exceeding 20°

Schedule: Baseline at 700 hours/6 months; adjust per wear progression

Mounting Bolt Integrity Verification

Torque Validation:

Re-tension to manufacturer's specification (typically 80-120% initial torque)

Use calibrated torque wrench in star-pattern sequence

Replacement Criteria:

Replace entire bolt set if any single fastener shows:

Corrosion pitting exceeding 10% surface area

Thread deformation or necking

Permanent elongation >0.1%

Vibration Monitoring: Install accelerometers on high-vibration equipment to detect pre-failure loosening

Tilt Clearance Assessment

Metrology Procedure

Establish reference points on housing/rotating ring

Measure vertical displacement at 90° intervals under maximum load

Calculate differential from baseline installation values

Degradation Limits:

Stage 1: 0.05-0.15mm deviation - Double inspection frequency

Stage 2: 0.15-0.20mm - Weekly monitoring required

Stage 3: >0.20mm - Immediate replacement mandated

Failure Prevention: Implement laser alignment checks during scheduled downtime

Precision Lubrication Management

Greasing Specifications:

Component	Grease Type	Quantity	Frequency
Worm Gear	Lithium Complex	100-150g	300hrs/6 months
Slewing Bearing	EP2 Synthetic	150-200g	300hrs/6 months
Pinion Bearings	Polyurea Thickener	20-40g	Quarterly



Purge Methodology:

Rotate drive at 10% operational speed during greasing

Inject until fresh grease purges from all seal interfaces

Wipe excess immediately to prevent contamination

Seal Integrity Evaluation

Inspection Checklist:

Lip elasticity testing (Shore A 70-90)

Surface cracking >0.5mm depth = replacement

Debris embedded in sealing edge

Hydrophobic coating degradation

Preventive Measures:

Install multi-stage labyrinth seals in dusty environments

Apply UV-resistant silicone protectant quarterly

Maintain positive pressure in housing (0.2-0.5 bar)

Operational Characteristics

Thermal Tolerance: -40°C to +120°C continuous operation

IP Protection: Standard IP65; optional IP69K washdown rating

Fatigue Life: 100,000+ cycles at 110% rated load

Positional Accuracy: ±0.05° with absolute encoders

Overload Capacity: 300% static; 180% dynamic

Industrial Applications

Solar Energy: Dual-axis trackers (15-year design life)

Construction: Tower crane slewing rings (SWL 50-200t)

Material Handling: Automated warehouse turntables (24/7 operation)

Wind Power: Offshore turbine yaw systems (ISO 61400 certification)

Robotics: Foundry manipulators (200°C ambient tolerance)

Mining: Tunnel boring machine articulation (IP68 sealing)

Cost Determinants

Maintenance Requirements:

Automated lubrication systems add 15-22%

Corrosion-resistant materials increase cost 25-40%

Durability Features:

Hardened raceways (HRC 58-62): +18-30%

Ceramic seals: +12-20%

Precision Components:

Ground gears (DIN 5): +30-45%

Preloaded bearings: +15-25%

Environmental Certification:

ATEX compliance: +20-35%

DNV-GL marine approval: +25-40%

Monitoring Systems:

Integrated vibration sensors: +$350-600/unit

Temperature monitoring: +$200-400/unit

Supplier of Slew Drive
LYRADRIVE engineers maintenance-optimized slew drives featuring SMARTLUBE™ automatic greasing and surface treatment technology. Their proprietary Condition Monitoring System (CMS) provides real-time backlash measurement and thermal analytics through integrated sensors. With ISO 18436 vibration analysis certification and 10,000-hour accelerated life testing protocols, LYRADRIVE delivers certified maintenance schedules tailored to specific operating environments. Global service centers offer predictive maintenance programs using proprietary diagnostic tools, reducing downtime by 40% in solar farm and port machinery applications.
