Revealing Truck Crane Slewing Support: The Ultimate Guide to Core Power

Revealing Truck Crane Slewing Support: The Ultimate Guide to Core Power

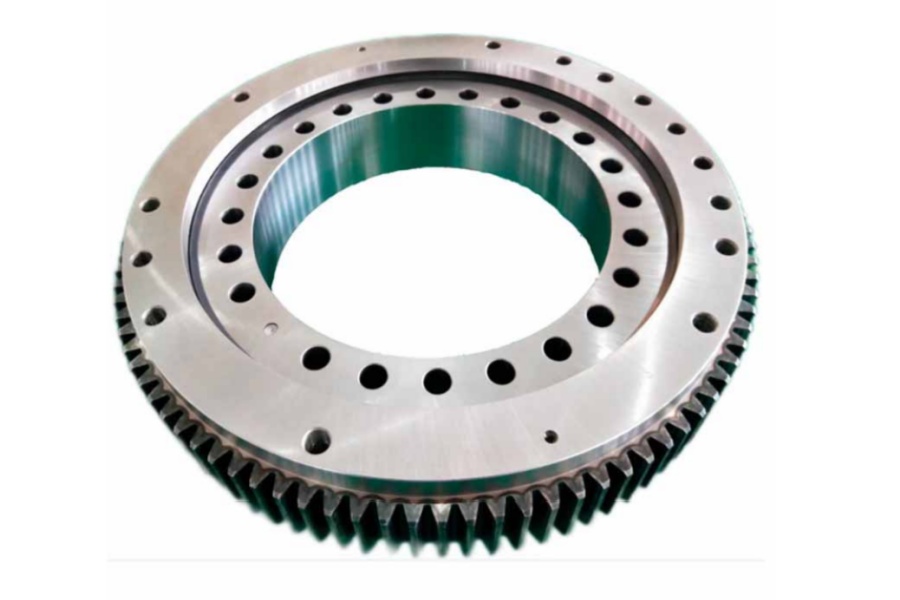

What is a Truck Crane Slewing Bearing?

The truck crane slewing bearing, also known as a slewing ring, is far from an ordinary bearing. It is a structurally complex, high performance larges cale rolling bearing assembly. Its core function is to enable the crane’s upper structure (including the boom, cab, counterweight, etc.) to achieve smooth, seamless, precise, and load bearing 360° continuous rotation relative to the lower chassis (the truck section). Typically positioned beneath the crane’s turntable, it serves as the central hub connecting the rotating upper platform to the fixed lower chassis. Unlike conventional bearings that transmit only radial or axial forces, slewing bearings must simultaneously withstand enormous overturning moments, axial forces, radial forces, and high rotational torque generated during lifting operations. It acts as the crane’s "backbone," linking and supporting the entire structure.

Crane Slewing Bearing: The Core Role

The slewing bearing is an indispensable component in all rotating cranes (including crawler cranes, tower cranes, and truck mounted cranes). Its design and performance directly impact the crane’s:

Load capacity: Determines the crane’s maximum lifting capacity and working radius.

Operational stability: Affects boom rotation smoothness, micro motion precision, and positioning accuracy.

Structural rigidity and stability: A key element in resisting load sway and tipping.

Equipment lifespan and reliability: Failure often leads to costly downtime and repairs.

Common types include:

Single row ball type (compact, cost effective, widely used).

Cross roller type (high load capacity, superior resistance to overturning moments, high precision).

Three row roller type (ideal for ultra heavy duty cranes, offering maximum load capacity).

Raceways are typically hardened (e.g., via induction hardening) to ensure high wear resistance and longevity.

Slewing Bearing Problems: Beware of Common "Killers"

Even robust slewing bearings can fail under harsh conditions or misuse. Early warning signs include:

Abnormal noise/vibration: Grinding, humming, or irregular knocking during rotation, often signaling raceway/rolling element damage or excessive clearance.

Rotation jamming/stiffness: Heavy rotation feel or resistance points caused by lubrication failure, contamination, or internal damage.

Excessive clearance (play): Noticeable wobble or impact sounds when rotating the unloaded turntable, indicating severe wear or preload loss.

Seal failure/leakage: Aged or damaged seals allowing grease leakage and contaminant ingress, accelerating wear.

Raceway/rolling element damage: Irreversible issues like pitting, spalling, dents, or fractures that compromise load capacity.

Bolt loosening/fracture: Insufficient preload, fatigue, or corrosion leading to bolt failure—potentially catastrophic.

Corrosion: Rust on raceways, gear rings, or bearing bodies due to moisture, salt, or chemicals, weakening structural integrity.

Slewing Bearing Maintenance: Golden Rules for Longevity

Proactive maintenance ensures reliability and prevents downtime:

Regular, correct lubrication:

Grease: Use manufacturer specified, high performance, extreme pressure grease.

Frequency: Adhere to manual guidelines (typically every 100–200 operating hours). Shorten intervals in extreme conditions.

Method: Lubricate via all fittings until fresh grease purges contaminants from seals. Avoid over lubrication.

Seal inspection/maintenance: Check seals for damage, clean grooves, and replace failed seals immediately.

Bolt preload checks: Retighten bolts using a torque wrench or hydraulic tensioner during initial use (after 50/100 hours) and periodically thereafter.

Regular cleaning: Remove debris from exposed areas (especially around gear rings/seals).

Condition monitoring: Log anomalies (noise, vibration, leaks); conduct professional assessments (e.g., vibration analysis).

Corrosion protection: Apply an trust coatings to nonworking surfaces in corrosive environments.

Truck Crane Slewing Bearing Applications: The Ubiquitous Power Hub

Truck cranes leverage mobility for critical roles, with slewing bearings at their core:

Construction: Lifting steel, prefab components, and equipment—the "muscle" behind skyscrapers.

Infrastructure: Bridge/utility tunnel construction; railway maintenance—supporting urban "skeletons."

Logistics: Efficient container/goods handling in ports/warehouses—ensuring supply chain "flow."

Energy: Power plant maintenance; wind turbine installation—powering the future.

Emergency rescue: Clearing obstacles/delivering supplies in disasters—the "first responder."

Municipal work: Installing billboards/streetlights; tree trimming—safeguarding urban "details."

Truck Crane Slewing Bearing Features: Engineered for Harsh Conditions

Key design attributes include:

High load/an titip capacity: Withstands massive forces via optimized raceways and roller layouts (cross/three row rollers).

Compact/lightweight: Minimal height/weight maximizes strength within truck chassis limits.

Precision/smoothness: Ensures stable, jamming free rotation for accurate lifts.

Superior sealing: Multi layer seals (e.g., lip + labyrinth) block dust/mud in outdoor environments.

Integrated gear ring: Internal/external gearing enables compact power transmission.

High reliability/long life: Premium materials (e.g., 42CrMo steel) and heat treatment (induction hardening) ensure fatigue resistance.

Robust mounting: High strength bolt holes secure connections to turntable/chassis.

What Affects Truck Crane Slewing Bearing Prices?

Key pricing factors:

Size/load capacity: Larger, higher capacity bearings cost more.

Structure type: Single row ball (cheapest) → cross roller (mid) → three row roller (most expensive).

Material/heat treatment: Alloy steel (e.g., 42CrMo) and advanced hardening increase cost but enhance durability.

Precision grade: Tighter tolerances (raceway/gear) raise machining/inspection costs.

Gearing: Integrated gear rings, hardened teeth, and precision affect pricing.

Seals: Multi layer/special material seals add cost but improve protection.

Customization: Nonstandard sizes/coatings increase R&D/production expenses.

Brand/origin: Premium brands (e.g., Rothe Erde) command higher prices.

Volume/supply chain: Bulk orders may reduce costs; raw material fluctuations impact pricing.

Invest in the Core, Command the Future

The slewing bearing—a precision "joint" within the crane—is vital for power transfer and control. Understanding its mechanics, recognizing faults, and implementing rigorous maintenance are essential for safe, efficient, long term operation. When selecting, prioritize load requirements, operating conditions, budget, and supplier expertise over low cost alone. A reliable slewing bearing carries not just the boom’s weight, but the success and safety of every lift—securing your equipment’s productivity and longevity.
