LyraDrive Worm Slew Drives Shipped to the US for Utility Fleet Integration

LyraDrive Worm Slew Drives Shipped to the US for Utility Fleet Integration

In the early quarter of 2026, LyraDrive, the professional slew drive manufacturers in China, successfully fulfilled and dispatched a critical, high-volume order of our premium SEA7-71-121085 Enclosed Single Worm Slew Drives to a municipal and industrial utility vehicle OEM located in the Southwestern United States.This custom-configured batch of rotary systems successfully completed our strict factory inspections and was shipped across the ocean to the client’s manufacturing facilities.

The products exported by our company in this batch were primarily utilized for the basket rotation mechanisms of aerial work platforms (AWPs) and the heavy-duty articulation systems of municipal street sweepers. In both sectors, equipment safety, sustained accuracy under heavy structural loads, and long-term durability were paramount. This successful international delivery marked another major milestone for LyraDrive, showcasing our capability to meet the strict quality, regulatory, and logistical standards required by the competitive North American heavy machinery market.

Worm Gear Slew Drive SEA7-71-121085: Technical Performance and Advantages

When purchasing rotational components for American utility fleets, engineering teams always plan for unforgiving outdoor environments and zero-tolerance safety regulations. The LyraDrive worm gear slew drive, model SEA7-71-121085, was selected over competing alternatives because its advanced structural architecture directly solved the critical operational pain points of these twin applications.

Exceptional Rotation Accuracy (0.05° - 0.17°)

Engineering safety in aerial lift platforms relies heavily on precision positioning. For an operator working in an aerial lift basket at extended heights, any micro-movement or mechanical play at the base of the boom is magnified exponentially, creating a dangerous "wobbling" effect. The LyraDrive SEA7 series eliminated this hazard by guaranteeing a fine-tuned angular backlash range between 0.05° and 0.17°. This minimal tolerance ensured that when the operator stopped the rotation, the basket locked instantly and smoothly into position with zero perceptible drift or secondary oscillation, fully satisfying strict North American safety mandates.

Enclosed Single Worm Gearing Mechanics

The core mechanism of this model relied on an enclosed single hourglass worm configuration. Unlike standard cylindrical worms, an hourglass worm is mathematically curved to wrap around the contour of the slewing ring's teeth. This significantly increased multi-tooth engagement, which yielded two distinct advantages:

High Static Holding Torque: Multi-tooth contact distributed immense tilting moments and radial loads evenly, preventing the drive from back-driving under heavy winds or unbalanced platform loads.

Inherent Self-Locking Safety: The single-worm geometry provided an essential mechanical self-locking feature. In the event of an unexpected loss of power on the job site, the system naturally locked itself, preventing runaway rotation and protecting human life.

Rugged Dual-Tone Housing & Total Sealing

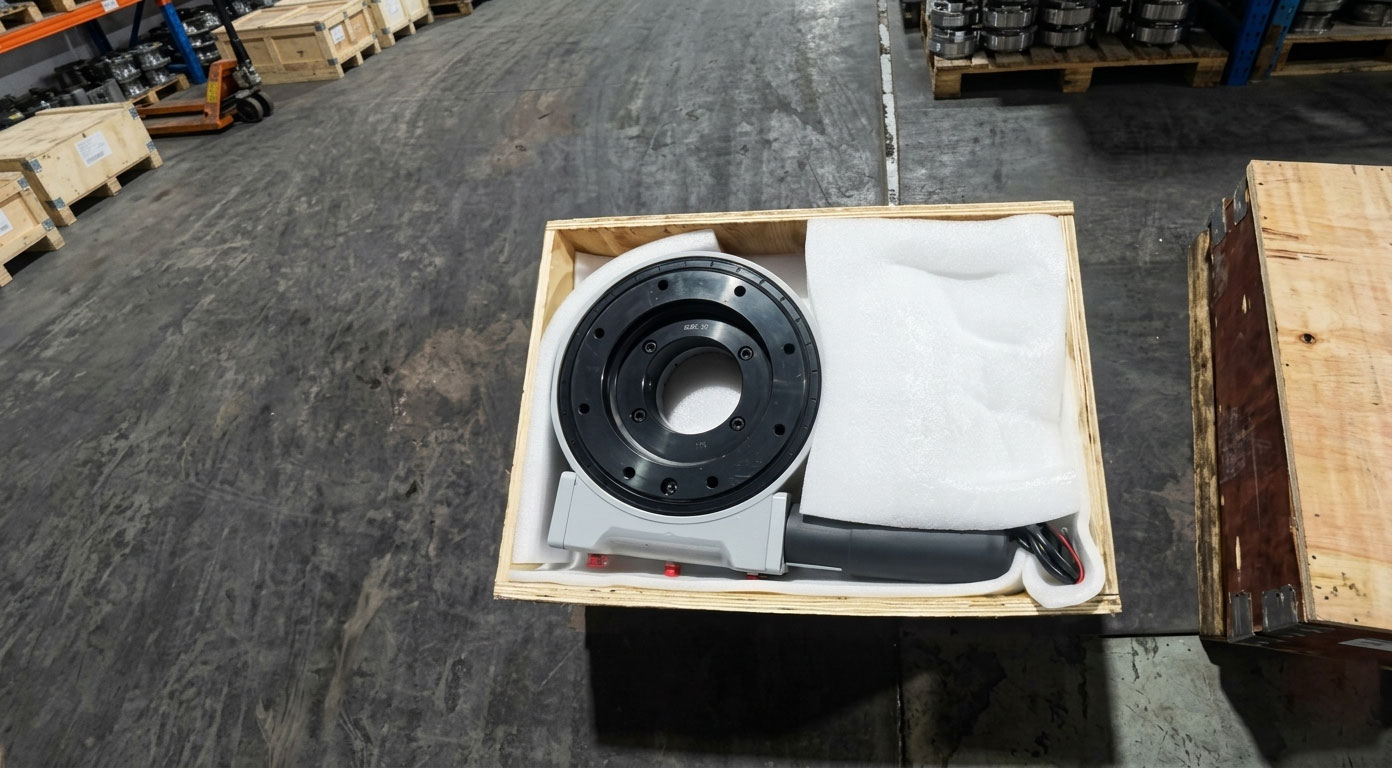

As demonstrated in our actual product dispatch photos, the unit featured a rugged, dual-tone industrial design—combining a specialized matte black slewing ring with a protective light gray coated housing. Because industrial street sweepers operate entirely within a cloud of abrasive dust, pulverized asphalt, road debris, and moisture, protection was critical. The SEA7-71-121085 featured a completely enclosed housing fitted with advanced lip seals, achieving an IP65+ equivalent protection rating. This barrier effectively blocked out environmental contaminants and pressurized water washdowns, ensuring the internal grease remained pure and preventing premature gear wear.

Turnkey Motor Integration and Application Versatility

To minimize the client's factory installation times, LyraDrive delivered a true "plug-and-play" system. Each slew drive came factory-integrated and perfectly aligned with a heavy-duty drive motor featuring pre-wired connectors. This turnkey assembly eliminated potential alignment errors on the client's assembly line and reduced their production overhead. Furthermore, the universal input flange design meant the identical drive housing could easily adapt to high-pressure hydraulic motors, precision servo motors, or custom rotational encoders. This versatility made the SEA7-71-121085 an ideal component for a wide array of alternative industries, including welding positioners, automated industrial rotary platforms, and marine truck-mounted cranes.

Export-Grade Logistics Protection

International maritime transit presents severe risks of moisture corrosion and rough handling. To ensure these precision components arrived in flawless condition, LyraDrive secured each integrated system using custom-molded, high-density Expanded Polyethylene (EPE) foam lining that dampens impact shocks. The entire batch was enclosed in heavy-duty, ISPM-15 compliant (fumigation-free) engineered wooden crates, guaranteeing a solid defensive barrier against external punctures and tropical moisture during sea transport.

Ultimately, this successful export project reaffirmed LyraDrive's position as a reliable international supplier. By combining advanced single-worm mechanics with robust sealing and turnkey integration, we delivered an optimal motion control solution that successfully addressed the client's strict safety and durability needs, reinforcing the core value and market advantages of LyraDrive’s specialized engineering solutions.

LyraDrive: Custom Slew Drives and Rotary Application Partner

LyraDrive is a professional manufacturer delivering customizable, high-quality, and competitively priced slew drives and slewing bearings tailored to your exact needs. We offer full-scope customized solutions to match your unique application requirements, whether you need standard models or specialized configurations like the SE series slew drives.
Featuring worm slew drives, spur gear slew drives, and worm gear drives, our catalog provides comprehensive solutions for steering, turning, and swiveling applications. Partner with LyraDrive to give your products a decisive competitive edge.

Still looking for professional slew drive solutions? Simply submit your requirements via email, and our engineering team will provide a customized design along with 3D files.
