Lightweight Slewing Ring Gear Drive SP-I 0841 Precision Power for Demanding Applications

Lightweight Slewing Ring Gear Drive SP-I 0841 Precision Power for Demanding Applications

What is Lightweight Slewing Ring Gear Drive SP-I 0841

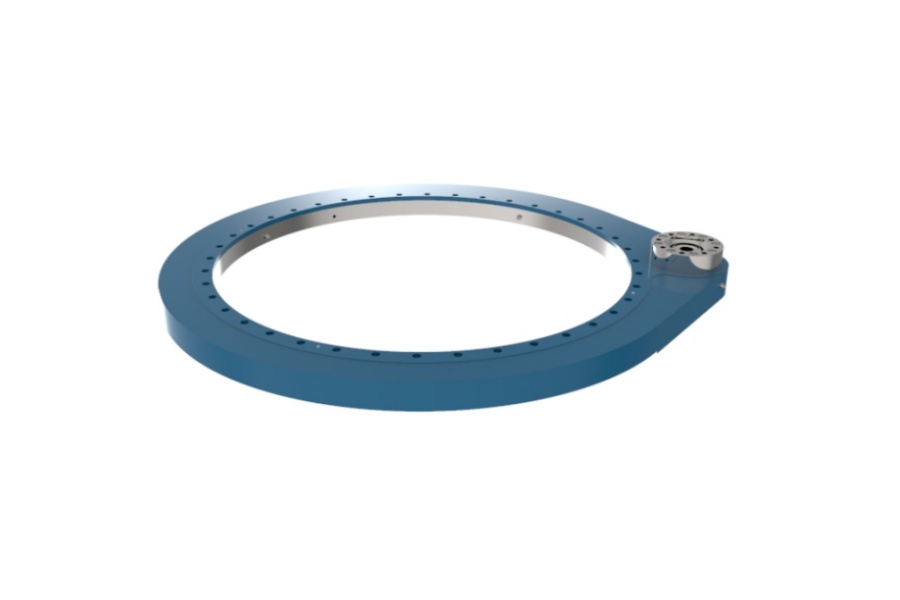

Lightweight Slewing Ring Gear Drive SP-I 0841 represents an advanced class of slewing drives, integrating a precision gear set directly with a robust slewing ring bearing into a single, compact unit. This specific model (SP-I 0841) features a spur gear design. Engineered as a highly efficient gear reduction transmission device, it is purpose-built for industrial machinery automation requiring rotational movement. The core of the SP-I 0841 is its slewing ring bearing, meticulously designed to handle the combined demands of speed and substantial loads, ensuring stable operation even under challenging conditions. The unit incorporates multiple gears – a small pinion gear meshing with a large internal gear ring – housed within a rigid structure. Precision machining and careful assembly, facilitated by a stable base, guarantee optimal positioning and overall product stability. This integrated approach achieves efficient speed reduction and torque multiplication while significantly simplifying mechanical design and easing installation complexities compared to traditional separate bearing and drive train components.

Force Analysis in Spur Gear Slewing Drives During Operation

Understanding the complex forces acting on a spur gear slewing drive like the SP-I 0841 is crucial for design validation and application suitability. During operation, several key loads interact:

Tangential Force (Ft): This is the primary driving force transmitted between the meshing teeth of the pinion and the ring gear, directly generating the output torque. It acts tangentially to the pitch circle of the gears. The maximum torque values (Md max = 8350 N.m, Md nom = 6020 N.m) are direct results of the tangential force the gear teeth and bearings must sustain.

Radial Force (Fr): Resulting from the spur gear meshing geometry (pressure angle), this force acts perpendicular to the axis of rotation, pushing the gears apart radially. It imposes significant radial loads on the slewing ring bearing and the supporting structures. The SP-I 0841's rated radial static load (Co rad = 540 kN) and radial dynamic load (Crad = 240 kN) define its capacity to handle these forces without excessive deformation or premature fatigue failure.

Axial Force (Fa): While inherently lower in pure spur gears compared to helical gears, axial forces can still arise due to minor misalignments, manufacturing tolerances, or external loads acting parallel to the rotation axis. The slewing ring bearing is specifically designed to handle substantial axial loads, as evidenced by the SP-I 0841's high axial static load rating (Co ax = 1450 kN) and axial dynamic load rating (Cax = 280 kN).

Overturning Moment (Mx, My): External loads applied off-center from the drive's rotational axis create overturning moments. These moments combine radial and axial force components and are critical for bearing selection and structural design. The drive's housing and integrated bearing must resist these moments effectively to maintain precision and prevent binding.

Centrifugal Forces: At higher rotational speeds, centrifugal forces acting on the rotating components (primarily the pinion gear) become more significant, adding to the radial load on bearings.

The integrated slewing ring bearing within the SP-I 0841 is engineered to manage these combined forces – radial, axial, and moment loads – simultaneously, ensuring smooth operation, high rigidity, and long service life under the specified operating conditions.

Key Features of Lightweight Slewing Ring Gear Drive SP-I 0841

The SP-I 0841 distinguishes itself through a combination of robust engineering and user-focused design:

High Torque Capacity: Delivers substantial rotational force with a maximum drive torque (Md max) of 8350 N.m and a maximum holding torque (Mh) of 8350 N.m, suitable for demanding positioning and load-holding tasks.

Exceptional Load Ratings: Engineered to withstand significant forces, featuring high radial static (Co rad = 540 kN) and axial static (Co ax = 1450 kN) load capacities, along with robust dynamic load ratings (Crad = 240 kN, Cax = 280 kN).

Optimized Spur Gear Design: Utilizes a spur gear configuration (Module M=4mm) with a 15-tooth pinion (Z1) meshing with a 231-tooth internal ring gear (Z2), achieving a substantial gear reduction ratio (i=15.4) for effective torque multiplication and speed control.

Integrated and Unitized Construction: Solves the critical challenge of pinion-to-ring-gear backlash by providing a pre-engineered, precision-matched set within a single housing. This eliminates complex alignment procedures inherent in traditional separate bearing and gear setups.

Enhanced Sealing and Protection: Employs a full-seal design, encapsulating the critical rotating components (gears, bearing raceways) within a sealed cavity. This achieves a high protection rating of IP65, effectively guarding against dust ingress and water jets, significantly enhancing reliability in harsh environments.

Reduced Maintenance Needs: The unitized design and superior sealing drastically extend maintenance intervals and lower lifetime maintenance costs compared to exposed bearing and gear systems.

High-Speed Capability: Supports operational speeds up to 20 revolutions per minute, meeting the requirements of many high-cycle industrial automation applications.

Power Source Flexibility: Designed for easy integration with various prime movers, including electric motors or hydraulic motors, offering application versatility.

Simplified Installation: The compact, pre-assembled unit drastically reduces installation complexity and time compared to sourcing and assembling multiple individual components (bearing, gears, seals, housing).

Applications of Lightweight Slewing Ring Gear Drive SP-I 0841

The combination of high torque, load capacity, precision, robustness, and ease of installation makes the SP-I 0841 ideal for a diverse range of industrial sectors:

Construction Machinery: Excavator attachments (tilting hitches, rotators), crane jib rotation, compact loader attachments, concrete pump line rotation.

Material Handling: Robotic welding positioners, automated palletizing/de-palletizing systems, indexing tables, conveyor turntables, heavy-duty industrial manipulators.

Renewable Energy: Solar tracker azimuth drives (particularly in harsh environments demanding high reliability and sealing), component positioning within wind turbine nacelles.

Forestry Equipment: Harvester head rotation, forwarder crane rotation, delimber positioning units.

Agricultural Machinery: Large sprayer boom rotation, precision planting equipment positioning, automated feeding system rotation.

Mining Equipment: Screening plant components, conveyor positioning units, drill positioning mechanisms.

Automation & Robotics: Precision rotary stages, automated assembly line positioning, heavy-duty robot base rotation.

Heavy Transport Systems: Platform rotation for specialized transporters, heavy-duty turntables.

Packaging Machinery: Indexing and rotating heavy loads within packaging lines.

Essentially, any application requiring robust, reliable, and precise rotational motion under significant load, especially where space optimization, simplified installation, and environmental protection are priorities, benefits from the SP-I 0841 slewing drive.

Factors Influencing the Price of Lightweight Slewing Ring Gear Drive SP-I 0841

The cost of an SP-I 0841 slewing drive is influenced by several key factors:

Raw Material Costs: Fluctuations in the prices of high-grade alloy steels used for gears, rings, and rolling elements directly impact manufacturing costs. Special coatings or heat treatments add further expense.

Manufacturing Complexity: Precision machining of large ring gears and hardened components, meticulous grinding of raceways and gear teeth, and the assembly of high-precision bearings require sophisticated equipment and skilled labor, contributing significantly to the price.

Quality of Components: The grade of bearing steel, the precision class of gears (e.g., AGMA or DIN standards), the quality and durability of seals, and the specifications for rolling elements (balls or rollers) all affect cost. Higher precision and durability command higher prices.

Scale of Production: Unit cost typically decreases with larger order quantities due to economies of scale in material purchasing, machine setup, and production efficiency.

Customization: While the SP-I 0841 is a standard model, any modifications (special flanges, shaft outputs, custom seals, specific grease, special surface treatments) will increase the price compared to the base configuration.

Supplier Overhead and Expertise: The engineering support, quality control systems, testing protocols, and after-sales service offered by the manufacturer contribute to the overall value proposition and cost structure.

Market Demand and Competition: General industrial demand and the competitive landscape among slewing drive manufacturers can influence pricing strategies.

Logistics: The size and weight (96 kg) of the unit impact shipping costs, especially for international orders.

Supplier of Lightweight Slewing Ring Gear Drive SP-I 0841

LYRADRIVE is a recognized supplier of high-performance motion solutions, specializing in slewing ring bearings and integrated slewing drives like the SP-I 0841. They leverage expertise in precision engineering and manufacturing to deliver robust, reliable components designed for demanding industrial environments. LYRADRIVE emphasizes product quality, technical support, and providing solutions that enhance machinery performance and durability. Their SP series, including the SP-I 0841, is noted for its integrated design, solving backlash and sealing challenges inherent in traditional setups, and offers direct interchangeability with established models like the IMO SP-I 0841, facilitating easier upgrades or replacements. For detailed specifications, technical consultation, or purchasing inquiries regarding the Lightweight Slewing Ring Gear Drive SP-I 0841, LYRADRIVE serves as a capable source.
