Lightweight Gear Slewing Drive SP-I 0641 Enhancing Precision Rotation

Lightweight Gear Slewing Drive SP-I 0641 Enhancing Precision Rotation

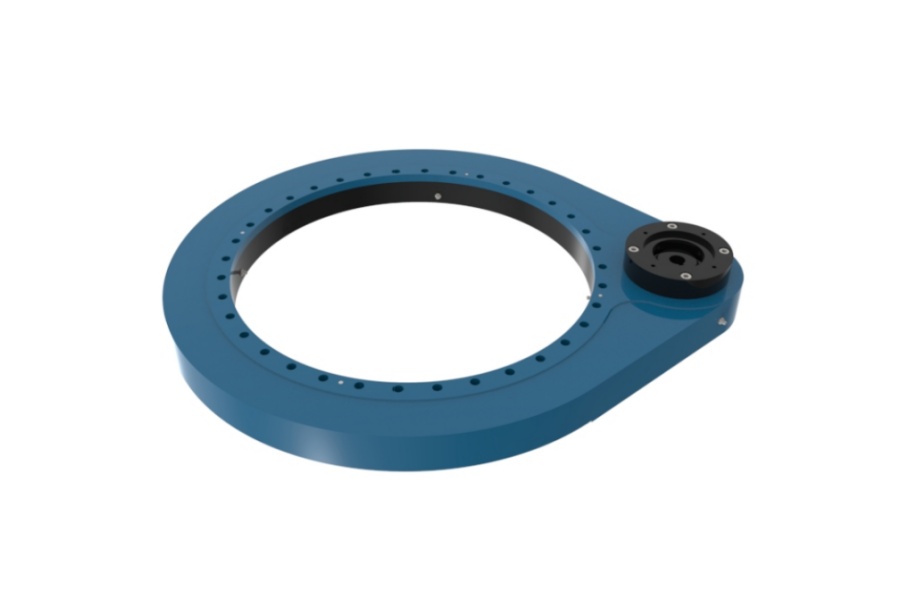

What is Lightweight Gear Slewing Drive SP-I 0641

Lightweight Gear Slewing Drive SP-I 0641 is an integrated, high-precision gear reduction unit engineered for smooth, reliable, and controlled rotary motion in industrial machinery. This specific model features an optimized design comprising precision-machined gears – typically a large wheel gear and a smaller pinion gear – housed within a robust yet compact structure. Utilizing a 4 mm module, the SP-I 0641 incorporates a wheel gear with 183 teeth (Z2) and a pinion gear with 15 teeth (Z1), achieving a significant transmission ratio of 12.2:1 (i). This configuration translates high-speed input rotation into powerful, controlled output torque, reaching a maximum of 6550 Newton meters (Md max). Its core function is to provide efficient power transmission and precise positioning while significantly simplifying the overall mechanical design and installation complexity compared to traditional solutions. Mounting is streamlined through its stable base, ensuring rigidity and accurate positioning within the host machinery.

Slewing Drive External Gear vs Internal Gear How to Choose

Selecting between external and internal gear configurations for a slewing drive like the SP-I 0641 hinges on specific application requirements concerning space, torque, efficiency, and maintenance. SP-I 0641 typically utilizes an external pinion meshing with an internal ring gear configuration. Here’s a breakdown to guide selection:

External Gear (Pinion): Offers excellent accessibility for inspection, lubrication, and potential maintenance or replacement. This configuration often provides high torque density and can be advantageous for achieving very high transmission ratios. The meshing action tends to push the gears apart slightly, which requires robust bearing support within the drive housing to maintain precise alignment and handle the resultant forces.

Internal Gear (Ring Gear): Provides a more compact overall package, as the pinion rotates inside the ring gear. This meshing action tends to pull the gears together, potentially offering smoother operation with less radial load on bearings in certain designs. Internal gears can sometimes offer slightly higher efficiency due to the continuous meshing contact profile. They are often preferred where space constraints are paramount or a very rigid, enclosed structure is beneficial.

The SP-I 0641 leverages the internal ring gear design to achieve its compact "Lightweight" profile while maintaining high torque capacity and stability. The choice ultimately depends on prioritizing factors like maximum compactness (favoring internal), ease of service access (favoring external pinion), specific torque/speed requirements, and integration constraints within the machinery.

Energy Efficiency Ratio of Lightweight Gear Slewing Drive SP-I 0641

The Lightweight Gear Slewing Drive SP-I 0641 is engineered for high operational efficiency, directly impacting its energy consumption ratio. This high efficiency translates into significant energy savings over the drive's operational lifetime. Key factors contributing to its favorable energy efficiency ratio include:

Precision Gearing: The use of hardened and ground gears (both the wheel and pinion) minimizes friction losses at the meshing points. Advanced tooth profile geometry ensures smooth engagement and reduced sliding friction.

Optimized Bearing Arrangement: High-quality, low-friction bearings are selected and precisely preloaded to minimize rotational resistance within the drive unit itself.

High-Quality Lubrication: Efficient, long-lasting lubricants specifically formulated for gear drives reduce internal friction and wear, maintaining peak efficiency over extended periods.

Robust Sealing: Effective seals prevent lubricant leakage and ingress of contaminants, preserving lubrication quality and preventing efficiency degradation caused by wear or contamination.

Optimized Gear Ratio: The specific ratio (12.2:1) allows smaller, more efficient motors to be used to achieve the required output torque and speed, reducing the primary energy input needed.

While manufacturers rarely publish a single "efficiency ratio" figure encompassing all losses (gear mesh, bearings, seals), well-designed slewing drives like the SP-I 0641 typically achieve overall mechanical efficiencies exceeding 90-92% under optimal operating conditions. This high efficiency means less wasted energy as heat and lower power consumption for the motor driving the unit, leading to reduced operational costs.

Characteristics of Lightweight Gear Slewing Drive SP-I 0641

The SP-I 0641 distinguishes itself through a combination of performance-oriented features tailored for modern, space-conscious automation:

High Torque Density: Delivers exceptional output torque (6550 Nm) relative to its compact size and weight, maximizing power in minimal space.

Precision Positioning: Manufactured with high-precision ground gears and tight tolerances, ensuring accurate rotational positioning and repeatability, crucial for automated processes.

High-Speed Capability: Engineered for smooth operation at higher rotational speeds compared to many traditional heavy-duty slewing drives, enabling faster cycle times.

Compact & Lightweight Design: The integrated housing and efficient gear arrangement minimize footprint and overall weight, simplifying integration into machinery where space and weight are critical factors.

High Rigidity & Stability: A robust housing and optimized internal structure, combined with a stable mounting base, provide excellent resistance to tilting moments and operational loads, ensuring consistent performance.

Simplified Integration: The self-contained unit with a mounting base drastically reduces design complexity and installation time for OEMs and end-users.

High Efficiency: As detailed previously, precision components and design minimize energy losses.

Durability: Use of high-strength materials, surface hardening, and quality bearings ensures a long operational life even under demanding conditions.

Defined Transmission Ratio: The fixed 12.2:1 ratio provides predictable speed reduction and torque multiplication.

Applications of Lightweight Gear Slewing Drive SP-I 0641

The blend of compactness, high torque, precision, and speed makes the SP-I 0641 ideal for numerous demanding industrial applications:

Industrial Automation: Robotic arms (especially for wrist rotation or tool orientation), precision rotary indexing tables, automated assembly stations, material handling turntables, and CNC fixture rotation.

Packaging Machinery: Rotary fillers, capping machines, labeling stations, and product orientation turntables requiring precise angular positioning.

Medical & Laboratory Equipment: CT/C-arm scanner rotation stages, surgical robot joints, sample handling carousels, and precision diagnostic instrument positioning.

Semiconductor Manufacturing: Wafer handling robots, precision inspection stages, and component positioning within cleanroom environments.

Optics & Laser Processing: Rotary stages for laser cutting, engraving, welding, and optical component alignment requiring smooth, precise motion.

Solar Tracking (Smaller Units): Azimuth or elevation axis drives in smaller concentrated solar power (CSP) or high-precision PV tracking systems (though larger drives often handle utility-scale).

Radar & Surveillance: Positioning drives for smaller antennas, surveillance cameras, or sensor platforms requiring smooth panning.

Test & Measurement Equipment: Rotary positioning stages for automated testing and calibration.

Factors Influencing Lightweight Gear Slewing Drive SP-I 0641 Price

The cost of a Lightweight Gear Slewing Drive SP-I 0641 is influenced by several key factors:

Material Costs: Fluctuations in the prices of high-quality alloy steels used for gears, shafts, and housings, specialized bearing steel, and advanced sealing materials directly impact the base cost.

Manufacturing Precision & Complexity: The high level of precision required – including gear hobbing, grinding, heat treatment (case hardening), and honing – involves expensive machinery, skilled labor, and significant time investment. Tolerances are extremely tight.

Bearing Quality & Type: The cost, quality, and quantity of the high-capacity, low-friction bearings (often cross-roller or multi-row angular contact) used internally constitute a major portion of the drive's cost.

Sealing Technology: Effective, durable seals capable of keeping lubricant in and contaminants out, especially for IP-rated versions, add to the cost.

Surface Treatments & Coatings: Processes like gear tooth grinding, superfinishing, specialized coatings for wear resistance or corrosion protection, and surface hardening treatments increase manufacturing cost but enhance performance and lifespan.

Design & Engineering: Investment in R&D for optimization, finite element analysis (FEA) for strength and rigidity validation, and design for manufacturability are factored into the unit price.

Quality Control & Testing: Rigorous in-process and final inspection protocols, including gear testing (profile, lead, runout), noise testing, and functional load testing, ensure reliability but add cost.

Order Volume & Customization: Economies of scale apply; larger production runs typically reduce the unit cost. Conversely, any customization (special flanges, shaft modifications, unique seals, special lubricant, specific certifications) increases the price.

Supply Chain & Logistics: Costs associated with sourcing specialized components globally, transportation, and inventory management.

Brand Reputation & Support: Manufacturers with established reputations for quality and reliability, backed by strong technical support and warranties, often command a premium price.

Supplier of Lightweight Gear Slewing Drive SP-I 0641

LYRADRIVE stands as a prominent manufacturer specializing in the design and production of high-performance slewing drives, including the Lightweight Gear Slewing Drive SP-I 0641. Leveraging advanced engineering capabilities and stringent quality control processes, LYRADRIVE focuses on delivering solutions characterized by precision, reliability, and high torque density suitable for demanding automation and industrial applications. Their expertise encompasses optimizing gear geometries, selecting premium materials, and employing precision manufacturing techniques to ensure superior performance and longevity. LYRADRIVE provides comprehensive technical support to assist customers in selecting and integrating the optimal slewing drive solution, such as the SP-I 0641, into their specific machinery, aiming to enhance efficiency and reduce total cost of ownership through robust design and dependable operation.
