SP-I Slew Drive

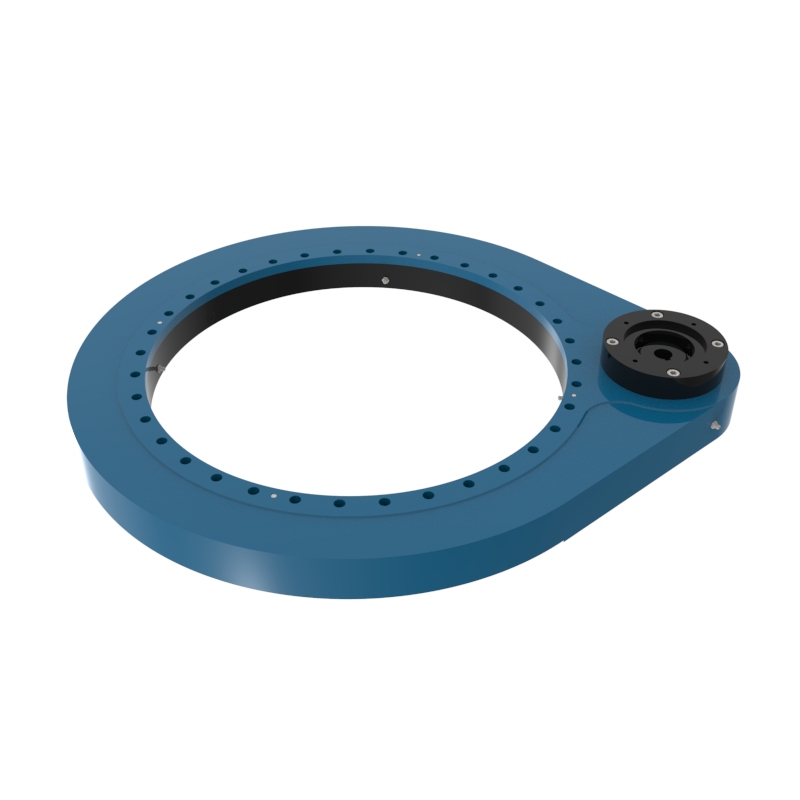

Lightweight Slewing Ring Gear Drive SP-I 0641

Lightweight Slewing Ring Gear Drive SP-I 0641 is an advanced, compact rotational transmission mechanism composed of a precision-machined slewing ring, a robust gear, and a high-strength lightweight housing, designed to deliver exceptional load-carrying capacity, smooth rotational control, and long-lasting durability. As a trusted industry leader, Lyradrive engineers these high-quality slew drive solutions to empower a wide range of demanding applications, including solar tracking systems, industrial automation, wind energy equipment, and construction machinery, ensuring unmatched precision and reliable performance for your projects worldwide.

Module: 4 mm

Teeth number of wheel: 183 (Symbol: Z2)

Teeth number of pinion: 15 (Symbol: Z1)

Gear ratio: 12.2 (Symbol: i)

Max torque: 6550 Newton-meters (Symbol: Md max)



Description

Overview of Lightweight Slewing Ring Gear Drive SP-I 0641

The Lightweight Slewing Ring Gear Drive SP-I 0641 is an advanced, highly efficient rotational transmission solution engineered to handle radial, axial, and tilting moment loads simultaneously. Designed by Lyradrive, this specific SP-I series model focuses on combining a compact, low-weight profile with uncompromised load-bearing strength. Utilizing a precision-machined slewing ring and a heavy-duty gear mechanism enclosed in a durable housing, the SP-I 0641 delivers smooth, reliable, and highly accurate rotational motion. Its lightweight architecture makes it an ideal choice for modern engineering projects where reducing overall equipment weight is just as critical as maintaining optimal mechanical performance.

Unlike traditional worm gear drives that rely on self-locking mechanisms, the SP-I 0641 utilizes a direct-drive spur gear system that enables smooth back-driving and rapid, high-frequency positioning. This makes it particularly well-suited for applications requiring fast response times and repeatable accuracy. With an IP65-rated sealed housing and transmission efficiency exceeding 90%, the SP-I 0641 delivers dependable performance in demanding indoor and outdoor environments.

Applications of Lightweight Slewing Ring Gear Drive SP-I 0641

The SP-I 0641 is widely used in industrial machinery automation—particularly in applications requiring high precision, high speed, and reliable speed control.

Aerial Work Platforms & Manlifts

Reliable high-torque rotation under changing loads ensures safety and smooth operation. The lightweight design helps improve payload capacity and energy efficiency.

Robotic & Automated Machinery

Enables precise, repetitive rotary positioning for industrial automation environments. Used in automated turntable systems requiring high-speed, precision-driven positioning.

Mobile Cranes & Boom Lifts

Powers the slewing motion of lifting arms with high load capacity and reliability, while the reduced weight contributes to overall system efficiency.

Solar Trackers & Renewable Energy Platforms

Provides dual-axis rotation with excellent tracking precision under wind and load pressure. High transmission efficiency allows trackers to respond quickly to sun position changes.

Marine & Offshore Equipment

Corrosion-resistant, sealed structure ensures long-term use in humid or saline environments.

Tech Specs of Lightweight Slewing Ring Gear Drive SP-I 0641

While specific parameters can be customized to meet your exact project requirements, the standard technical specifications for the Lightweight Slewing Ring Gear Drive SP-I 0641 typically feature:

Module and Gear Geometry

The SP-I 0641 features a module (M) of 4 mm, with a 15-tooth pinion (Z1) driving a 183-tooth gear wheel (Z2). This precision-matched gear geometry ensures smooth meshing, even load distribution, and long-term durability under continuous operation.

Gear Ratio

With a gear ratio of 12.2:1, the SP-I 0641 delivers an effective balance between rotational speed and torque multiplication—ideal for indexing and positioning tasks that demand both responsiveness and control.

Torque Performance

The drive delivers a maximum torque (Md max) of 6,550 N·m and a nominal torque (Md nom) of 4,680 N·m, providing ample power for demanding industrial applications. Its maximum holding torque (Mh) also reaches 6,550 N·m, ensuring stable load retention when the drive is stationary.

Load Capacity

The SP-I 0641 is engineered to handle substantial multi-directional loads. Its radial static load rating (Co rad) reaches 410 kN, while the axial static load rating (Co ax) is 1,100 kN. Dynamic load ratings stand at 220 kN (Crad) and 255 kN (Cax), ensuring reliable performance even under continuous rotating loads.

Weight

Weighing approximately 75 kg, the SP-I 0641 maintains a favorable power-to-weight ratio, making it suitable for installations where both strength and weight efficiency are important.

Advantages of Lightweight Slewing Ring Gear Drive SP-I 0641

High Torque Density

Delivers impressive maximum torque (6,550 N·m) within a compact footprint and low weight (75 kg), offering exceptional power-to-weight ratio.

Efficient Spur Gear Transmission

The direct meshing spur gear design provides a highly efficient 12.2:1 speed reduction with transmission efficiency exceeding 90%, significantly reducing energy loss and heat generation compared to worm gear alternatives.

Integrated Unitized Design

Pre-assembled unit combining slewing ring bearing and gearing simplifies installation, eliminates complex alignment between components, reduces potential failure points, and ensures consistent performance.

IP65 Sealed Enclosure

The fully sealed housing provides robust protection against dust ingress and low-pressure water jets, ensuring reliable operation in harsh industrial environments and significantly extending service life.

Flexible Drive Input

Accommodates various drive sources, including electric motors and hydraulic motors, offering versatility for integration into different power systems.

Installation & Maintenance of Lightweight Slewing Ring Gear Drive SP-I 0641

Installation

The SP-I 0641 is pre-assembled and factory-lubricated, ready for direct installation. The mounting interface, motor flange, and shaft connection can be customized to system requirements. Prior to mounting, verify that the mounting surface is flat and clean, and align the drive accurately with the driven equipment to avoid misalignment. Regular inspection of mounting bolts is recommended to ensure proper tightening torque.

Maintenance

Thanks to its sealed structure and high-quality internal lubrication, the unit operates with minimal maintenance for extended periods. Regular checks on lubricant levels, mounting bolt tightness, and tilting clearance are recommended to ensure smooth operation and prolonged service life.

Why Choose Lightweight Slewing Ring Gear Drive SP-I 0641

Choosing the right drive solution is essential to your equipment's success. The SP-I 0641 offers several distinct benefits that make it a preferred option in specific application scenarios.

Ideal for Space and Weight-Constrained Applications

The SP-I 0641's lightweight, compact design makes it an ideal choice for equipment with strict weight or space limitations, improving payload capacity and energy efficiency.

High-Speed Capability for Rapid Positioning

With a gear ratio of 12.2 and support for operational speeds up to 25 RPM, the SP-I 0641 enables reliable performance for precise indexing and heavy-duty rotational applications.

High Precision and Repeatability

The combination of precision-ground gears and robust bearing arrangement ensures low backlash, smooth rotation, and accurate positioning capabilities.

Cost-Effective Solution

The SP-I 0641 offers a cost-effective alternative to more complex drive systems, providing reliable performance at a competitive price point.

Simplified System Integration

The SP-I 0641 arrives as a pre-assembled, unitized module ready for installation. It can be seamlessly integrated with hydraulic or electric motors, reducing design and assembly workload for equipment manufacturers.

Lightweight Slewing Ring Gear Drive SP-I 0641 Price

The price of the SP-I 0641 varies depending on configuration and order quantity. Buying directly from the manufacturer typically yields more favorable pricing than through multi-layer distributors. For specific pricing and customized solutions, please contact us for a detailed quotation based on your application requirements.

Package & Shipping

All SP-I 0641 drives are carefully packed in export-grade wooden crates or pallets to guarantee safe transport. Packaging includes protective foam padding and moisture-resistant materials to prevent damage in transit. Standard shipping options include sea freight, air freight, and express courier services. Lead time depends on order quantity and customization requirements, generally spanning 15 to 45 days for standard orders.

Lightweight Slewing Ring Gear Drive SP-I 0641 Manufacturer

LyraDrive (Luoyang Slewring Bearing Co., Ltd.) is a professional manufacturer specializing in the design and production of high-quality slewing drives and bearings. With over 15 years of industry experience, the company offers comprehensive customization services for SP-I 0641 products, including gear ratio optimization, motor mounting interface customization, and enhanced sealing options. With a professional team and stable processes and inspection processes, the company has been well known by peers and customers in the research and development and production of slewing drives, slewing bearings, worm gear drives and customized transmission components, integrating and unitizing products to make the product structure more reasonable.

The SP-I 0641 Series is widely used in aerial work platforms, solar tracking systems, industrial robotics, automated material handling, and marine equipment, delivering reliable performance across construction, renewable energy, and industrial automation sectors. LyraDrive manages the entire OEM process from design and prototyping to production and after-sales support, ensuring seamless communication, consistent quality, and faster delivery times for every project. With a commitment to quality and customer satisfaction, LyraDrive is your reliable partner for high-performance slewing drive solutions.

Lightweight Slewing Ring Gear Drive SP-I 0641 FAQ

Q1: What is the typical lifespan of a Lightweight Slewing Ring Gear Drive SP-I 0641?

A: With proper lubrication and maintenance, SP-I 0641 drives can operate reliably for many years, even in demanding applications. The lifespan depends on load conditions, duty cycle, and environmental factors.

Q2: Can I get a custom-designed SP-I 0641 for a unique application?

A: Yes. LyraDrive offers comprehensive customization services, including gear ratio optimization, motor mounting interface customization, and enhanced sealing options.

Q3: What is the difference between SP-I 0641 and worm gear slew drives?

A: The SP-I 0641 uses a spur gear drive mechanism, offering higher transmission efficiency (exceeding 90%) and faster rotational speeds compared to worm gear drives. SP-I drives allow smooth back-driving and rapid positioning, while worm gear drives provide inherent self-locking capability.

Q4: What is the MOQ (Minimum Order Quantity) for SP-I 0641?

A: LyraDrive is flexible and can accommodate orders from prototypes and small test batches to large-scale production runs. Please contact us to discuss your specific needs.

Q5: What motors are compatible with SP-I 0641?

A: The SP-I 0641 can be seamlessly integrated with hydraulic motors, AC motors, DC motors, or stepper/servo motors, providing flexibility for different power source requirements.


Item




SP-I 0641

Sign

Unit

Value

Module

M

mm

4

Teeth number of wheel

Z2

-

183

Teeth number of pinion

Z1

-

15

Gear ratio

i

-

12.2

Max torque

Md max

N.m

6550

Nom torque

Md nom

N.m

4680

Max holding torque

Mh

N.m

6550

Radial static load

Co rad

KN

410

Axial static load

Co ax

KN

1100

Radial dynamic load

Crad

KN

220

Axial dynamic load

Cax

KN

255

Weight

W

Kg

75
