Heavy Load Slewing Bearing Material Selection Techniques

Heavy Load Slewing Bearing Material Selection Techniques

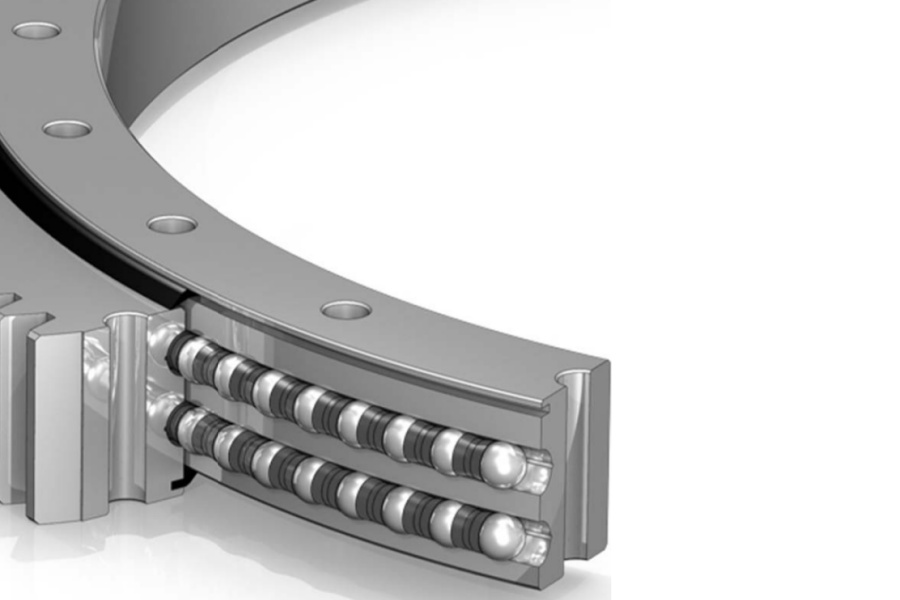

What is Heavy Load Slewing Bearing

Heavy Load Slewing Bearing refers to large-diameter rotational bearings engineered to withstand extreme combined loads (axial forces >1,000 kN, radial forces >500 kN, tilting moments >5,000 kN·m) in demanding industrial environments. These bearings feature reinforced raceways with multi-row roller arrangements (three-row cylindrical rollers or double-row ball/roller hybrids), thick-section rings, and specialized hardening processes to prevent subsurface fatigue.

Heavy Load Slewing Bearing Material Selection Techniques

Material choice critically impacts bearing life under extreme stresses. Follow these principles:

Core Material Properties:

Ultra-High Strength:

Axial/Radial Strength: Yield strength ≥1,200 MPa (e.g., 42CrMo4, 50Mn) to resist plastic deformation.

Fatigue Endurance: >600 MPa bending fatigue limit (ISO 281) for cyclic loading.

Hardness & Toughness Balance:

Raceway surface hardness: 58-62 HRC via case hardening.

Core hardness: 28-35 HRC to maintain fracture toughness (Charpy V-notch >40 J at -20°C).

Wear & Deformation Resistance:

High compressive strength (>2,000 MPa) to resist brinelling.

Retained austenite <15% post-hardening to minimize dimensional change.

Steel Grade Selection:

Standard Applications:

42CrMo4 (AISI 4140): Cost-effective for moderate corrosion environments. Depth-hardened to 10-20mm.

Extreme Load/Impact:

50Mn (AISI 1541): Superior wear resistance. Requires strict tempering control to avoid brittleness.

Corrosive Environments:

F51/F60 Duplex Stainless: For offshore/salt exposure. Sacrifices 15% load capacity vs. alloy steels.

Coated Alloy Steels: Zn-Ni plating + epoxy topcoat (ISO 12944 C5-M).

Heat Treatment Optimization:

Controlled Carburizing:

Case depth: 5-8% of roller diameter (e.g., 8mm for Ø80mm rollers).

Carbon potential: 0.8-1.0% at surface.

Deep Cryogenic Treatment:

-196°C stabilization reduces retained austenite by 90%, enhancing dimensional stability.

Precision Tempering:

Double tempering at 180-200°C minimizes residual stresses.

Forging & Processing:

Vacuum Degassed Steel:

Oxygen content <15 ppm to prevent inclusion-initiated fatigue cracks.

Directional Forging:

Grain flow parallel to raceways increases fatigue life by 30%.

Machinability:

Annealed hardness ≤229 HB for efficient gear cutting.

Lightweighting Strategies:

High-Strength Thin-Wall Designs:

Use bainitic steels (e.g., FB40) to reduce wall thickness 15% without compromising strength.

Flange Optimization:

Integrate mounting flanges into ring design (saving 20% weight vs. welded assemblies).

Heavy Load Slewing Bearing Characteristics

Multi-Roller Configurations: 3-row cylindrical rollers (95% radial load share) + 2-row balls (axial/moment).

Extreme Load Ratings: Up to 50,000 kN·m static moment capacity.

Reinforced Ribs: 30-50mm thick rib walls prevent ring distortion.

Preloaded Assemblies: Negative clearance designs eliminate operational backlash.

IP69K Sealing: Triple-lip seals with HNBR compounds.

Applications of Heavy Load Slewing Bearing

Mining: Bucket wheel excavators (20,000+ kN·m moments).

Offshore: Floating crane slew rings (F51 stainless variants).

Heavy Construction: Tunnel boring machine thrust bearings.

Energy: 10MW+ wind turbine yaw bearings.

Material Handling: Port crane boom foot bearings.

Price Influencing Factors

Material Cost: Duplex stainless (F51) costs 3.2x 42CrMo4.

Heat Treatment Depth: 8mm case depth adds 40% vs. 4mm.

Forging Complexity: Directional forging premiums (+25%).

Precision: Raceway profile tolerance ±0.05mm adds 30%.

Testing: Full-scale prototype testing (+15-20%).

Certifications: DNV-GL/API 8C adds 12-18%.

Heavy Load Slewing Bearing Supplier LYRADRIVE

LYRADRIVE engineers forged alloy steel slewing bearings (50Mn/42CrMo4) with 8-12mm case depths achieved via precision carburizing. Our patented -196°C cryo-treatment enhances microstructural stability, while directional grain flow forging extends L10 life by 35% under 20,000 kN·m loads. Bearings undergo 200% overload testing per ISO 17566.

Material selection for heavy load slewing bearings demands steel grade optimization (42CrMo4 for cost, 50Mn for wear), depth-specific hardening (5-8% roller diameter case depth), and microstructural control (retained austenite <15%). While premium materials add 20-50% to initial cost, they extend bearing life by 200-400% in applications like mining excavators or offshore cranes. Partnering with suppliers like LYRADRIVE ensures material science expertise translates into measurable ROI through reduced downtime and maintenance costs.
